Kick-down, function - GF27.10-P-2010T
TRANSMISSION 722.6 in MODEL 203 as of 1.6.02, 209, 211, 215, 220, 230 as of 1.6.02, 240
Operation
The driver's wish for the maximum vehicle acceleration is met by the kickdown function.
The kick-down function is activated starting from a pedal travel at the electronic accelerator of more than approx.90%.
Furthermore the driver can detect an increase in pedal effort at the kick-down point. For this purpose a kick-down simulator is integrated in the electronic accelerator.

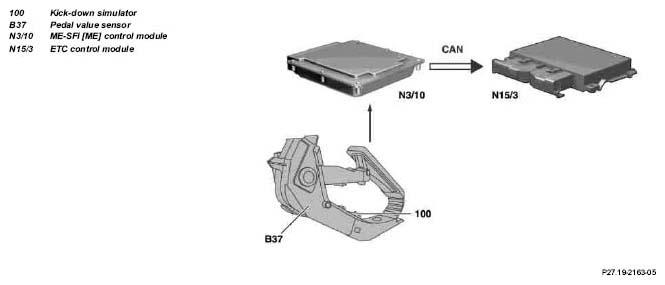

The kick-down signal is recorded by the pedal value sensor (B37), read in by the ME-SFI control module (N3/10) or CDI (N3/9) control module and passed on to the ETC control module (N15/3).
Based on this information the ETC control module (N15/3) actuates the solenoid valves so that the upshifts and downshifts take place at higher engine speeds in order to achieve maximum performance.
| Kick-down simulator, location/task | GF27.10-P-5108T |
