Dynamic lumbar support on dynamic seat, function - GF91.25-P-2015SX
MODEL 216.3, 221.0 /1 with CODE (432) Left and right dynamic multicontour seat up to Model Year 8
Function requirements
- Terminal 15R ON or
- Circuit 15 ON
Function

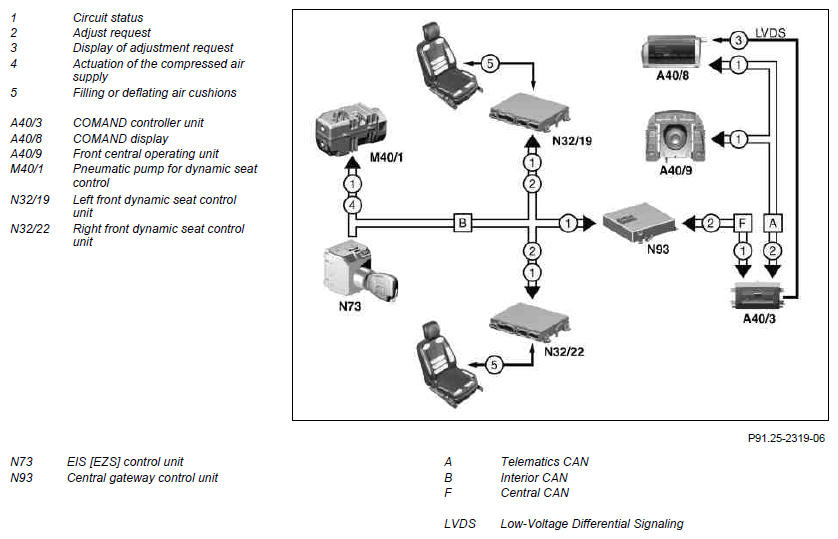

In order to prevent tensions in the back during longer drives, the dynamic seats are equipped with the dynamic lumbar support (massage) function.
By pressing the multicontour seat quick select button (A40/9s4) in the front central operating unit, the "Pulse mode" submenu is activated in the COMAND display and the air cushions in the lumbar support area are alternately filled and deflated.
The massage function can be individually set using the turn/push control (A40/9s11):
- Slow and non-intense massage
- Slow and intense massage
- Fast and non-intense massage
- Fast and intense massage
| Pneumatic pump for dynamic seat, component description | M40/1 | GF91.25-P-5204SX |
| Dynamic seat control unit, component description | N32/19, N32/22 | GF91.25-P-5202SX |
| Electronic ignition/starter switch control unit (EIS) component description | N73 | GF80.57-P-6000SX |
| Central gateway control unit, component description | N93 | GF54.21-P-4170SX |
