O2 sensors, location - GF07.04-P-4103-02M

Shown is model 240

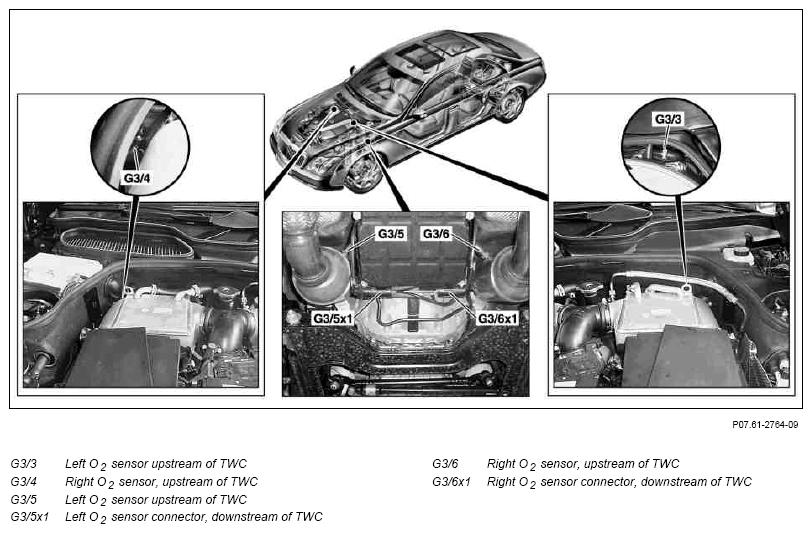

Fig 1: Identifying Left/Right O2 Sensor And Connectors
G07537569Courtesy of MERCEDES-BENZ USA
