Pressure sensor downstream throttle valve actuator location/task/function - GF07.04-P-5049M
ENGINE 275.950 in MODEL 215, 220
ENGINE 275.951 in MODEL 230 up to Model Year 8
ENGINE 275.953 in MODEL 216, 221 up to Model Year 8
ENGINE 275.954 in MODEL 230 up to Model Year 8
ENGINE 275.980 in MODEL 215, 220
ENGINE 275.981 in MODEL 230 up to Model Year 8
ENGINE 275.982 in MODEL 216, 221 up to Model Year 8
ENGINE 285.950 in MODEL 240
ENGINE 285.980 in MODEL 240

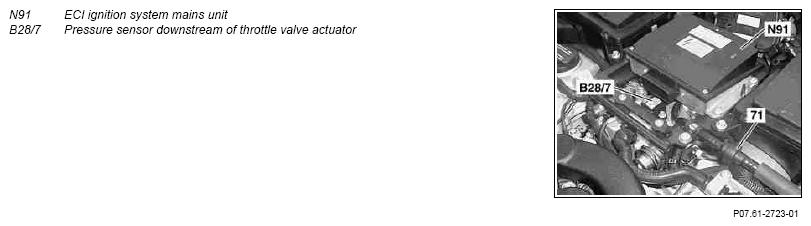

Fig 1: Identifying Pressure Sensor Downstream Of Throttle Valve Actuator And ECI Ignition System Mains Unit
| Pressure sensor downstream of throttle valve actuator location | Mounted on the intake manifold upstream of the ECI ignition system power pack | |
| Pressure sensor downstream of throttle valve actuator task | Detects the engine loading which depends on the throttle valve position and the charge pressure. | |
| Pressure sensor downstream of throttle valve actuator function | GF07.04-P-5049-01M |
