Driver's Airbag, location/task/design/function - GF91.60-P-4001Q: Notes
Models 209.3 /4

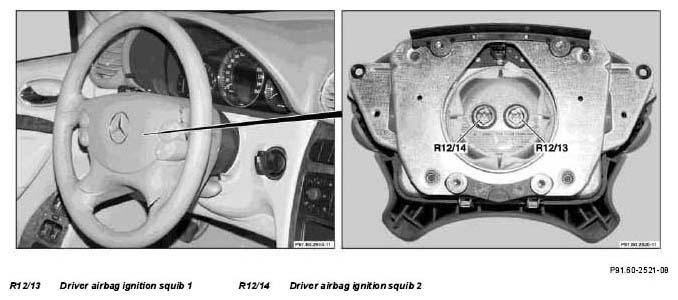

| Driver airbag, location | The driver airbag, with the associated squib 1 driver airbag (R12/13) and squib 2 driver airbag (R12/14), is integrated in the impact absorber in the multifunction steering wheel. | ||
| Driver Airbag - Task | The driver airbag protects the driver against injuries in the event of a head-on collision. The driver is restrained and braked during a head-on collision by an airbag which within approx. 45 ms. inflates in the space between the multifunction steering wheel and the driver's body. | ||
| Driver Airbag - Design | GF91.60-P-4001-03Q | ||
| Driver Airbag - Function | GF91.60-P-4001-02Q |
