Height release switch, location/task - GF91.29-P-2116Q: Notes
MODELS 209.3 /4
with CODE (275c) Electric adjustable driver seat, steering column and exterior mirrors with memory
with CODE (242b) Electric adjustable front passenger seat with memory

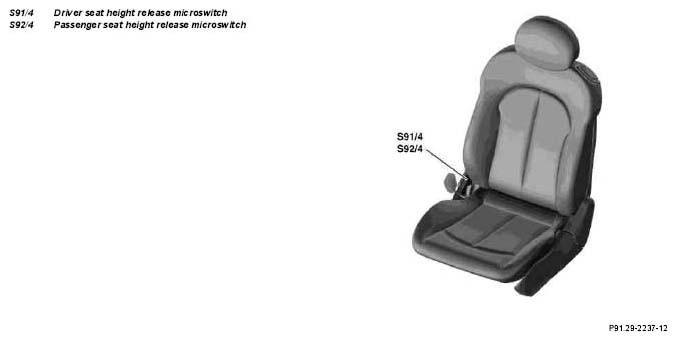

Shown on driver seat
| Height release switch, location | The driver seat height release microswitch (S91/4) and the front passenger seat height release microswitch (S92/4) are each located on the seat frame in the area of the seat belt buckle side backrest adjustment. | ||
| Height release switch, task | GF91.29-P-2116-02Q |
