Passenger airbag, location/task/design/function - GF91.60-P-4003Q: Notes
Models 209.3 /4

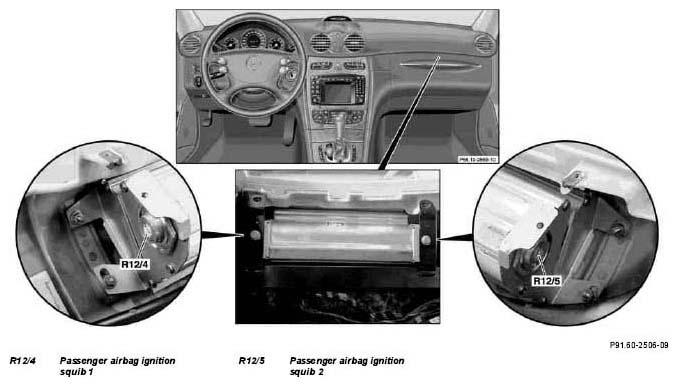

| Passenger airbag, location | The front passenger airbag with front passenger airbag squib 1 (R12/4) and front passenger airbag squib 2 (R12/5) is located in the instrument panel above the glove box | ||
| Passenger airbag, task | The front passenger airbag protects the front passenger against injuries in the event of a frontal impact. In the event of a head-on collision the front passenger is restrained by an airbag which fills the space between the instrument panel and the body of the front passenger within approx. 50 ms. | ||
| Passenger airbag, design | GF91.60-P-4003-03Q | ||
| Passenger airbag, function | GF91.60-P-4003-02Q |
