Instrument cluster, component description - GF54.30-P-6000TM

MODEL 211.0/2 as of 1.6.06 except CODE (494) USA version except CODE (498) Japan version

MODEL 211.0/2 as of 1.7.06 with CODE (494) USA version with CODE (498) Japan version

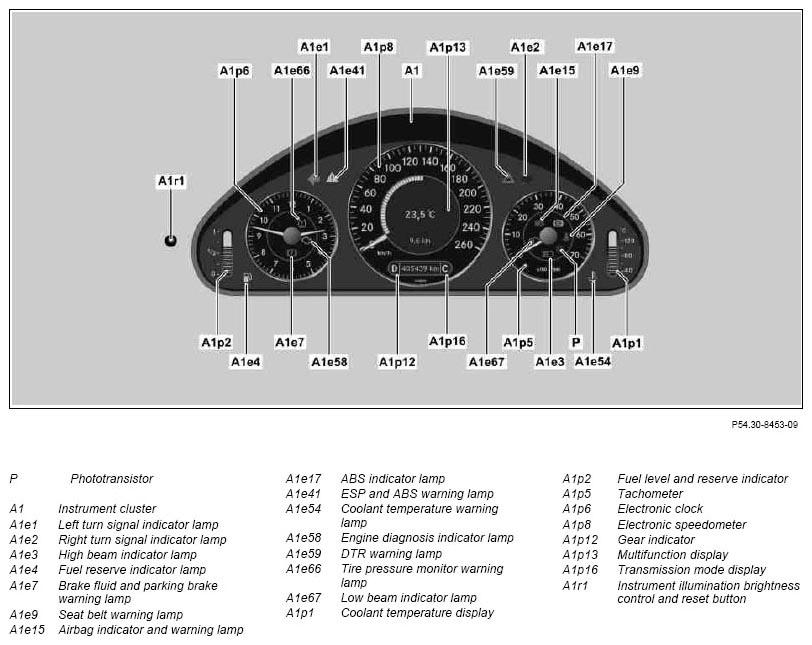

Fig 1: Identifying Instrument Cluster Components - Except Code (494) USA Version

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Shown except code (494) USA version

Shown with code (494) USA version

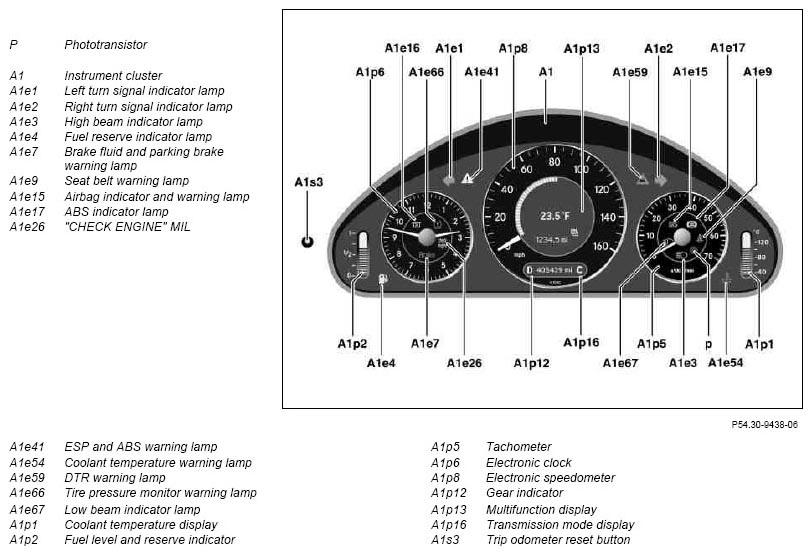

Fig 2: Identifying Instrument Cluster Components - With Code (494) USA Version

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The instrument cluster is located in the instrument panel.

Task

The instrument cluster shows the dynamic and static vehicle condition visually.

The following 6 displays form the basis of information for the driver:

• Electronic speedometer
• Tachometer
• Electronic clock
• Multifunction display
• Coolant temperature display
• Fuel level and reserve indicator
