Travel time, function - GF54.50-P-2004T

Model 211.0/2

Travel time "Since start" (short-distance memory), function

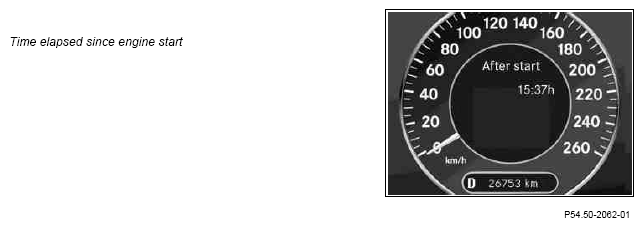

Fig 1: Display Travel Time Since Start (Short-Distance Memory)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Travel time "Since reset" (long-distance memory), function

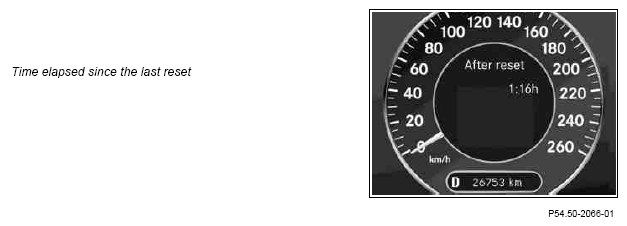

Fig 2: Display Travel Time Since Reset (Long-Distance Memory)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

The display screen "since start" of "since reset" for the journey time can be activated the via the system selection button (S110s3) and scroll forwards and backwards button (S110s1) of the multifunction steering wheel.

As the time is only counted with "terminal 15 ON", the instrument cluster (A1) requires information about the status of terminal 15. This information is relayed by the EIS control module (N73) onto the interior compartment CAN and is read by the instrument cluster (A1). The time is calculated internally in the instrument cluster (A1).

If the display of travel time or travel distance exceeds the maximum display value (99:59 hours or 40959 miles (65535 km)), then the travel time and travel distance of the respective memory are reset automatically. This preserves the relationship between travel time and mileage.
