Front emergency tensioning retractor, location/task/design/function - GF91.40-P-4000T: Notes
MODEL 211.0 /2 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version
MODEL 211.0 /2 up to 30.6.06 with CODE (494) USA version with CODE (498) Japan version
Shown on model 211.0

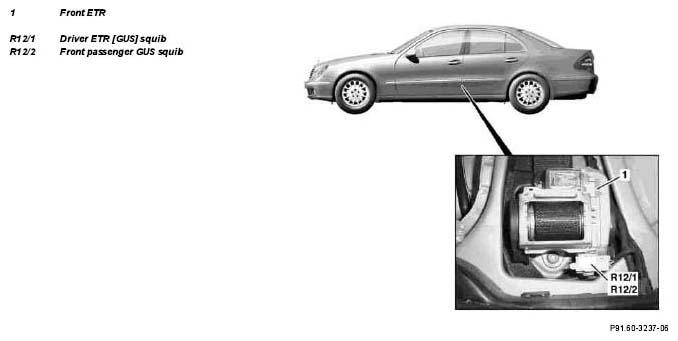

| Front emergency belt tensioner, location | The front emergency tensioning retractor with the driver emergency tensioning retractor squib (R12/1) and the front passenger emergency tensioning retractor squib (R12/2) are each located at the bottom of the B-pillar behind the plastic trim. | ||
| Front emergency belt tensioner - task | The emergency tensioning retractor takes up the slack in the seat belt in the event of a collision (frontal or rear end collision) and prevents the seat belt's film reel effect. The close-fitting seat belt means that vehicle occupants are exposed to the deceleration forces acting on the body at an earlier stage. | ||
| Front emergency belt tensioner - design | GF91.40-P-4000-02T | ||
| Front emergency tensioning retractor, function | GF91.40-P-4000-03T |
