UPCI portable CTEL holder (Universal Portable CTEL Interface), component description - GF82.70-P-5001GZ

MODEL 164, 251 with CODE (386) Preinstallation for telephone "Handy", UPCI system with CODE (388) Telephone "Handy", UPCI system with CODE (389) Mobile phone preinstallation with universal interface, USA/Canada except CODE (498) Japan version

Shown on model 164.1

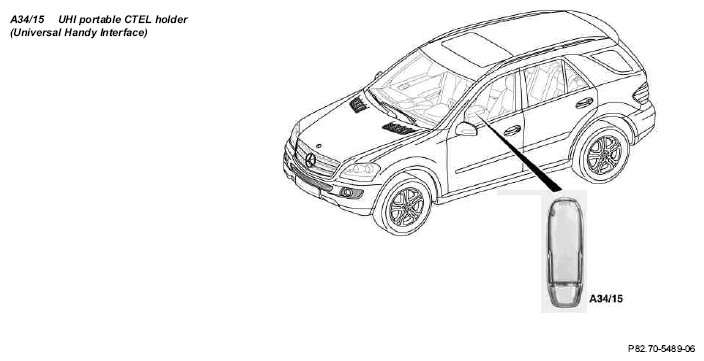

Fig 1: Identifying UHI Portable CTEL Holder (Universal Handy Interface)
G05260290Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Location

The UPCI [UHI] portable CTEL holder is located under the armrest in the center console.

Task

The various UPCI [UHI] portable CTEL holders support various types of portable CTELs which can be connected to the vehicle's own telecommunications system via the Universal Portable CTEL Interface (UPCI [UHI]) control unit (N123/1).
