Steering column adjustment, function - GF46.15-P-2000SX
MODEL 221.0 /1 up to Model Year 8
Shown on vehicle up to 31.5.07
Function requirements:
- Circuit 15R On (up to 31.5.07)
Function

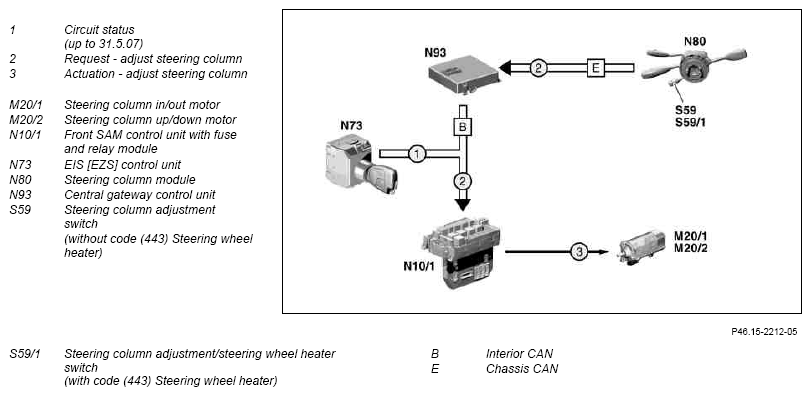

The steering column is manually adjustable in the longitudinal position and height via the steering column adjustment switch on the steering column module.
The corresponding adjustment request is read in by the steering column module and passed on from the central gateway control unit on the interior CAN via the chassis CAN.
The front SAM control unit receives the adjustment request and actuates the steering column motors for adjusting the steering column accordingly.
| Steering column adjustment motor, component description | M20/1, M20/2 | GF46.15-P-5030SX | |
| Driver-side SAM control unit with fuse and relay module, component description | N10/1 | GF54.21-P-6010SX | |
| Electronic ignition/starter switch control unit (EIS), component description | N73 | GF80.57-P-6000SX | |
| Steering column module component description | N80 | GF54.21-P-6050SX | |
| Central gateway control unit, component description | N93 | GF54.21-P-4170SX | |
| Steering column adjustment switch, component description | S59 On vehicles without code (443) Steering wheel heater S59/1 On vehicles with code (443) Steering wheel heater |
GF46.15-P-5010SX |
