Driver/passenger sidebag, component description - GF91.60-P-4039SX
MODEL 216.3, 221.0 /1 up to Model Year 8

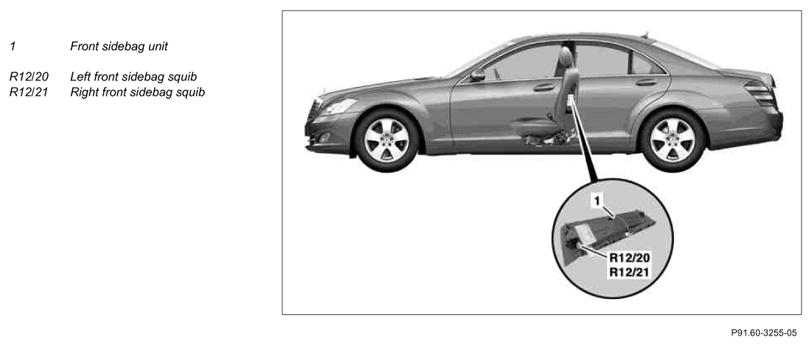

Shown on model 221.0
Location
The sidebag units are located in the outer side of the driver and front passenger seat backrests.
Task
If a side impact occurs in the door and B-pillar area, the sidebag units protect the driver and the front passenger from injury.
Triggering is conducted by the restraint systems control unit (N2/7) igniting each of the squibs.
