WSS sensor (Weight Sensing System), component description - GF91.60-P-4036SXU
MODEL 221.0 /1 with CODE (494) USA version up to Model Year 8

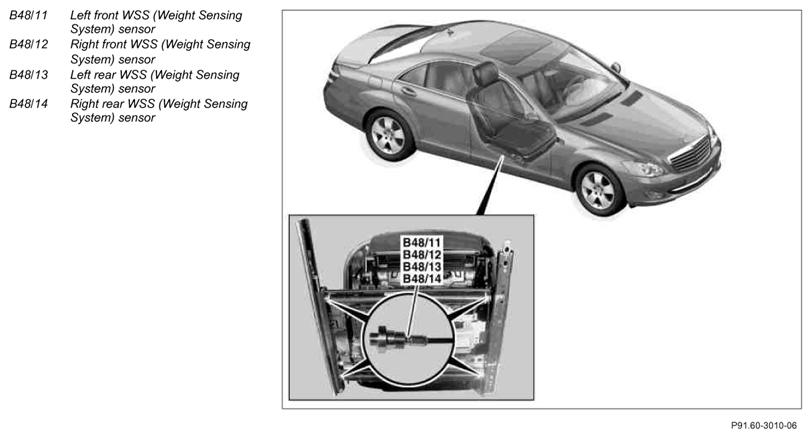

Location
The WSS sensors are located at the seat frame of the front passenger seat.
Task
The WSS sensors determine the weight (e.g. a person or a child seat) on the front passenger seat.
The measured values are transmitted to the WSS control unit (Weight Sensing System) (N2/13).
