Weight Sensing System (WSS) control unit, component description - GF91.60-P-4046LEU

MODEL 221.0 /1 up to 31.8.08 with CODE (494) USA version as of Model Year 2009 /Modification Year 08

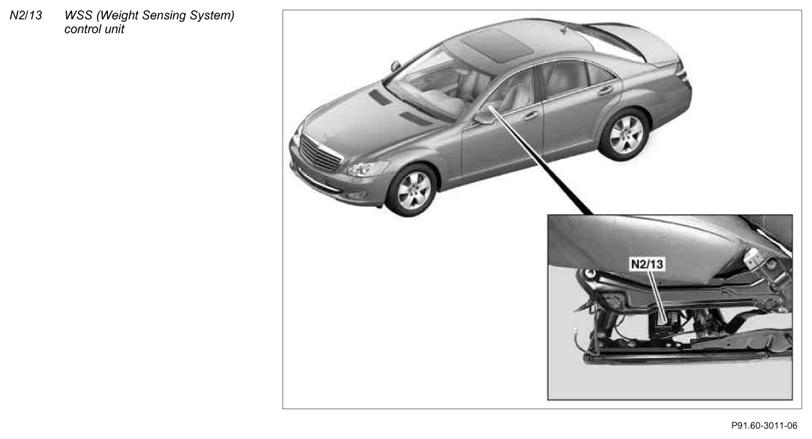

Fig 1: Locating Weight Sensing System Control Unit

Courtesy of MERCEDES-BENZ USA

Location

The WSS control unit is located at the seat frame of the front passenger seat.

Task

The component has the following tasks:

Reading in of sensors
Evaluation of input factors
Voltage supply of sensors

Reading in of sensors

The input factors are read in via the following connection:

Direct line

Direct line

The following sensors are read in via a direct line:

Belt tension sensor (B48/3)
Left front WSS sensor (Weight Sensing System) (B48/11)
Right front WSS sensor (Weight Sensing System) (B48/12)
Left rear WSS sensor (Weight Sensing System) (B48/13)
Right rear WSS (Weight Sensing System) sensor (B48/14)

Evaluation of input factors

The WSS control unit determines the weight (person or child seat) on the front passenger seat. The weight is determined via the data from the WSS sensors.

The tractive force at the belt is transmitted via the belt tension sensor to the WSS control unit.

The WSS control unit calculates the corresponding weight class from the weight and belt tension and transmits this on the interior CAN (CAN B).

Voltage supply of sensors

The WSS control unit supplies the power to the WSS sensors.

Wiring diagram for Weight Sensing System (WSS) control unit

PE91.60-P-2102-99SAA
