Kick-down, function - GF27.10-P-2010SX
TRANSMISSION 722.9 in MODEL 216, 221 up to Model Year 8
Shown on model 221 with engine 272
Kickdown, function
The driver's wish for the maximum vehicle acceleration is met by the kickdown function.
The kick-down function is activated from a pedal travel at the electronic accelerator > approx. 90 %.
When the electronic accelerator is pressed the driver will notice an increased backpressure at the kickdown point For this purpose a kick-down simulator is integrated in the electronic accelerator.

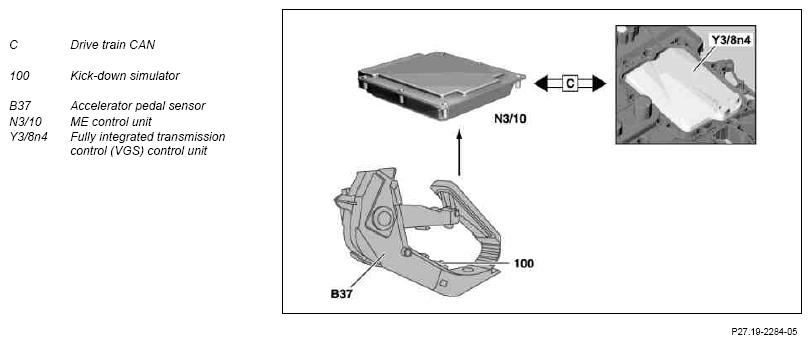

The "Kick-down" signal is recorded by the accelerator pedal sensor, read in by one of the following control units and passed on via the drive train CAN to the fully integrated transmission control (VGS) control unit:
- CDI control unit (N3/9), model 221
- ME-SFI [ME] control unit, model 216, 221
Based on this information the fully integrated transmission control (VGS) control unit actuates the control solenoid valves so that the upshifts and downshifts take place at higher engine speeds in order to achieve maximum performance.
| Kick-down simulator component description | GF27.10-P-5110SX |
