Throttle valve actuator, location/task/design/function - GF30.22-P-4101M

ENGINE 275.950 in MODEL 215, 220

ENGINE 275.951 in MODEL 230 up to Model Year 8

ENGINE 275.953 in MODEL 216, 221 up to Model Year 8

ENGINE 275.954 in MODEL 230 up to Model Year 8

ENGINE 275.980 in MODEL 215, 220

ENGINE 275.981 in MODEL 230 up to Model Year 8

ENGINE 275.982 in MODEL 216, 221 up to Model Year 8

ENGINE 285.950 in MODEL 240

ENGINE 285.980 in MODEL 240

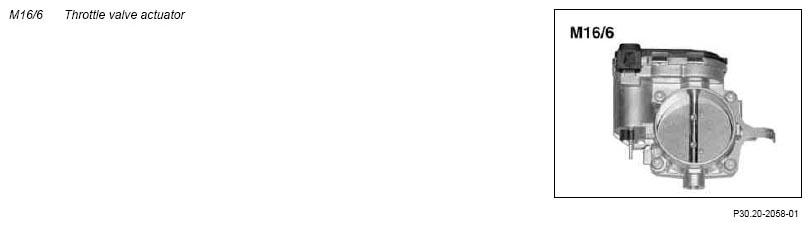

Fig 1: Identifying Throttle Valve Actuator

Courtesy of MERCEDES-BENZ USA

Throttle valve actuator position		GF30.22-P-4101-01M
Throttle valve actuator, task	Function rules: Idling speed Drive mode, according to accelerator pedal position, load and requests of momentary interface Cruise control mode Emergency mode of electronic accelerator.
Throttle valve actuator design		GF30.22-P-4101-03M
Throttle valve actuator, function		GF30.22-P-4101-02M
