Replacing Or Programming The Trunk Control Module (HDS) (80.20/39)

Publication date: 2006-11-30
Reference number: 80.20/39

REPLACING OR PROGRAMMING THE TRUNK CONTROL MODULE (HDS)

TECHNICAL SERVICE BULLETIN

Reference Number(s): P-B-80.20/39, Date of Issue: November 30, 2006

MERCEDES-BENZ:	Model 221
GROUP:	80 - Central Locking System, Convenience Operation, Drive Authorization System

SUBJECT

Model 221 up to VIN#026743 with Code 881 - Remote Trunk Closing (RTC) (MY2007)

Replacing or Programming the Trunk Control Module (HDS)

SERVICE INFORMATION

When replacing the "old" trunk control module (HDS) with the "new" control module or when programming the trunk control module to the current software release the following is to be observed:

REPLACING INFORMATION

Control Modules	Software
"Old" control modules: A 221 870 72 85 and A 221 870 78 86	"Old" software releases: 05/04 and 05/27 Control modules with software released 05/04 can only be updated to software release 05/27. Repinning must not be carried out in this case.
"New" control modules: A 221 870 61 85 or current control module	"New" software releases: 05/24 or current release

NOTE: The repinning procedure should only be done in the case of complaint. If the trunk control is operative, the trunk control module must not be replaced.

WARNING: Do not disconnect the negative battery cable. Extensive reprogramming requirements are otherwise necessary. Wiring harnesses are therefore electrically active.

Severe vehicle damage, personal injury, or death from electrical shock could result.

Exercise extreme caution while executing these installation instructions. Keep the ignition and radio powered OFF through the final test.

NEW PINNING PROCEDURE

Repinning Procedure

Pull down rear center arm rest console.
Remove console's false bottom with plastic wedge or suitable tool to uncover the rear SAM control module. (See WIS-net document AR88.50-P-5300sx.)
Remove the electrical connector in slot 147 fuse (dark red) in the rear SAM control module.

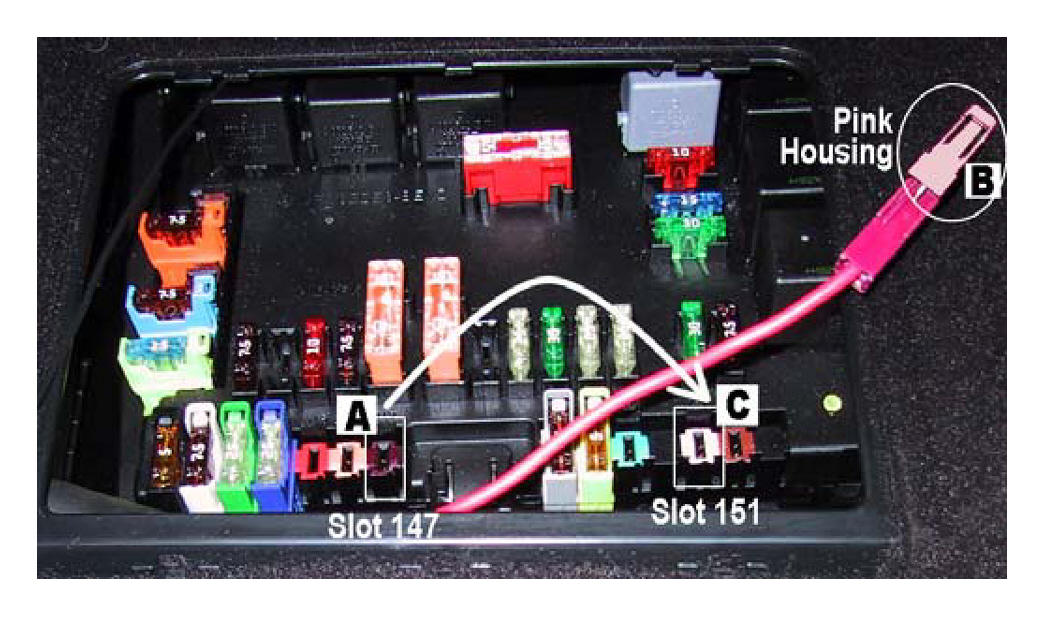

Fig 1: Rear SAM Control Module
Using special tool 220 589 0199 (handle) and 220 589 01 99 61 (bit), unpin the plug electrical contact from the dark red housing (A, Fig 1).
Repin the plug electrical contact into the pink housing (A 211 545 11 01) (B, Fig 1).
Mount the fuse into slot 151 (C, Fig 1).
Update the fuse assignment sheet by hand.

SPECIAL TOOLS

Fig 2: Special Tool - 000 589 13 99 30

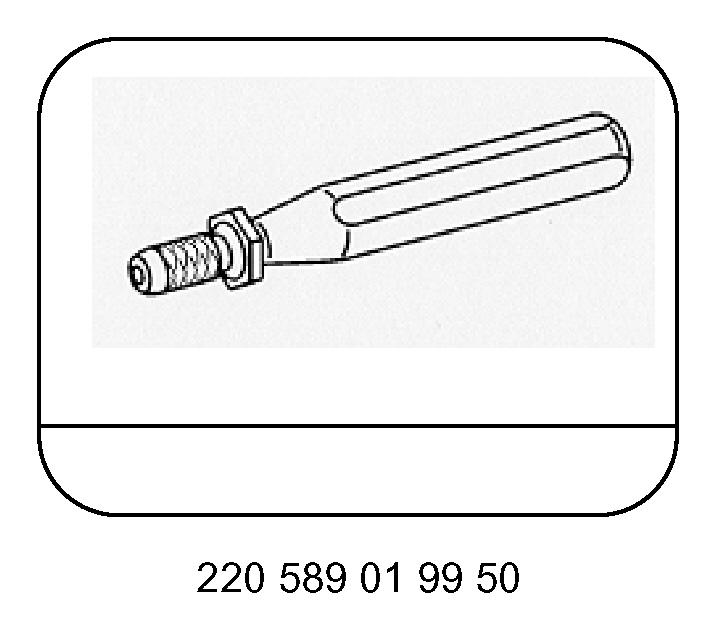

Fig 3: Special Tool - 220 589 01 99 50

SPECIAL TOOL INFORMATION

MBUSA Special Tool Number	Group / Category	Description
000 589 13 99 30	00 / B	Blade; MCP 2.8 / Fl. 2.8
220 589 01 99 50	00 / B	Blade Holder

NOTE: This tool is being replaced by 000 589 13 99 30.

PARTS INFORMATION

Type	Part Number	Color Code	Quantity
Pink Housing	A 211 545 11 01	Pink	1
