Component description for restraint systems control unit - GF91.60-P-4048LE

MODEL 216.3, 221.0 /1 as of model year 2009 /YoM 08

Shown on model 221

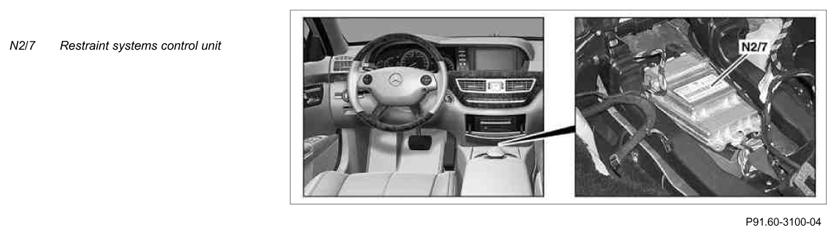

Fig 1: Locating Restraint Systems Control Unit
G07601775Courtesy of MERCEDES-BENZ USA

Location

The restraint systems control unit is located on the center tunnel.

Task

The restraint systems control unit has the following tasks:

Reading in of sensors and signals

The input factors are read in via the following connections:

Direct line

The following sensors are read in via a direct line:

The following signals are read in via a direct line:

Chassis CAN

The following signals are transmitted by the relevant control unit via interior CAN (CAN B) to the central gateway control unit (N93). This routes the signals via the chassis CAN to the restraint systems control unit:

(model 216 with code (494) USA version, model 221 with code (494) USA version as of 1.9.08)

On model 221 with code (233) DISTRONIC PLUS, the following signals are sent by the radar sensors control unit (SGR) (N62/1) (up to 31.8.10) or the video and radar sensor system control unit (N62/2) (as of 1.9.10) via vehicle dynamics CAN (CAN H) to the ESP control unit (N47-5):

The ESP control unit forwards the signals via chassis CAN to the restraint systems control unit.

Evaluation of input factors

The input factors that have been read in are evaluated by the integrated microprocessor and the relevant components are then actuated.

Actuation of components

Components are actuated via the following lines:

Direct line

The following components are actuated via a direct line:

Chassis CAN

The signals are sent by the supplemental restraint system control unit via the chassis CAN.

The functions resulting therefrom are described in the corresponding function descriptions (see block diagram or function schematic).

REFER TO SYSTEM WIRING DIAGRAMS Wiring diagram for airbag control unit with integrated emergency call system Model 216 PE91.60-P-2101-97CAA
Model 221 PE91.60-P-2101-97SAA
