Selector range sensor component description - GF27.19-P-5146GZ

TRANSMISSION 722.9 in MODEL 164.1 /8, 216, 221, 251.0 /1 up to Model Year 8

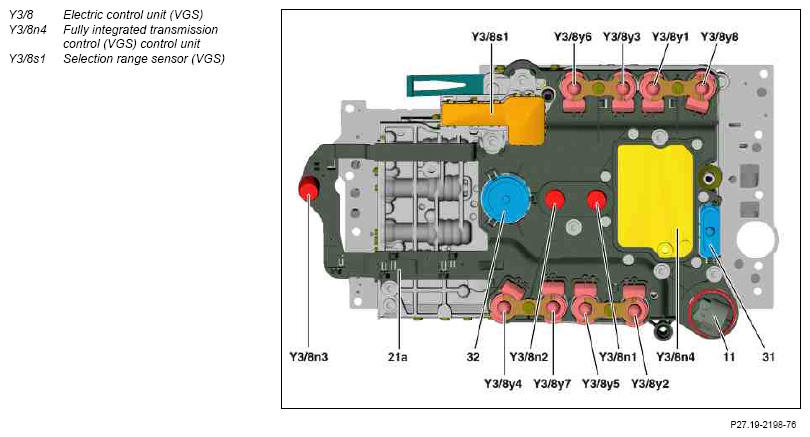

Fig 1: Identifying Selector Range Sensor Components

Courtesy of MERCEDES-BENZ USA

Location

The selection range sensor (VGS) is integrated in the electric control unit (VGS).

Task

The task of the selection range sensor (VGS) is to detect the selection ranges "P", "R", "N", "D" and the intermediate positions.
