Speed sensor - Function - GF27.19-P-5127-02N
Transmission 722.9 in model 171.4, 203, 209, 211, 215, 219, 220, 230, 463.303/340/341 turbine speed sensor

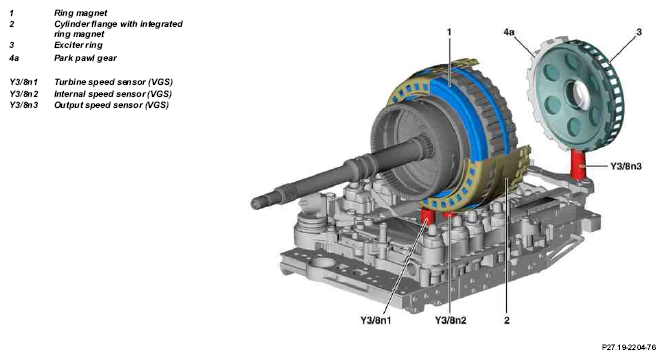

The turbine speed sensor (VGS) (Y3/8n1) records the rotational speed of a ring gear of the Ravigneaux set for the fully integrated transmission control (VGS).
This rotational speed is processed by the fully integrated transmission control (VGS) control unit (Y3/8n4) as an input signal together with the information from the internal speed sensor (VGS) (Y3/8n2) and the output speed sensor (VGS) (Y3/8n3). This contributes to shortening the reaction time during shift operations.
