Service Campaign 2006110002 - Check Engine Control Module Software Version And Update If Necessary (272 Engine) (2006110002)
Publication date: 2007-02-02Reference number: 2006110002
SERVICE CAMPAIGN 2006110002 - CHECK ENGINE CONTROL MODULE SOFTWARE VERSION AND UPDATE IF NECESSARY (272 ENGINE)
SERVICE CAMPAIGN BULLETIN
Reference Number(s): 2006110002, Date of Issue:
February 2, 2007
| MERCEDES-BENZ: | Model 171, Model Year 2005-2007; Model 203, Model Year 2006-2007; Models 209, 211, Model Year 2006 |
| GROUP: | 00 OF SERVICE INFORMATION BINDER |
| GROUP: | I OF INFORMATION - PARTS & ACCESSORIES BINDER |
SUBJECT
MODEL 171, MODEL YEAR 2005-2007
MODEL 203, MODEL YEAR 2006-2007
MODELS 209, 211, MODEL YEAR 2006
CHECK ENGINE CONTROL MODULE SOFTWARE VERSION AND UPDATE IF NECESSARY (272 ENGINE)
This Service Campaign has been initiated because DCAG has determined that on the affected vehicles (see VIN range below) the software for the engine control unit needs to be upgraded to correct a potential malfunction which could lead to an incorrect fuel/air mixture at low ambient temperatures. Under certain conditions, this can have a negative effect on starting the engine.
Please review the Effective Serial Number chart below.

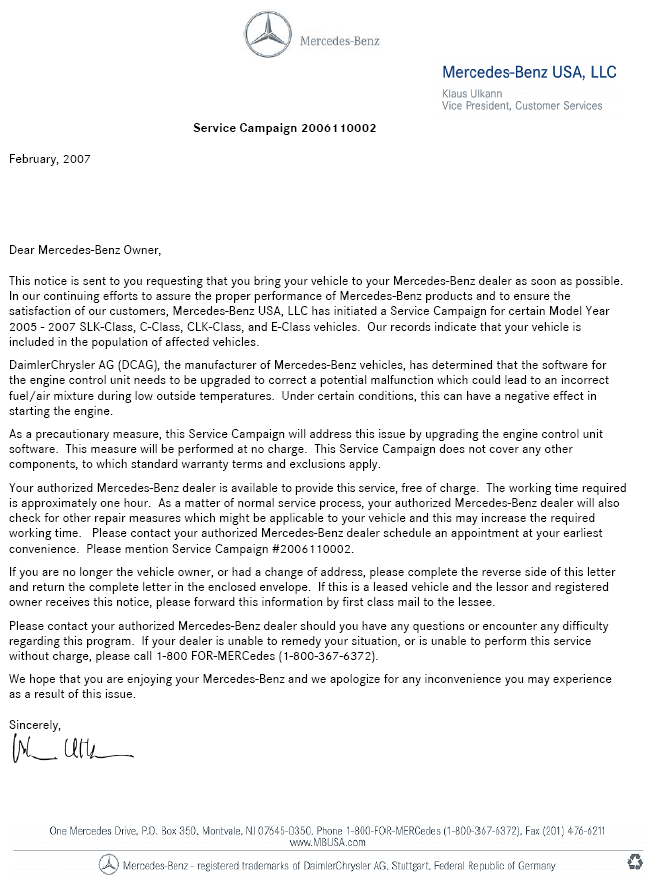

Attached is a sample copy of a letter which owners of the affected vehicles will receive.
Prior to performing this Service Campaign:
- Please check VMI to insure the vehicle is involved and to determine if the vehicle has been previously repaired.
- Please review the entire Service Campaign bulletin.
Approximately 67,471 vehicles are affected.
EFFECTIVE SERIAL NUMBER RANGE
EFFECTIVE SERIAL NUMBER RANGE
| Models | Chassis End Number | |
|---|---|---|
| From | To | |
| 171.454 | F060296 | F142663 |
| 171.456 | F004308 | F095806 |
| 203.054 | A775669 | A935827 |
| F686766 | F849159 | |
| 203.056 | F688966 | F750987 |
| 203.087 | F725595 | F750732 |
| 203.092 | F725472 | F849581 |
| 209.356 | F157670 | F178134 |
| 209.456 | F158010 | F178131 |
| T054930 | T061003 | |
| 211.056 | A708977 | A876088 |
| 211.087 | X177825 | X193403 |
| 211.256 | A710773 | A875260 |
| 211.287 | X174229 | X193315 |
NOTE:
Every vehicle in the VIN range may not be included in the campaign. VMI must always be checked
before performing campaigns to verify that the campaign is required on a specific vehicle. VMI always
overrides the bulletin in reference to a specific vehicle's inclusion in a particular campaign. Please also note that Recall and Service Campaigns do not expire
and may also be performed on a vehicle with a vehicle status indicator.
PROCEDURE
A. CHECK VERSION OF ENGINE CONTROL MODULE SOFTWARE
Note - Prior to starting the procedure ensure to:
- Use DAS version 10/2006 with all AddOns or 11/2006 with all AddOns (including 2006-12-11-0665 .)
- Follow the steps exactly as described in DAS
- Connect battery charger
- Connect Star Diagnosis.
- Check version of engine control module software.
- Follow the DAS path "Control units/ Drive/ ME 9.7- Motor electronics 9.7/ Control unit version."
- Perform one of the following:
- Model 280 in model series 171, 203: If software version is M272_KE_VC7/ VC8/ VC9 , proceed to Subject B .
- Model 350 in model series 171, 203, 209, 211: If software version is M272_KE_VC6/ VC7 , proceed to Subject B .
- If software version is not one of the above versions: Disconnect Star Diagnosis; this campaign has been completed.
B. INSTALL ENGINE CONTROL MODULE SOFTWARE
VEHICLES WITH M272_KE_VC6: ALSO INSTALL TRANSMISSION CONTROL MODULE SOFTWARE
- Install engine control module software.
- Follow the DAS path "Control unit adaptations/ Control unit programming" and on-screen instructions.
NOTE: If the "No newer control module software was found" message appears when attempting to flash the control module, proceed to step 3 (vehicles with M272_KE_VC6 only) or step 4 (all other vehicles). - Perform SCN coding of engine control module.
- Follow the DAS path "Initial startup" and on-screen instructions.
- Vehicles with M272_KE_VC6
only: Install and code transmission control module software.
- Install: Follow the DAS path "Control unit adaptations/ Control unit programming" and on-screen instructions.
- SCN coding: Follow the DAS path "Initial startup" and on-screen instructions.
NOTE: If the "No newer control module software was found" message appears when attempting to flash the control module, proceed to step 4. - Disconnect Star Diagnosis.NOTE: In rare instances when flashing the ME9.7 the flash can fail due to network communications traffic on the Engine CAN, leaving the ME9.7 in 'Bootloader mode.' If this flash failure occurs, simply pull the fuse(s) for the ESP Control Module and restart the ME9.7 Flash. Removing the fuse(s) stops the communication of the ESP Control Module and therefore reduces the communications traffic.
NOTE:
The following allowable labor operation should be used when submitting a warranty claim for this repair:
WARRANTY INFORMATION
REPAIR 1 (CHECK ONLY)
Operation:
- Battery Charger, Connect (with SDS Connected) (02-5058)
- Star Diagnosis System (SDS), Connect & Disconnect (02-4762)
- Engine Control Unit Software, Check (with DAS Connected) (02-5388)
WARRANTY INFORMATION - REPAIR 1
| Damage Code | Operation Number | Labor Time (hrs.) | Model Indicator(s) |
|---|---|---|---|
| 14 930 36 8 | 02-5058 | 0.1 | Q7, Q8, Q9, QA, S7, S8, T7, T8, U6, U7, X1, X3 |
| 02-4762 | 0.2 | Q7, Q8, Q9, QA, S7, S8, T7, T8, U6, U7, X1, X3 | |
| 02-5388 | 0.1 | Q7, Q8, Q9, QA, S7, S8, T7, T8, U6, U7, X1, X3 |
REPAIR 2 (CHECK AND INSTALL ENGINE CONTROL MODULE SOFTWARE)
Operation:
- Battery Charger, Connect (with SDS Connected) (02-5058)
- Star Diagnosis System (SDS), Connect & Disconnect (02-4762)
- Engine Control Unit Software, Check (with DAS Connected) (02-5388)
- Engine Control Unit Software, Install (after Check) (02-5389)
- Control Unit (with SDS Connected), Code (02-5382)
WARRANTY INFORMATION - REPAIR 2
| Damage Code | Operation Number | Labor Time (hrs.) | Model Indicator(s) |
|---|---|---|---|
| 14 930 36 8 | 02-5058 | 0.1 | Q7, Q8, Q9, QA, S7, S8, T7, T8, U6, U7, X1, X3 |
| 02-4762 | 0.2 | Q7, Q8, Q9, QA, S7, S8, T7, T8, U6, U7, X1, X3 | |
| 02-5388 | 0.1 | Q7, Q8, Q9, QA, S7, S8, T7, T8, U6, U7, X1, X3 | |
| 02-5389 | 0.2 | Q7, Q8, Q9, QA, S7, S8, T7, T8, U6, U7, X1, X3 | |
| 02-5382 | 0.1 | S7, S8, T7, T8, U6, U7, X1, X3 | |
| 0.2 | Q7, Q8, Q9, QA |
REPAIR 3 (CHECK AND INSTALL ENGINE AND TRANSMISSION CONTROL MODULE SOFTWARE - VEHICLES WITH M272_KE_VC6 ONLY)
Operation:
- Battery Charger, Connect (with SDS Connected) (02-5058)
- Star Diagnosis System (SDS), Connect & Disconnect (02-4762)
- Engine Control Unit Software, Check (with DAS Connected) (02-5388)
- Engine Control Unit Software, Install (after Check) (02-5389)
- Control Unit (with SDS Connected), Code (02-5382)
- Transmission Control Unit Software, Install (with DAS Connected) (02-5505)
- Control Unit (with SDS Connected), Code (02-5382)
WARRANTY INFORMATION - REPAIR 3
| Damage Code | Operation Number | Labor Time (hrs.) | Model Indicator(s) |
|---|---|---|---|
| 14 930 36 8 | 02-5058 | 0.1 | Q9, QA, S7, S8, T7, T8, U6, U7, X1 |
| 02-4762 | 0.2 | Q9, QA, S7, S8, T7, T8, U6, U7, X1 | |
| 02-5388 | 0.1 | Q9, QA, S7, S8, T7, T8, U6, U7, X1 | |
| 02-5389 | 0.2 | Q9, QA, S7, S8, T7, T8, U6, U7, X1 | |
| 02-5382 | 0.1 | S7, S8, T7, T8, U6, U7, X1 | |
| 0.2 | Q9, QA | ||
| 02-5505 | 0.2 | Q9, QA, S7, S8, T7, T8, U6, U7, X1 | |
| 02-5382 | 0.1 | S7, S8, T7, T8, U6, U7, X1 | |
| 0.2 | Q9, QA |
