Purge control valve actuation, function - GF07.61-P-3013V
ENGINE 272.942 in MODEL 171
ENGINE 272.963 in MODEL 171
Shown on engine 272 in model 171

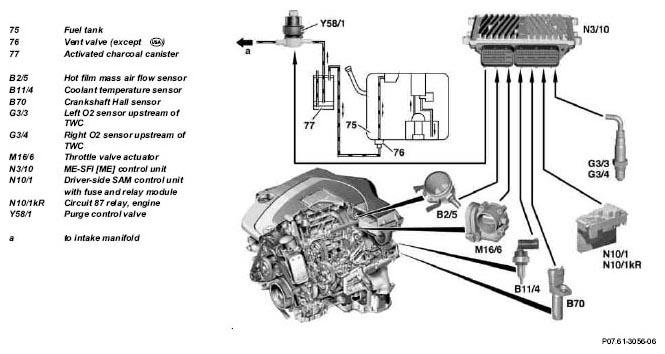

To control the purge quantity, the purge control valve is actuated at the ground side by the ME-SFI control unit by means of a pulse width-modulated signal (PWM signal). The purge quantity is determined by constantly opening and closing the purge control valve for on and off periods of various lengths.
The frequency of the PWM signal is selected from a speed-dependent characteristic in such a way, that all cylinders are uniformly supplied with fuel vapors.
The purge control valve is actuated when the engine is at operating temperature, but not in deceleration fuel shutoff.
The following information is processed in the ME-SFI control unit:
- Engine speed
- Air mass
- Coolant temperature
- Intake air temperature
- Lambda signals
| Component description for the ME-SFI [ME] control unit | GF07.61-P-6000V | |
| Component description for the purge control valve | GF47.30-P-2020V | |
| Component description for the coolant temperature sensor | GF07.04-P-6040V | |
| Component description for the crankshaft Hall sensor | GF07.04-P-6220V | |
| Component description for the hot film mass air flow sensor | GF07.07-P-6000V | |
| Component description for the throttle valve actuator | GF30.20-P-2020V | |
| Component description for the vent valve | Model 171 and 230, except |
GF47.30-P-3100VA |
| Component description for the activated charcoal canister | GF47.30-P-2010V |
