Driver's Airbag, location/task/design/function - GF91.60-P-4001SK: Notes
MODEL 171.4
Locations

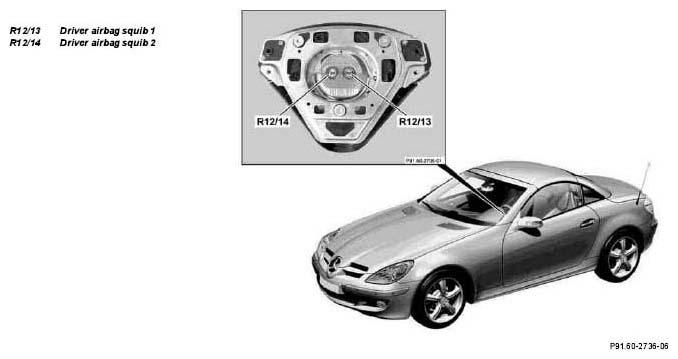

| Driver airbag, location | The driver airbag with the associated driver airbag squib 1 (R12/13) and driver airbag squib 2 (R12/14) is integrated in the impact absorber in the steering wheel. This can be seen when the impact absorber has been removed. | |
| Driver Airbag - Task | The driver airbag protects the driver from injuries in the event of a head-on collision. In the event of a head-on collision, the driver is arrested and braked by an air sack which fills up the space between the steering wheel and driver within 45 ms. | |
| Driver airbag, design | GF91.60-P-4001-03SK | |
| Driver Airbag - Function | GF91.60-P-4001-02SK |
