Driver/front passenger sidebag, location/task/design/function - GF91.60-P-4004SK: Notes

MODEL 171.4

Locations

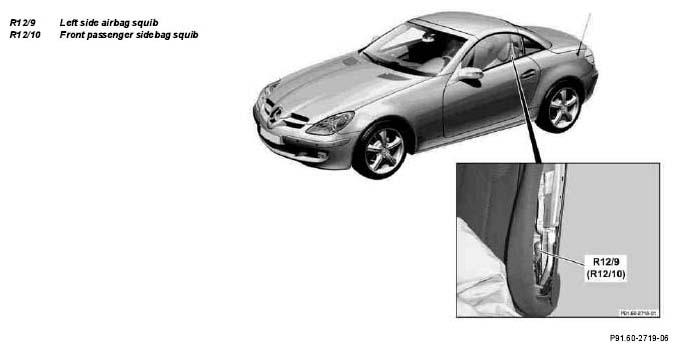

Fig 1: Identifying Left Side Airbag Squib And Front Passenger Sidebag Squib

Courtesy of MERCEDES-BENZ USA

Driver/front passenger sidebag, location	The driver sidebag with the driver sidebag squib (R12/9) and the passenger sidebag with the front passenger sidebag squib (R12/10) are located in the backrests of the driver and front passenger seats.
Driver/front passenger sidebag, task	If a side-on impact occurs in the door and B-pillar area, the sidebag protects the driver or front passenger from injury.
Driver/front passenger sidebag - design		GF91.60-P-4004-03SK
Driver/front passenger sidebag, function		GF91.60-P-4004-02SK
