WSS control unit, location/task - GF91.60-P-4105SK: Notes

MODEL 171.4 as of 1.6.06 with CODE (494) USA version

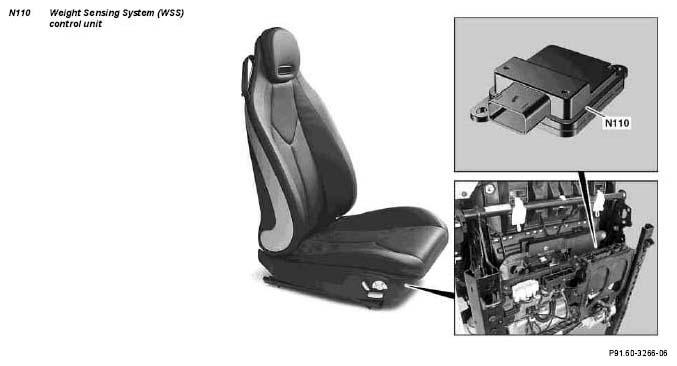

Fig 1: Identifying Weight Sensing System (WSS) Control Unit

Courtesy of MERCEDES-BENZ USA

WSS control unit, location	The Weight Sensing System (WSS) control unit (N110) is installed under the seat cushion at the seat frame of the front passenger seat.
WSS control unit, task		GF91.60-P-4105-02SK
