Control Units
CONTROL UNITS LOCATION

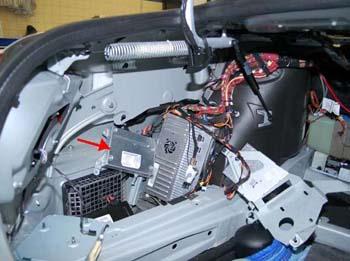

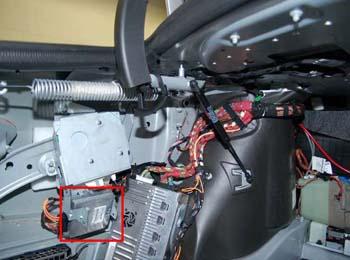

| Component | Location |
|---|---|
| AAC (KLA) Control Unit (N22/1) | Rear of engine compartment. See Figure. |
| ABC Control Module (N51/2) | Right front upper footwell. See Figure. |
| Audio Tuner Control Unit (N93/1) | Left side of trunk. See Figure. |
| Blower Regulator (A32n1) | On blower motor. See Figure. |
| Central Gateway Control Module (N93) | Under left end of dash. See Figure. |
| Door Control Module (Left/Right) (N69/1 & N69/2) | In respective door. See Figure. |
| DTR Control Unit | Center front of engine compartment. See Figure. |
| ECI Ignition Module (Left Bank) (N92/2) | Top rear of left cylinder bank. See Figure. |
| ECI Ignition Module (Right Bank) (N92/1) | Top rear of right cylinder bank. See Figure. |
| ECI Ignition System Mains Unit (N91) | Top center of engine. See Figure. |
| EIS (EZS) Control Unit (N73) | Under left side of dash. See Figure. |

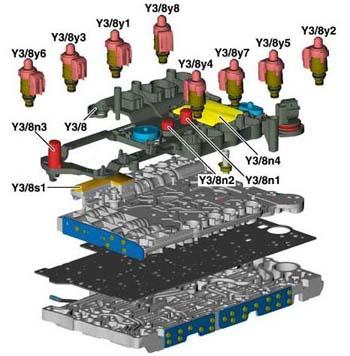

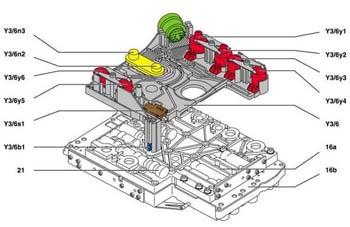

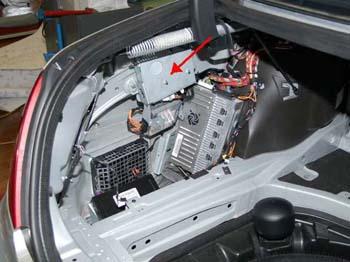

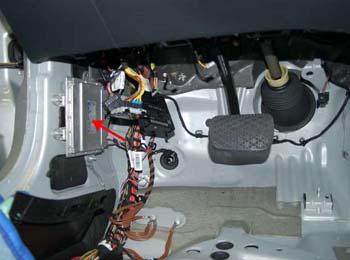

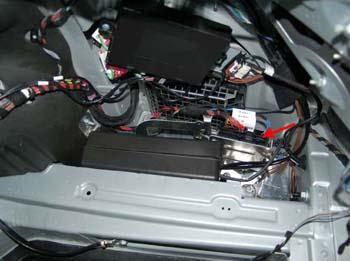

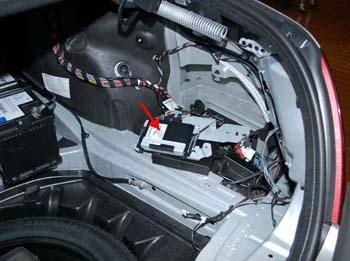

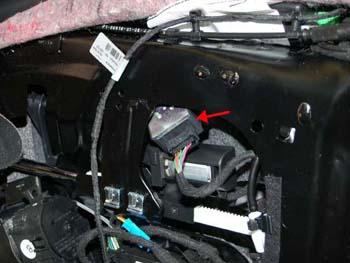

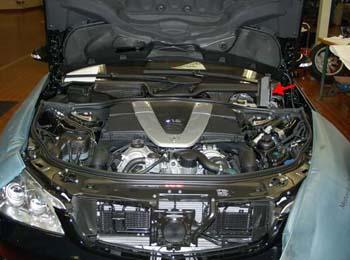

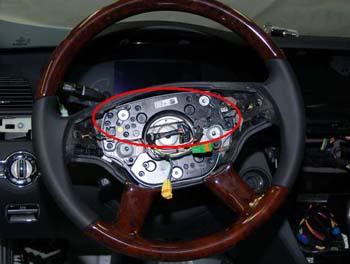

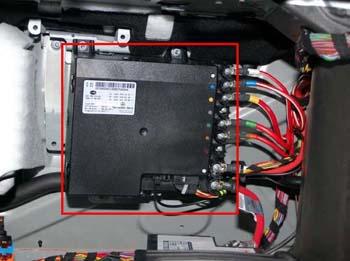

| Electric Control Unit (VGS) (Y3/8) | Bottom of transmission. |
| Electric Control Unit (Y3/6) | Bottom of transmission. See Figure. |
| Electric Parking Brake Control Unit (A13) | Under left rear of vehicle. See Figure. |
| Emergency Call System Control Unit (N123/4) | Left front of trunk. See Figure. |
| ESP Control Module (N47-5) | Right front of engine compartment. See Figure. |
| ETC [EGS] Control Module (N15/3) | Left front upper footwell. See Figure. |
| Front Seat Ventilation Blower Regulator (Left/Right) (N29/5) | In respective front seat back. See Figure. |
| Fuel Pump Control Unit (N118) | Under left rear of vehicle. See Figure. |
| Fully Integrated Transmission Control (VGS) Control Unit (Y3/8n4) | Part of electric control unit (VGS). See Figure. |
| Fully Integrated Transmission Control (VGS) Control Unit (Y3/8n4) | Part of electric control unit (VGS). See Figure. |
| Intelligent Servo Module (DIRECT SELECT) (A80) | On transmission. See Figure. |
| Keyless Go Control Module (N69/5) | Right side of trunk. See Figure. |
| Left Front Dynamic Seat Control Module (N32/19) | In left front seatback. See Figure. |
| Left Front Multicontour Backrest Control Unit (N32/15) | In left front seatback. See Figure. |
| Left Front Seat Control Module (N32/1) | Under left front seat. See Figure. |
| ME-SFI (ME) Control Unit (V12) (N3/10) | Left rear of engine compartment. See Figure. |
| ME-SFI (ME) Control Unit (5.5L V8) (N3/10) | Center rear of engine compartment. See Figure. |
| Night Vision Assist Control Unit (N101) | Left front footwell. See Figure. |
| Radar Sensors Control Unit (SGR) (N62/1) | Right side of trunk. See Figure. |
| Rear Control Module (N22/6) | Behind right rear quarterpanel. See Figure. |
| Restraint Systems Control Module (N2/7) | Under front of center console. See Figure. |
| Reverse Camera Control Module (N66/2) | Left side of trunk. See Figure. |
| Right Front Dynamic Seat Control Module (N32/20) | In right front seatback. See Figure. |
| Right Front Multicontour Backrest Control Unit (N32/16) | In right front seatback. See Figure. |
| Right Front Seat Control Module (N32/2) | Under right front seat. See Figure. |
| SDAR Control Unit (N87/5) | Left side of trunk. See Figure. |
| Steering Column Module (N80) | At top of steering column. See Figure. |
| Steering Wheel Gear Shift Signal Processing Module (N135) | In steering wheel. See Figure. |
| TLC [HDS] Control Module (N121) | Right rear of trunk. See Figure. |
| TPM Control Module (N88) | In right front upper footwell. See Figure. |
| Traction System Hydraulic Unit | Right front of engine compartment. |
| Universal Portable CTEL Interface (UPCI [UHI]) Control Module (N123/1) | Left side of trunk. See Figure. |
| Vehicle Power Supply Control Unit (N28/1) | Right front of trunk. See Figure. |
| Voice Control System (VCS [SBS]) Control Unit (N41/3) | Left side of trunk. See Figure. |
| Weight Sensing System (WSS) Control Unit (N110) | Under right front seat. See Figure. |
