Speed sensor - Function - GF27.19-P-5127-02O
Transmission 722.9 in model 171.4, 203, 209, 211, 215, 219, 220, 230, 463.303/340/341 output speed sensor

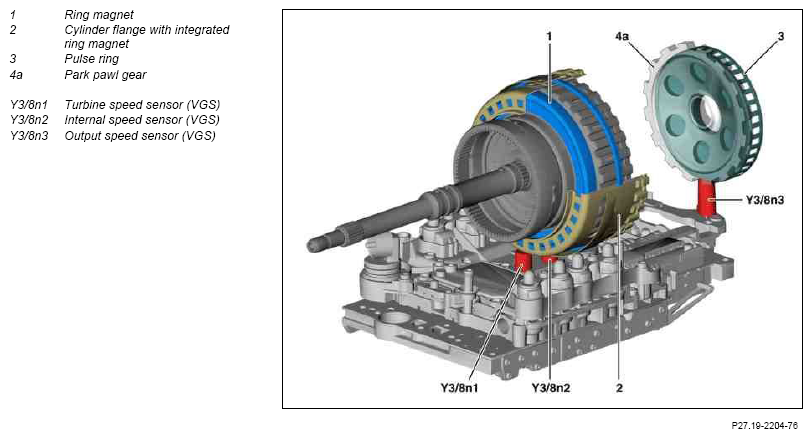

The output speed sensor (VGS) (Y3/8n3) records the transmission output speed at the park pawl gear (4a) for the fully integrated transmission control (VGS).
Together with the information from the turbine speed sensor (VGS) (Y3/8n1) and from the internal RPM sensor (VGS) (Y3/8n2) this RPM is processed as an input signal by the fully integrated transmission control unit (VGS) (Y3/8n4). This contributes to shortening the reaction time during shift operations.
