Battery control unit location/task - GF54.21-P-4121T

MODEL 211.0/2 up to 31.5.06 except CODE (494) USA version except CODE (498) Japan version

MODEL 211.0/2 up to 30.6.06 with CODE (494) USA version with CODE (498) Japan version

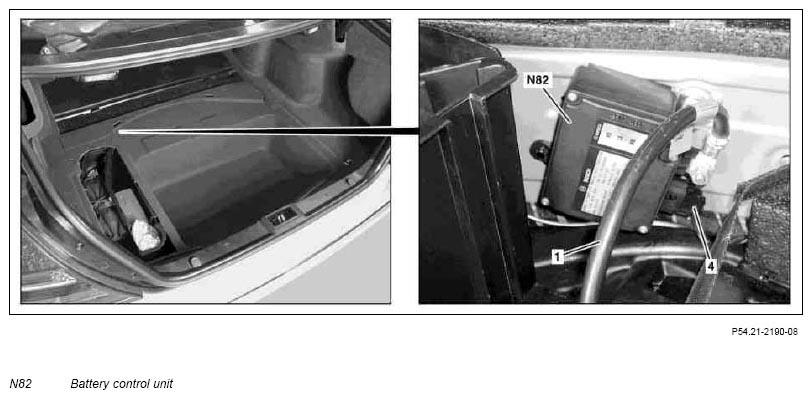

Fig 1: Locating Battery Control Unit

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Arrangement illustrated on model 211.0

Battery control unit location	The battery control unit (N82) is located in the spare tire well of the luggage compartment.
Battery control unit, task		GF54.21-P-4121-02T
