Electrical Component Locator: Connectors

CONNECTORS LOCATION

Component Location

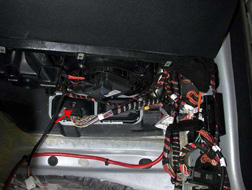

X25/2 (104 Pin) Right front footwell. See Figure.
X35/1 (36 Pin) Behind left kick panel. See Figure.
X35/2 (36 Pin) Behind right kick panel. See Figure.

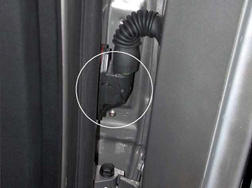

X35/3 (36 Pin) At left "B" pillar. See Figure.

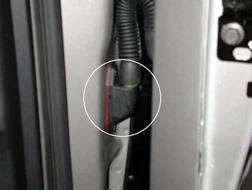

X35/4 (36 Pin) At right "B" pillar. See Figure.
