Cruise control push-button switch component description - GF30.20-P-2100BK
ENGINE 113.967 in MODEL 219
ENGINE 113.964 in MODEL 164.1
ENGINE 113.971 in MODEL 251

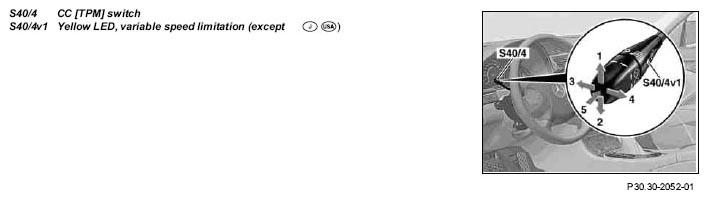

Location
The CC push-button switch is located at the top of the steering column module.
Task
Set by
- Cruise control/Distronic (special equipment)
- Variable speed limitation (except
- Downhill Speed Regulation (model 164.1).
Function
When the cruise control push-button switch is operated, two switching contacts are always activated simultaneously.
The actual input is performed by one switch contact closing, e.g. for storing the speed. The safety contact must close simultaneously so that the input is accepted.
The switching signals are detected by the steering column module and transmitted to the CAN databus.
