Starter control, function - GF15.30-P-3000VA

ENGINE 272.920 in MODEL 203 up to Model Year 8 with automatic transmission 722.9

ENGINE 272.922 in MODEL 211 with automatic transmission 722.9

ENGINE 272.940 in MODEL 203 up to Model Year 8 with automatic transmission 722.9

ENGINE 272.941 in MODEL 203 up to Model Year 8 with automatic transmission 722.9

ENGINE 272.942 in MODEL 171 up to Model Year 8 with automatic transmission 722.9

ENGINE 272.943 in MODEL 211, 219 with automatic transmission 722.9

ENGINE 272.944 in MODEL 211 with automatic transmission 722.9

ENGINE 272.945 in MODEL 251 up to Model Year 8 with automatic transmission 722.9

ENGINE 272.946 in MODEL 221 up to Model Year 8 with automatic transmission 722.9

ENGINE 272.960 in MODEL 203 up to Model Year 8 with automatic transmission 722.9

ENGINE 272.963 in MODEL 171 up to Model Year 8 with automatic transmission 722.9

ENGINE 272.964 in MODEL 211, 219 with automatic transmission 722.9

ENGINE 272.965 in MODEL 221 up to Model Year 8 with automatic transmission 722.9

ENGINE 272.966 in MODEL 230 up to Model Year 8 with automatic transmission 722.9

ENGINE 272.967 in MODEL 164, 251 up to Model Year 8 with automatic transmission 722.9

ENGINE 272.970 in MODEL 203 up to Model Year 8 with automatic transmission 722.9

ENGINE 272.972 in MODEL 211 with automatic transmission 722.9

ENGINE 272.975 in MODEL 221 up to Model Year 8 with automatic transmission 722.9

ENGINE 273.922 in MODEL 221 up to Model Year 8 with automatic transmission 722.9

ENGINE 273.923 in MODEL 164 up to Model Year 8 with automatic transmission 722.9

ENGINE 273.924 in MODEL 221 up to Model Year 8 with automatic transmission 722.9

ENGINE 273.960 in MODEL 211, 219 with automatic transmission 722.9

ENGINE 273.961 in MODEL 216, 221 up to Model Year 8 with automatic transmission 722.9

ENGINE 273.962 in MODEL 211 with automatic transmission 722.9

ENGINE 273.963 in MODEL 164, 251 up to Model Year 8 with automatic transmission 722.9

ENGINE 273.965 in MODEL 230 up to Model Year 8 with automatic transmission 722.9

ENGINE 273.967 in MODEL 209 with automatic transmission 722.9

ENGINE 273.968 in MODEL 221 up to Model Year 8 with automatic transmission 722.9

ENGINE 272.940 in MODEL 209 with automatic transmission 722.9

ENGINE 272.960 in MODEL 209 with automatic transmission 722.9

Shown on Engine 272.963 in Model 171

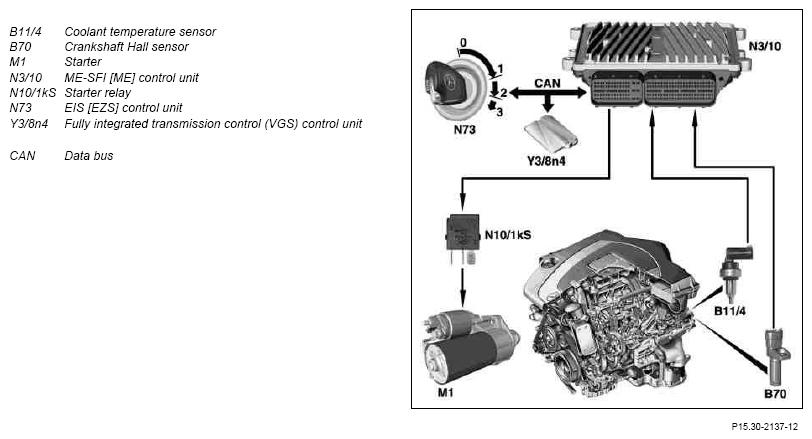

Fig 1: Starter Control Function Diagram

Courtesy of MERCEDES-BENZ USA

Starter control actuates the starter and provides the circuit (terminal 50) when the engine speed is achieved to the starter solenoid switch (starter disconnection).

By operating the ignition start switch on the EIS control unit, from position "2" (ignition ON) to position "3" (START), the ME control unit detects the start

The solenoid switch of the starter is actuated by the ME-SFI control unit via the starter relay.

The voltage supply of the starter relay (coil) is supplied through circuit 87. The starter relay is actuated by the ME-SFI control unit with a ground signal.

If the starting procedure has started, the actuation of the ignition starter switch from position "3" back into position "2" no longer has any influence (touch start).

When reaching the engine cranking speed of 400 up to 700 RPM or a starting time of approx. 5 to 40 seconds (dependent on the engine temperature), the ME control unit interrupts the negative activation to the starter relay and therefore ends the starting procedure.

Component description for the ME-SFI [ME] control unit		GF07.61-P-6000V
Voltage supply of ME-SFI control unit, function	Model 171, 211, 219	GF07.61-P-5001V
	Model 164, 251	GF07.61-P-5001VA
	Model 203, 209	GF07.61-P-5001VB
	Model 216, 221	GF07.61-P-5001VC
	Model 230	GF07.61-P-5001VD
Component description for the crankshaft Hall sensor		GF07.04-P-6220V
Component description for the coolant temperature sensor		GF07.04-P-6040V
