ME-SFI two-sensor control, function - GF07.61-P-3020M

ENGINES 275.950 in MODEL 215, 220

ENGINES 275.951 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.953 in MODEL 216, 221 up to Model Year 08 /modification year 07

ENGINES 275.954 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.980 in MODEL 215, 220

ENGINES 275.981 in MODEL 230 up to Model Year 08 /Modification Year 07

ENGINES 275.982 in MODEL 216, 221 up to Model Year 08 /modification year 07

ENGINES 285.950 in MODEL 240

ENGINES 285.980 in MODEL 240

The two-sensor control has the following tasks:

• Assure long-term stability of the lambda control
• Monitoring O2 sensors upstream of TWC
• Monitoring efficiency of catalytic converters.

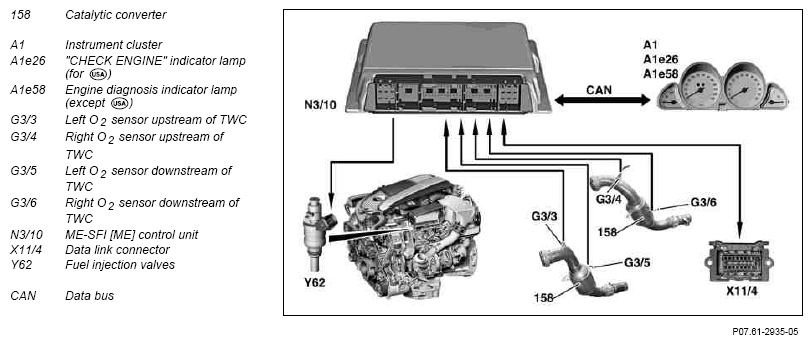

  Fig 2: Identifying ME-SFI Two-Sensor Control Block Diagram

  Courtesy of MERCEDES-BENZ USA

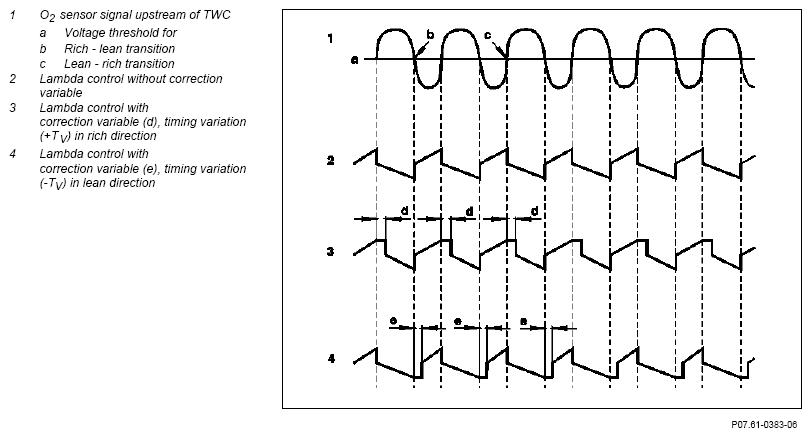

The ME engine control unit determines the lambda mean value from signals from the O ₂ sensors downstream of TWC. This value is compared with a stored value for optimum exhaust emissions. If the deviation is too large after a number of measurements, a correction variable (time delay ± T_V ) is determined for the lambda control.

The correction variable (value for new O ₂ sensor approx. 0) makes it possible to compensate for aging of the O ₂ sensor upstream of TWC within certain limits. If the correction variable exceeds the limit value, the O₂ sensor upstream of the TWC must be replaced.

The correction values are map-controlled and are implemented by the ME control unit by adapting the fuel injection.

In addition, allowance is made for the period of the signal supplied by the sensor upstream of TWC. If no sensor state change takes place, the lambda control is not active and therefore a two-sensor control is not possible either.

In case of error the engine diagnosis indicator lamp lights up or for the CHECK ENGINE indicator lamp in the instrument cluster and a fault is stored in the fault memory. The stored faults can be read out and erased with the DAS.

ME-SFI control unit, location/task/design/ function		GF07.61-P-5000M
O2 sensors, location/task/design/function		GF07.04-P-4103M
Three-way catalytic converter, location/task/ design/function		GF49.10-P-3002M
"CHECK ENGINE" indicator lamp, location/ task/function	For	GF54.30-P-4101M
Engine diagnosis indicator lamp, location/ task/function	Except	GF54.30-P-4102M
Fuel injection valve, location/task/design/ function		GF07.03-P-5004M
