Kick-down, function - GF27.10-P-2010SXA
TRANSMISSION 722.6 in MODEL 216, 221 up to Model Year 8
Kickdown, function
The driver's wish for the maximum vehicle acceleration is met by the kickdown function.
The kick-down function is activated from a pedal travel at the electronic accelerator > approx. 90 %.
When the electronic accelerator is pressed the driver will notice an increased backpressure at the kickdown point. For this purpose a kick-down simulator is integrated in the electronic accelerator.

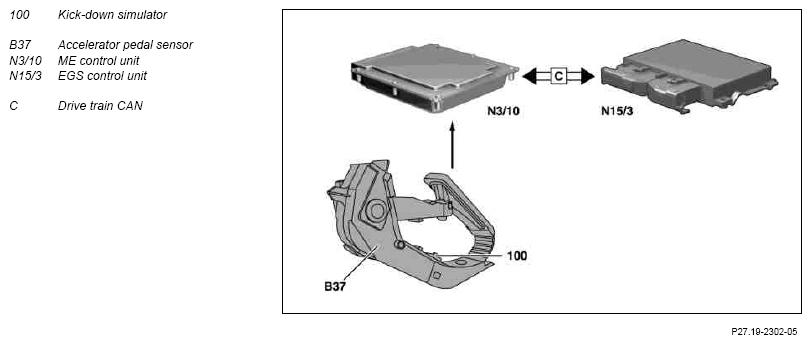

The "Kick-down" signal is recorded by the accelerator pedal sensor, read in by the ME-SFI [ME] control unit and passed on to the drive train CAN to the ETC [EGS] control unit.
Based on this information the ETC [EGS] control unit actuates the control solenoid valve so that the upshifts and downshifts take place at increased engine speed in order to achieve maximum performance.
| Kick-down simulator, component description | GF27.10-P-5110SXA |
