Camshaft Hall sensor, location/task/design/function - GF07.04-P-4117M
ENGINES 275.950 in MODEL 215, 220
ENGINES 275.951 in MODEL 230 up to Model Year 08 /Modification Year 07
ENGINES 275.953 in MODEL 216, 221 up to Model Year 08 /modification year 07
ENGINES 275.954 in MODEL 230 up to Model Year 08 /Modification Year 07
ENGINES 275.980 in MODEL 215, 220
ENGINES 275.981 in MODEL 230 up to Model Year 08 /Modification Year 07
ENGINES 275.982 in MODEL 216, 221 up to Model Year 08 /modification year 07
ENGINES 285.950 in MODEL 240
ENGINES 285.980 in MODEL 240

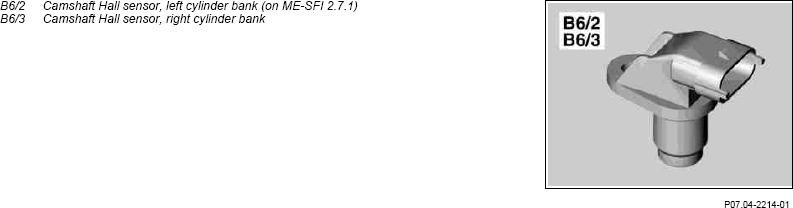

| Camshaft Hall sensor, location | GF07.04-P-4117-01M | ||
| Camshaft Hall sensor, task | Detects the camshaft position contactlessly by means of a segment at the rear of camshaft. Using the signal supplied by the camshaft Hall sensor, the engine control unit detects the ignition TDC position of cylinder 1 and on ME-SFI 2.7.1, of cylinder 7 and synchronizes the ignition and injection sequence. | ||
| Camshaft Hall sensor, design | Hall sensor in plastic housing with 3-pin plug connection. Connector 1: Ground Connection 2: Hall sensor signal Connection 3: Power supply from terminal 87. |
||
| Camshaft Hall sensor, function | GF07.04-P-4117-02M |
