Regulating valve component description - GF27.60-P-5140GD

TRANSMISSION 722.6 in MODEL 216, 221 up to Model Year 8

Control slide switch valve pressure

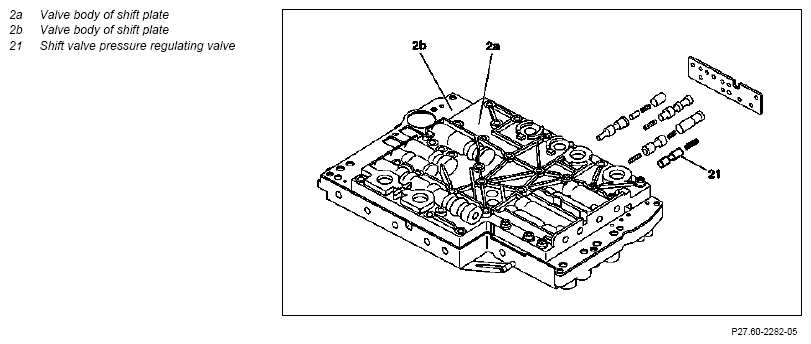

Fig 1: Identifying Regulating Valve Components Location

Courtesy of MERCEDES-BENZ USA

Location

The regulating valve shift valve pressure is located in the valve housing of the shift plate.

Task

It regulates the shift valve pressure.

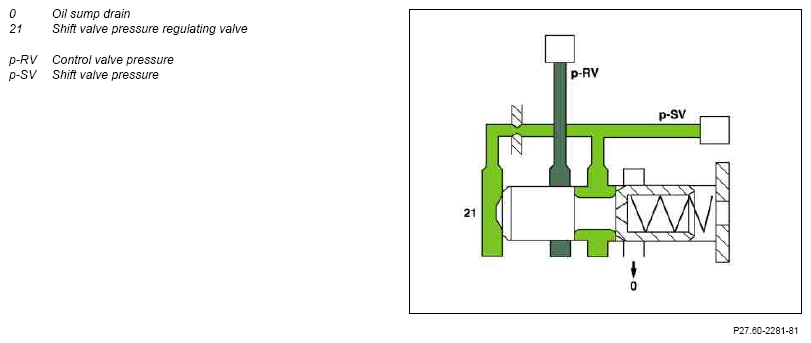

Fig 2: Identifying Regulating Valve Function Diagram

Courtesy of MERCEDES-BENZ USA

Function

The irregular control valve pressure is regulated on the regulating valve shift valve pressure to a constant shift valve pressure and used to supply the following solenoid valves:

• 1-2 and 4-5 shift solenoid valve (Y3/6y3)
• 3-4 shift solenoid valve (Y3/6y4)
• 2-3 shift solenoid valve (Y3/6y5)
• Torque converter lockup PWM solenoid valve (Y3/6y6)
