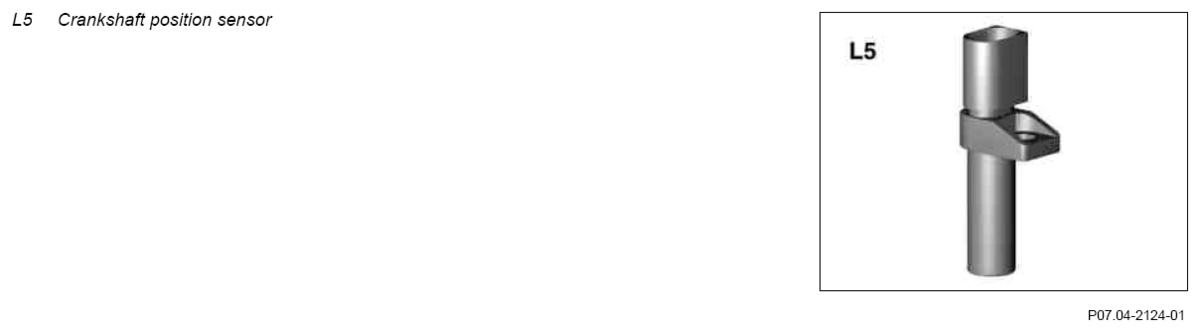

Crankshaft position sensor, location/task/design/function - GF07.04-P-4116M
ENGINES 275.950 in MODEL 215, 220
ENGINES 275.951 in MODEL 230 up to Model Year 08/Modification Year 07
ENGINES 275.953 in MODEL 216, 221 up to Model Year 08/modification year 07
ENGINES 275.954 in MODEL 230 up to Model Year 08/Modification Year 07
ENGINES 275.980 in MODEL 215, 220
ENGINES 275.981 in MODEL 230 up to Model Year 08/Modification Year 07
ENGINES 275.982 in MODEL 216, 221 up to Model Year 08/modification year 07
ENGINES 285.950 in MODEL 240
ENGINES 285.980 in MODEL 240
| Crankshaft position sensor, location | GF07.04-P-4116-02M | ||
| Crankshaft position sensor, task | Detecting the crankshaft position and engine speed contact-less by means of the teeth of the driven plate (incremental gear) | ||
| Crankshaft position sensor, design | Inductive sensor (coil) with 2-pin plug contact | ||
| Crankshaft position sensor function | GF07.04-P-4116-01M |
