Fuel level sensor, location/task/design/function - GF47.10-P-3001M
MODEL 216, 221 with ENGINE 275.953 up to Model Year 8
MODEL 216, 221 with ENGINE 275.982 up to Model Year 8

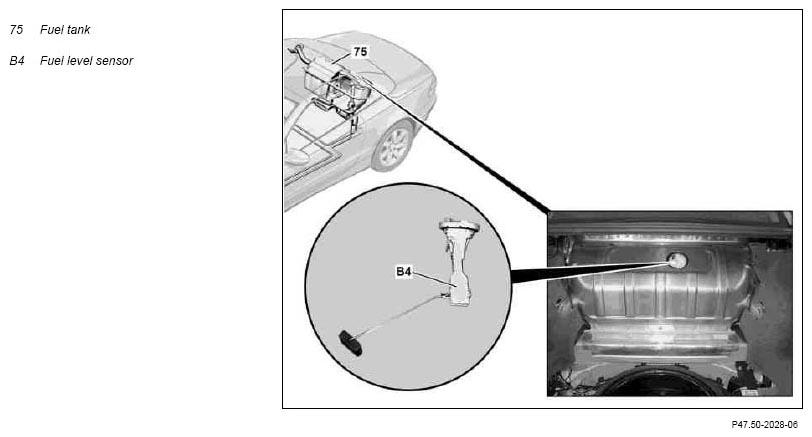

Illustrated on model 230
| Fuel gage sensor, location | Model 215, 220, 230, 240: Installed into the fuel tank from above. Model 216, 221: One fuel level sensor is mounted in each fuel tank chamber. |
| Fuel gage sensor task | The fuel level sensor determines the fuel level in the fuel tank. |
| Fuel gage sensor design | Float-and-lever sensor with two wiper contacts (potentiometer) and a float. |
| Fuel gage sensor function | Modification of resistance value in line with fuel level. |
