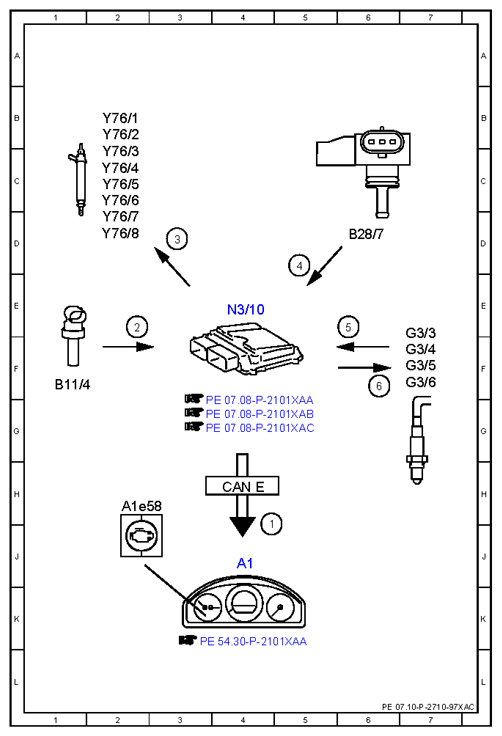

| 1 |
Engine diagnosis indicator lamp, actuation |
4J |
| 2 |
Coolant temperature sensor, signal |
2E |
| 3 |
Fuel injectors, actuation |
3D |
| 4 |
Engine load, signal |
5D |
| 5 |
Oxygen sensor, signal |
6E |
| 6 |
Oxygen sensor heater, actuation |
6F |
| A1 |
Instrument cluster |
4J |
| A1e58 |
Engine diagnosis indicator lamp |
2H |
| B11/4 |
Coolant temperature sensor |
1F |
| B28/7 |
Pressure sensor downstream of throttle valve |
6D |
| CAN E |
Chassis CAN |
4H |
| G3/3 |
Left oxygen sensor upstream of catalytic converter |
7F |
| G3/4 |
Right oxygen sensor upstream of catalytic converter |
7F |
| G3/5 |
Left oxygen sensor downstream of catalytic converter |
7F |
| G3/6 |
Right oxygen sensor downstream of catalytic converter |
7F |
| N3/10 |
ME-SFI [ME] control unit |
4E |
| Y76/1 |
Cylinder 1 fuel injector |
2B |
| Y76/2 |
Cylinder 2 fuel injector |
2B |
| Y76/3 |
Cylinder 3 fuel injector |
2C |
| Y76/4 |
Cylinder 4 fuel injector |
2C |
| Y76/5 |
Cylinder 5 fuel injector |
2C |
| Y76/6 |
Cylinder 6 fuel injector |
2C |
| Y76/7 |
Cylinder 7 fuel injector |
2D |
| Y76/8 |
Cylinder 8 fuel injector |
2D |
