Pressure sensor, component description - GF91.60-P-4109R
MODEL 230 as of 1.3.06 with CODE (494) USA version

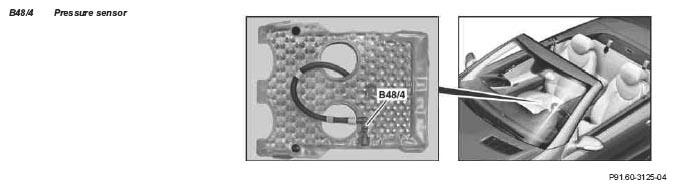

Location
The pressure sensor is integrated into the seat surface of the front passenger seat.
Task
The pressure sensor determines the weight applied to the front passenger seat via a corresponding pressure measurement in a sensor mat filled with gel.
The Weight Sensing System (WSS) control unit (N110) then determines a category for the applied weight that corresponds to the determined value. This assignment is used to record the occupation status on the front passenger seat.
