Remove/install power steering radiator - AR46.25-P-3020W
MODEL 172 with ENGINE 276
| Remove/install | |||
| 1 | Open engine hood and raise to vertical position | AR88.40-P-1000V | |
| 2 | Remove front engine cover (2) | ||
| 3 | Suction off oil from expansion reservoir (16) | ||
| Figure | |||

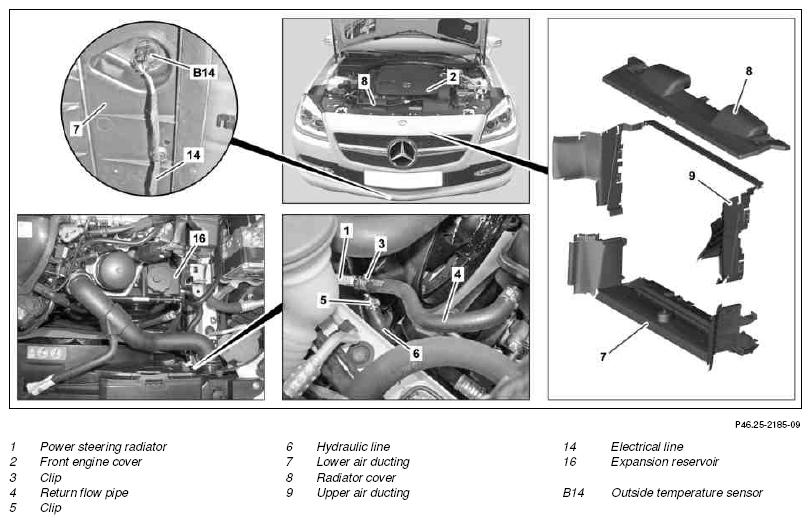

| 4 | Loosen clamp (3) and detach return line (4) from power steering radiator (1). | ||
| Figure | |||
| 5 | Loosen clamp (5) and detach hydraulic line (6) from power steering radiator (1). | ||
| Figure | |||
| 6 | Remove bottom engine compartment paneling at front | AR61.20-P-1105W | |
| 7 | Disconnect electrical connector on outside temperature sensor (B14) and remove corresponding electrical line (14) from the lower air duct (7) | ||
| 8 | Remove lower air duct (7) | ||
| 9 | Lower vehicle | ||
| 10 | Remove radiator cover (8) | ||
| 11 | Remove upper air duct (9) | ||
| 12 | Open bracket (10) and unhook refrigerant line (11) | ||
| 13 | Lift cooler (12) together with condenser (13) and move toward rear | ||
| 14 | Raise vehicle with vehicle lift | AR00.60-P-1000V | |

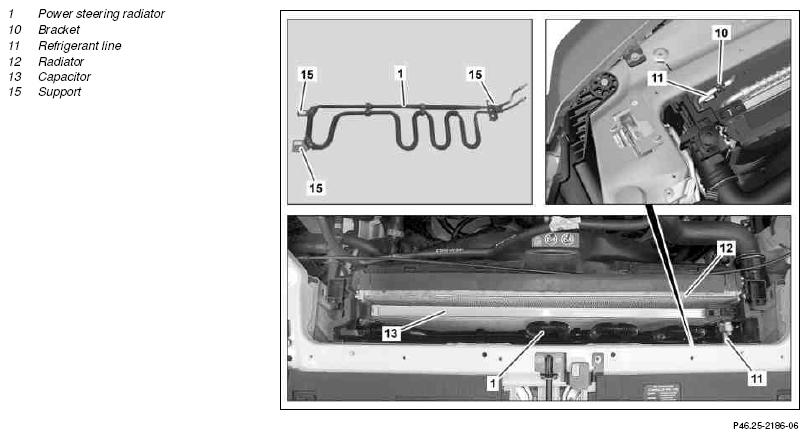

| 15 | Unclip power steering oil cooler (1) from mounts (15) on condenser (13) and remove downwards. | ||
| 16 | Install in the reverse order | ||
| 17 | Fill power steering pump and bleed | AR46.30-P-0010V | |
| 18 | Check oil level in expansion reservoir (16) and correct if necessary | AP46.00-P-4611V |
