Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component |
Location |

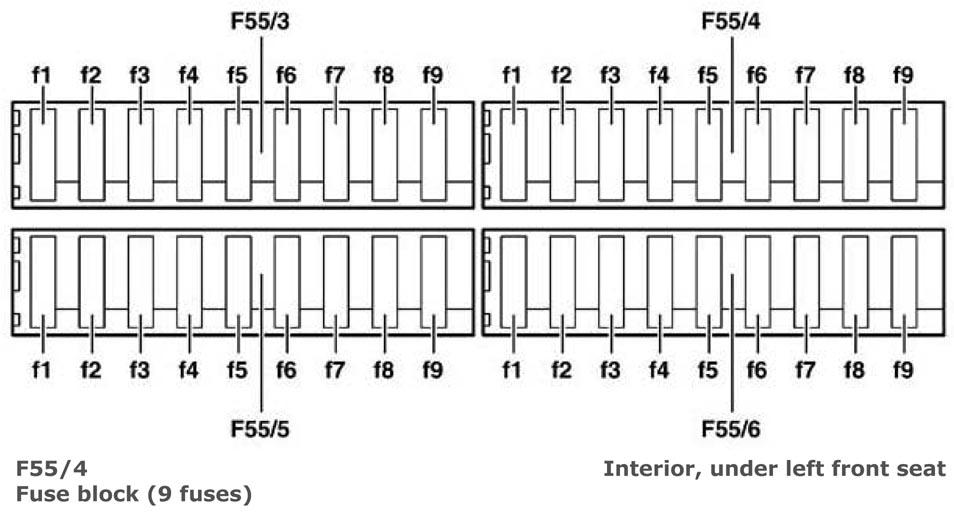

| Fuse Blocks 3, 4, 5 & 6 (F55/3, 4, 5 & 6) |
Under driver's seat. See Figure. |

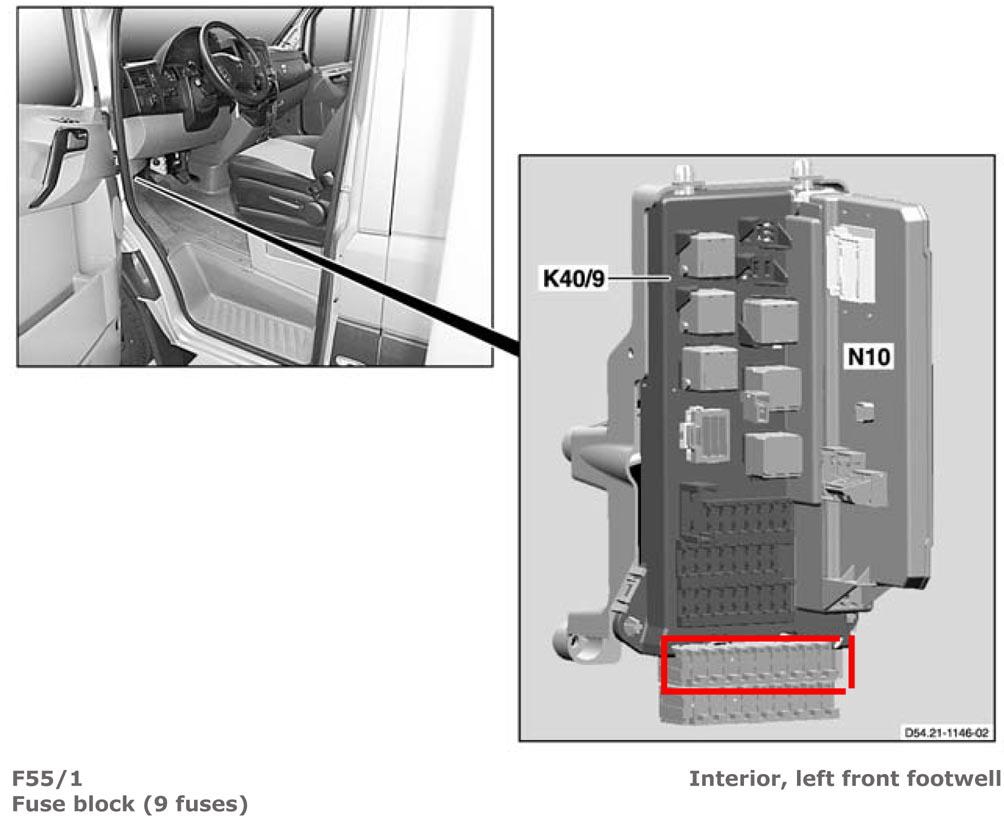

| Fuse Block 1 (F55/1) |
Bottom of fuse/relay box. See Figure. |

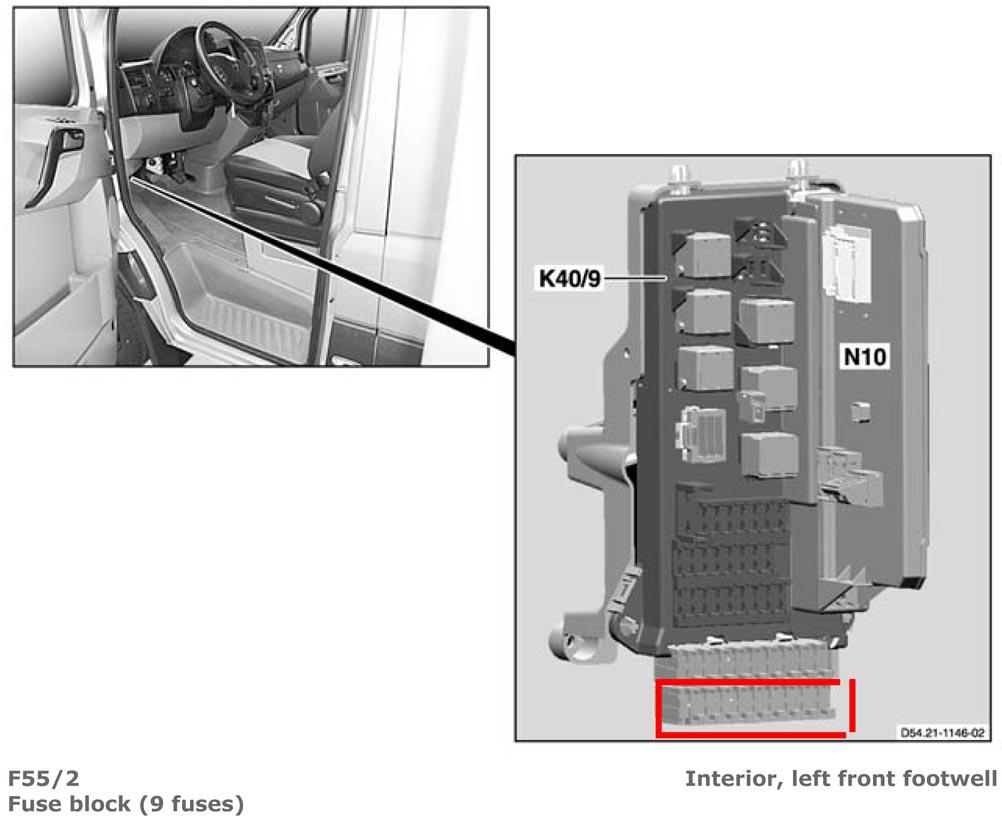

| Fuse Block 2 (F55/2) |
Bottom of fuse/relay box. See Figure. |

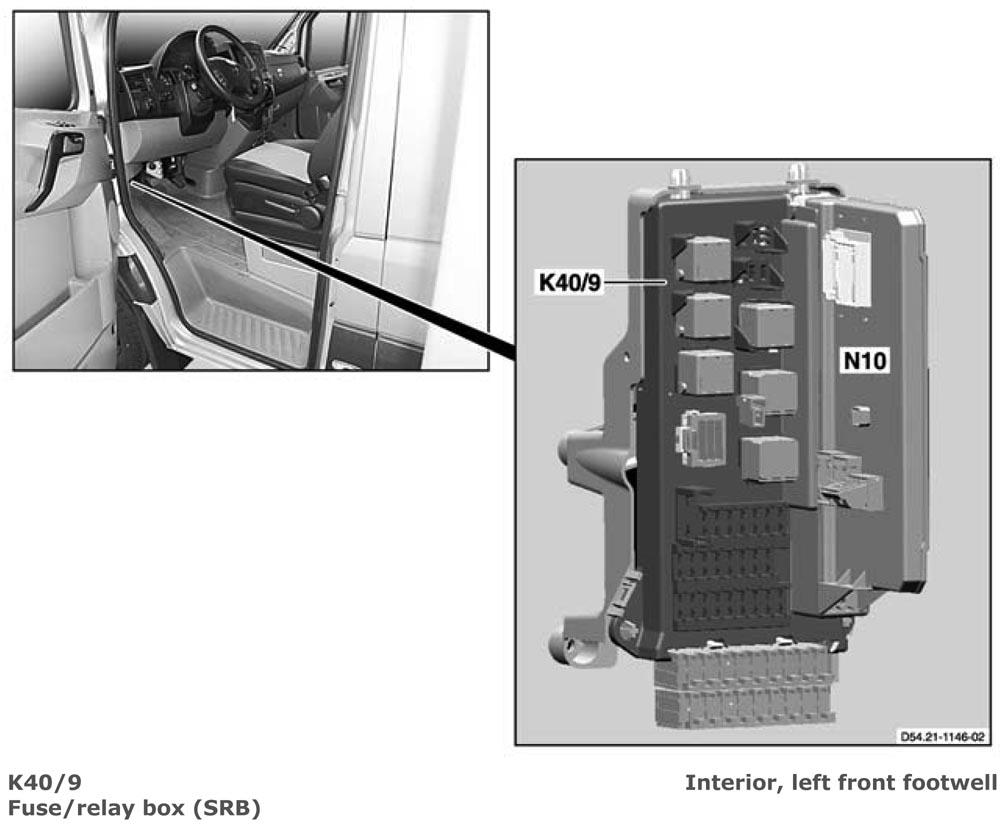

| Fuse/Relay Block (SRB) |
Left kick panel. See Figure. |
