Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| Accelerator Pedal Module | Top of accelerator pedal assembly. |

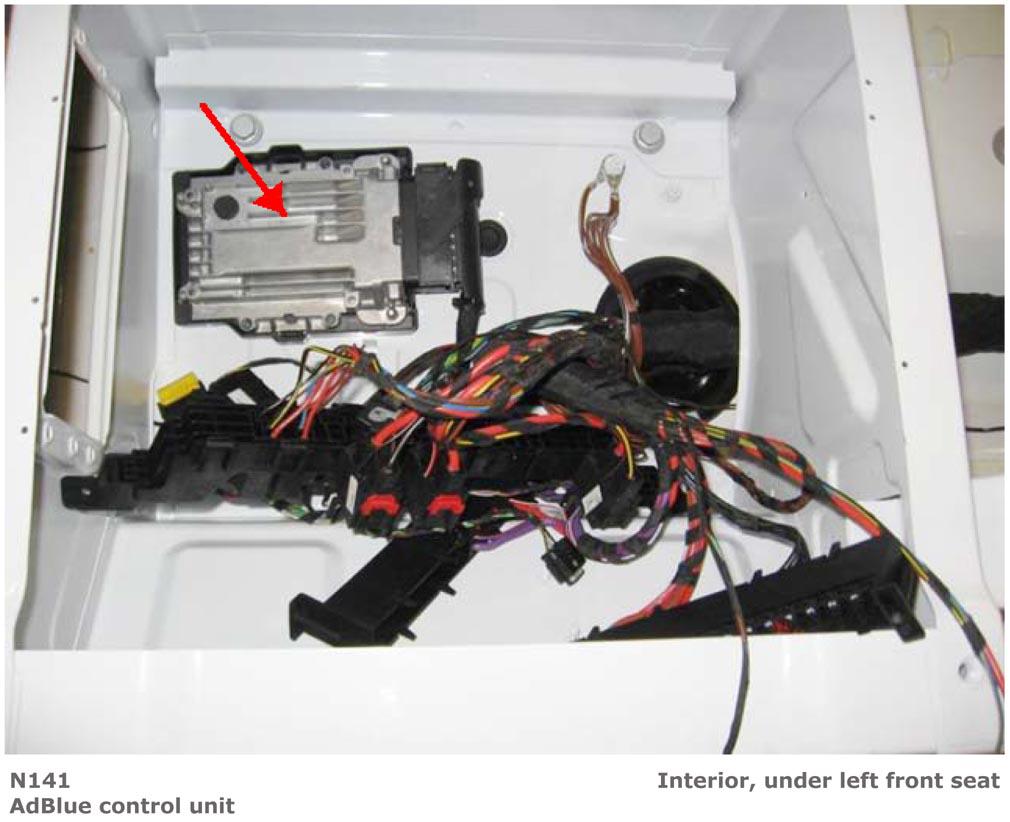

| AdBlue Control Unit | Under driver's seat. See Figure. |

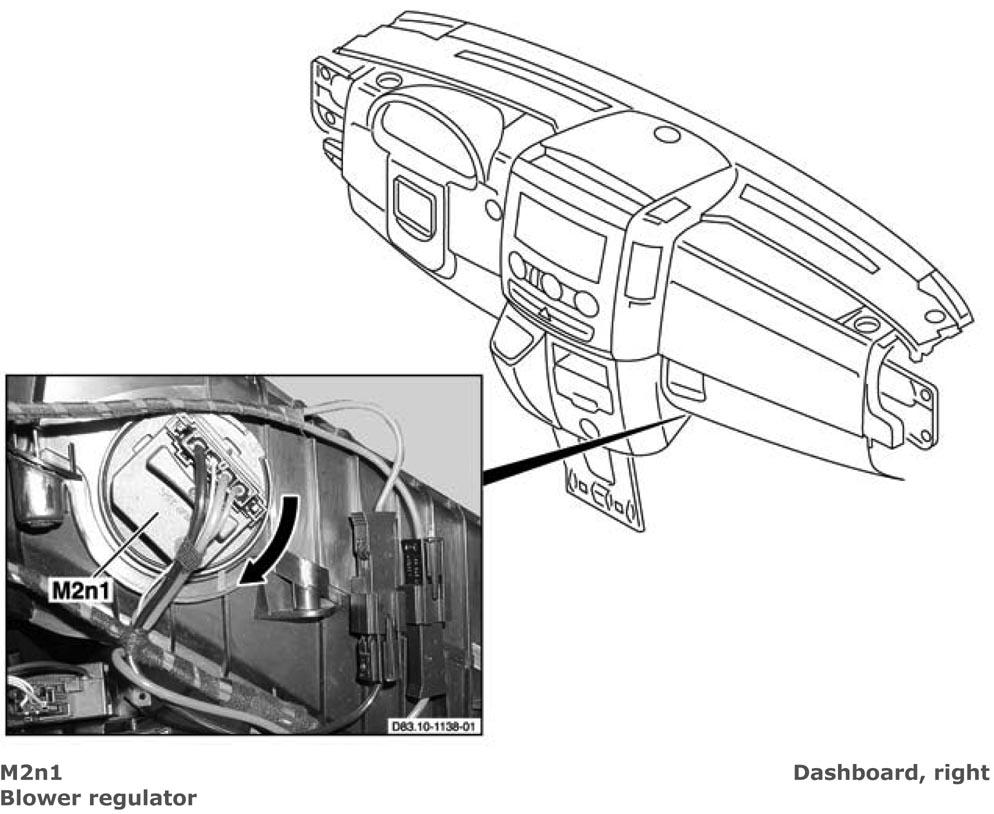

| Blower Regulator (Front HVAC) (M2n1) | Near blower motor. See Figure. |

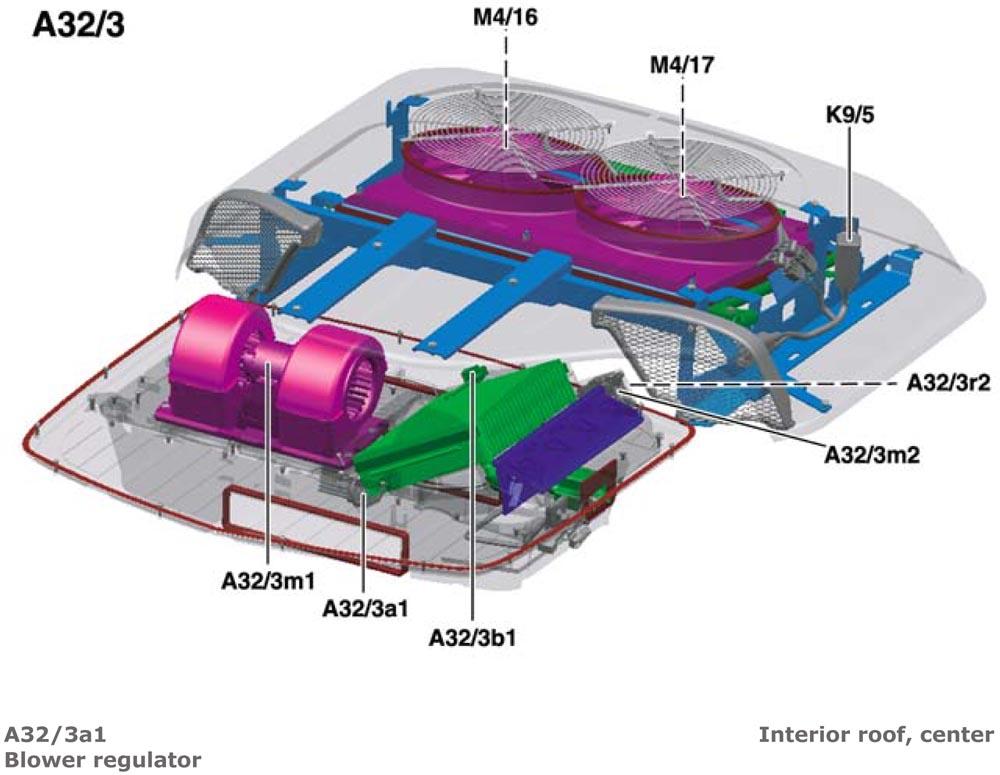

| Blower Regulator (Rear HVAC) (A32/3a1) | Part of rear heavy duty automatic air conditioning/recirculation unit. See Figure. |

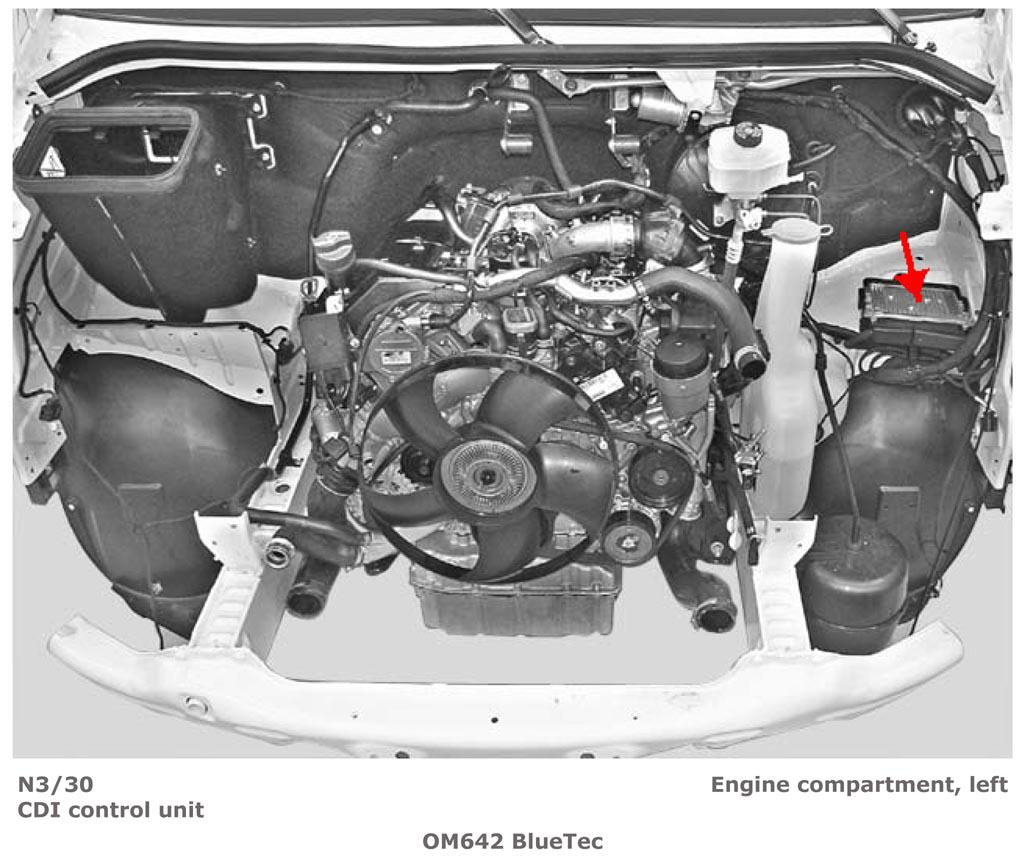

| CDI Control Unit | Left rear of engine compartment. See Figure. |

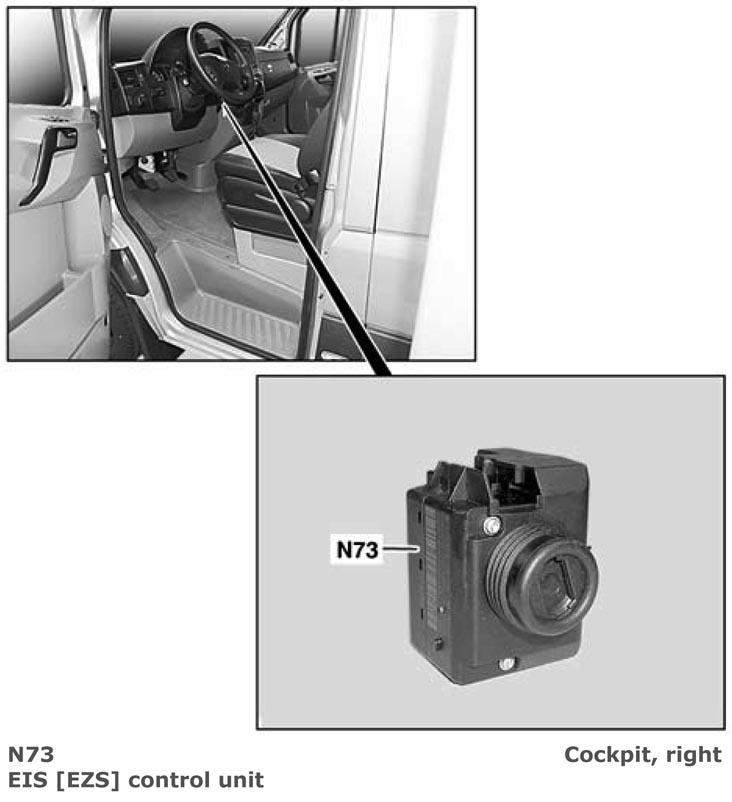

| EIS [EZS] Control Unit | Behind right side of dash. See Figure. |

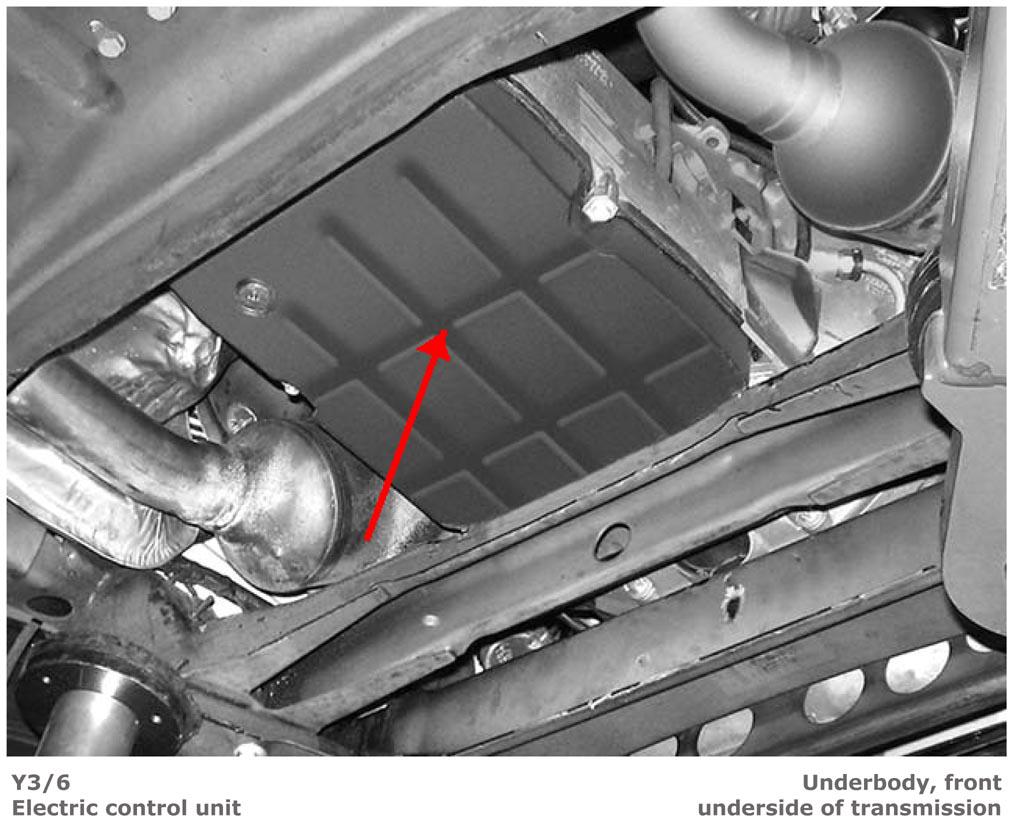

| Electric Control Unit | Under front of transmission. See Figure. |

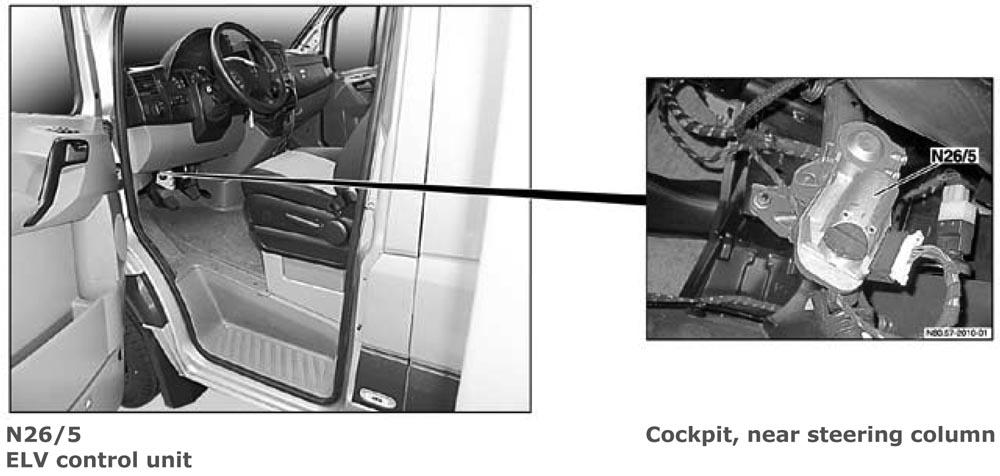

| ELV Control Unit | Under left center of dash. See Figure. |

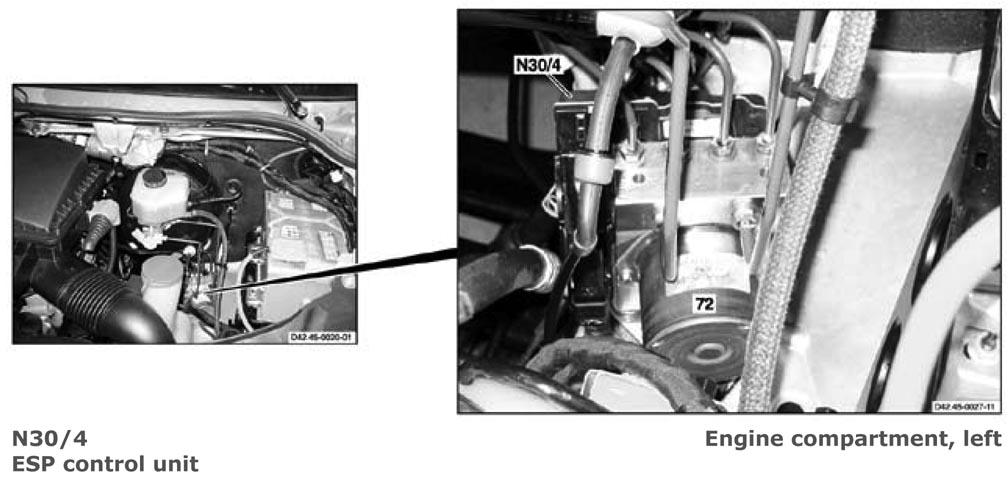

| ESP Control Unit | Left side of engine compartment. See Figure. |

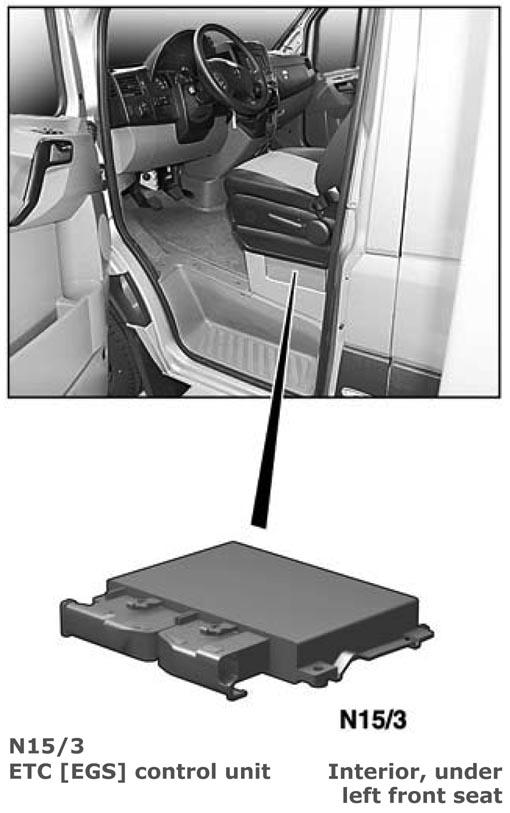

| ETC [EGS] Control Unit | Under driver's seat. See Figure. |
| EWM Control Unit | Behind center console, near shift lever. |

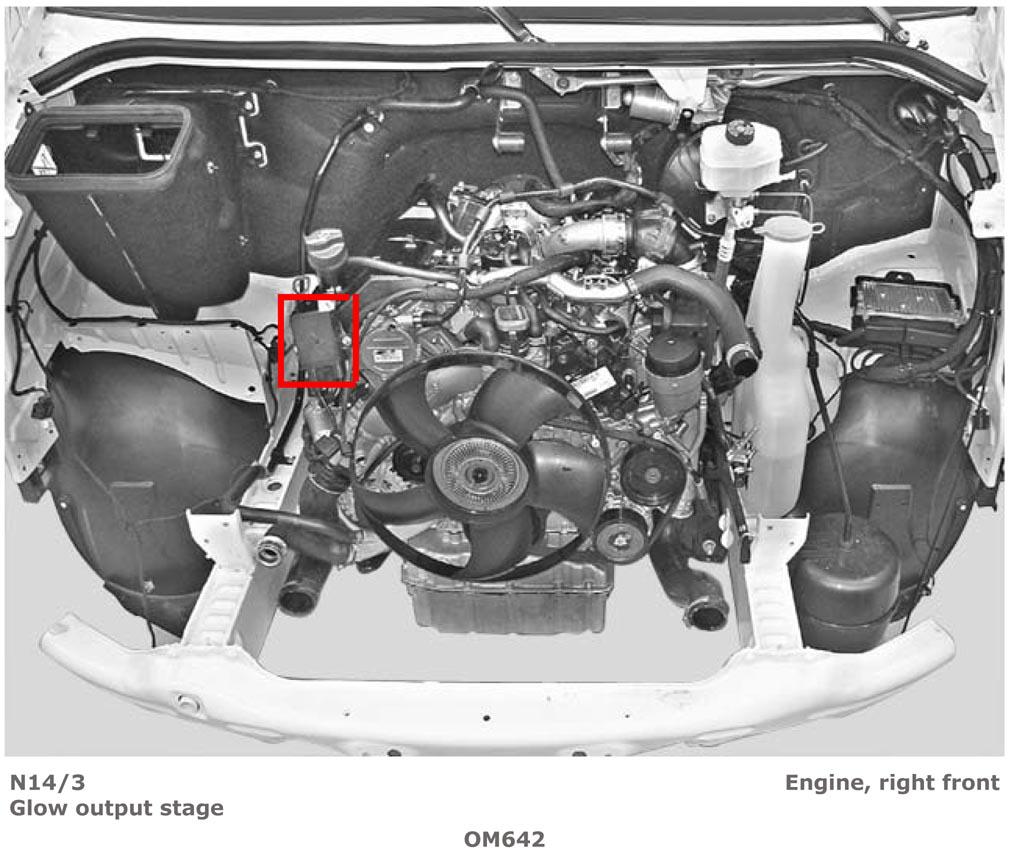

| Glow Output Stage | Right side of engine compartment. See Figure. |

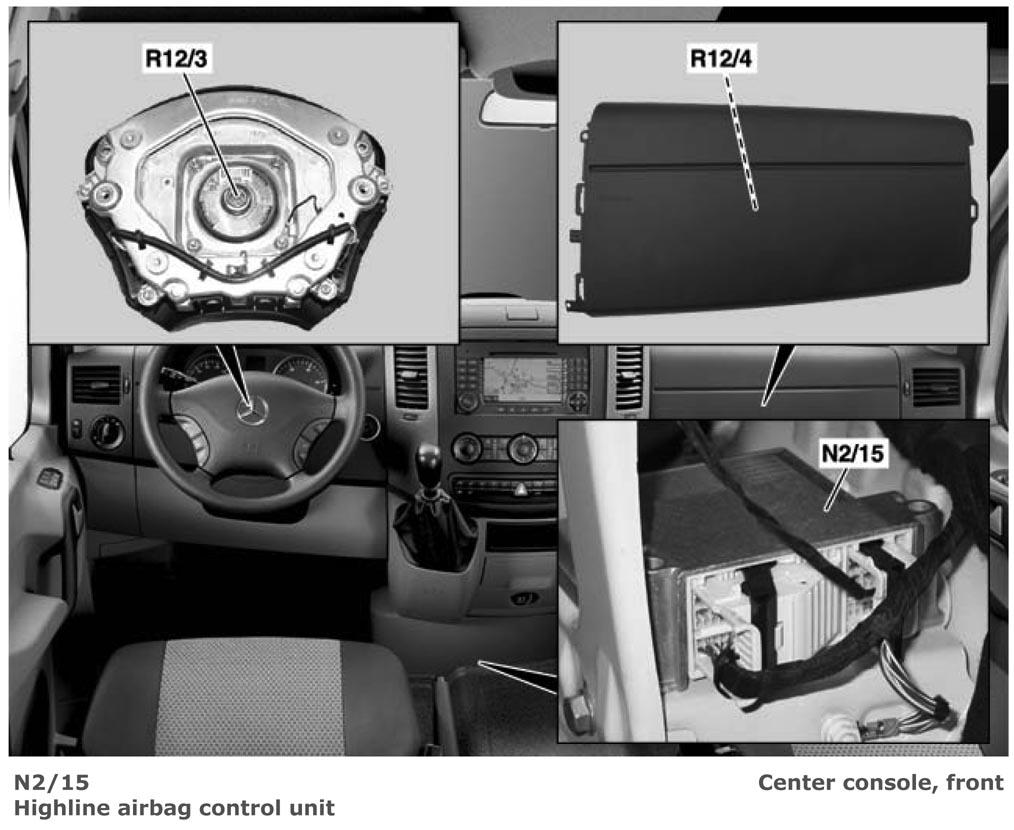

| Highline Airbag Control Unit (N2/15) | Under center console. See Figure. |

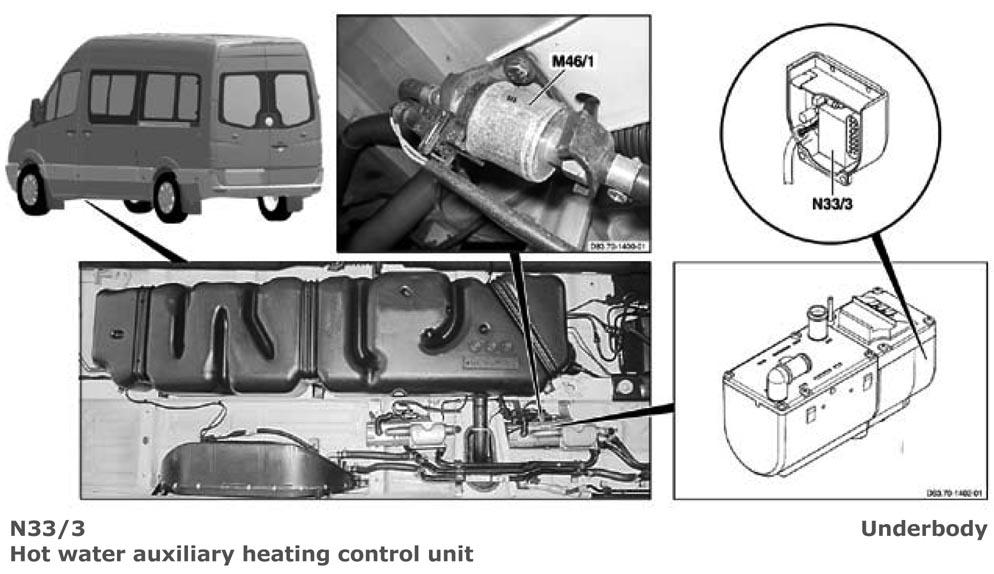

| Hot Water Auxiliary Heating Control Unit (N33/3) | Near rear of fuel tank. See Figure. |

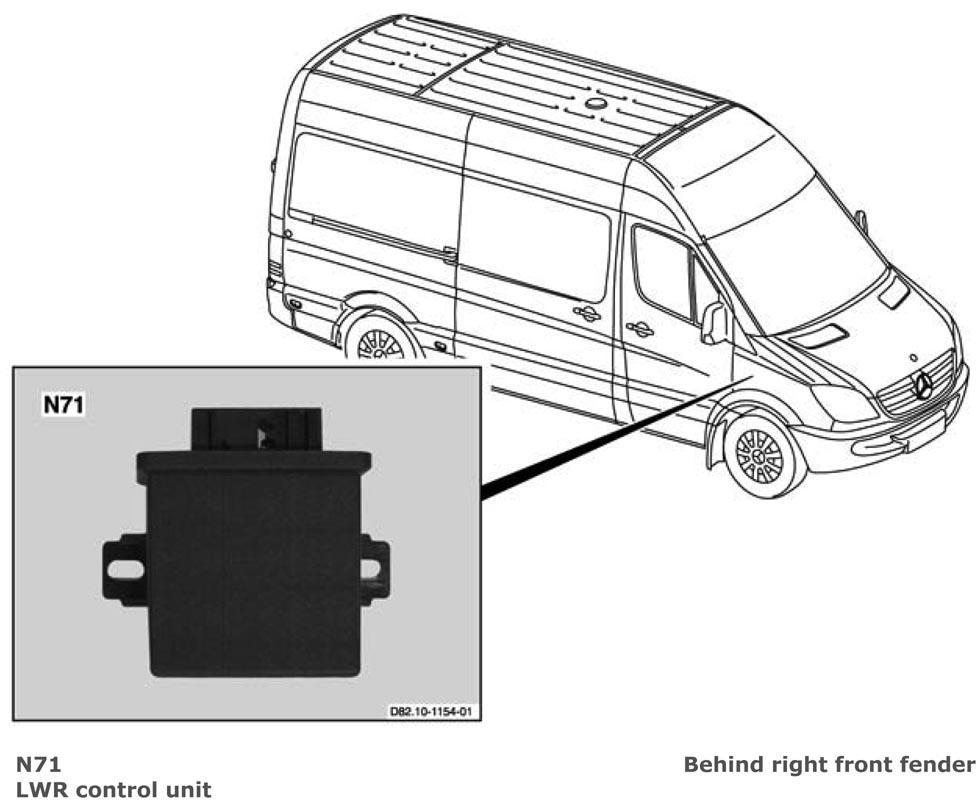

| LWR Control Unit | Behind right front fender. See Figure. |

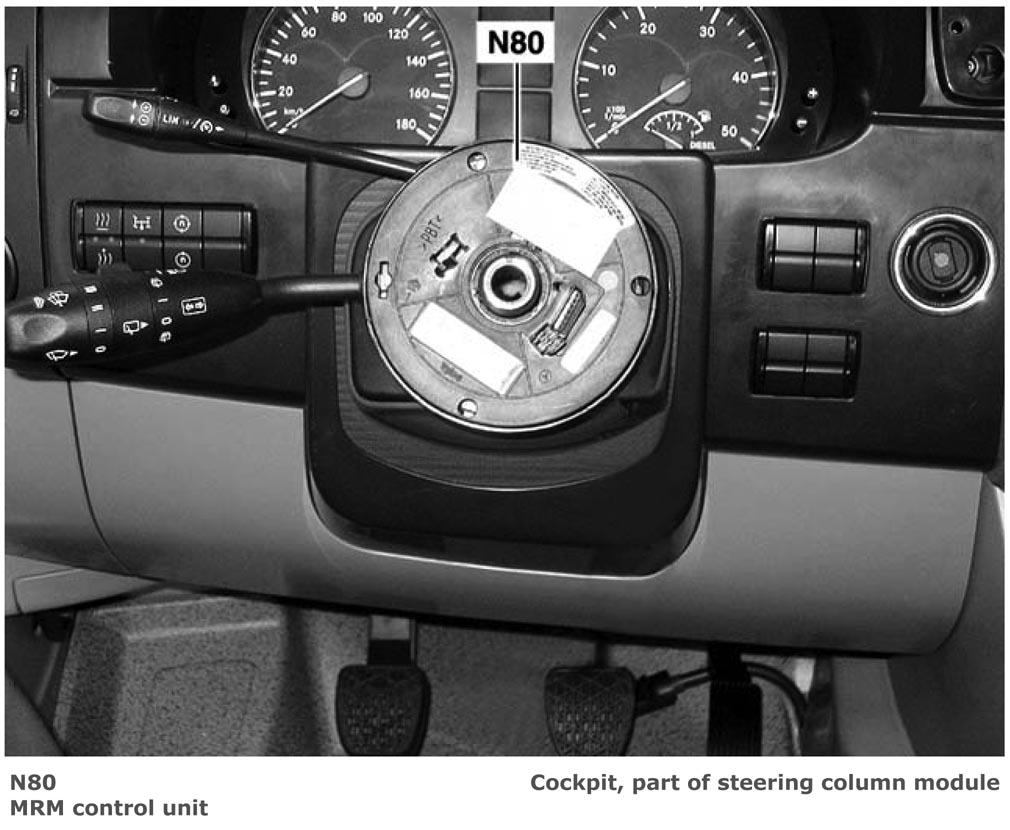

| MRM Control Unit | Part of steering column module. See Figure. |

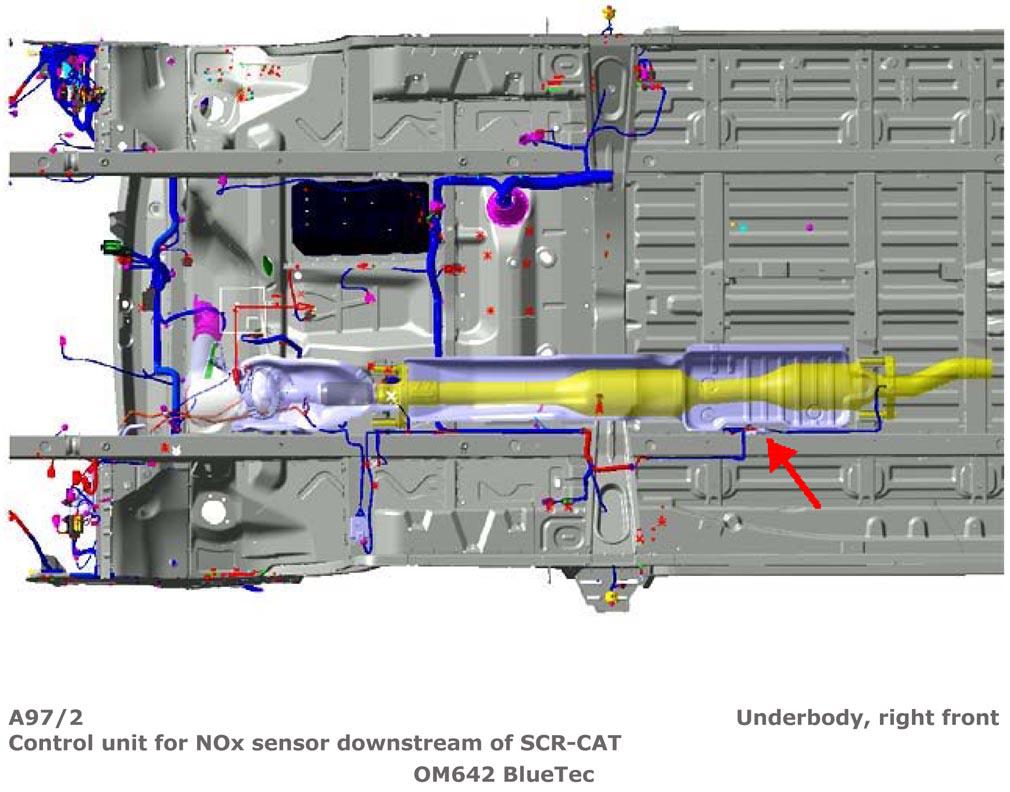

| NOx Sensor Control Unit (Downstream Of SCR-CAT) | Under right center of vehicle. See Figure. |

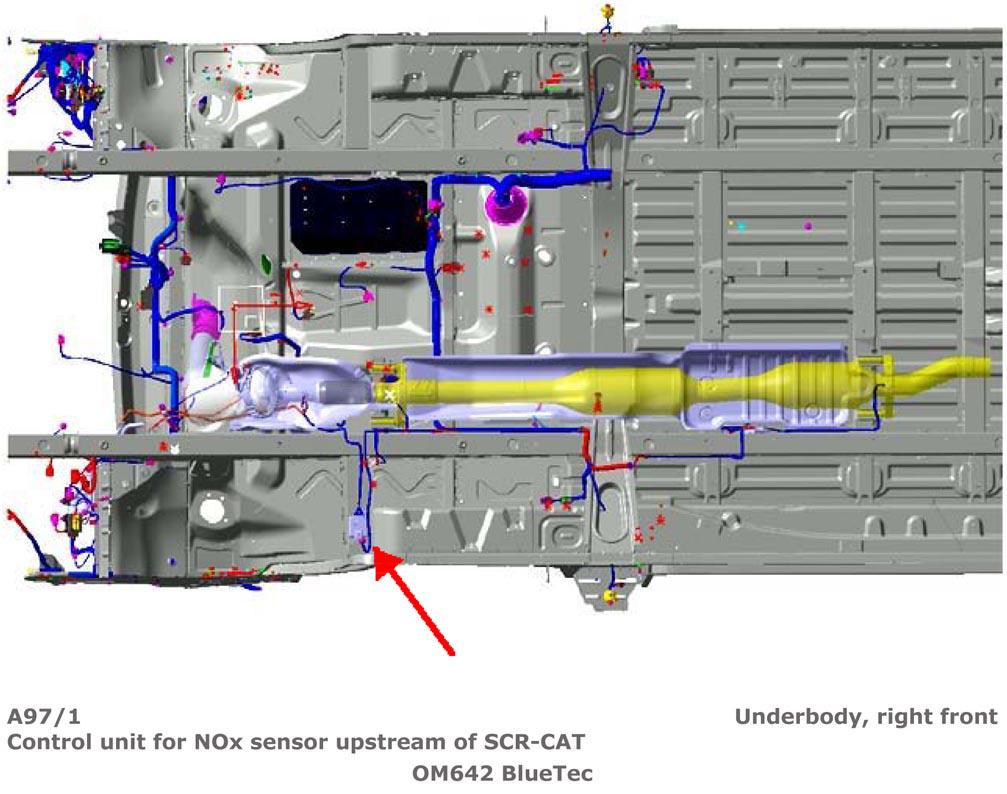

| NOx Sensor Control Unit (Upstream Of SCR-CAT) | Under right front of vehicle. See Figure. |

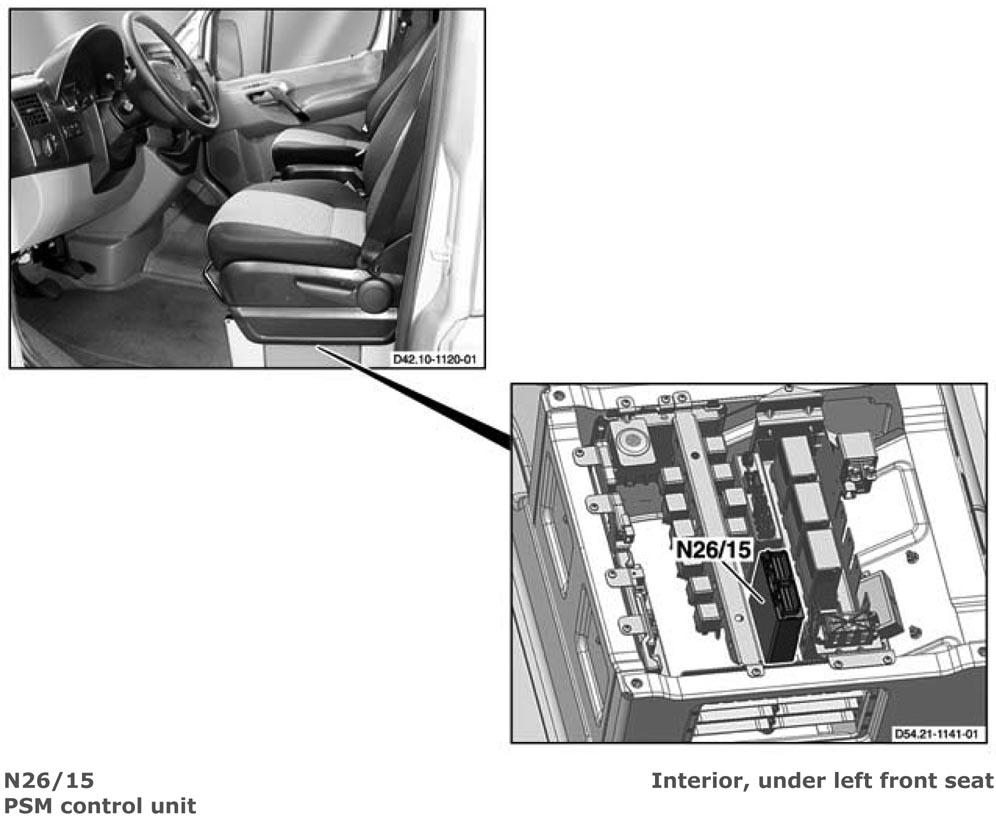

| PSM Control Unit | Under driver's seat. See Figure. |

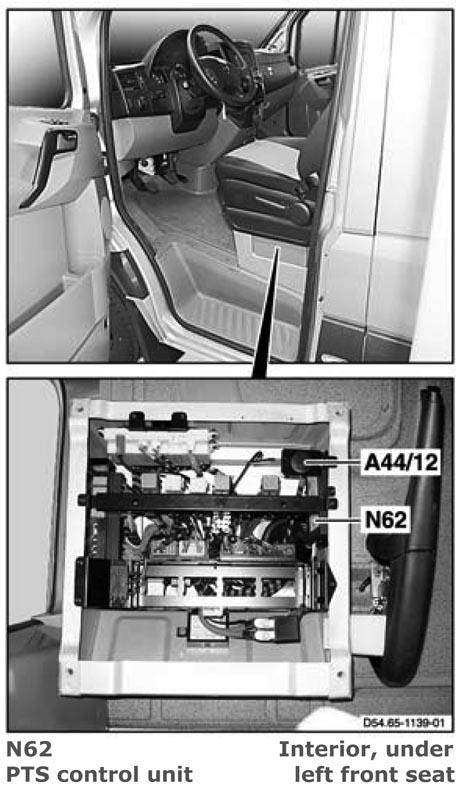

| PTS Control Unit (N62) | Under driver's seat. See Figure. |

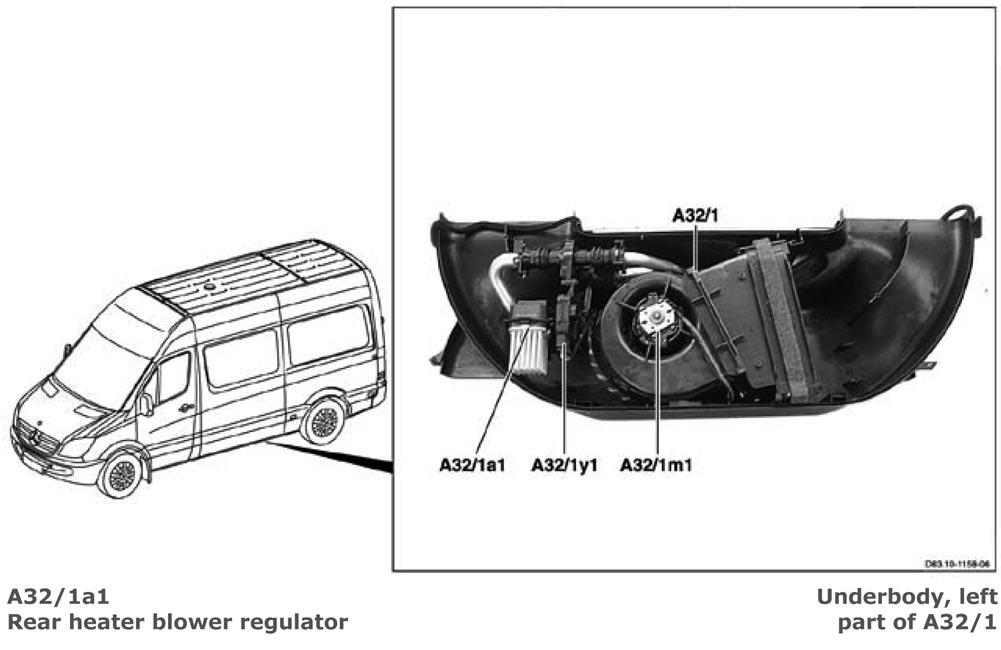

| Rear Heater Blower Regulator (A32/1a1) | Part of rear heater/air conditioner/air recirculation unit. See Figure. |

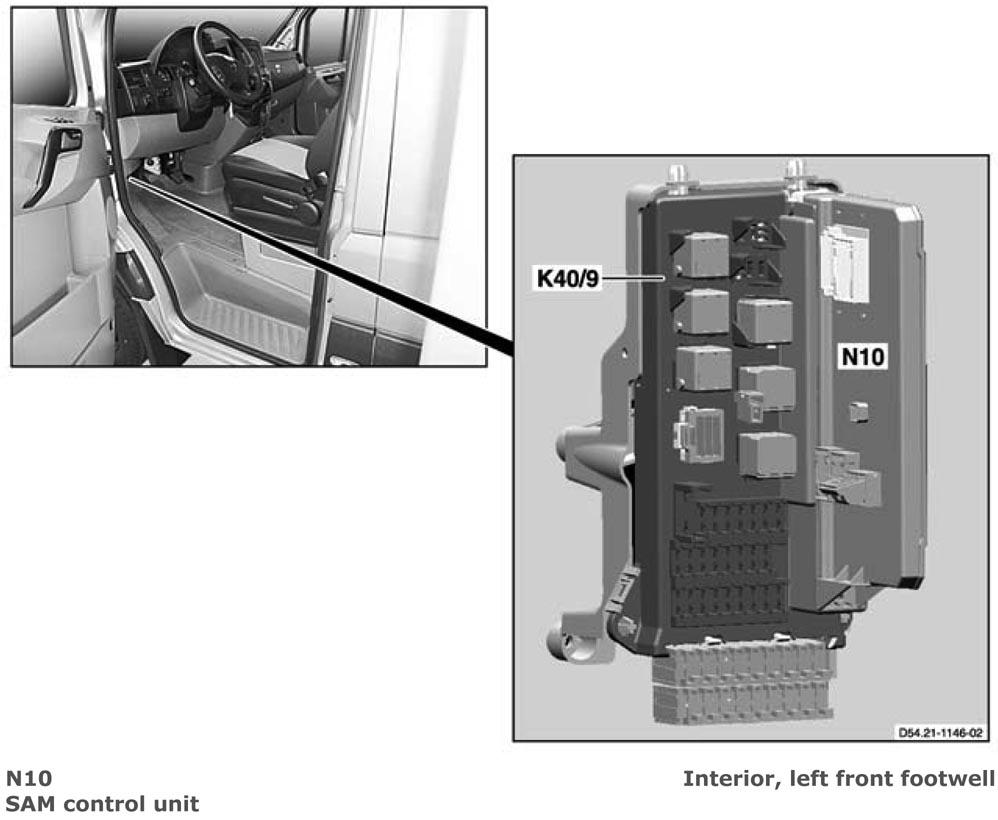

| SAM Control Unit | Left kick panel. See Figure. |

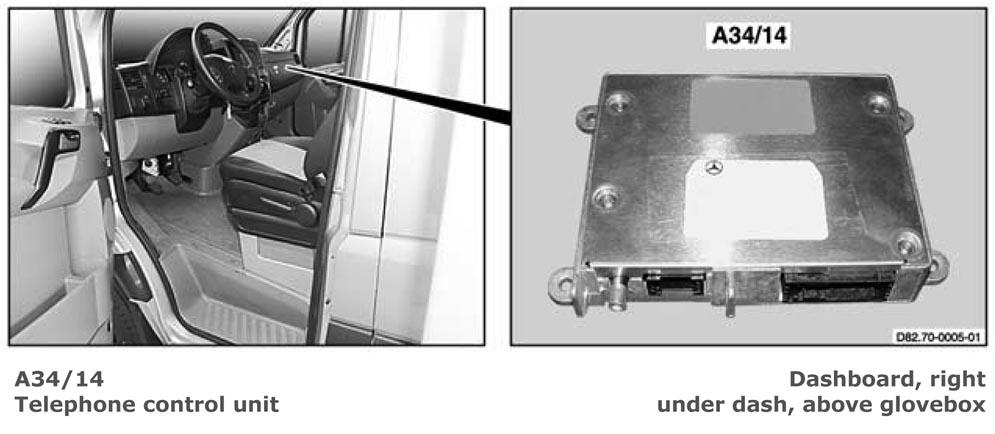

| Telephone Control Unit | Right side of dash. See Figure. |

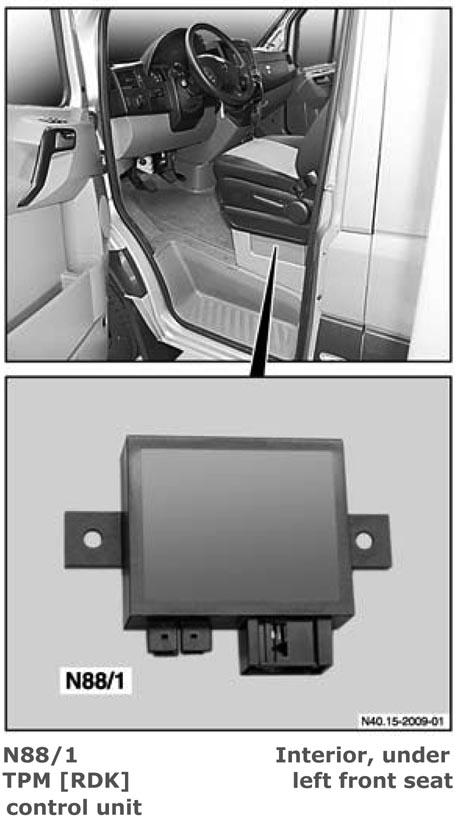

| TPM [RDK] (Tire Pressure Monitor) Control Unit | Under driver's seat. See Figure. |

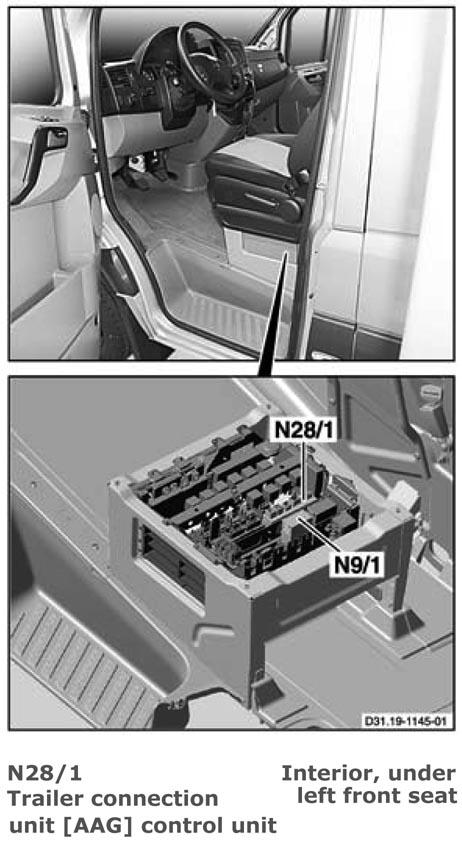

| Trailer Connection Unit [AAG] Control Unit (N28/1) | Under driver's seat. See Figure. |

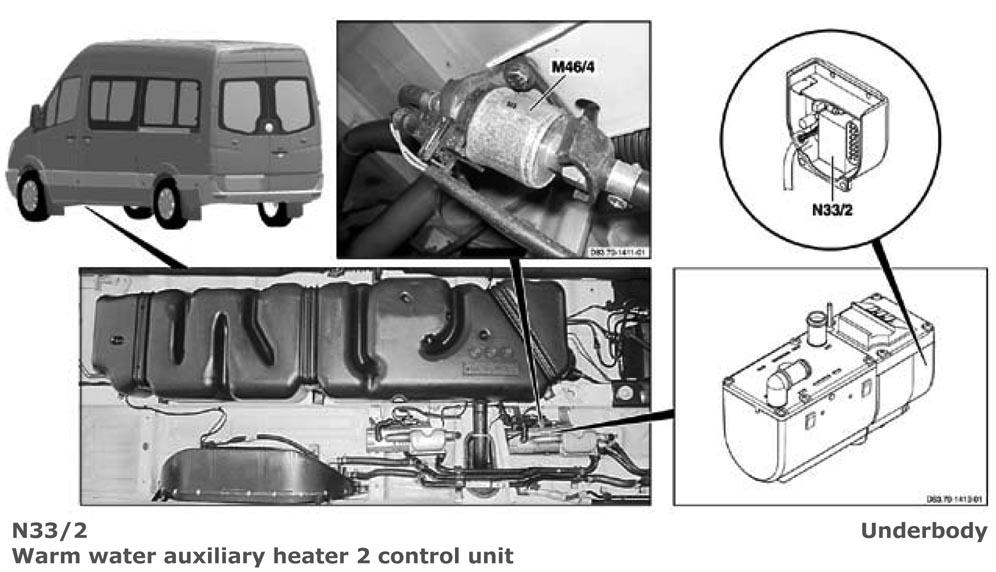

| Warm Water Auxiliary Heater 2 Control Unit (N33/2) | Near rear of fuel tank. See Figure. |

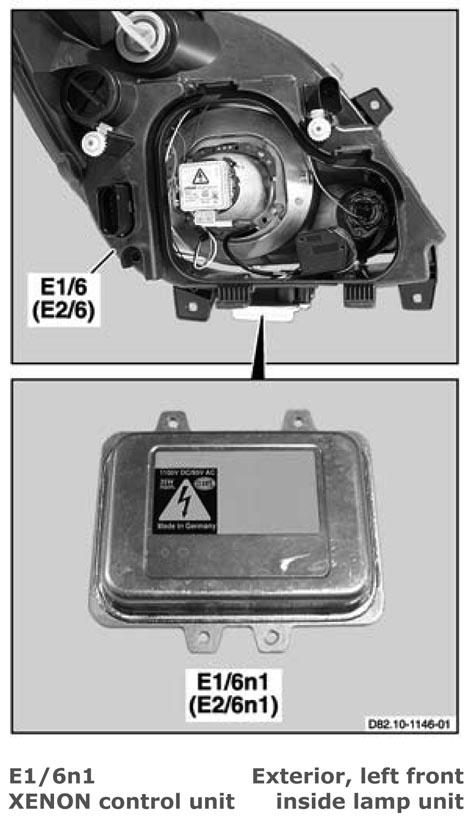

| XENON Control Unit (Left E1/6n1 - Right E2/6n1) | Bottom of respective headlamp assembly. See Figure. |
