Remove/Install Catalytic Converter Temperature Sensor - Ar07.04-D-0004SD
ENGINES 642.992 /993, 646.984 /985 /986 in MODEL 906
| Remove/install | |||
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| 1 | Lift/jack up vehicle | AR00.60-D-1000H | |

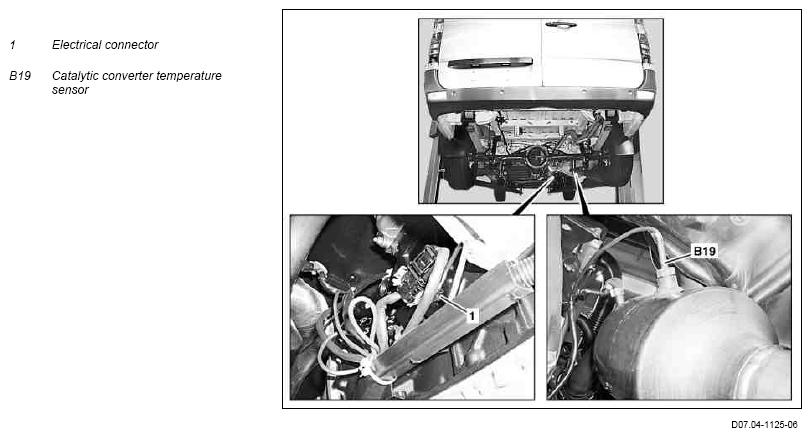

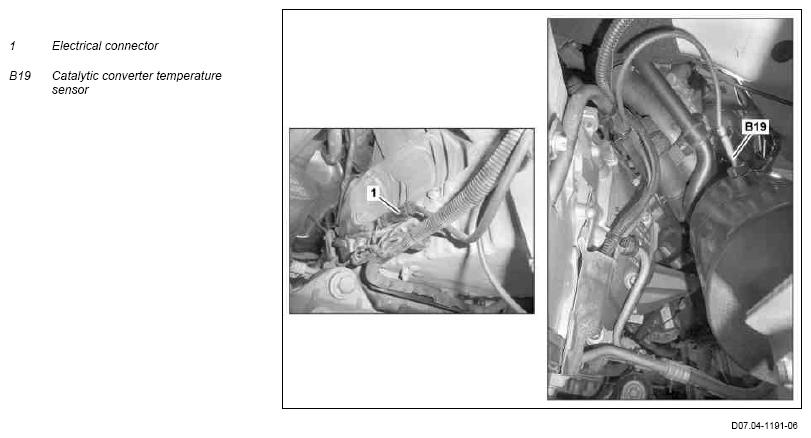

| 2 | Unclip and disconnect electrical connector (1) | ||
| 3 | Expose electrical line for catalytic converter temperature sensor (B19) | ||
| 4 | Remove catalytic converter temperature sensor (B19) | ||
| *BA07.04-N-1001-01G | |||
| *BA07.04-N-1007-01B | |||
| Paste | *BR00.45-Z-1005-06A | ||
| 5 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 6 | Test run engine and check engine for leaks in the area of catalytic converter temperature sensor (B19) |
CATALYTIC CONVERTER TEMPERATURE SENSOR TORQUE SPECIFICATIONS - ENGINE 646 IN MODEL 906
| Number | Designation | Engine 646 in model 906 | Engine 646.986 | |
|---|---|---|---|---|
| BA07.04-N-1007-01B | Temperature sensor to catalytic converter (oxidation catalytic converter) | Nm | 45 | 45 |
CATALYTIC CONVERTER TEMPERATURE SENSOR TORQUE SPECIFICATIONS - ENGINE 642.992/.993
| Number | Designation | Engine 642.992 | Engine 642.993 | |
|---|---|---|---|---|
| BA07.04-N-1001-01G | Temperature sensor to catalytic converter | Nm | 45 | 45 |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1005-06A | Paste, hot lubrication 1 kg, DB supply specification 6879.20 | A 000 989 76 51 |
