Remove/Install Pressure Differential Sensor - Ar07.04-D-0006SD
ENGINES 642.992 /993, 646.984 /985 /986 /989 in MODEL 906
| Remove/install | |||
| Risk of injury to skin and eyes caused by handling hot or glowing objects. | Wear safety gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| 1 | Lift/jack up vehicle | AR00.60-D-1000H | |

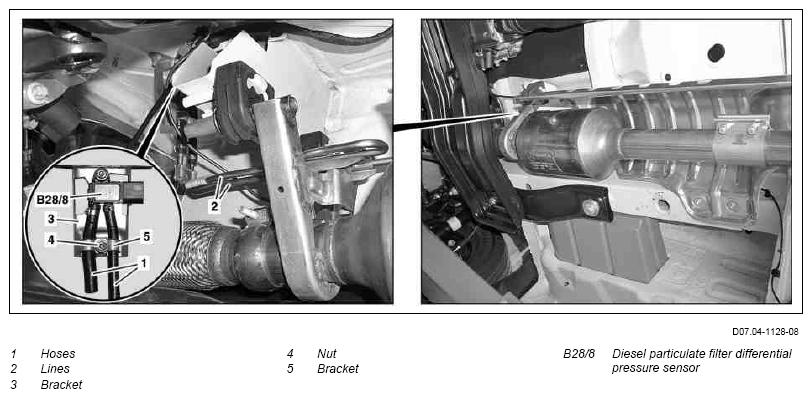

| 2 | Remove hoses (1) at lines (2) | ||
| 3 | Loosen nut (4) and unhook hoses (1) at bracket (5) | ||
| 4 | Remove diesel particulate filter differential pressure sensor (B28/8) on holder (3) | *BA07.04-N-1010-01B | |
| *BA07.04-N-1005-01G | |||
| 5 | Disconnect electrical connector on diesel particulate filter differential pressure sensor (B28/8) | ||
| 6 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 7 | Test run engine and check leak tightness of exhaust system in the area of diesel particulate filter differential pressure sensor (B28/8) |
PRESSURE DIFFERENTIAL SENSOR TORQUE SPECIFICATIONS - ENGINE 646 IN MODEL 906
| Number | Designation | Engine 646 in 906 | Engine 646.986 | |
|---|---|---|---|---|
| BA07.04-N-1010-01B | Bolt, differential pressure sensor to bracket | Nm | 9 | 9 |
PRESSURE DIFFERENTIAL SENSOR TORQUE SPECIFICATIONS - ENGINE 642.992/.993
| Number | Designation | Engine 642.992 | Engine 642.993 | |
|---|---|---|---|---|
| BA07.04-N-1005-01G | Bolt, pressure differential sensor to bracket | Nm | 8 | 8 |
