Remove/Install Rail Pressure Sensor - Ar07.16-D-1055SF
ENGINES 642.896 /898 /992 /993 in MODEL 906
Shown on engine 642.992
MODIFICATION NOTES
| 21.4.09 | Value changed: Rail pressure sensor to rail | *BA07.16-N-1002-01B | |
| 30.4.09 | "Remove/install shield" added | Step 2 |
| Remove/install | |||
| Risk of explosion. Fuel may ignite and explode. Risk of injury to skin and eyes caused by fuel spraying out at high pressure. | Keep all ignition sources out of hazard area. Do not carry out any work on systems when they are under pressure | AS07.16-Z-0001-01A | |
| Risk of explosion caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel and risk of injury to eyes and skin caused by contact with fuel | No fire, sparks, open flames or smoking. Pour fuels only into suitable and appropriately marked containers. Wear protective clothing when handling fuel. |
AS47.00-Z-0001-01A | |
| Notes about Common-Rail components | AH07.16-P-0002-01SM | ||
| 1 | Remove oil separator (2) | With engine 642.896/992/993 | AR01.20-D-9750SF |
| with engine 642.898 | AR01.20-D-9750SG | ||
| 2 | Remove shield (4) | *BA09.40-N-1010-01Q | |
| BA09.40-N-1010-01Q | |||
| 3 | Remove lifting eye (3) | ||
| 4 | Disconnect electrical connector on rail pressure sensor (B4/6 or B4/17) | ||
| 5 | Unscrew rail pressure sensor (B4/6 or B4/17) on rail (1) | *BA07.16-N-1002-01B | |

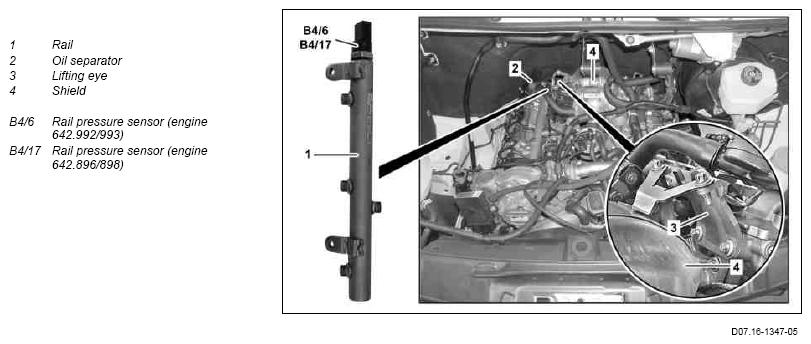

| 6 | Close off connection on rail (1) using suitable stop plugs | Figure | |
| 7 | Install in the reverse order | ||
| Risk of accident caused by vehicle starting off by itself when engine is running. Risk of injury caused by contusions and burns during starting procedure or when working near the engine as it is running | Secure vehicle to prevent it from moving by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A | |
| 8 | Carry out engine test run and check engine for leaks in area of rail pressure sensor (B4/6 or B4/17) |
COMMON RAIL DIESEL PRESSURE SENSOR TO RAIL TORQUE SPECIFICATIONS - ENGINE 642.896/898/992/993
| Number | Designation | Engine 642.896/898/992/993 | |
|---|---|---|---|
| BA07.16-N-1002-01B | Rail pressure sensor to rail | Nm | 70 |
EXHAUST HEAT SHIELD BOLT TORQUE SPECIFICATIONS - ENGINE 642 IN MODEL 906
| Number | Designation | Engine 642 in model 906 | |
|---|---|---|---|
| BA09.40-N-1010-01Q | Bolt, shield to holder | Nm | 8 |
| BA09.40-N-1011-01Q | Bolt, shield to exhaust collector pipe | Nm | 12 |
