Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

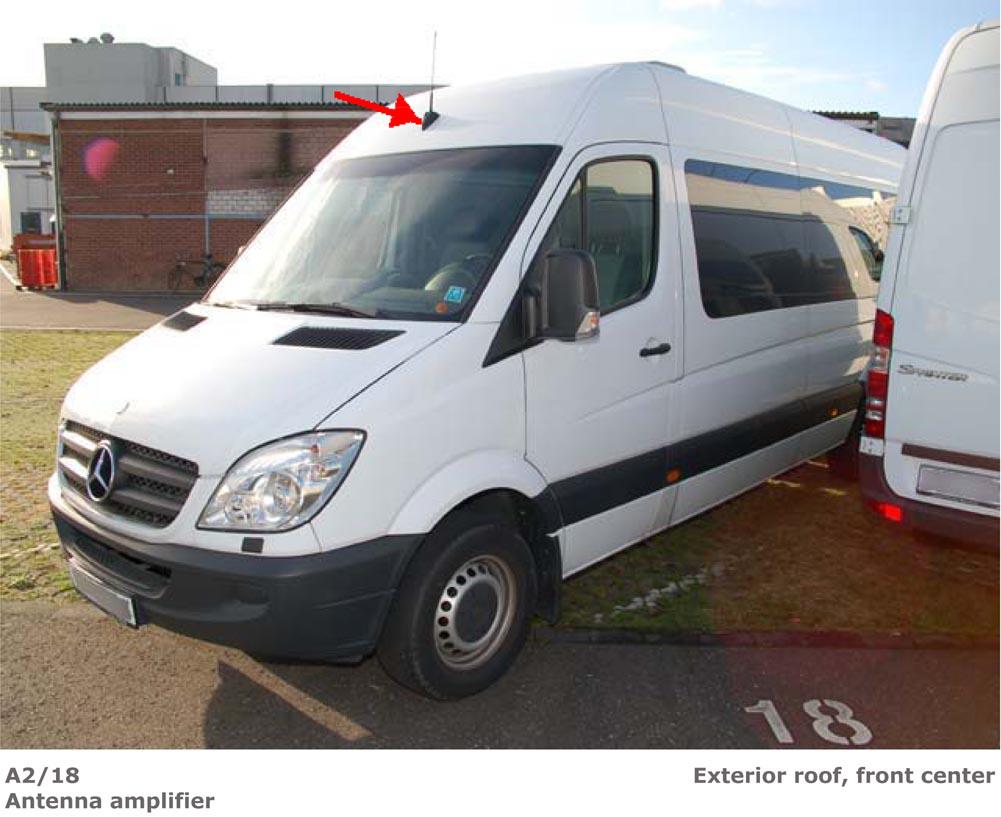

Fig 1: Front Of Roof

G00517591

Courtesy of MERCEDES-BENZ USA

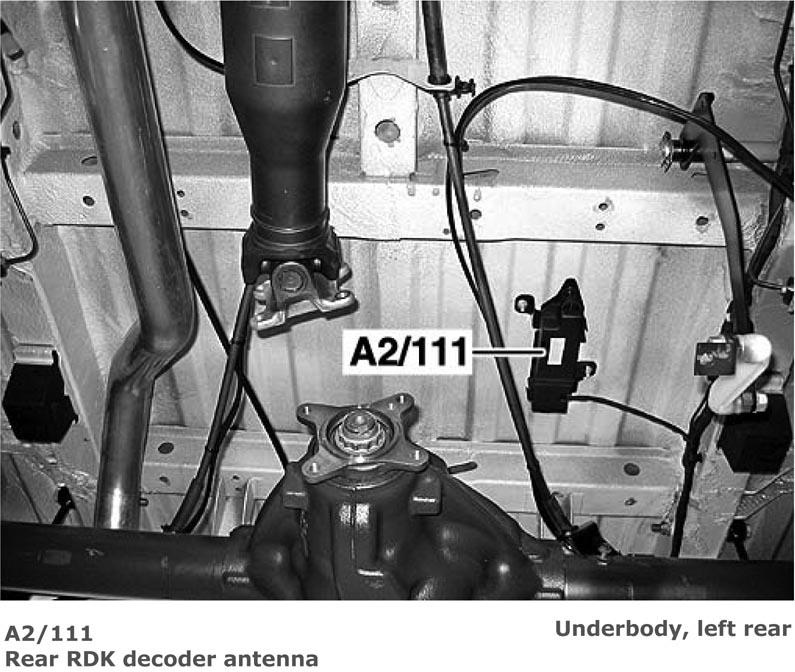

Fig 2: Under Rear Of Vehicle

G00517592

Courtesy of MERCEDES-BENZ USA

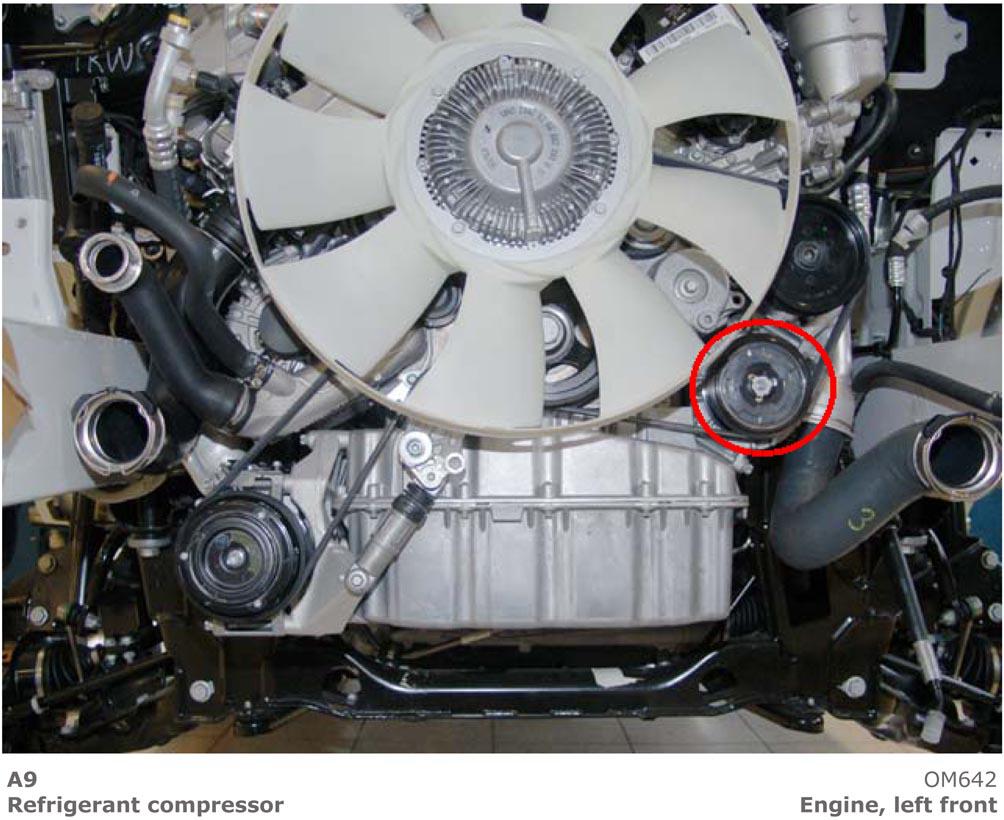

Fig 3: Front Of Engine

G00517593

Courtesy of MERCEDES-BENZ USA

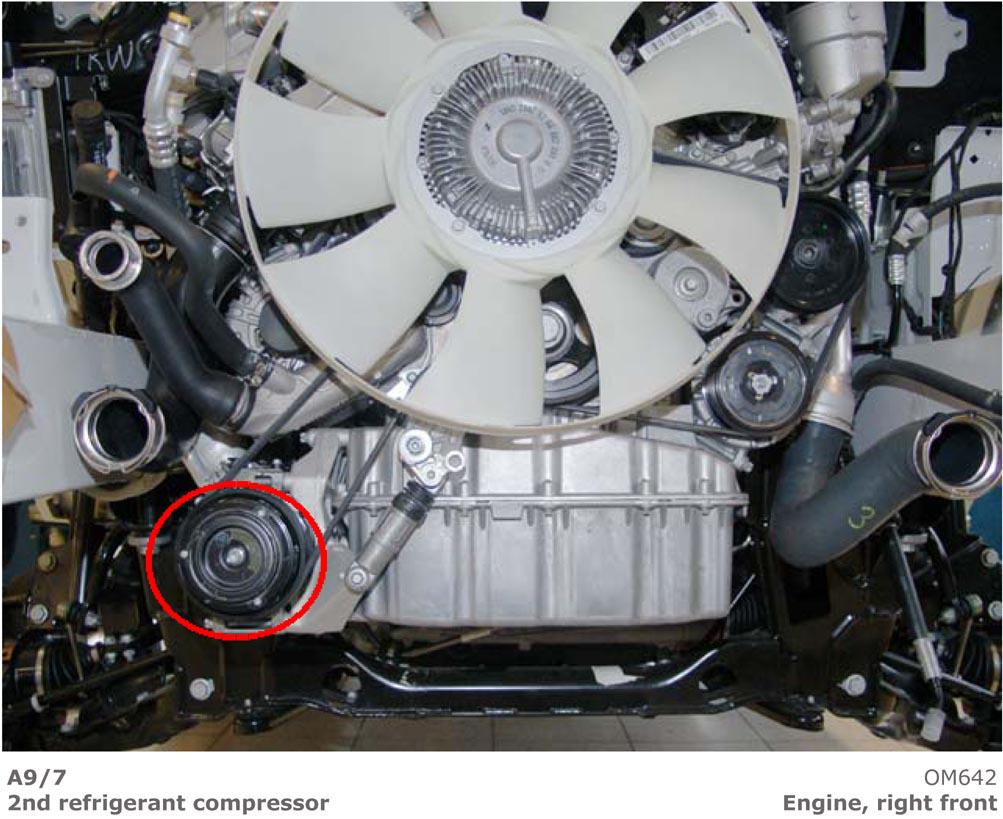

Fig 4: Front Of Engine

G00517594

Courtesy of MERCEDES-BENZ USA

Fig 5: Under Left Side Of Vehicle

G00517597

Courtesy of MERCEDES-BENZ USA

Fig 6: Top Front Center Of Roof

G00517598

Courtesy of MERCEDES-BENZ USA

Fig 7: Behind Right Side Of Dash

G00517599

Courtesy of MERCEDES-BENZ USA

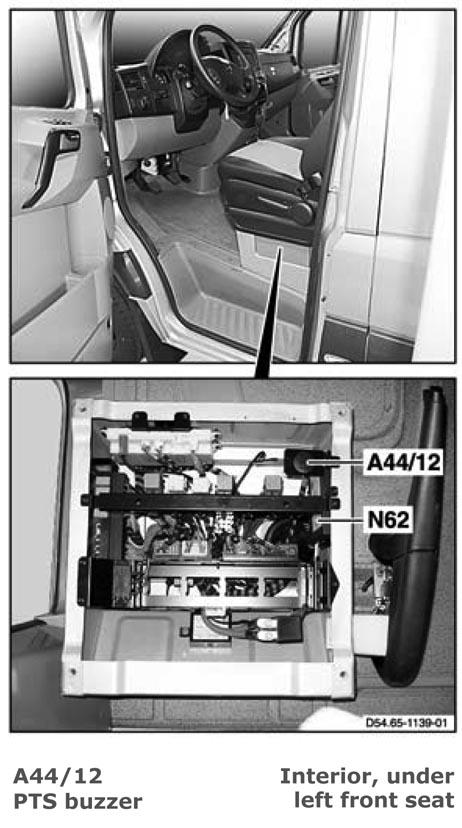

Fig 8: Under Driver's Seat

G00517600

Courtesy of MERCEDES-BENZ USA

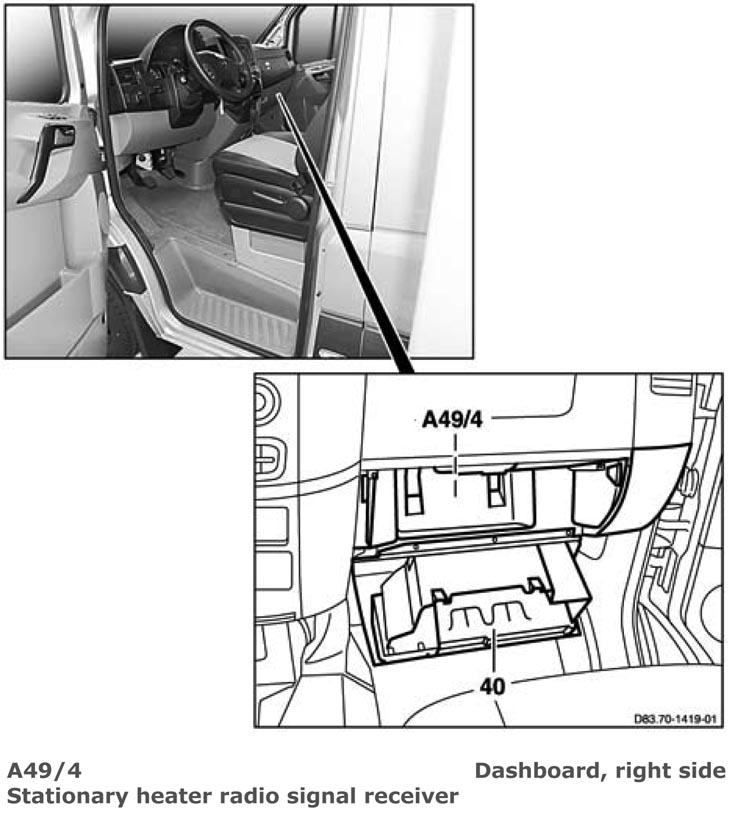

Fig 9: Right Side Of Dash

G00517601

Courtesy of MERCEDES-BENZ USA

Fig 10: Under Left Rear Of Vehicle

G00517602

Courtesy of MERCEDES-BENZ USA

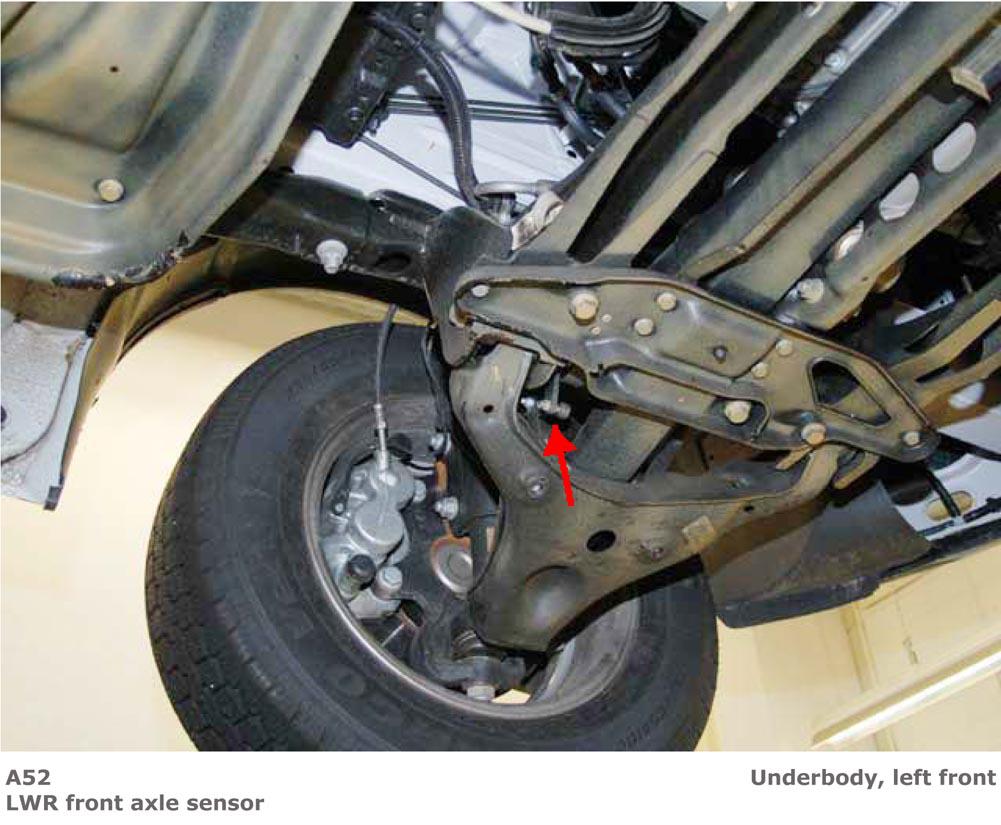

Fig 11: Under Left Front Of Vehicle

G00517603

Courtesy of MERCEDES-BENZ USA

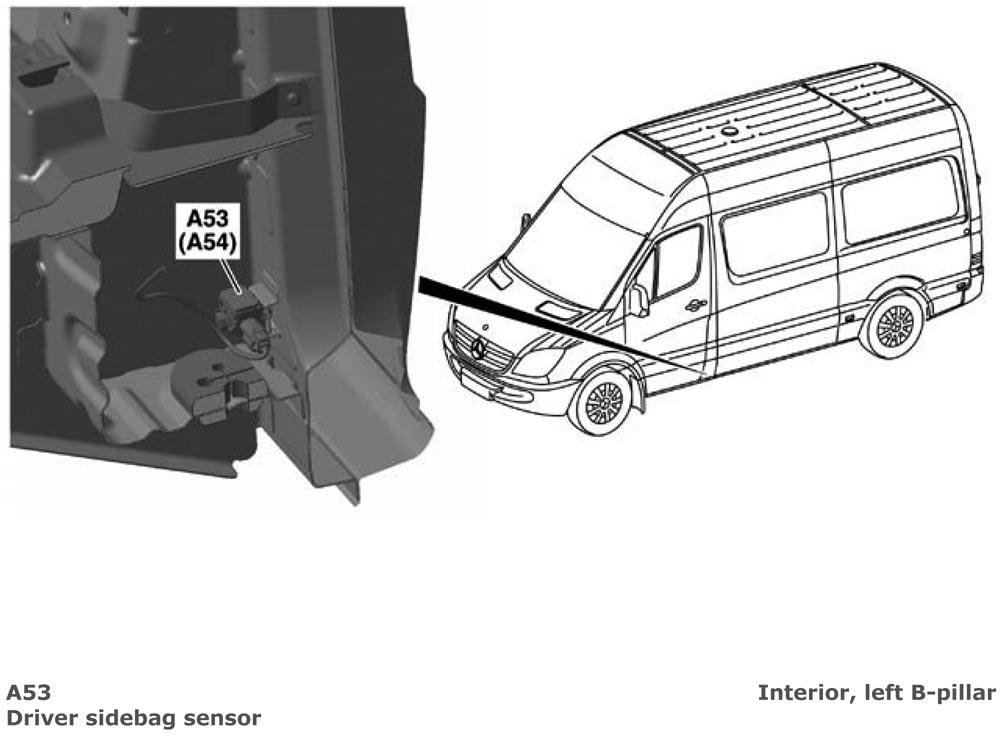

Fig 12: Base Of Left "B" Pillar (Right Similar)

G00517604

Courtesy of MERCEDES-BENZ USA

Fig 13: Under Right Front Of Vehicle

G00517605

Courtesy of MERCEDES-BENZ USA

Fig 14: Under Right Center Of Vehicle

G00517606

Courtesy of MERCEDES-BENZ USA

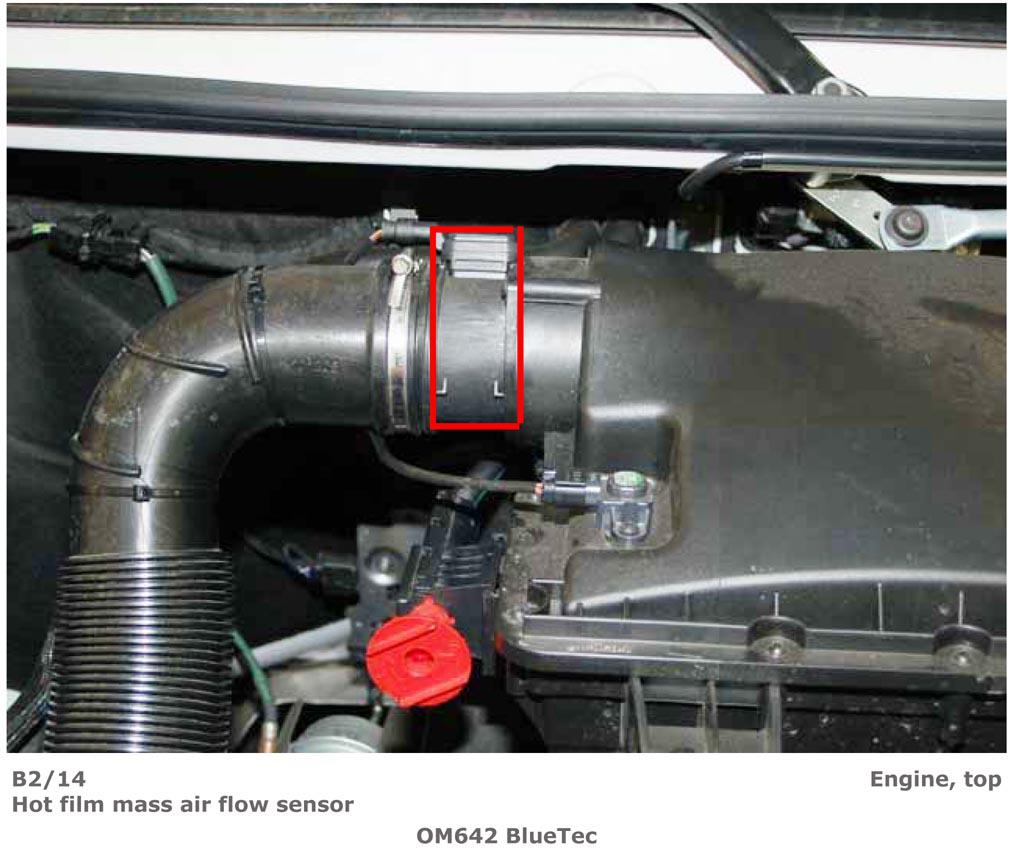

Fig 15: Top Of Engine

G00517607

Courtesy of MERCEDES-BENZ USA

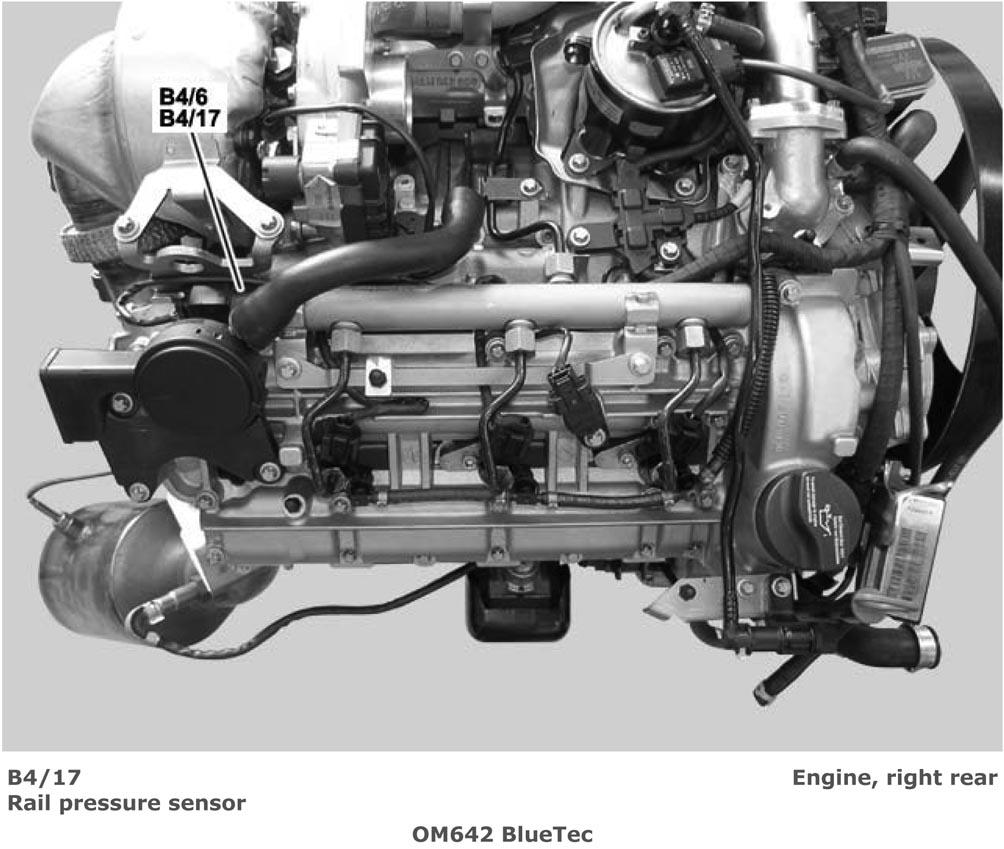

Fig 16: Right Rear Of Engine

G00517608

Courtesy of MERCEDES-BENZ USA

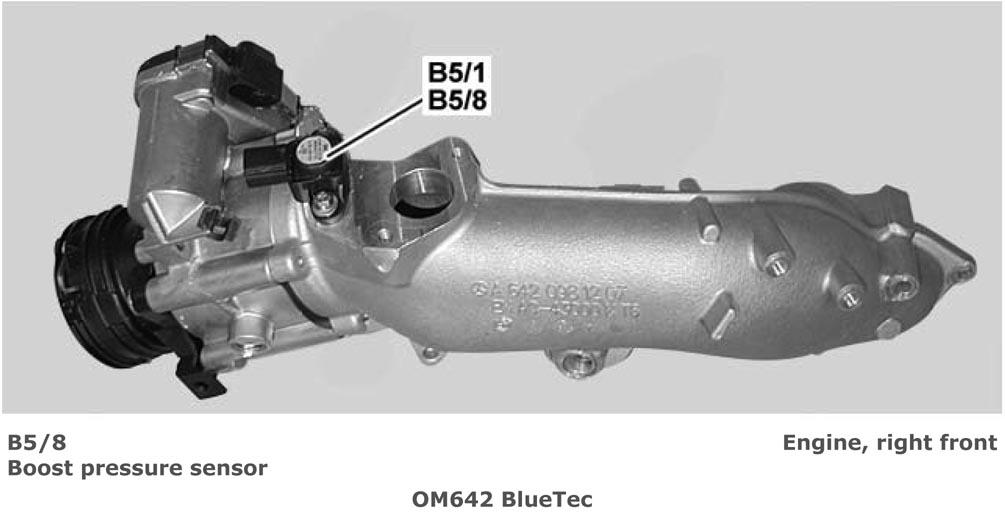

Fig 17: Right Front Of Engine

G00517609

Courtesy of MERCEDES-BENZ USA

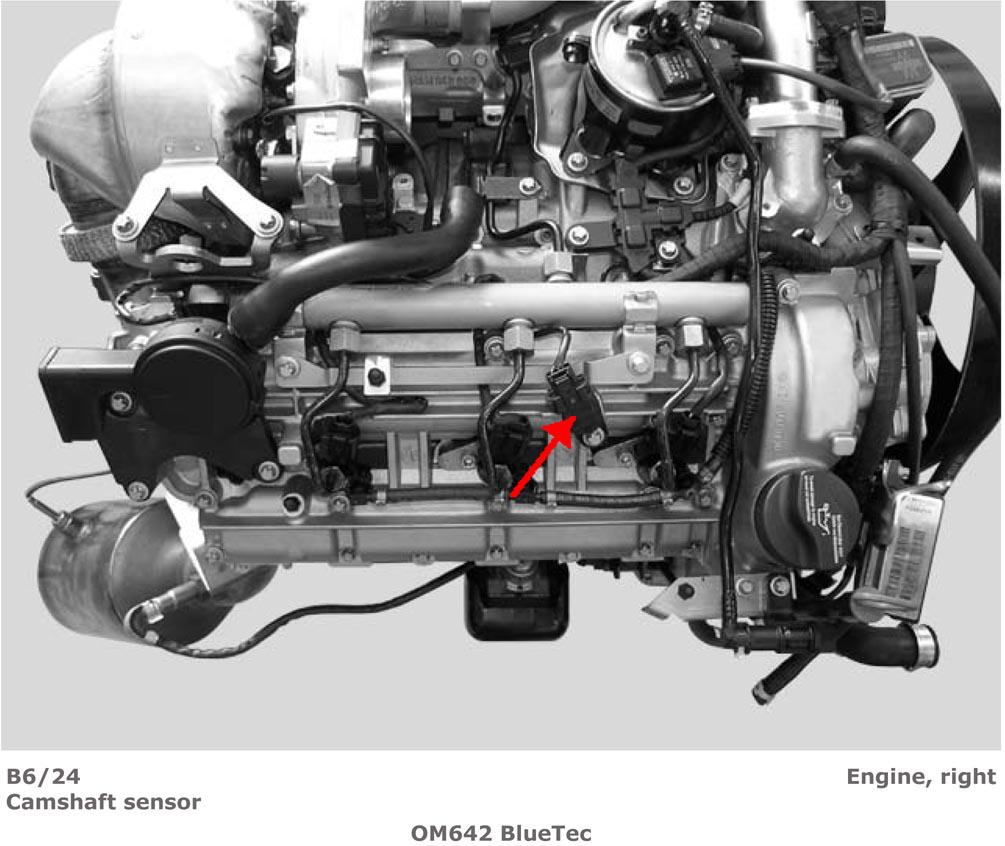

Fig 18: Right Side Of Engine

G00517610

Courtesy of MERCEDES-BENZ USA

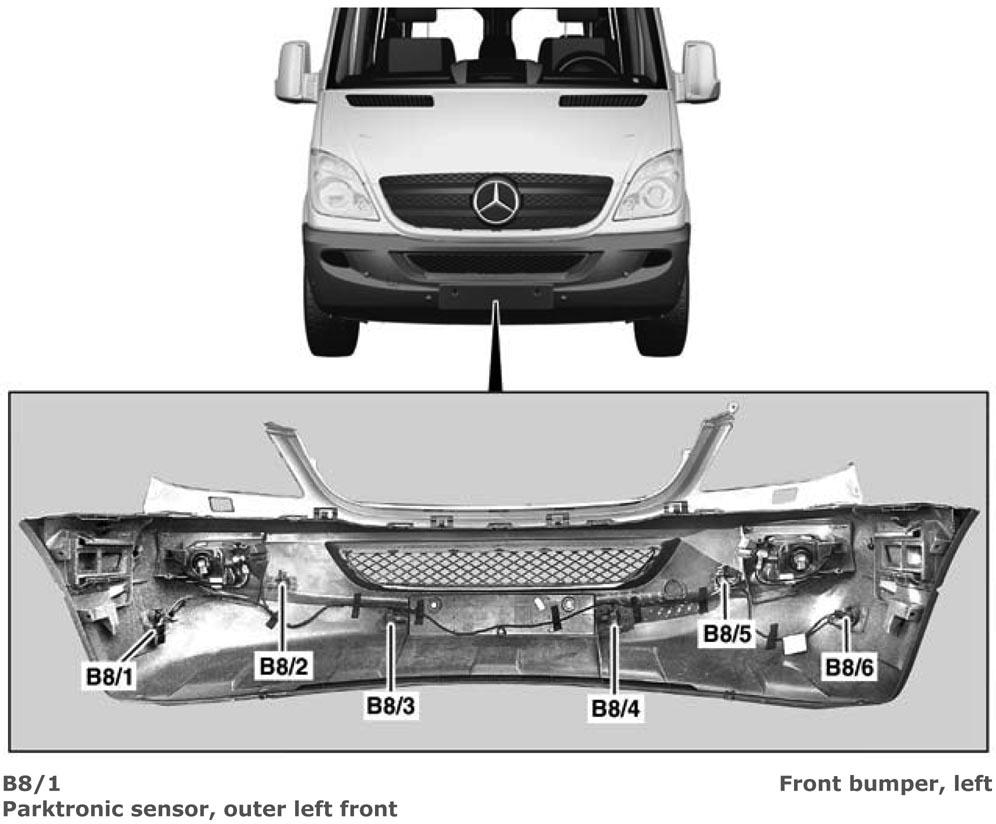

Fig 19: Front Bumper

G00517611

Courtesy of MERCEDES-BENZ USA

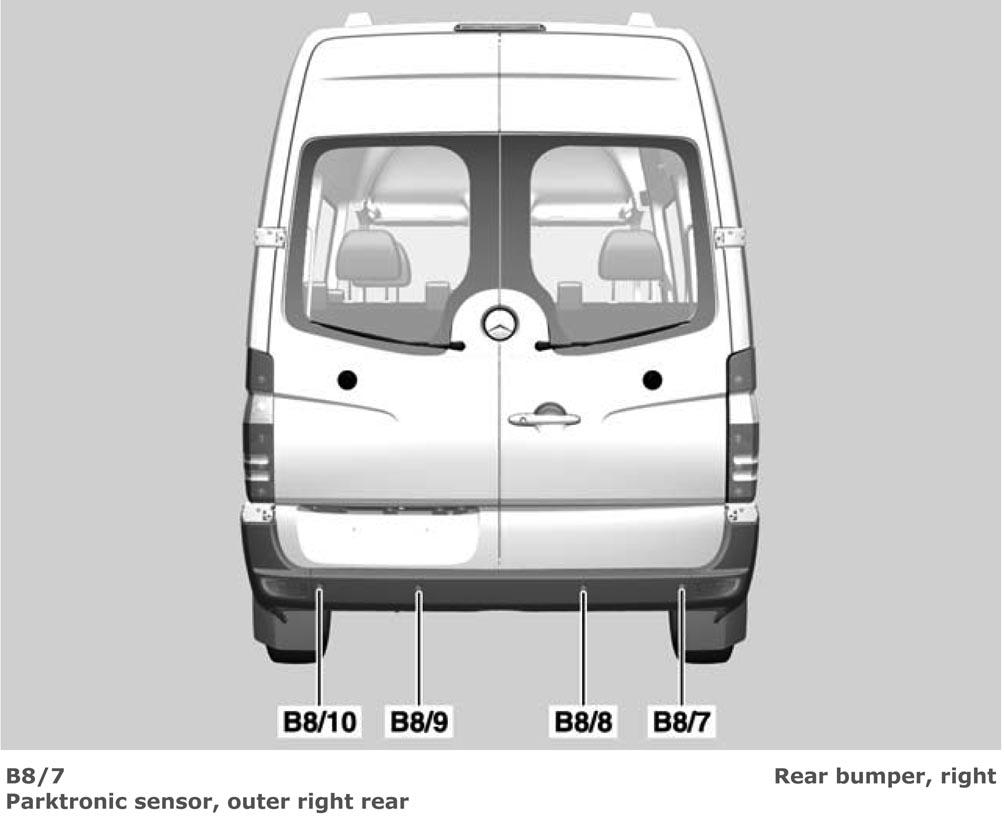

Fig 20: Rear Bumper

G00517612

Courtesy of MERCEDES-BENZ USA

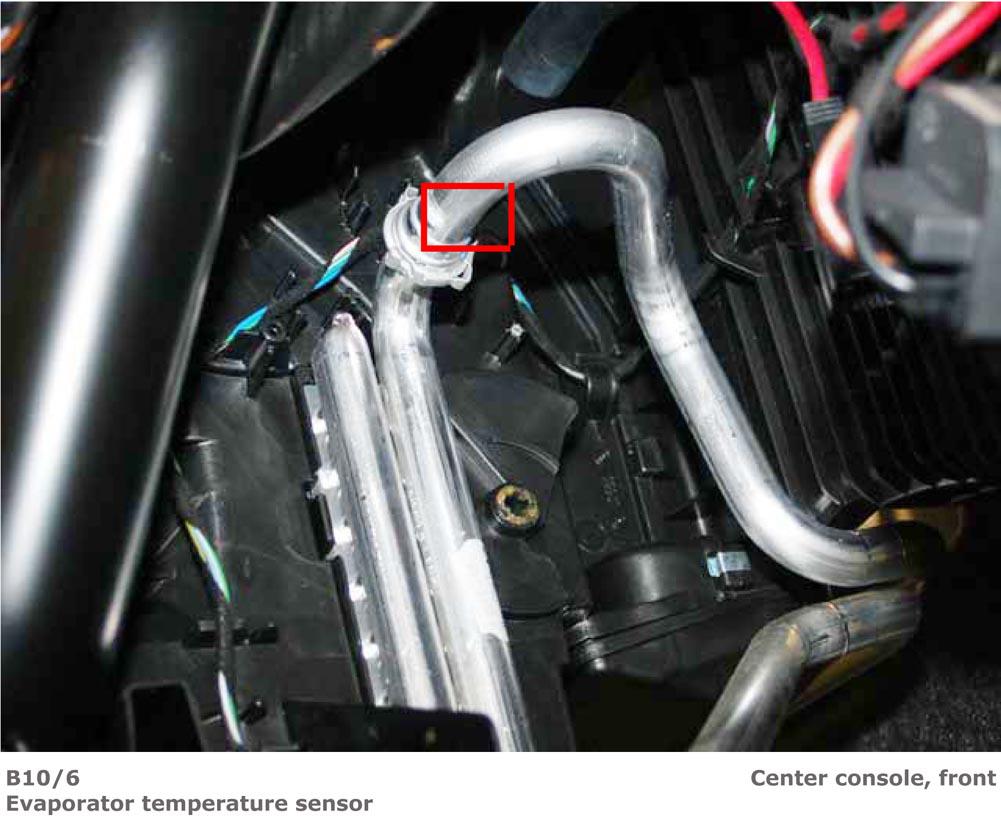

Fig 21: Right Center Of Dash

G00517613

Courtesy of MERCEDES-BENZ USA

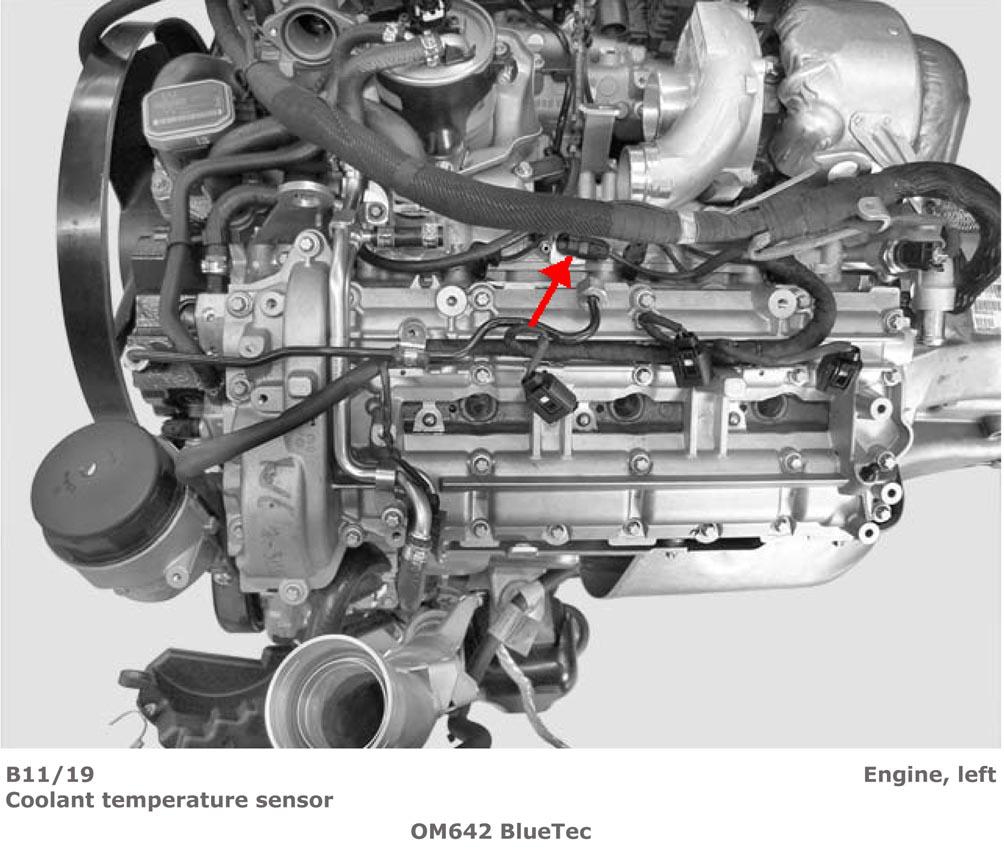

Fig 22: Top Of Engine

G00517614

Courtesy of MERCEDES-BENZ USA

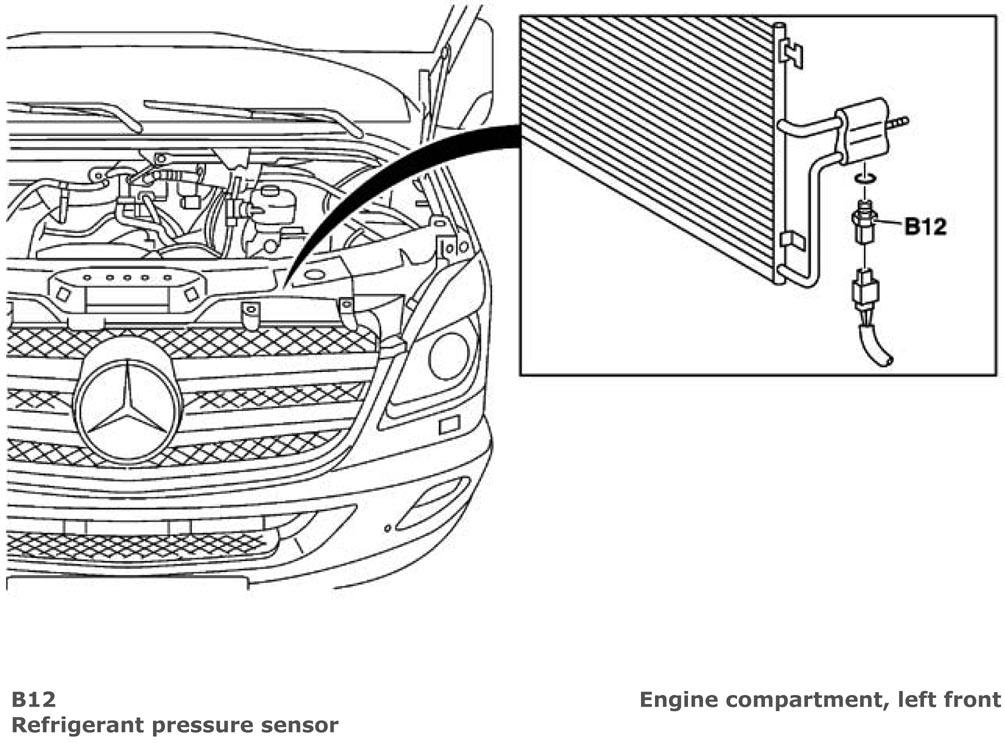

Fig 23: Left Front Of Engine Compartment

G00517615

Courtesy of MERCEDES-BENZ USA

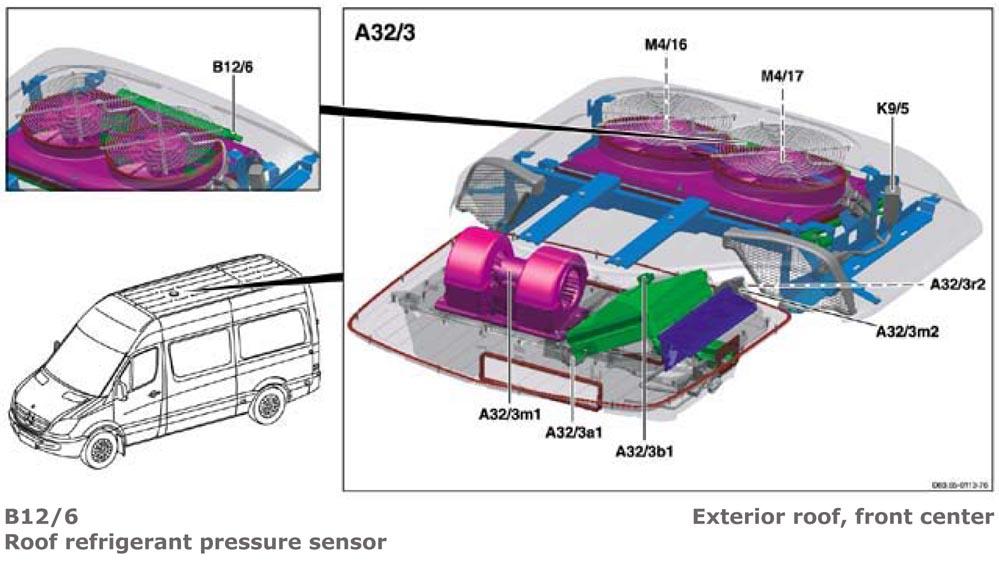

Fig 24: Top Front Center Of Roof

G00517616

Courtesy of MERCEDES-BENZ USA

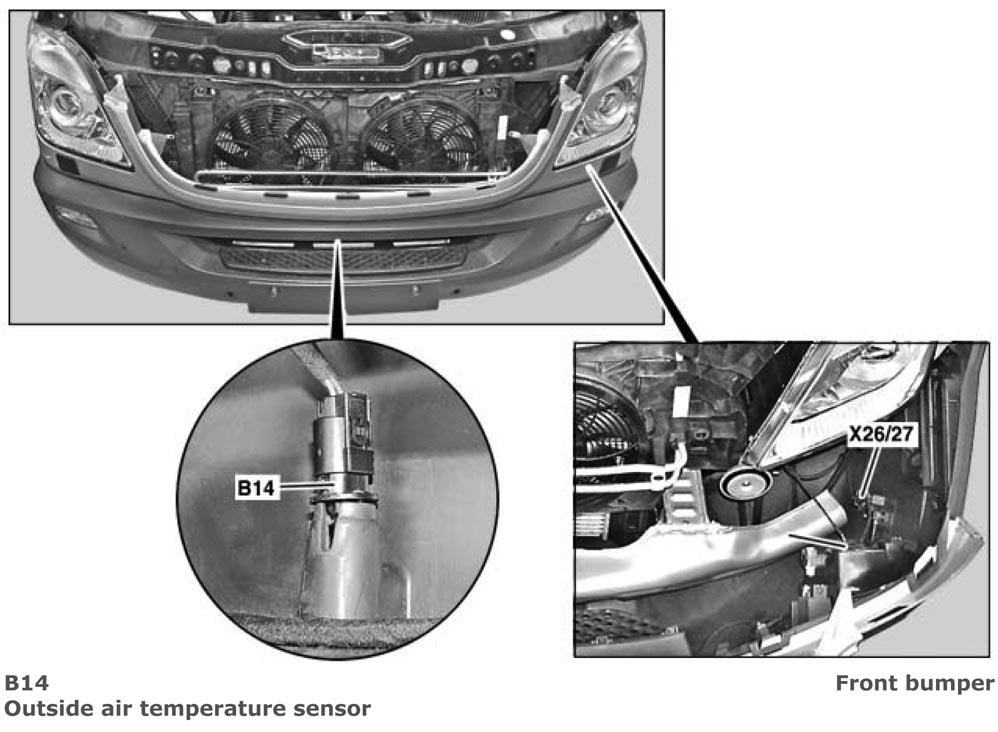

Fig 25: Behind Center Of Front Bumper

G00517617

Courtesy of MERCEDES-BENZ USA

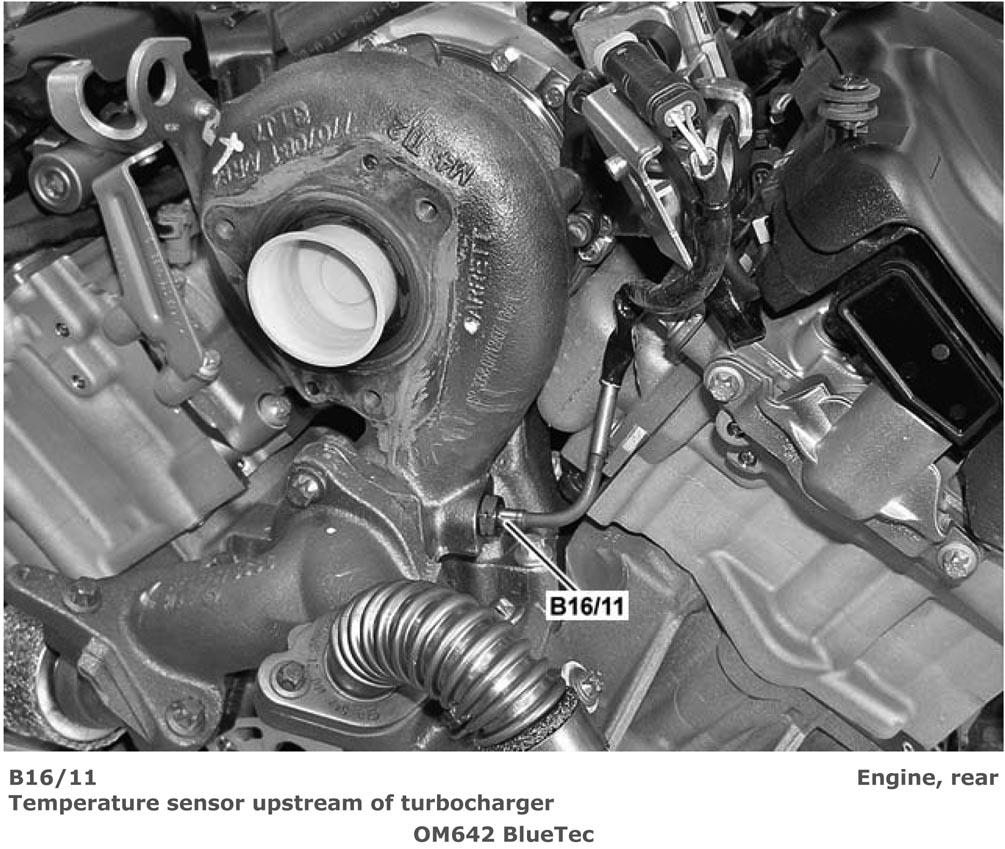

Fig 26: Right Rear Of Engine.

G00517618

Courtesy of MERCEDES-BENZ USA

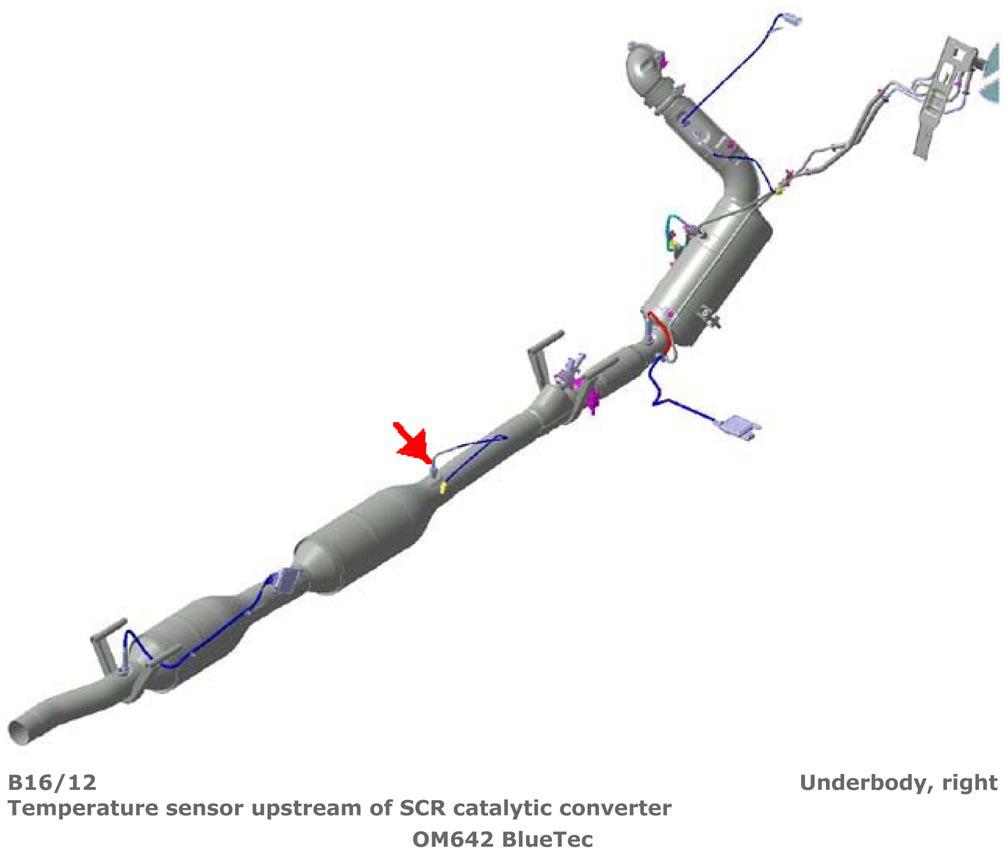

Fig 27: Exhaust System

G00517619

Courtesy of MERCEDES-BENZ USA

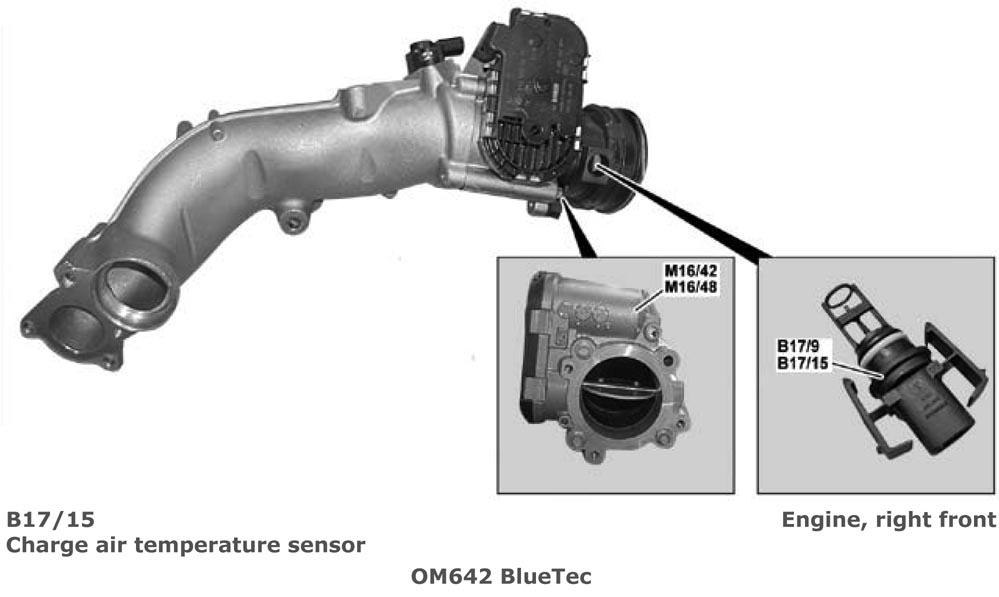

Fig 28: Right Front Of Engine

G00517620

Courtesy of MERCEDES-BENZ USA

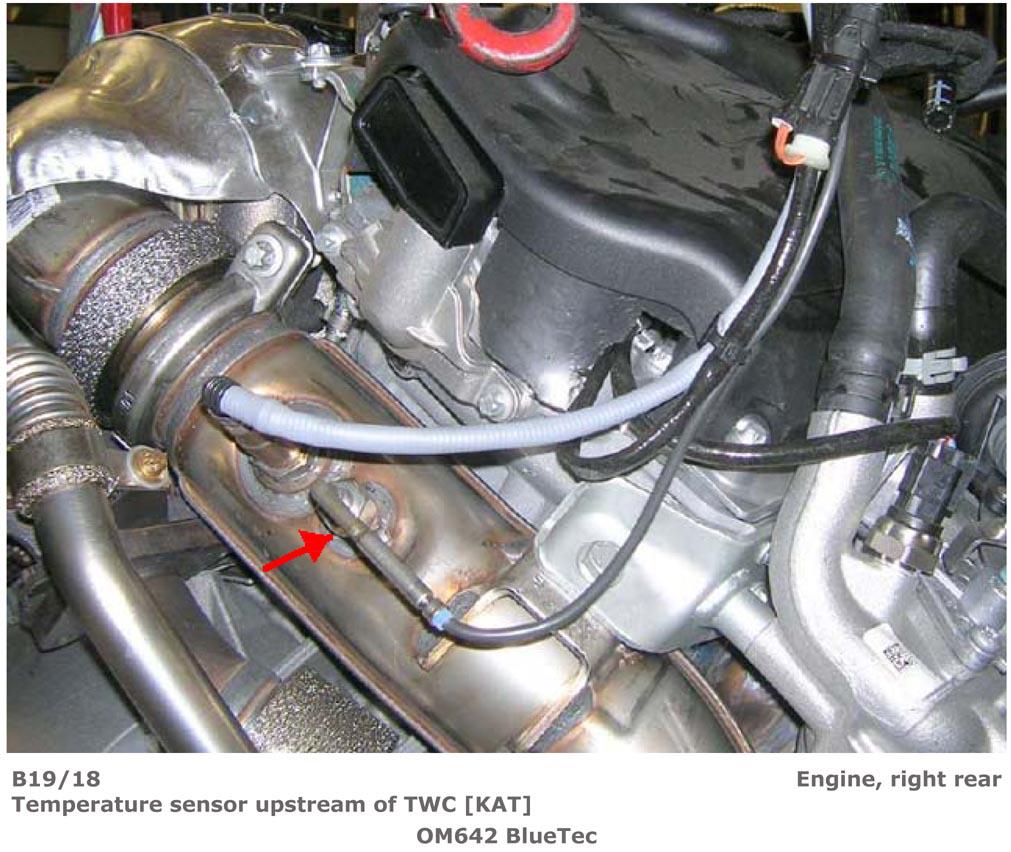

Fig 29: Right Rear Of Engine

G00517621

Courtesy of MERCEDES-BENZ USA

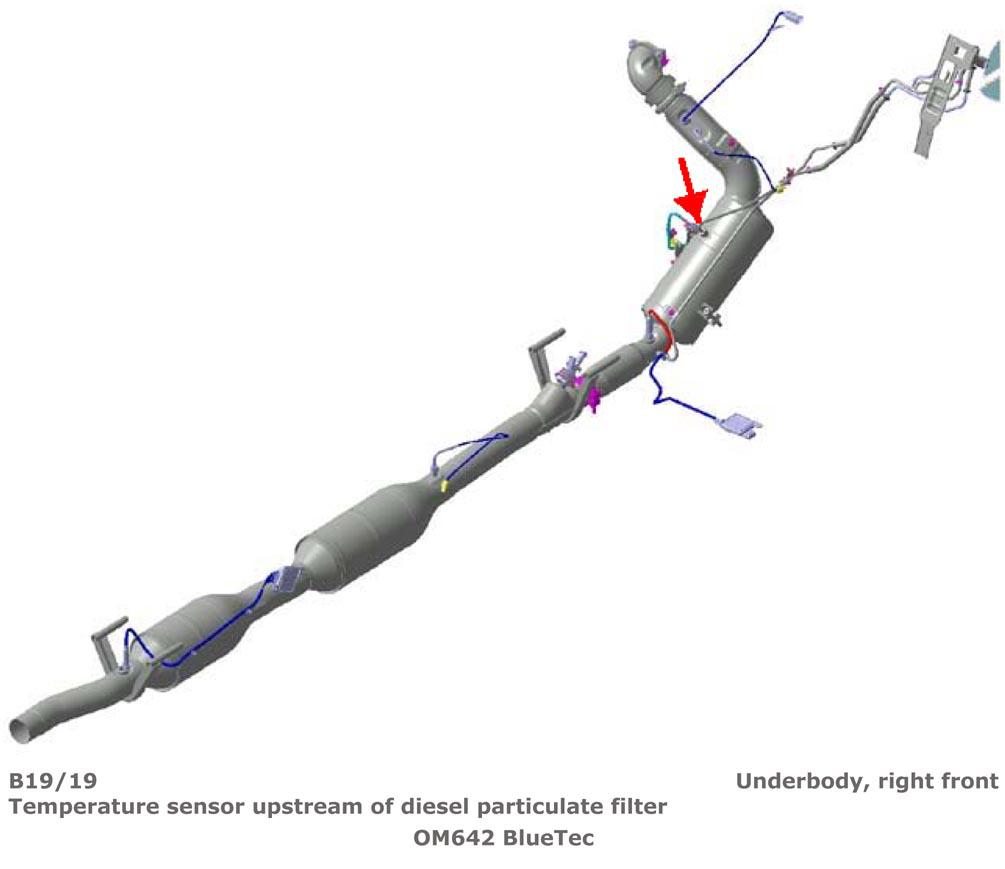

Fig 30: Exhaust System

G00517622

Courtesy of MERCEDES-BENZ USA

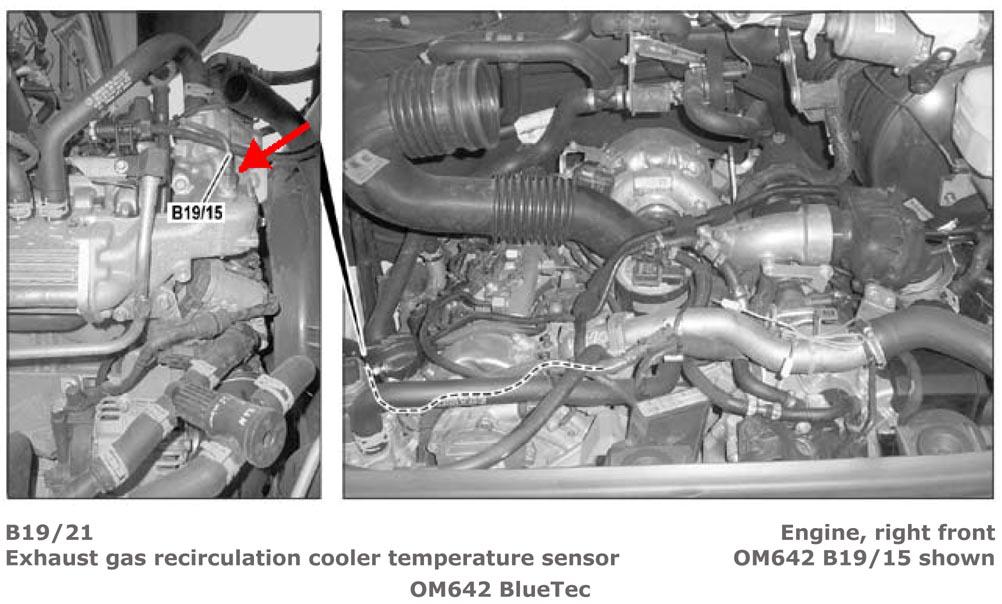

Fig 31: Front Of Engine

G00517623

Courtesy of MERCEDES-BENZ USA

Fig 32: Under Driver's Seat

G00517624

Courtesy of MERCEDES-BENZ USA

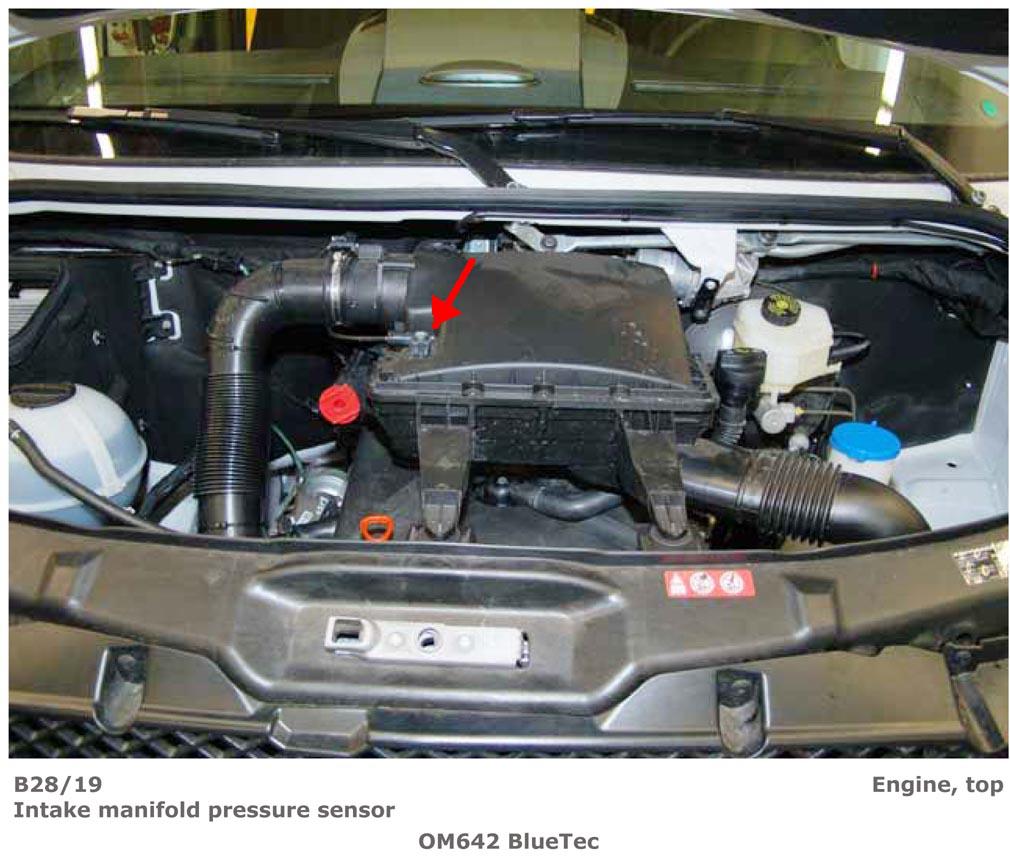

Fig 33: Top Of Engine

G00517625

Courtesy of MERCEDES-BENZ USA

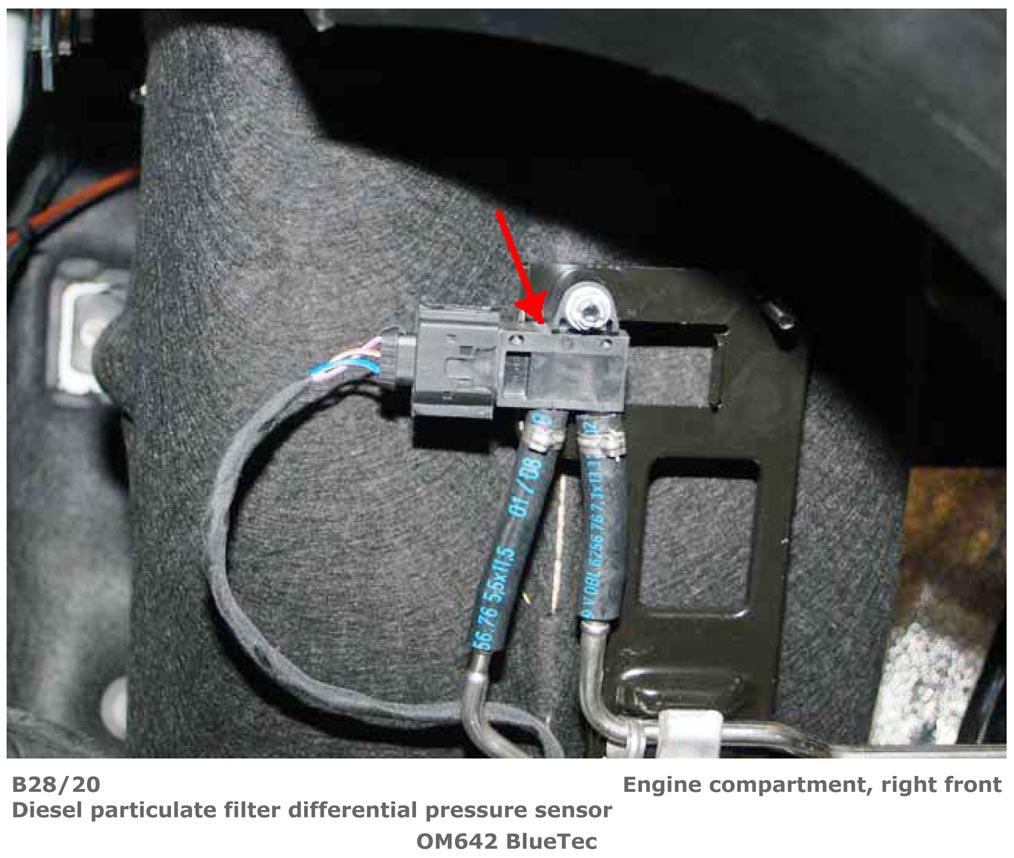

Fig 34: Right Front Of Engine Compartment

G00517626

Courtesy of MERCEDES-BENZ USA

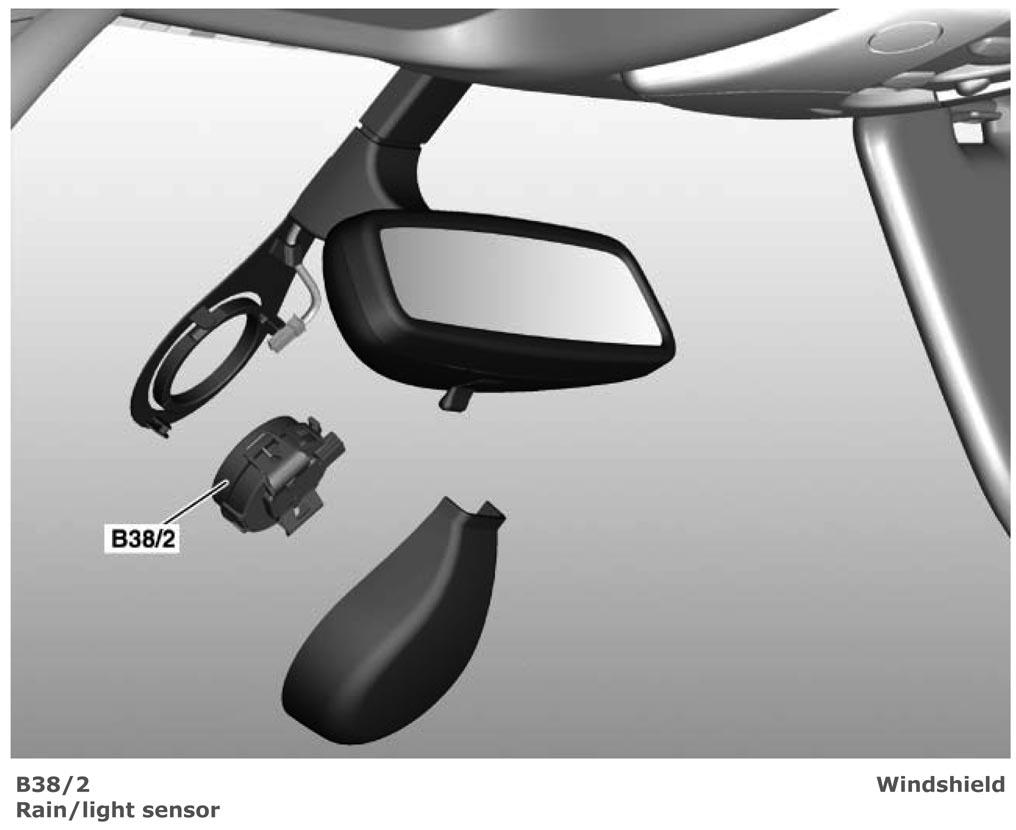

Fig 35: Windshield

G00517627

Courtesy of MERCEDES-BENZ USA

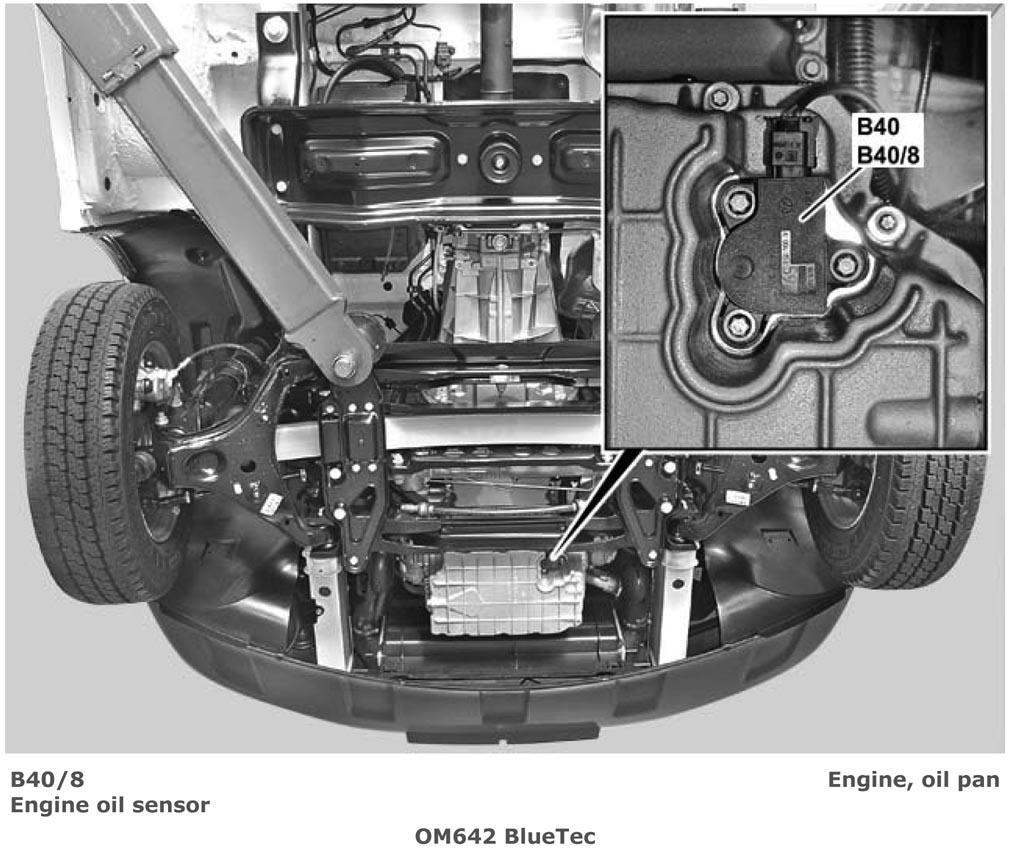

Fig 36: Bottom Of Engine

G00517628

Courtesy of MERCEDES-BENZ USA

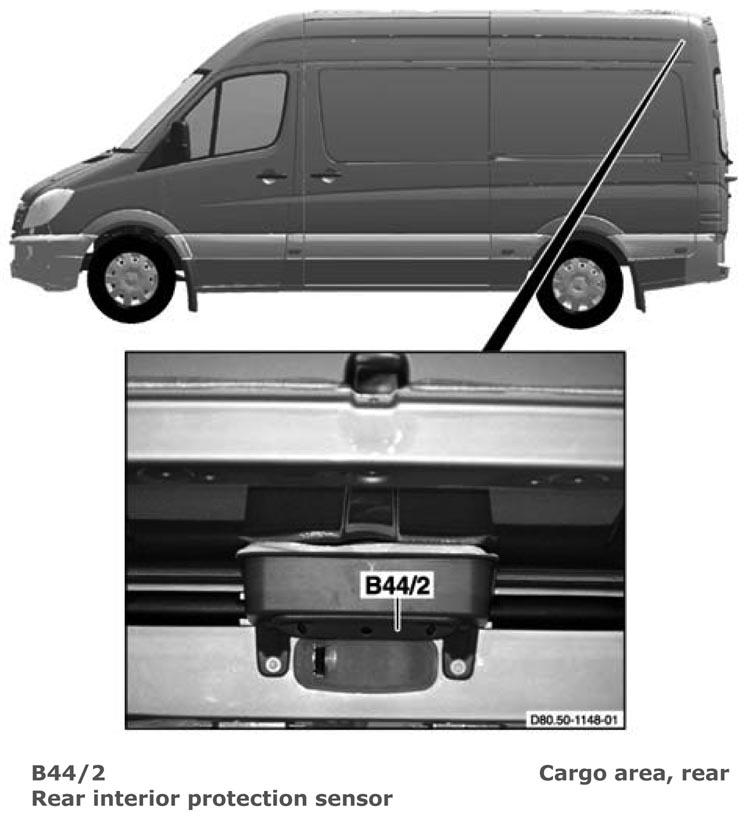

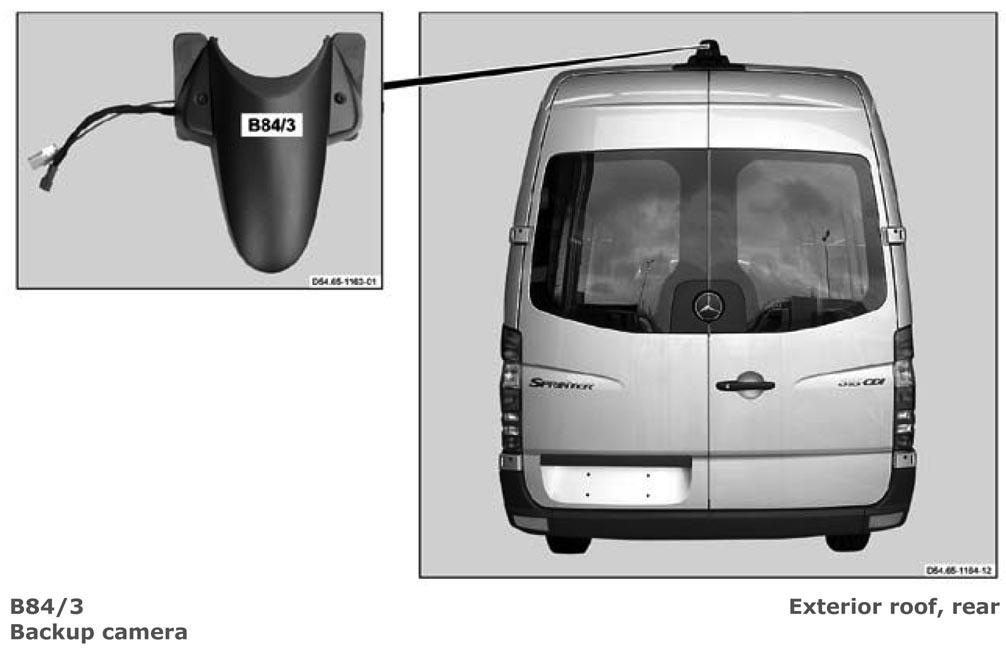

Fig 37: Rear Of Cargo Area Roof

G00517631

Courtesy of MERCEDES-BENZ USA

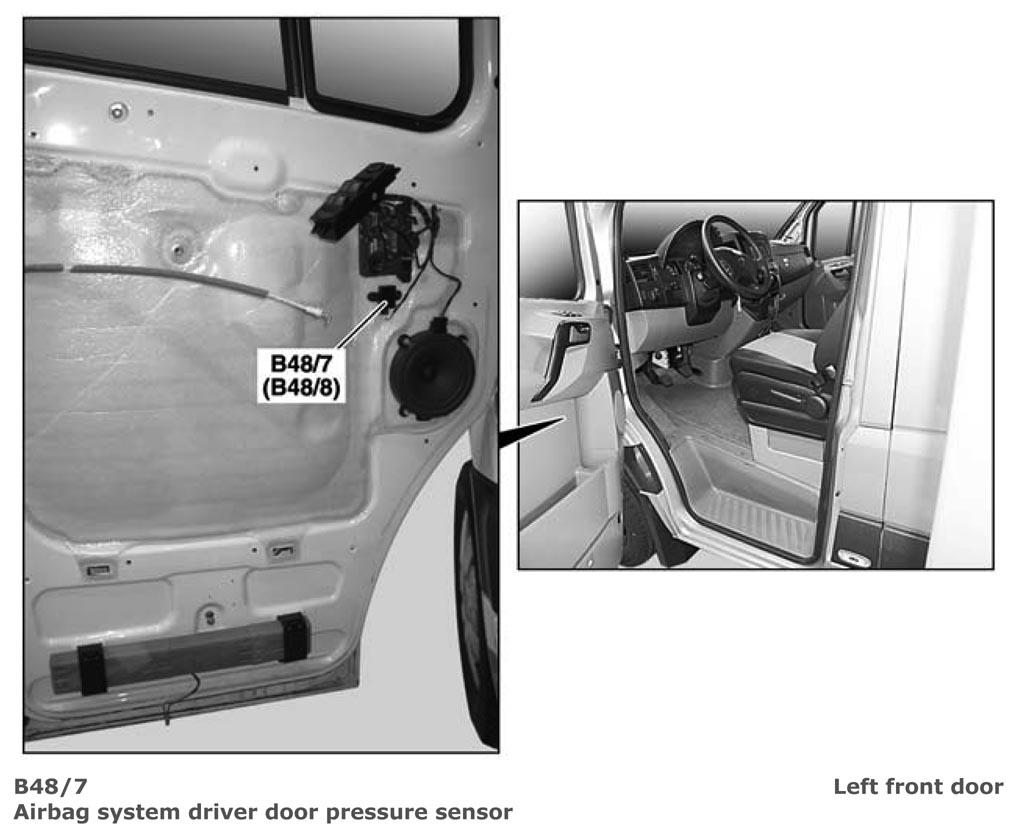

Fig 38: Driver's Door Shown (Front Passenger's Similar)

G00517632

Courtesy of MERCEDES-BENZ USA

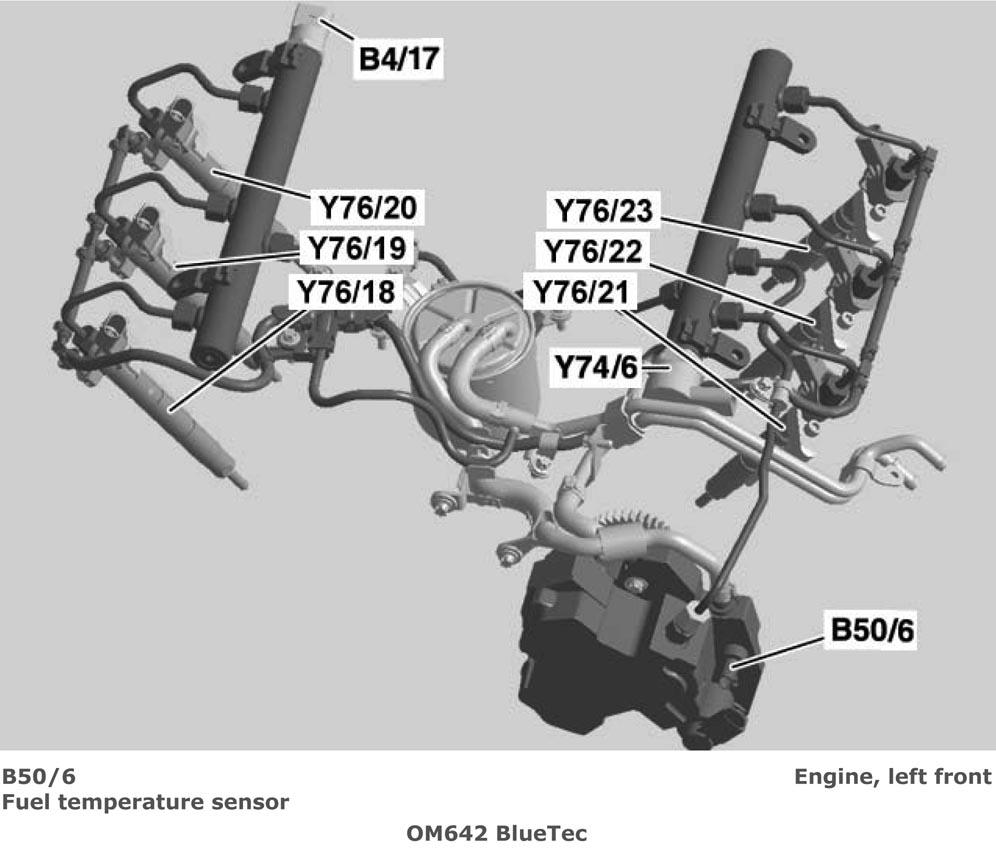

Fig 39: Left Front Of Engine

G00517633

Courtesy of MERCEDES-BENZ USA

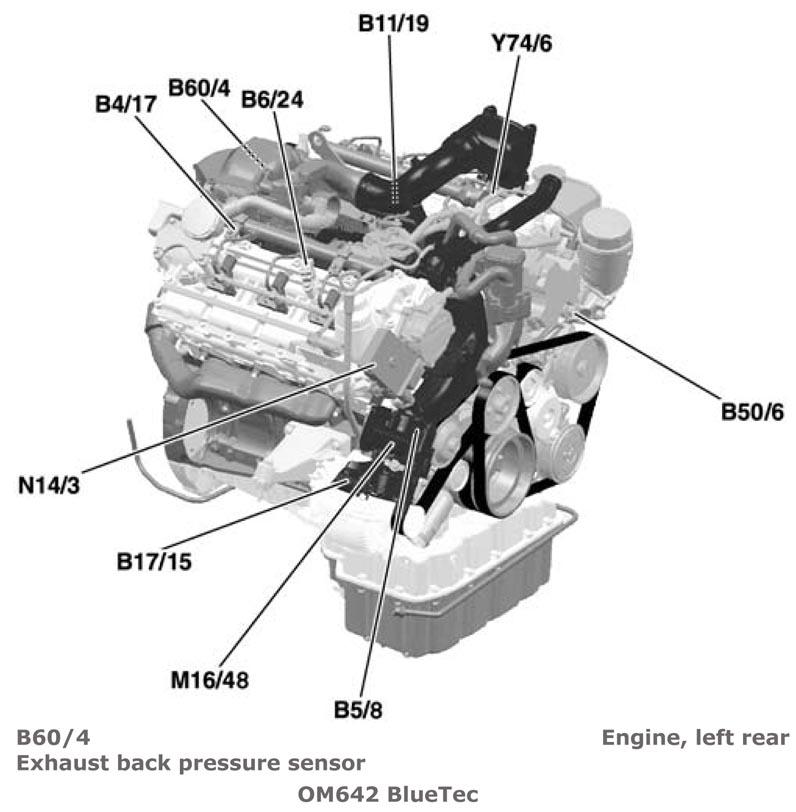

Fig 40: Top Of Engine

G00517634

Courtesy of MERCEDES-BENZ USA

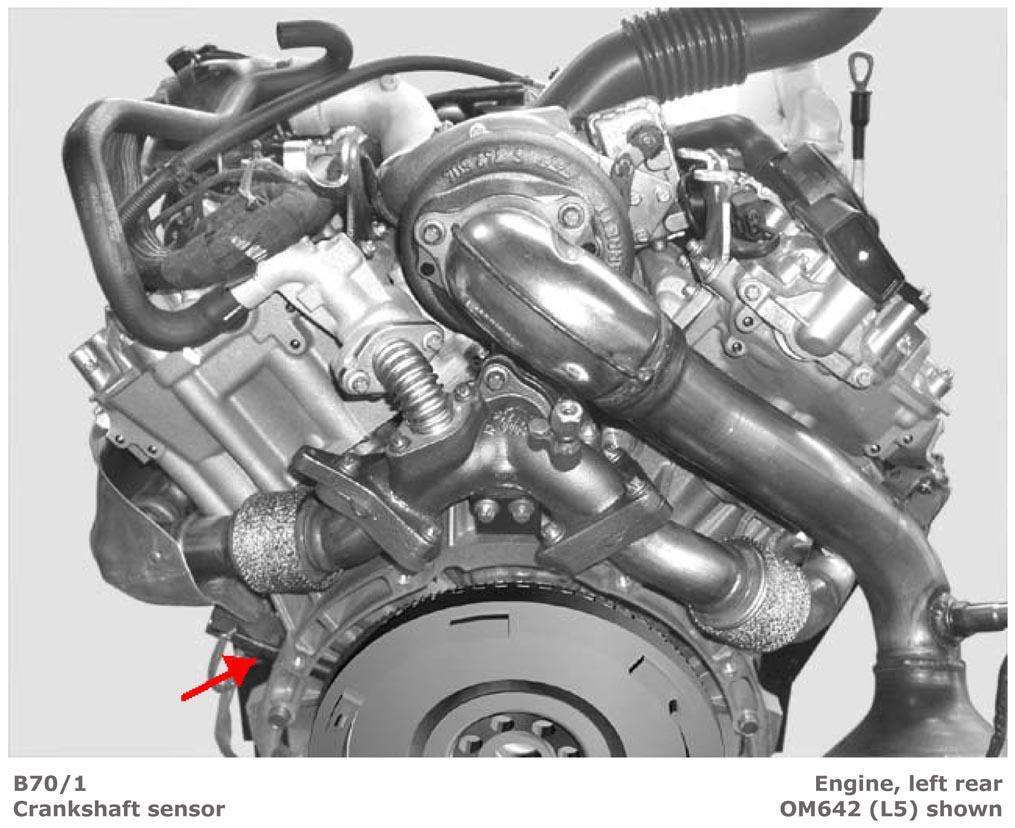

Fig 41: Rear Of Engine

G00517635

Courtesy of MERCEDES-BENZ USA

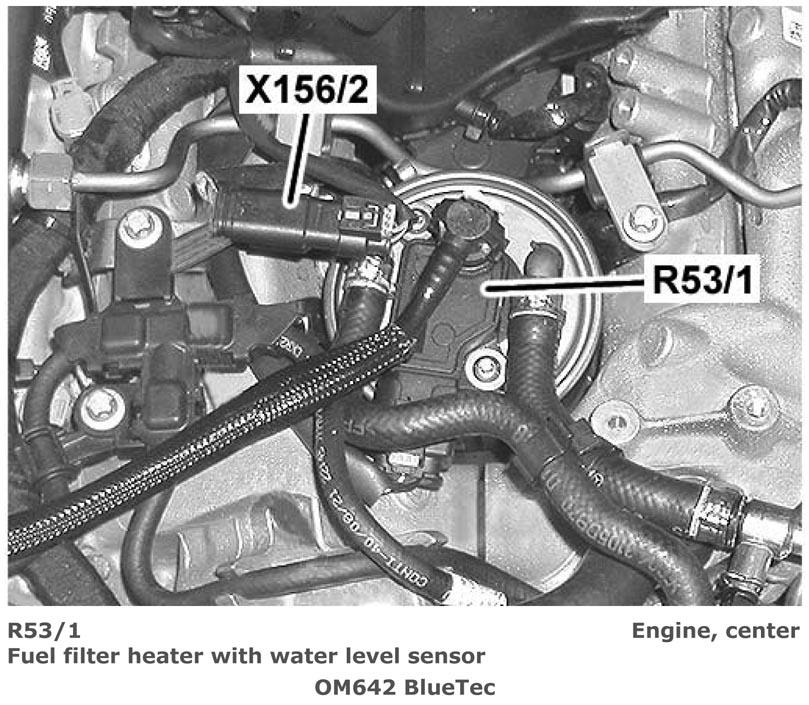

Fig 42: Top Of Engine

G00517636

Courtesy of MERCEDES-BENZ USA

Fig 43: Rear Of Vehicle

G00517637

Courtesy of MERCEDES-BENZ USA

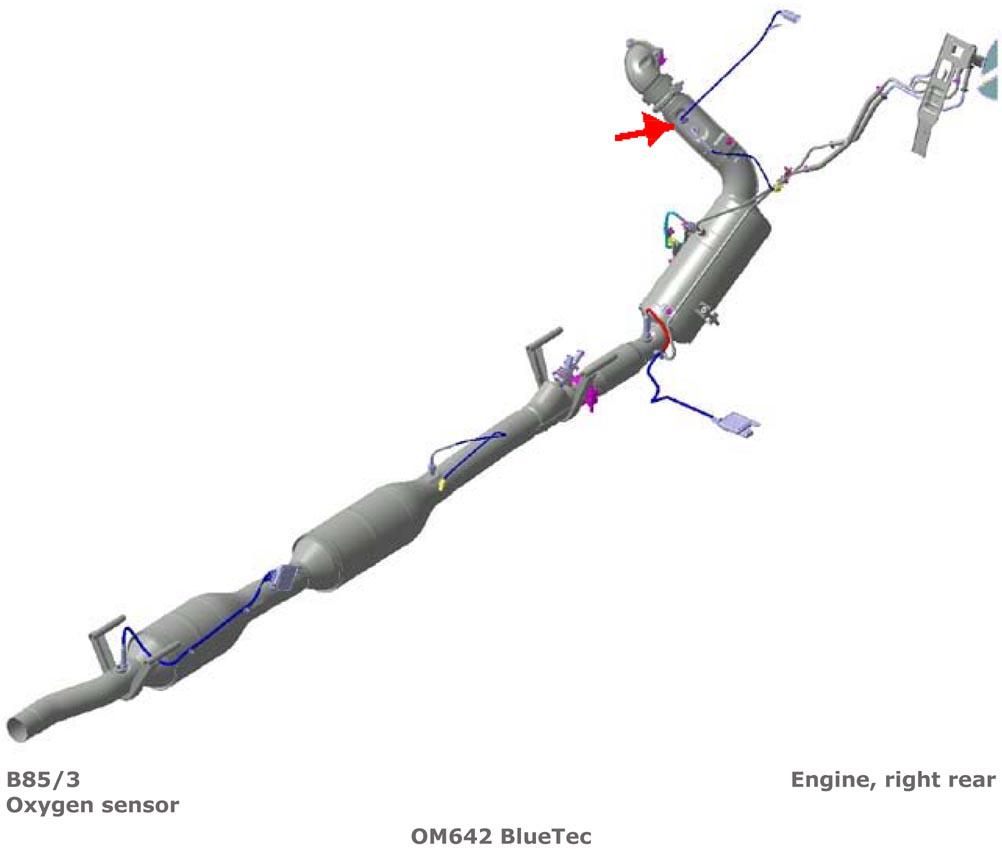

Fig 44: Exhaust System

G00517638

Courtesy of MERCEDES-BENZ USA

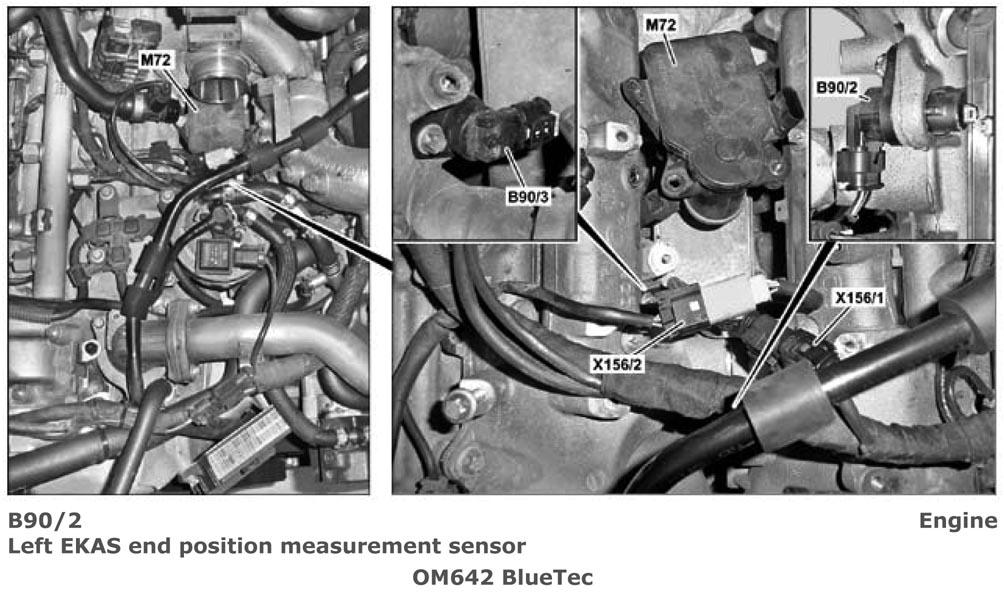

Fig 45: Top Of Engine

G00517639

Courtesy of MERCEDES-BENZ USA

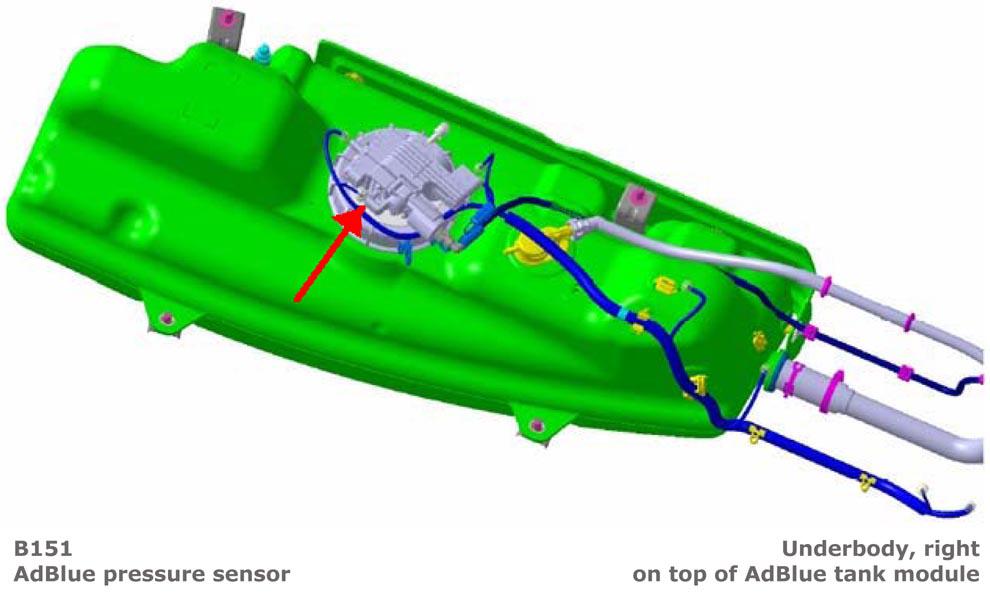

Fig 46: Under Right Side Of Vehicle

G00517640

Courtesy of MERCEDES-BENZ USA

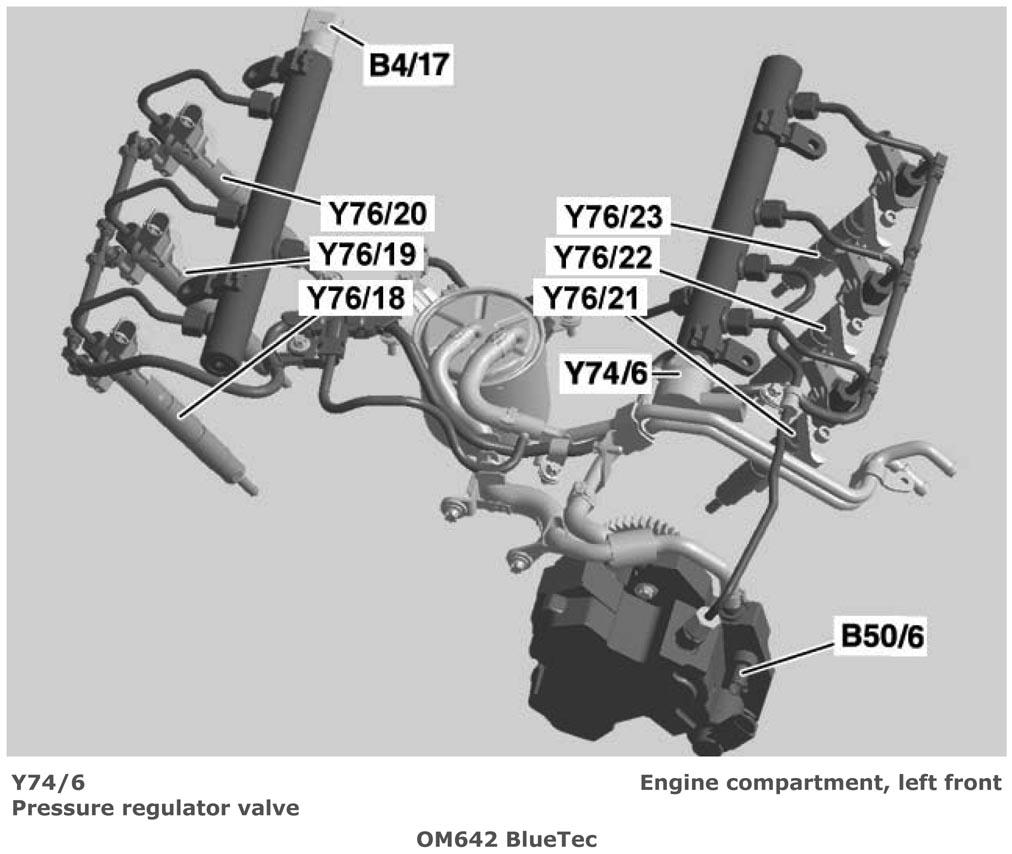

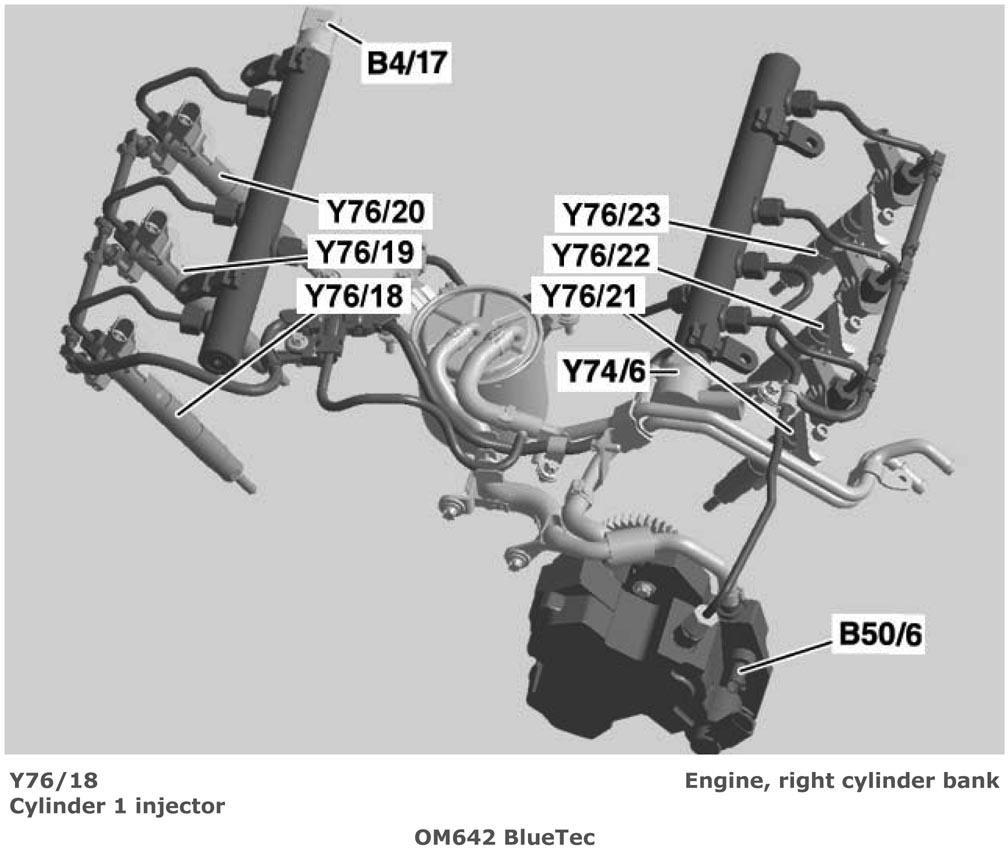

Fig 47: Under Right Side Of Vehicle

G00517641

Courtesy of MERCEDES-BENZ USA

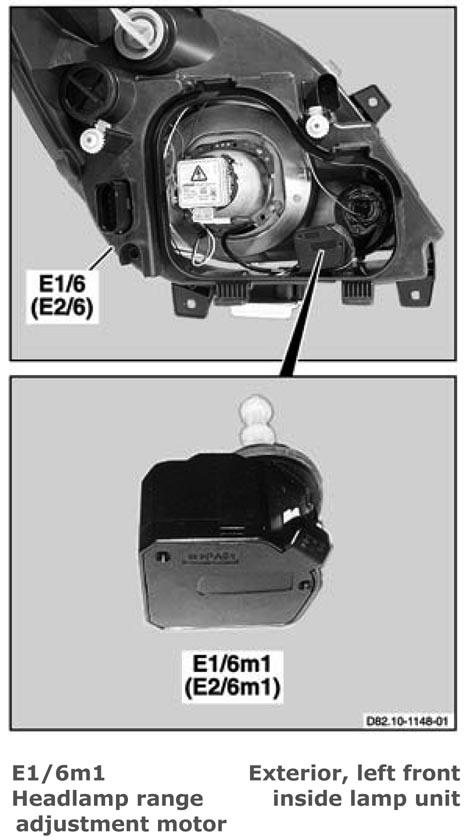

Fig 48: Left Headlamp Assembly (Right Similar)

G00517642

Courtesy of MERCEDES-BENZ USA

Fig 49: Left Headlamp Assembly (Right Similar)

G00517643

Courtesy of MERCEDES-BENZ USA

Fig 50: Left Kick Panel

G00517644

Courtesy of MERCEDES-BENZ USA

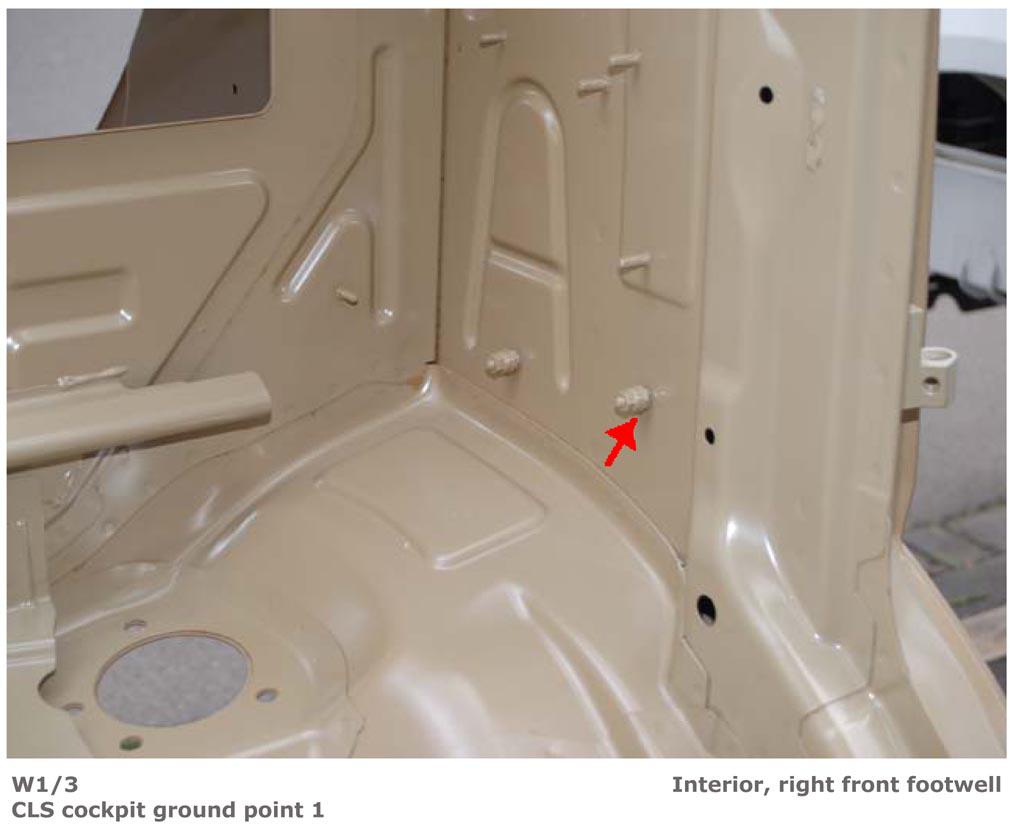

Fig 51: Left Kick Panel

G00517645

Courtesy of MERCEDES-BENZ USA

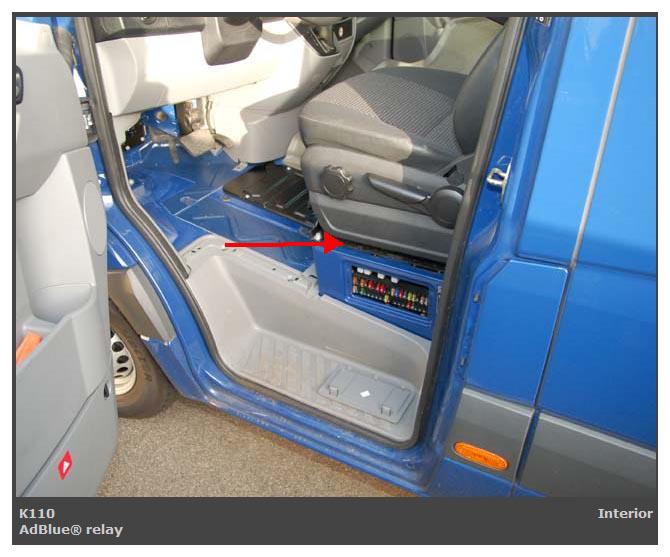

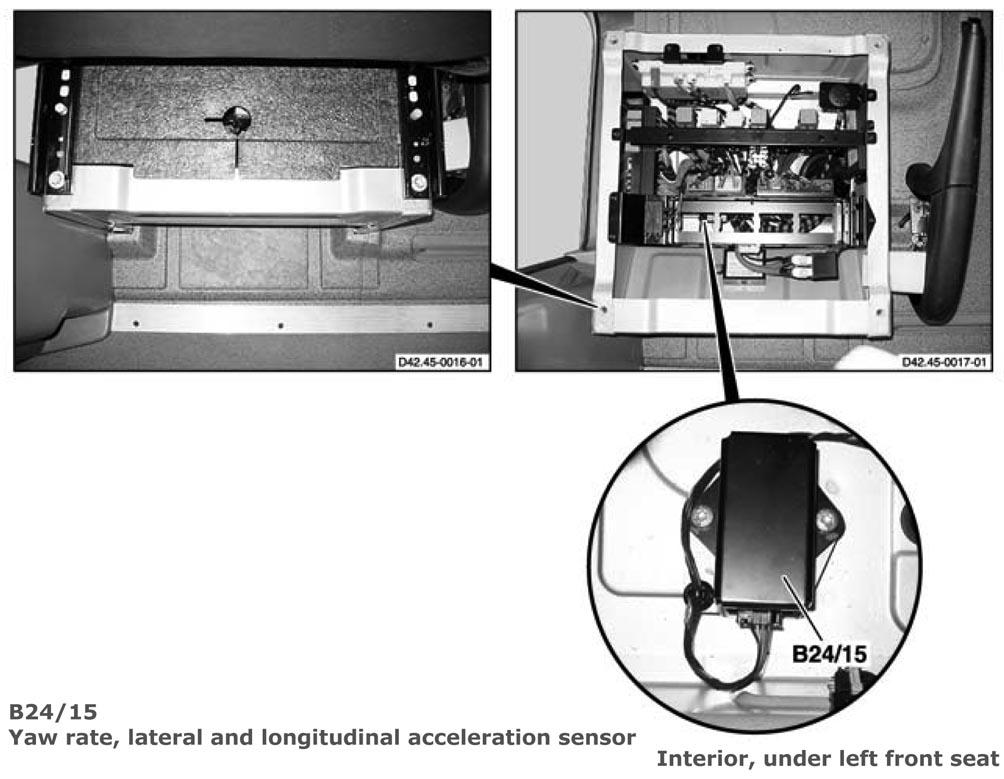

Fig 52: Under Driver's Seat

G00517646

Courtesy of MERCEDES-BENZ USA

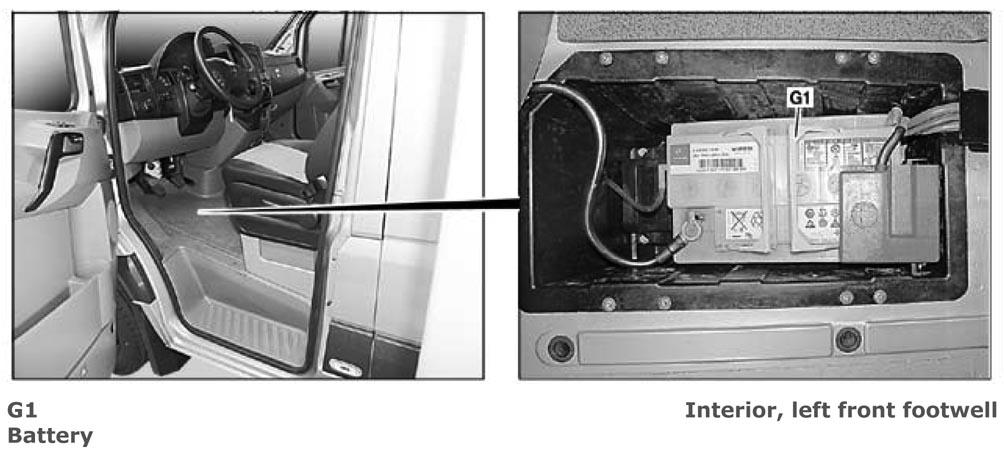

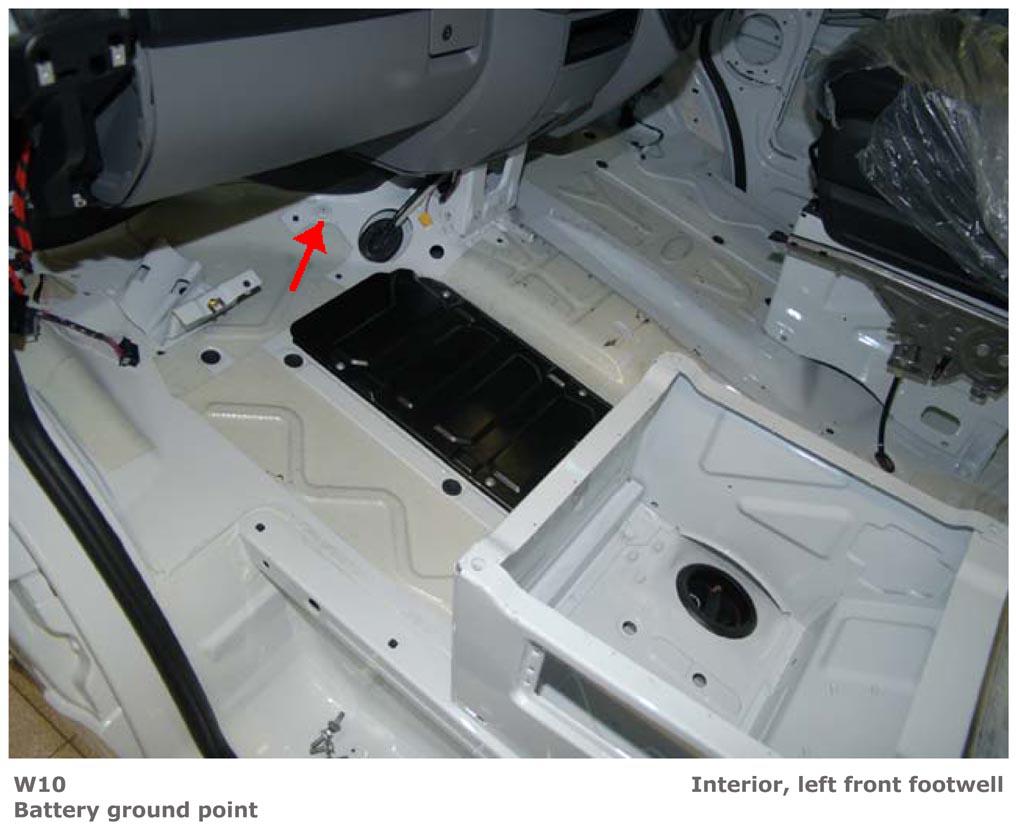

Fig 53: Left Front Footwell

G00517647

Courtesy of MERCEDES-BENZ USA

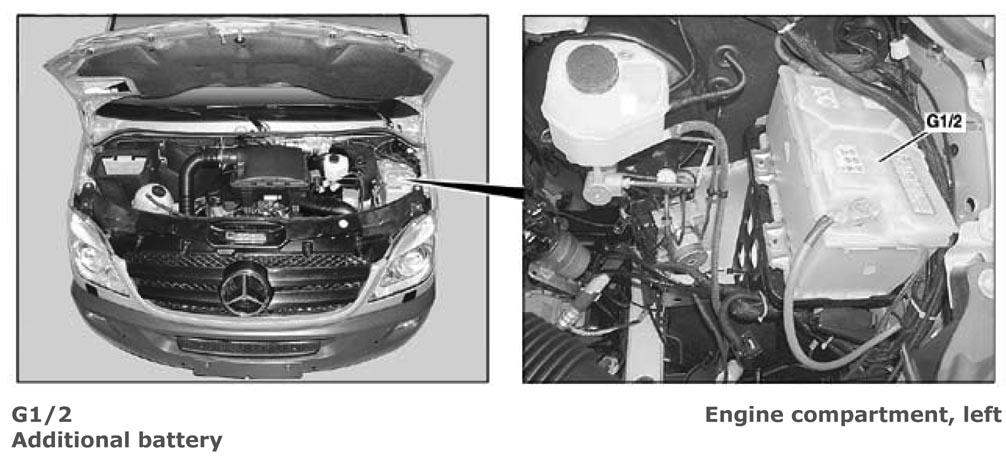

Fig 54: Left Side Of Engine Compartment.

G00517648

Courtesy of MERCEDES-BENZ USA

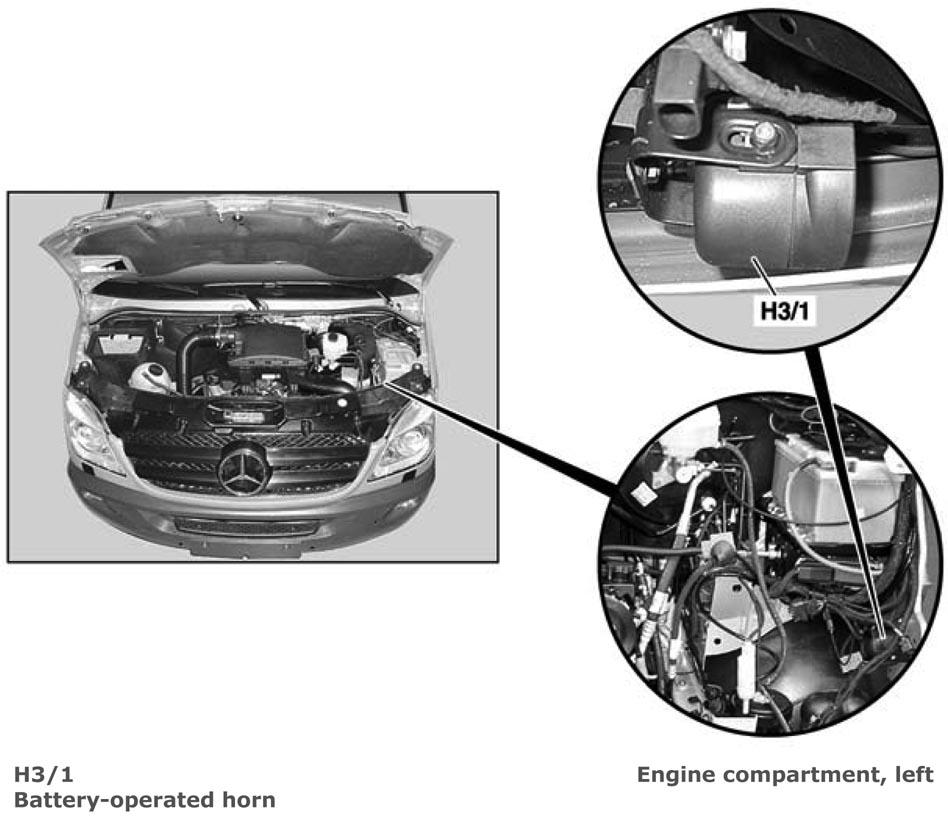

Fig 55: Left Side Of Engine Compartment.

G00517649

Courtesy of MERCEDES-BENZ USA

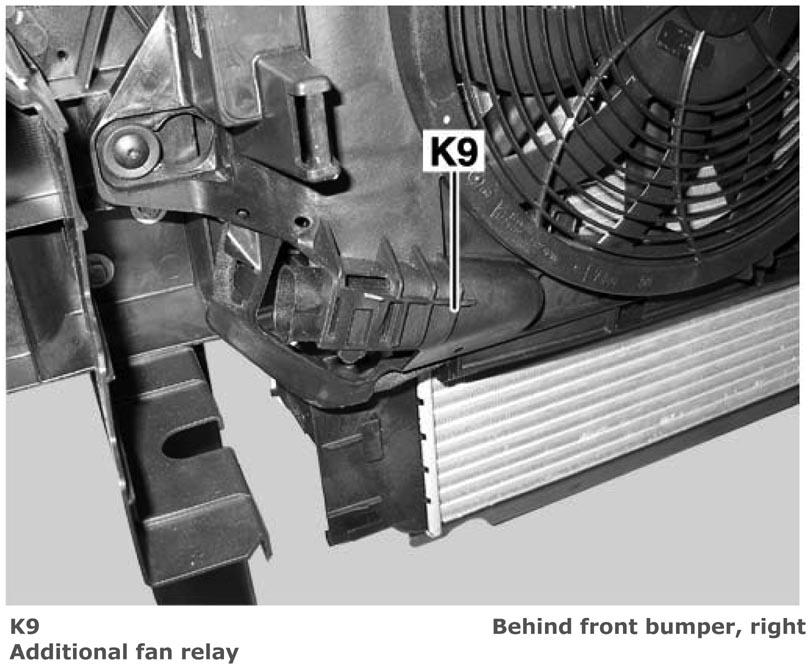

Fig 56: Lower Right Front Of Engine Compartment

G00517650

Courtesy of MERCEDES-BENZ USA

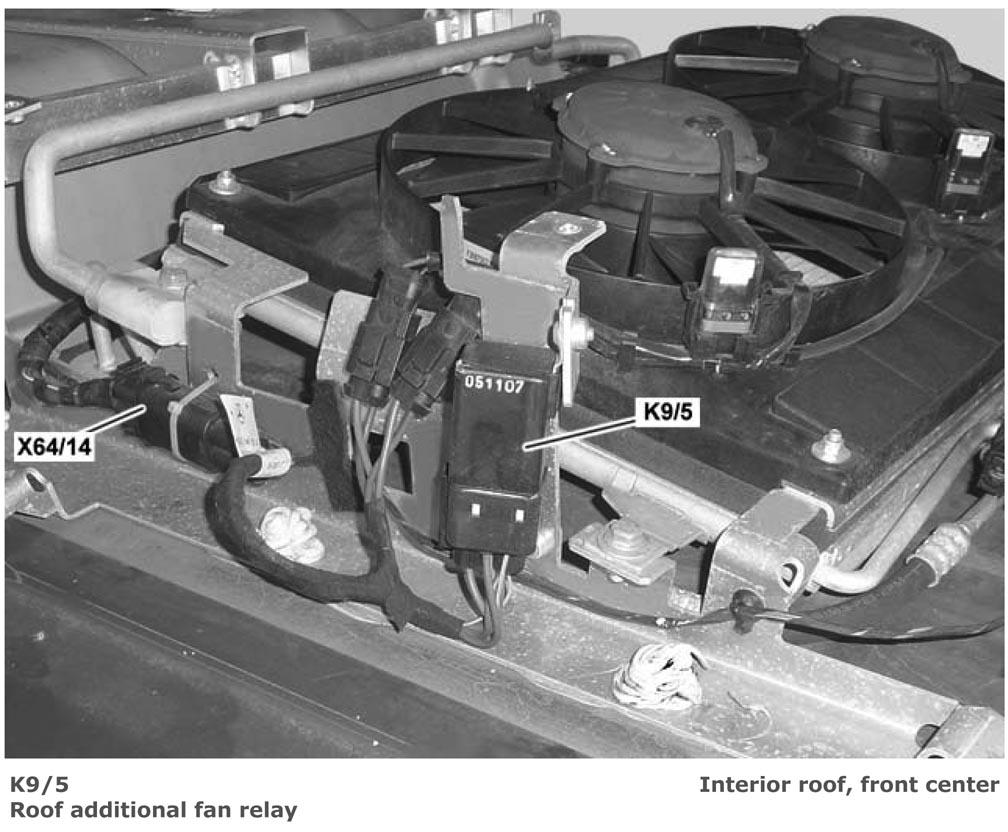

Fig 57: Roof HVAC

G00517651

Courtesy of MERCEDES-BENZ USA

Fig 58: Left Kick Panel

G00517652

Courtesy of MERCEDES-BENZ USA

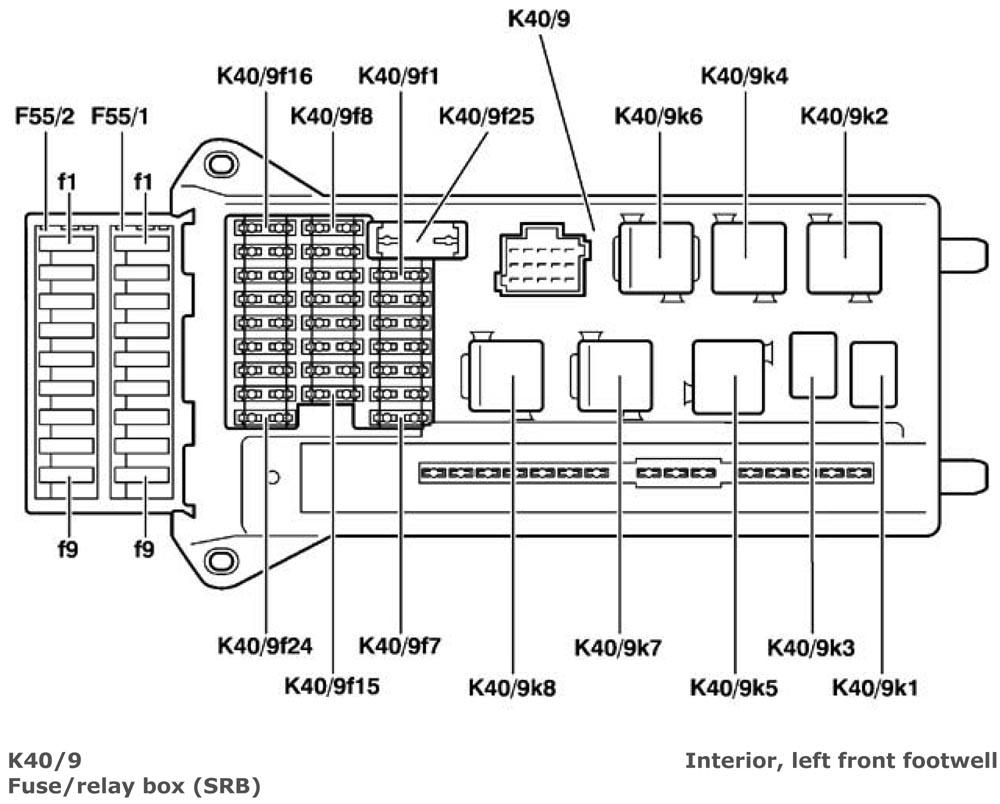

Fig 59: Fuse/Relay Box (SRB)

G00517653

Courtesy of MERCEDES-BENZ USA

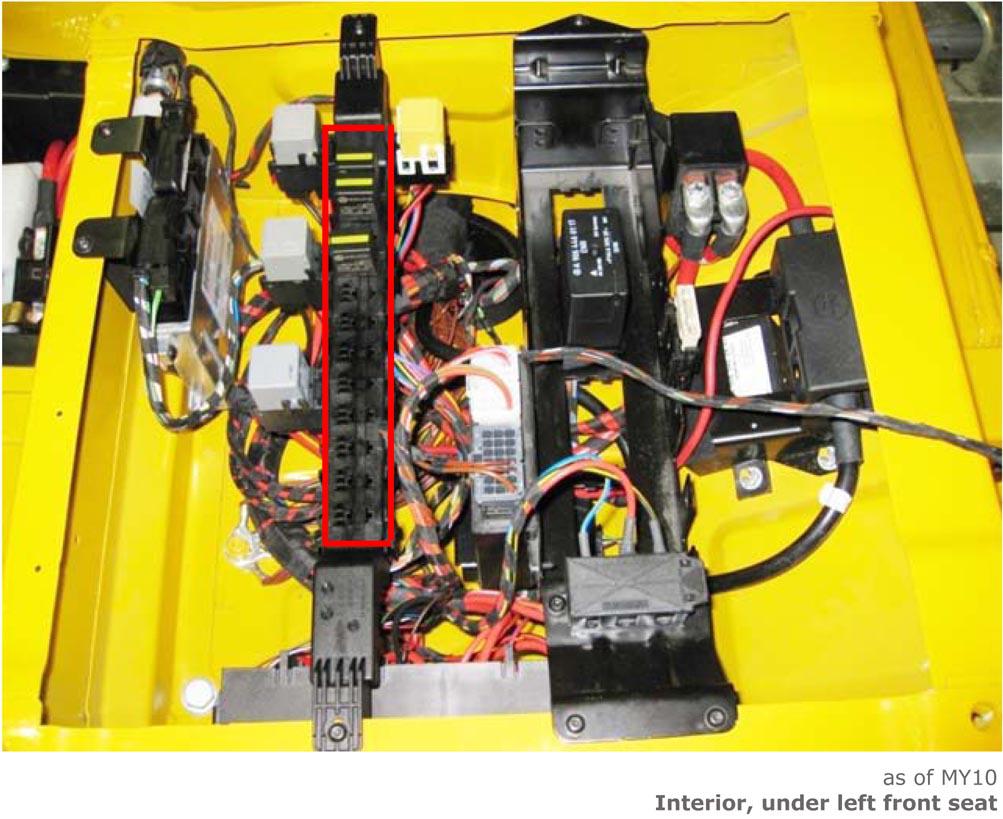

Fig 60: Relay Carrier Under Driver's Seat

G00517654

Courtesy of MERCEDES-BENZ USA

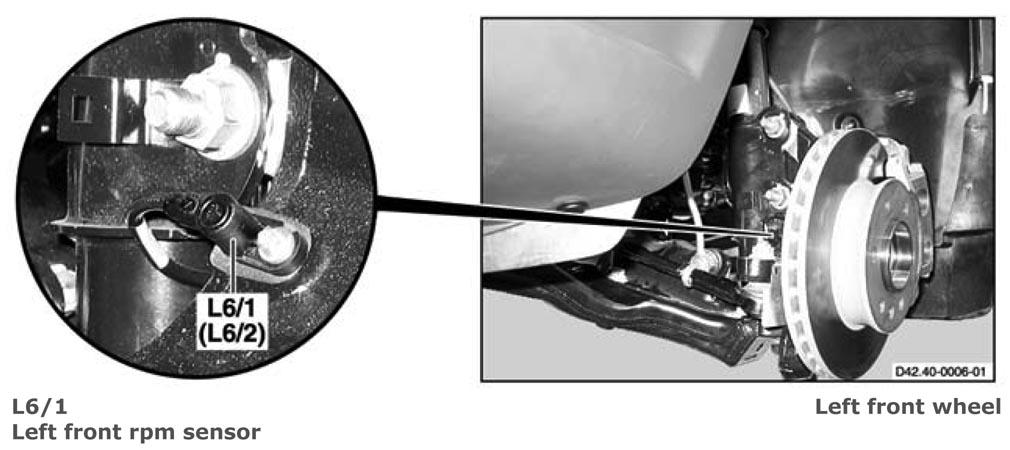

Fig 61: Left Front Wheel Hub (Right Similar)

G00517655

Courtesy of MERCEDES-BENZ USA

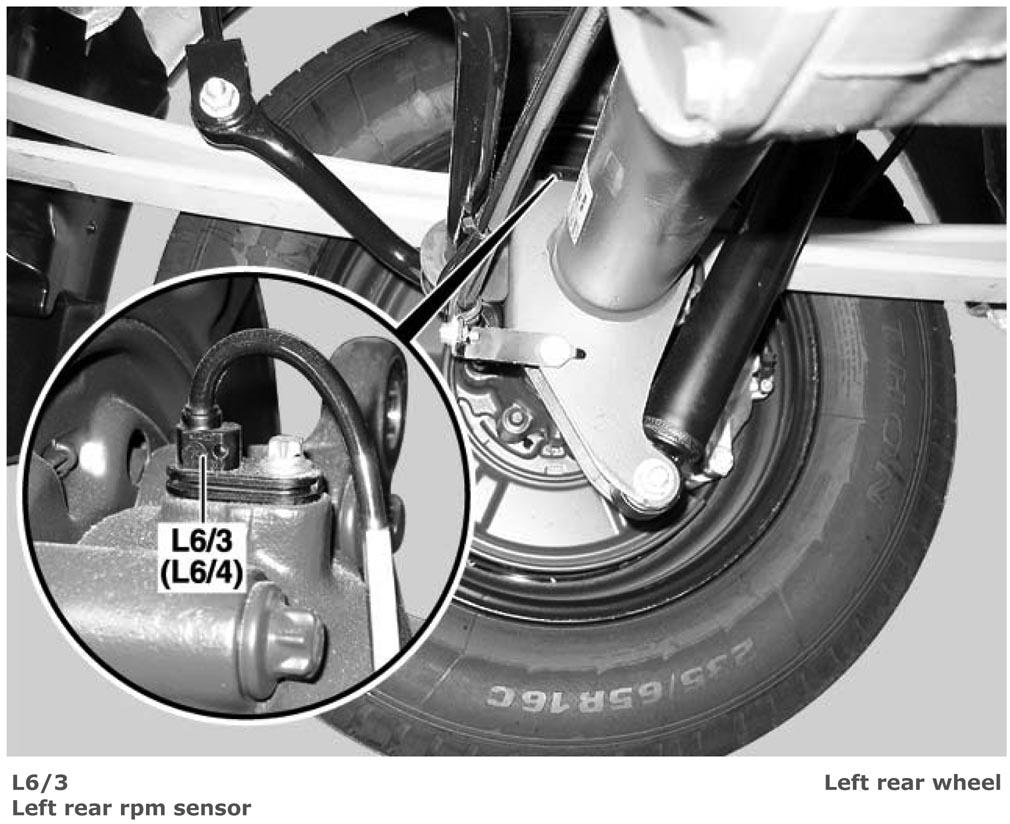

Fig 62: Left Rear Wheel Hub (Right Similar)

G00517656

Courtesy of MERCEDES-BENZ USA

Fig 63: Under Right Side Of Dash

G00517657

Courtesy of MERCEDES-BENZ USA

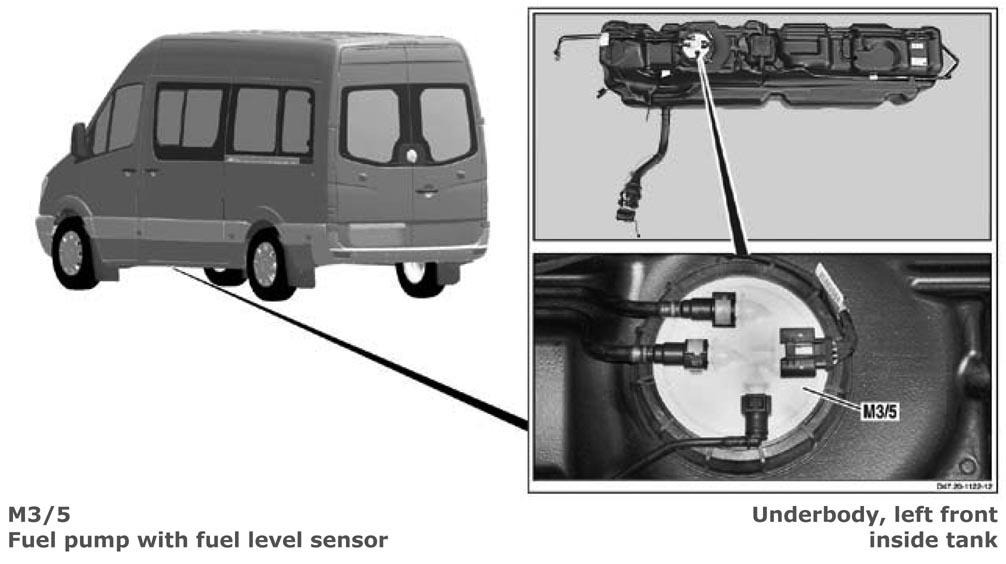

Fig 64: Under Left Side Of Vehicle

G00517658

Courtesy of MERCEDES-BENZ USA

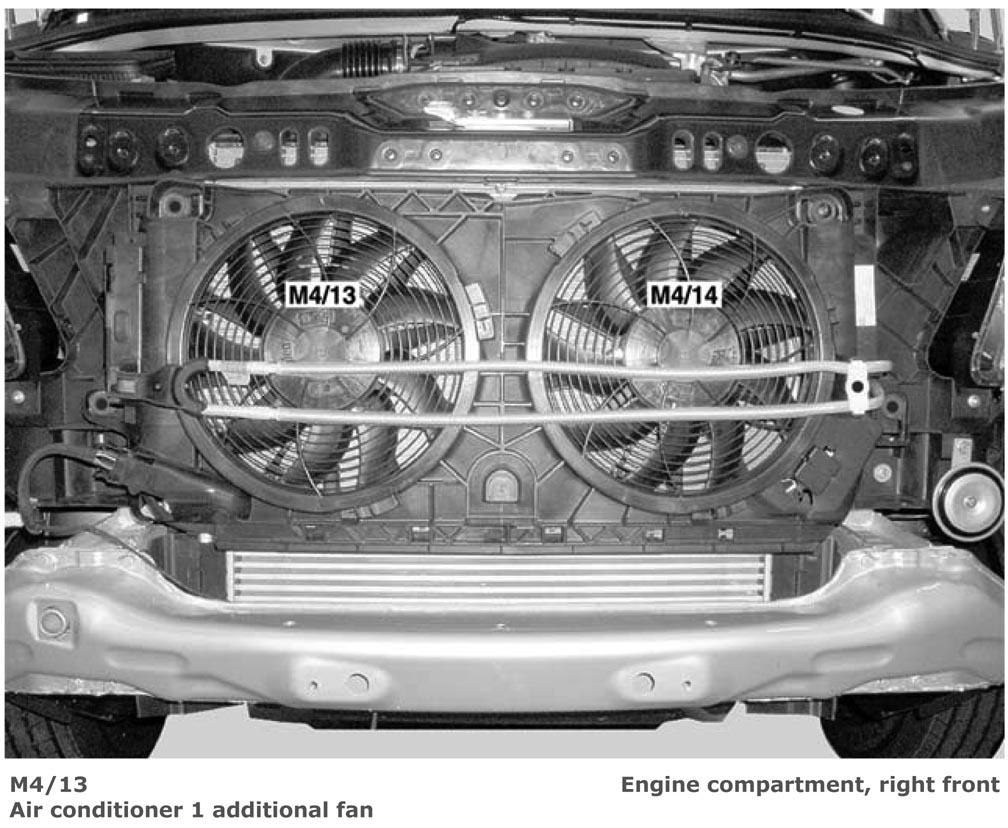

Fig 65: Front Of Engine Compartment

G00517659

Courtesy of MERCEDES-BENZ USA

Fig 66: Roof HVAC

G00517660

Courtesy of MERCEDES-BENZ USA

Fig 67: Left Side Of Engine Compartment

G00517661

Courtesy of MERCEDES-BENZ USA

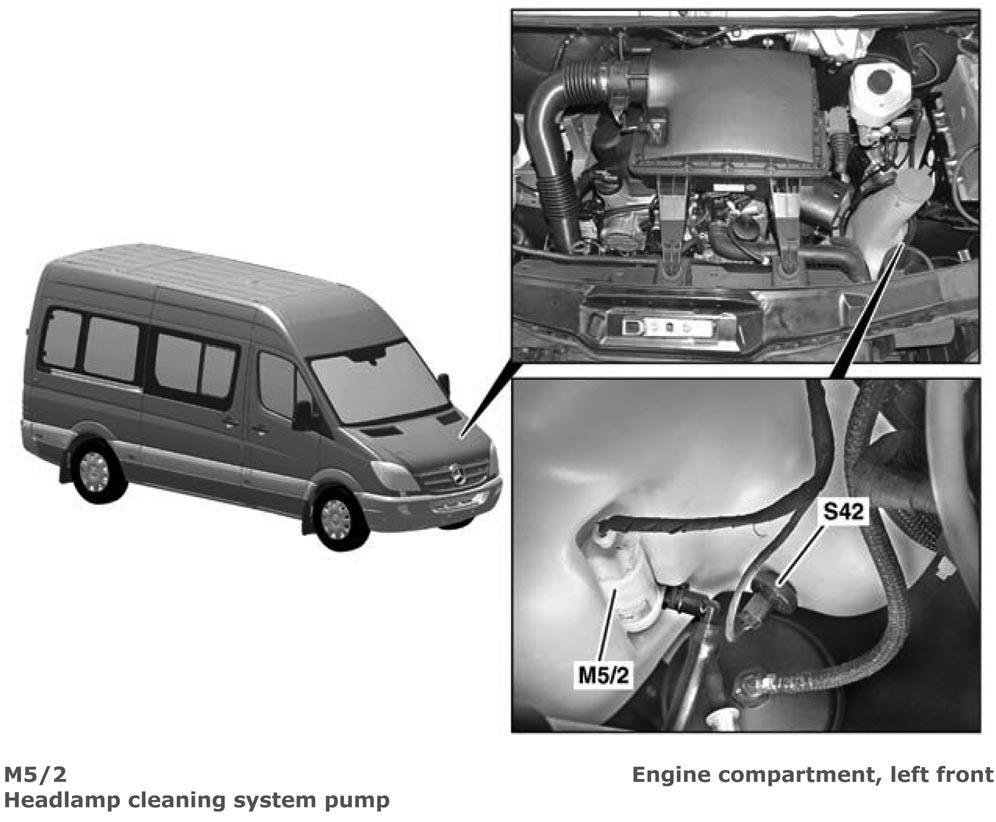

Fig 68: Left Side Of Engine Compartment

G00517662

Courtesy of MERCEDES-BENZ USA

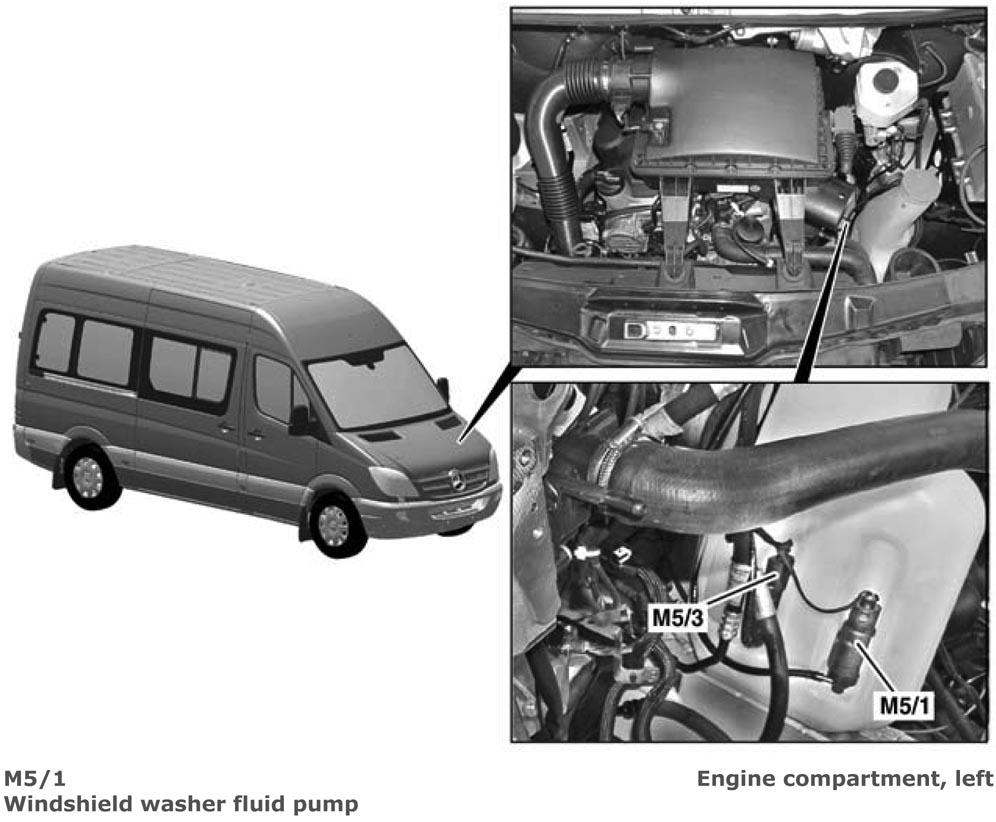

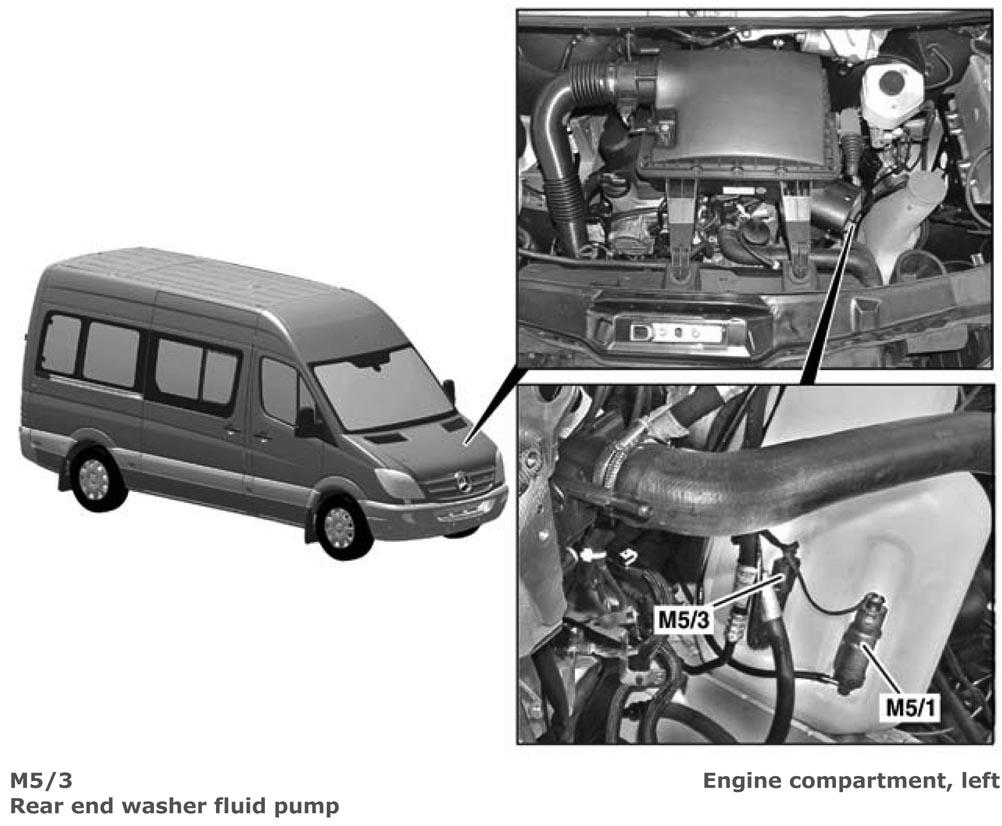

Fig 69: Left Side Of Engine Compartment

G00517663

Courtesy of MERCEDES-BENZ USA

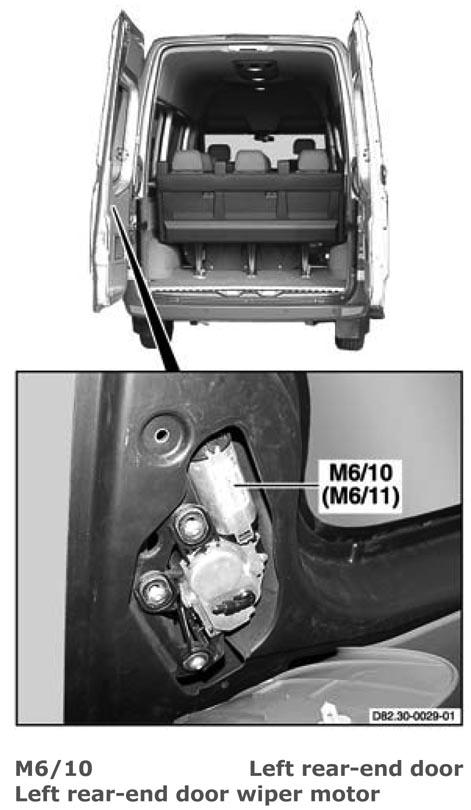

Fig 70: Left Rear Door (Right Similar)

G00517664

Courtesy of MERCEDES-BENZ USA

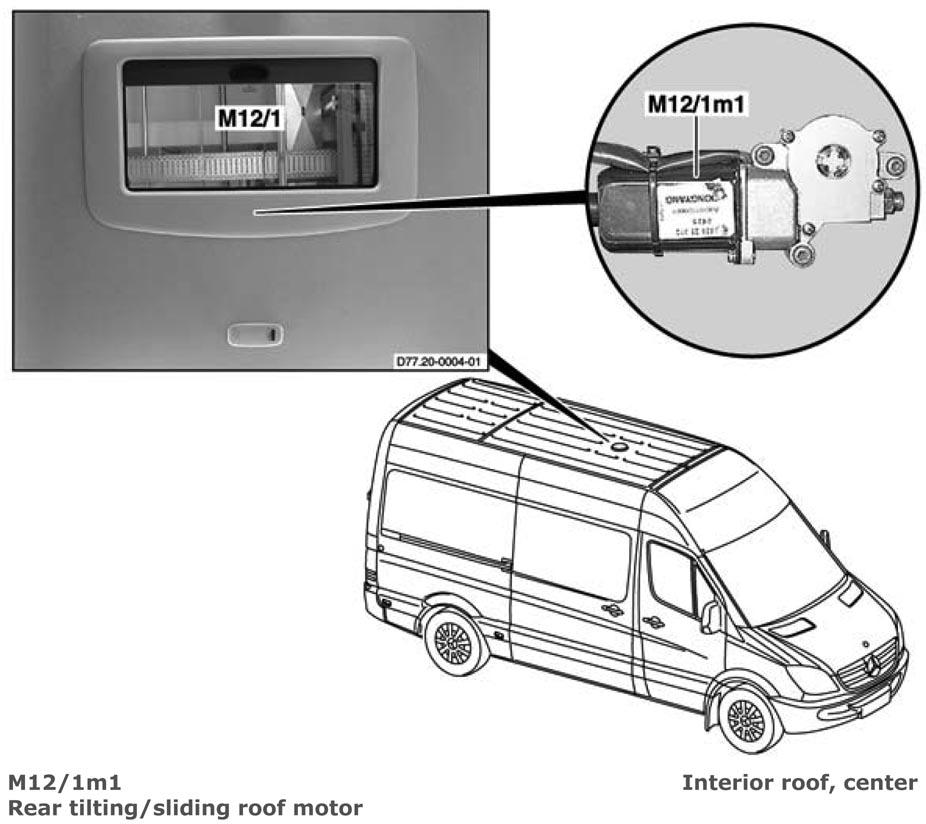

Fig 71: Front Of Roof

G00517665

Courtesy of MERCEDES-BENZ USA

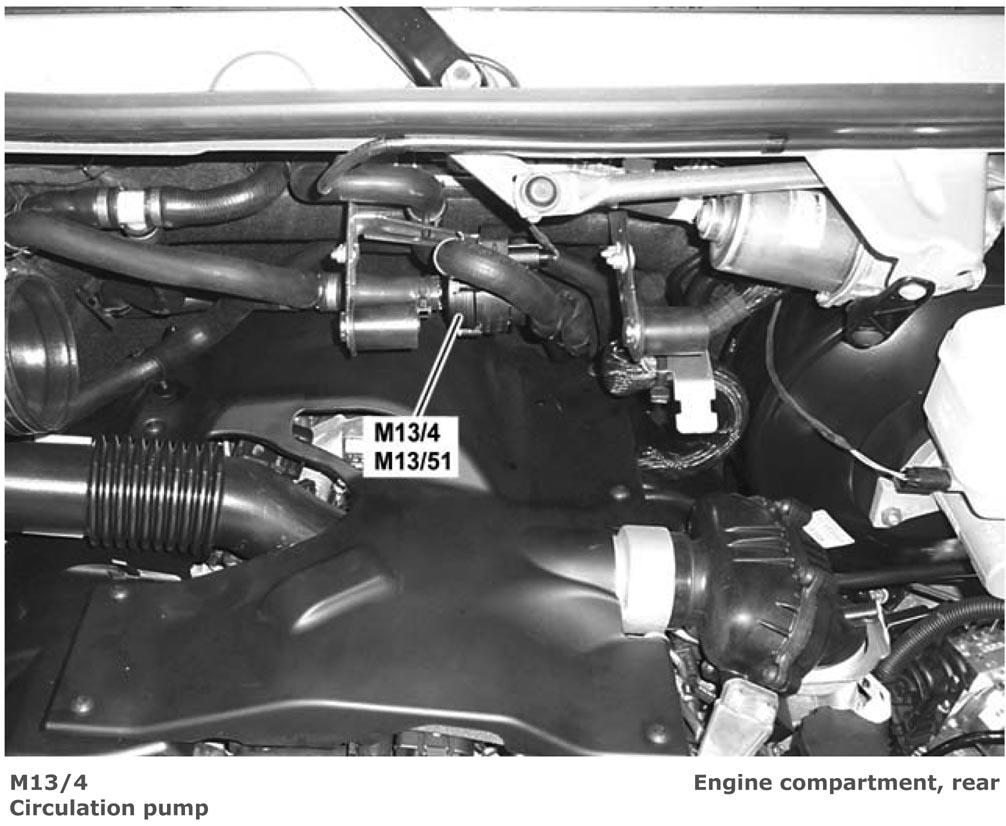

Fig 72: Rear Of Engine Compartment

G00517666

Courtesy of MERCEDES-BENZ USA

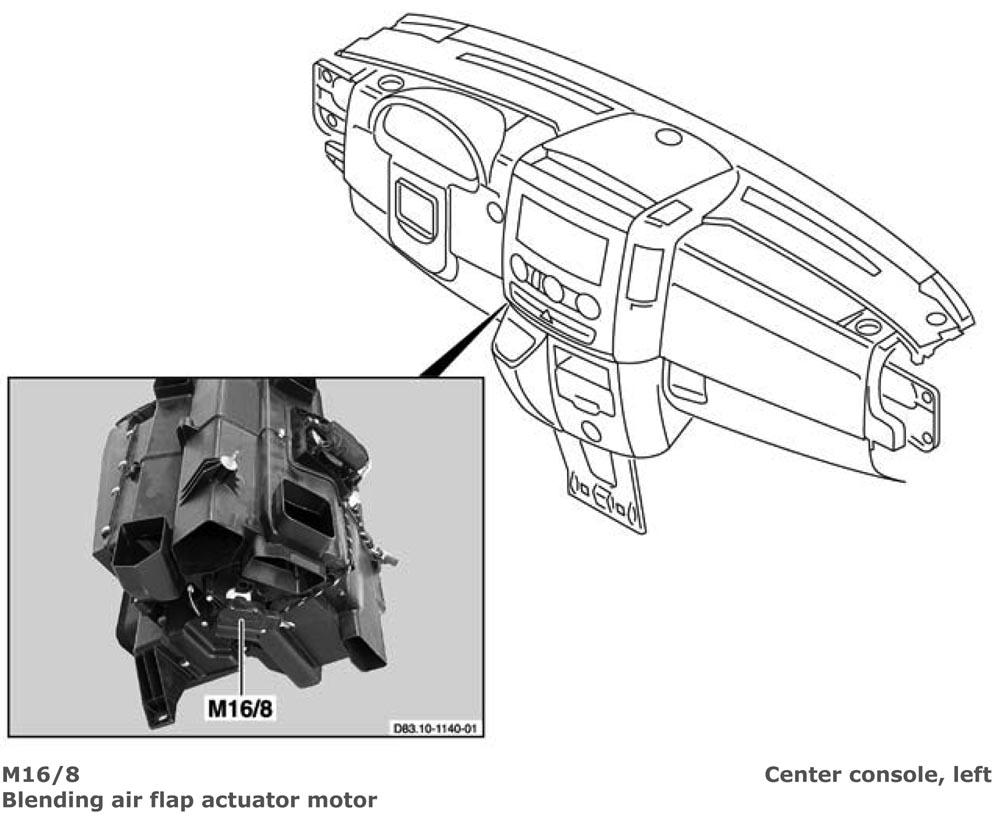

Fig 73: Left Center Of Dash

G00517667

Courtesy of MERCEDES-BENZ USA

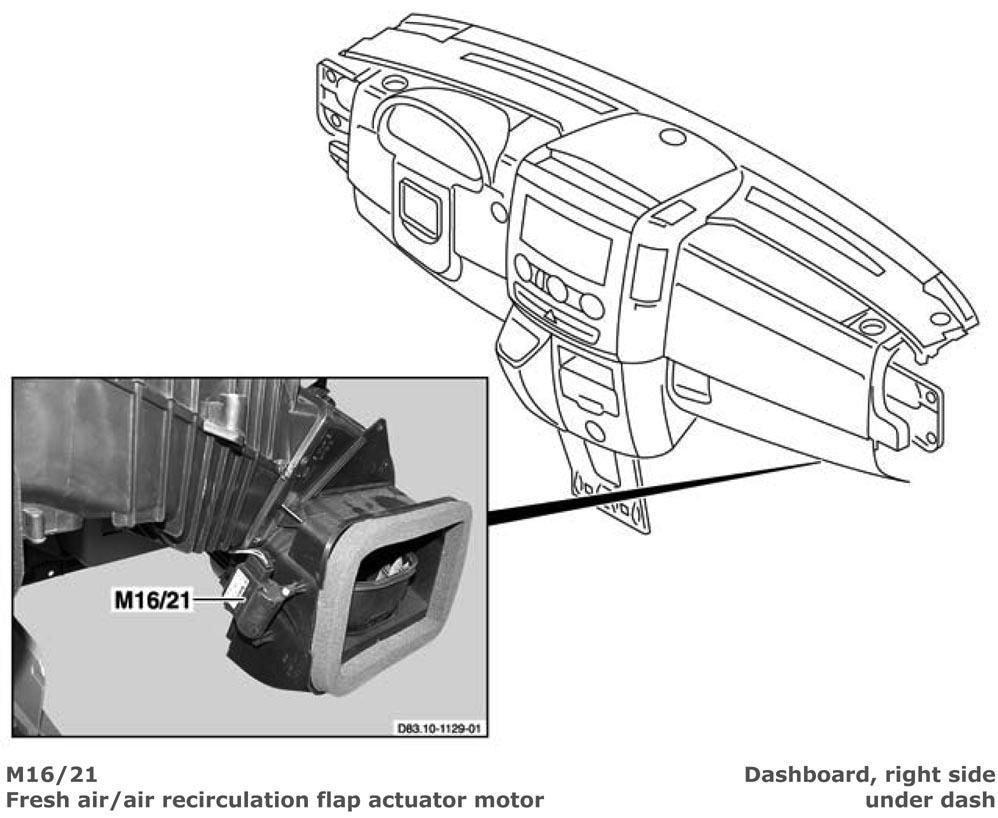

Fig 74: Under Right Side Of Dash

G00517668

Courtesy of MERCEDES-BENZ USA

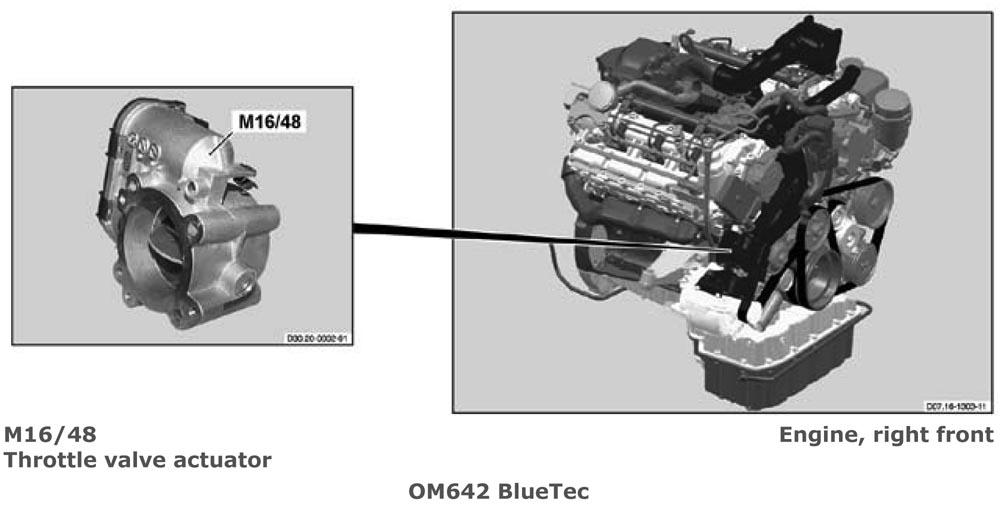

Fig 75: Right Front Of Engine

G00517669

Courtesy of MERCEDES-BENZ USA

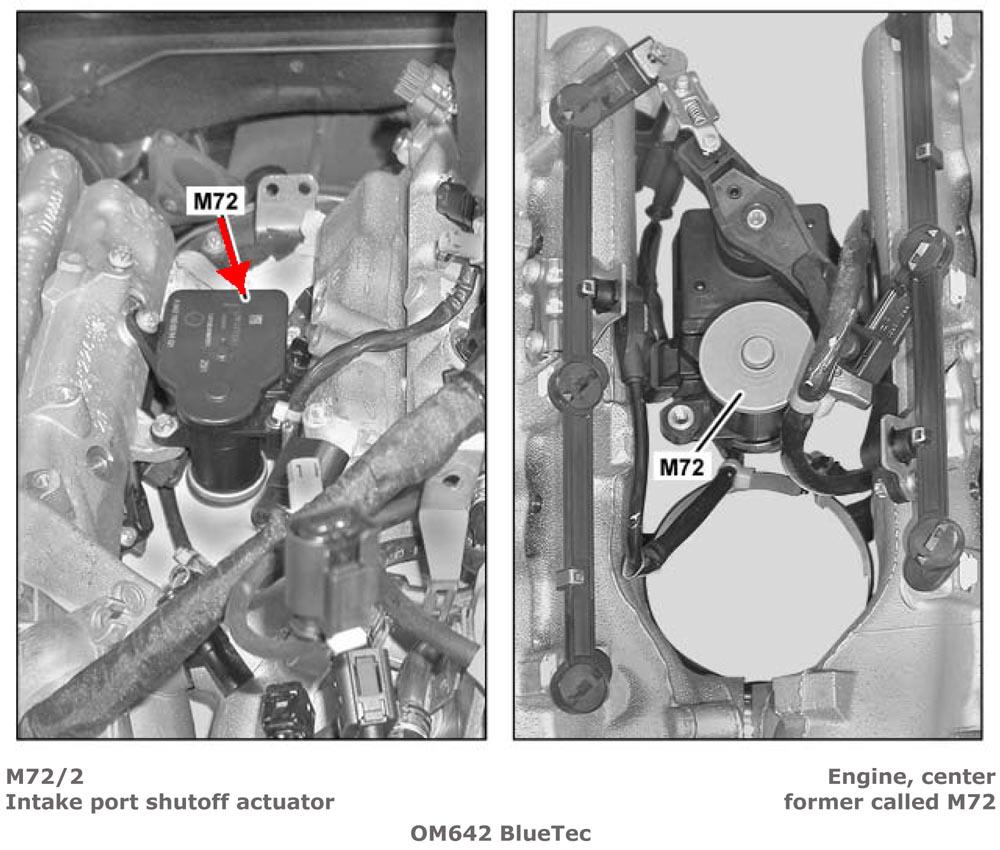

Fig 76: Top Of Engine

G00517670

Courtesy of MERCEDES-BENZ USA

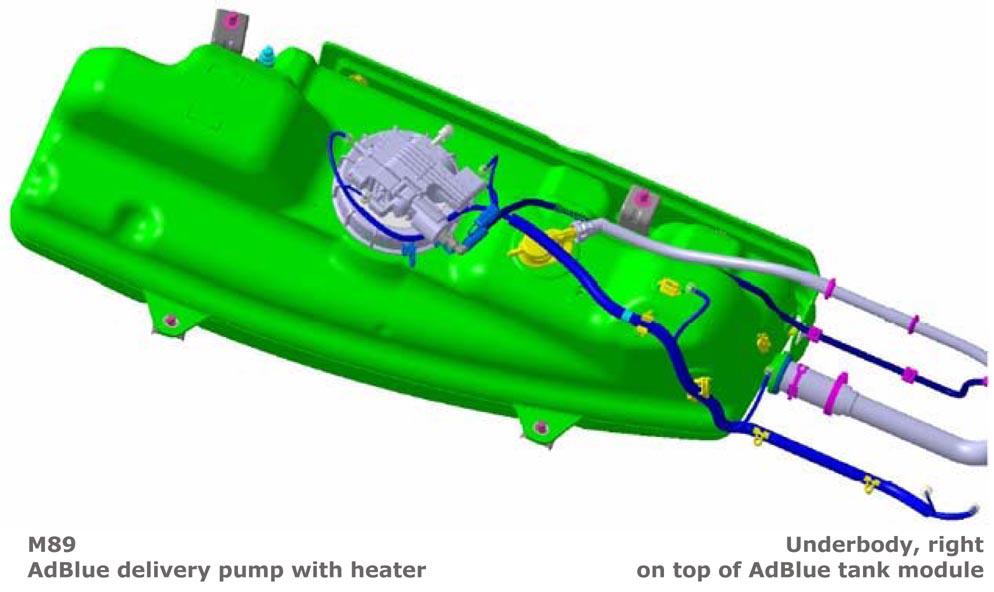

Fig 77: Under Right Side Of Vehicle

G00517671

Courtesy of MERCEDES-BENZ USA

Fig 78: Dash & Center Console

G00517672

Courtesy of MERCEDES-BENZ USA

Fig 79: Engine Compartment

G00517673

Courtesy of MERCEDES-BENZ USA

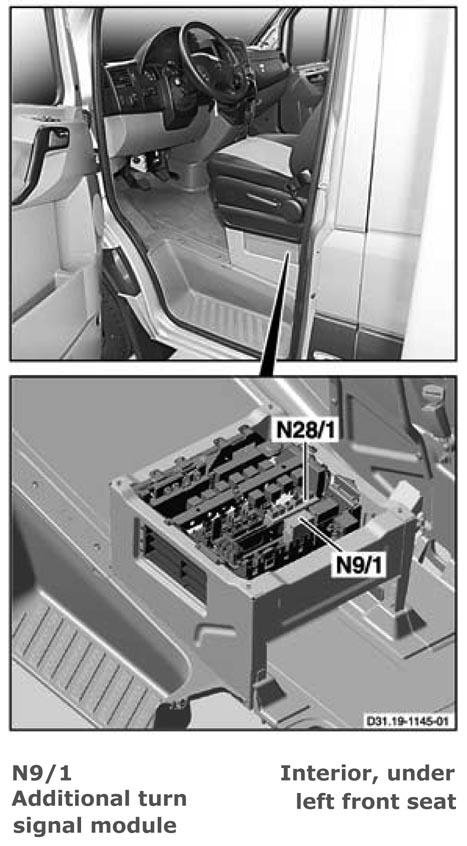

Fig 80: Under Driver's Seat

G00517674

Courtesy of MERCEDES-BENZ USA

Fig 81: Left Kick Panel

G00517675

Courtesy of MERCEDES-BENZ USA

Fig 82: Engine Compartment

G00517676

Courtesy of MERCEDES-BENZ USA

Fig 83: Under Driver's Seat

G00517677

Courtesy of MERCEDES-BENZ USA

Fig 84: Left Center Of Dash

G00517678

Courtesy of MERCEDES-BENZ USA

Fig 85: Under Driver's Seat

G00517679

Courtesy of MERCEDES-BENZ USA

Fig 86: Under Driver's Seat

G00517680

Courtesy of MERCEDES-BENZ USA

Fig 87: Left Side Of Engine Compartment

G00517681

Courtesy of MERCEDES-BENZ USA

Fig 88: Under Left Side Of Vehicle

G00517682

Courtesy of MERCEDES-BENZ USA

Fig 89: Under Left Side Of Vehicle

G00517683

Courtesy of MERCEDES-BENZ USA

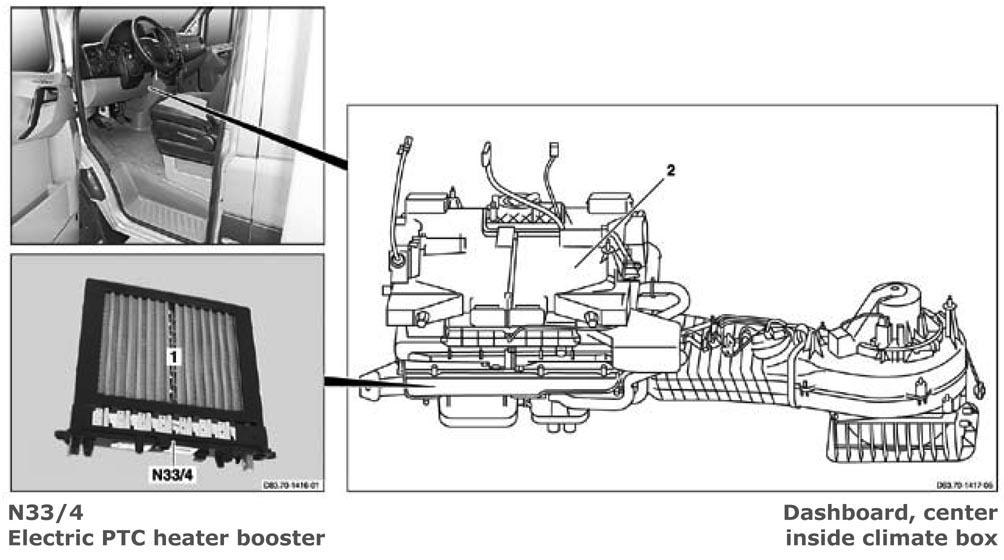

Fig 90: Behind Center Of Dash

G00517684

Courtesy of MERCEDES-BENZ USA

Fig 91: Under Driver's Seat

G00517685

Courtesy of MERCEDES-BENZ USA

Fig 92: Left Front Of Vehicle

G00517686

Courtesy of MERCEDES-BENZ USA

Fig 93: Right Side Of Dash

G00517687

Courtesy of MERCEDES-BENZ USA

Fig 94: Steering Column

G00517688

Courtesy of MERCEDES-BENZ USA

Fig 95: Under Driver's Seat

G00517689

Courtesy of MERCEDES-BENZ USA

Fig 96: Under Driver's Seat

G00517690

Courtesy of MERCEDES-BENZ USA

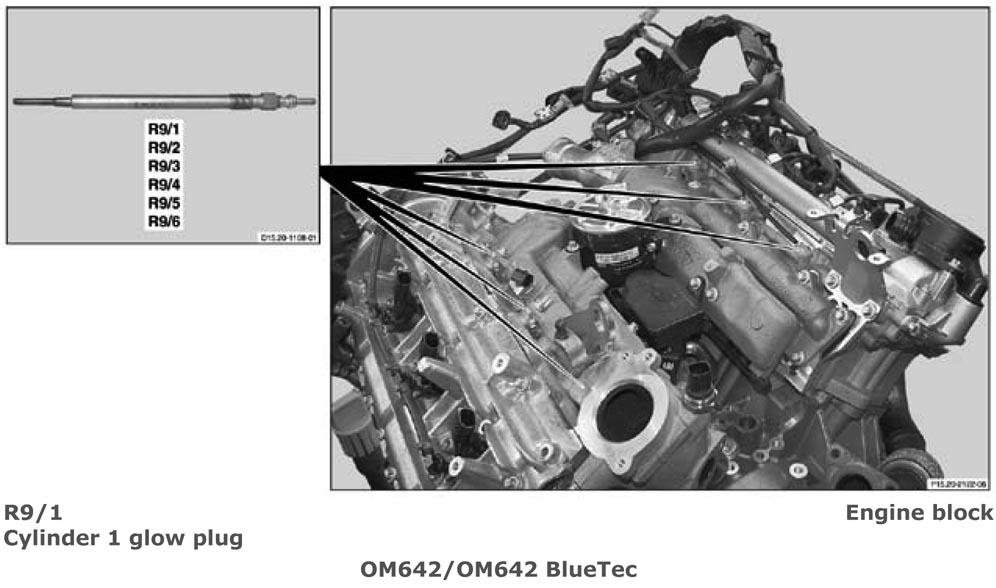

Fig 97: Top Of Engine

G00517691

Courtesy of MERCEDES-BENZ USA

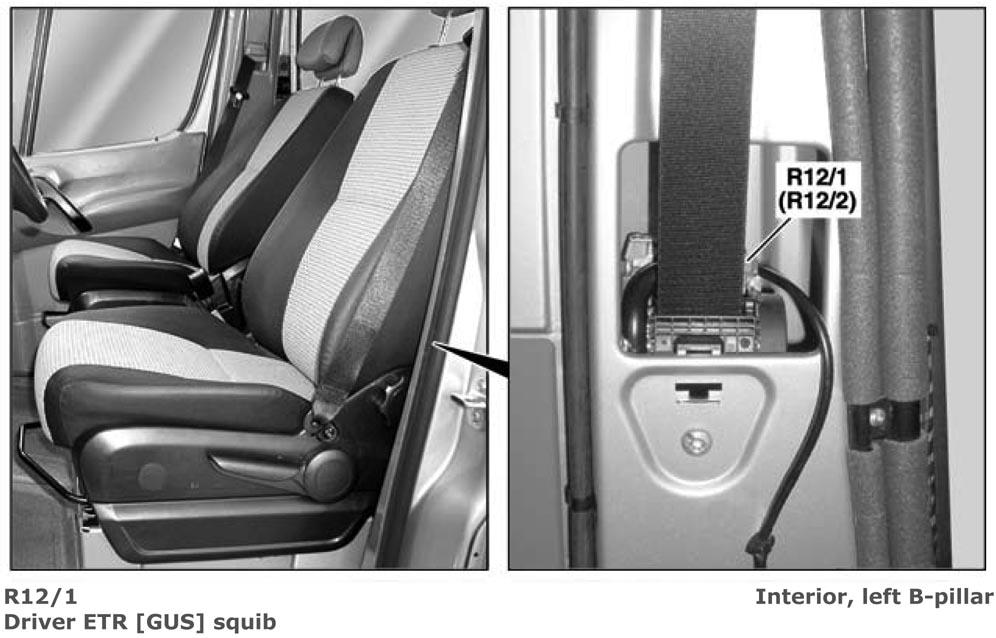

Fig 98: Left "B" Pillar (Right Similar)

G00517692

Courtesy of MERCEDES-BENZ USA

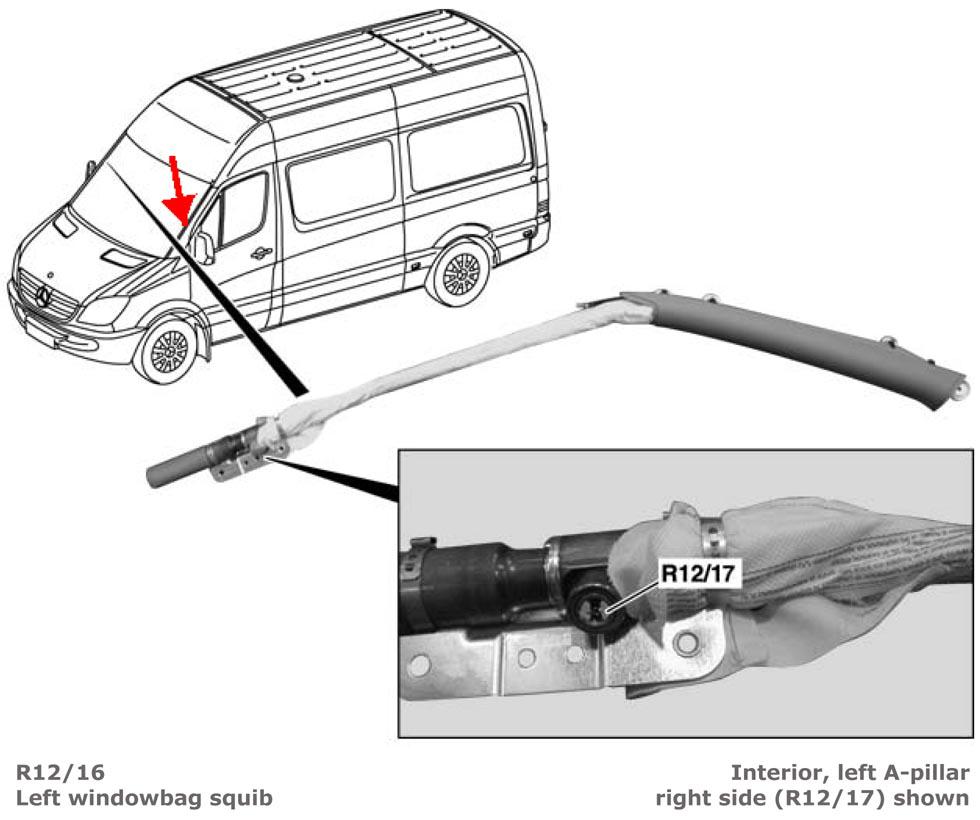

Fig 99: Left & Right "A" Pillars

G00517693

Courtesy of MERCEDES-BENZ USA

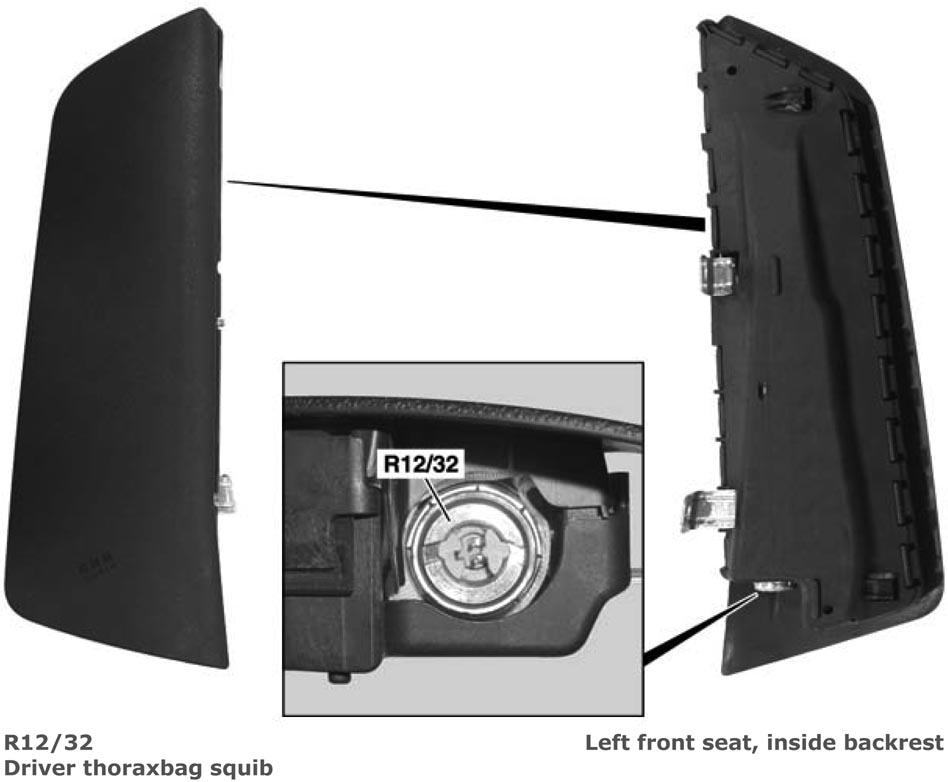

Fig 100: Driver's Seat Back (Front Passenger's Similar)

G00517694

Courtesy of MERCEDES-BENZ USA

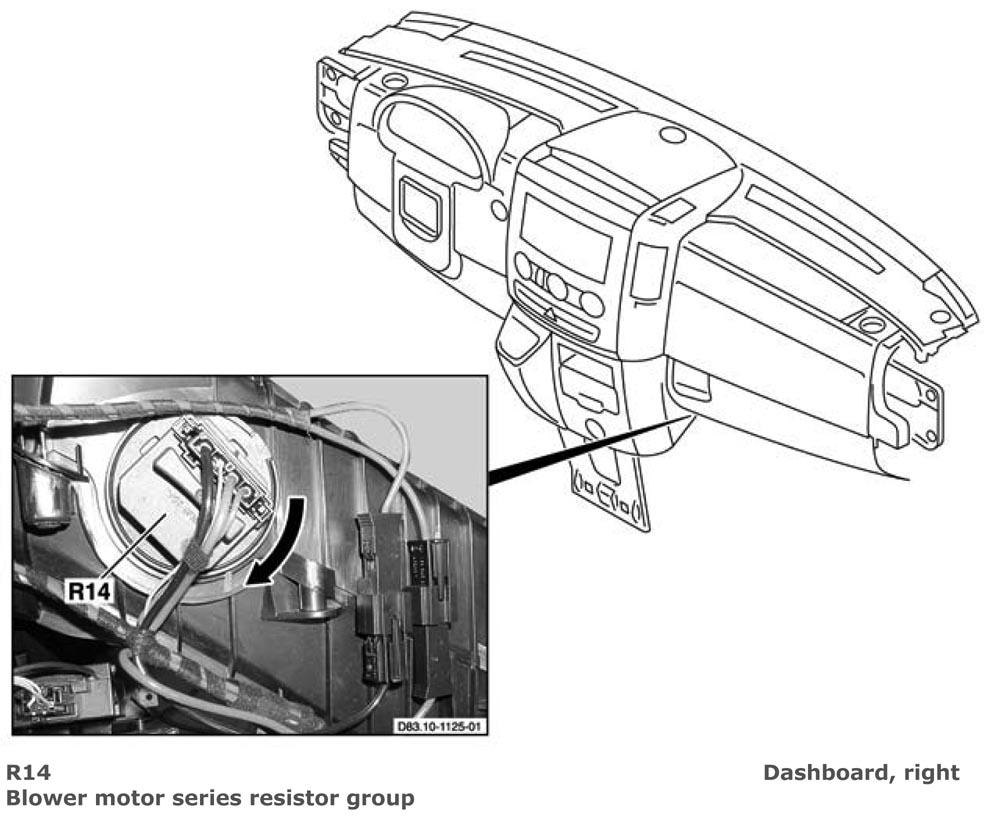

Fig 101: Right Side Of Dash

G00517695

Courtesy of MERCEDES-BENZ USA

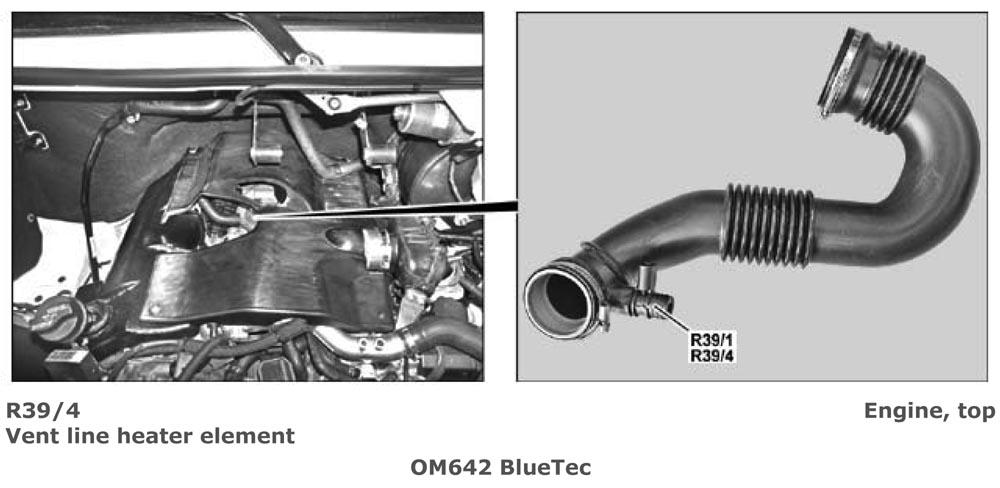

Fig 102: Top Of Engine

G00517696

Courtesy of MERCEDES-BENZ USA

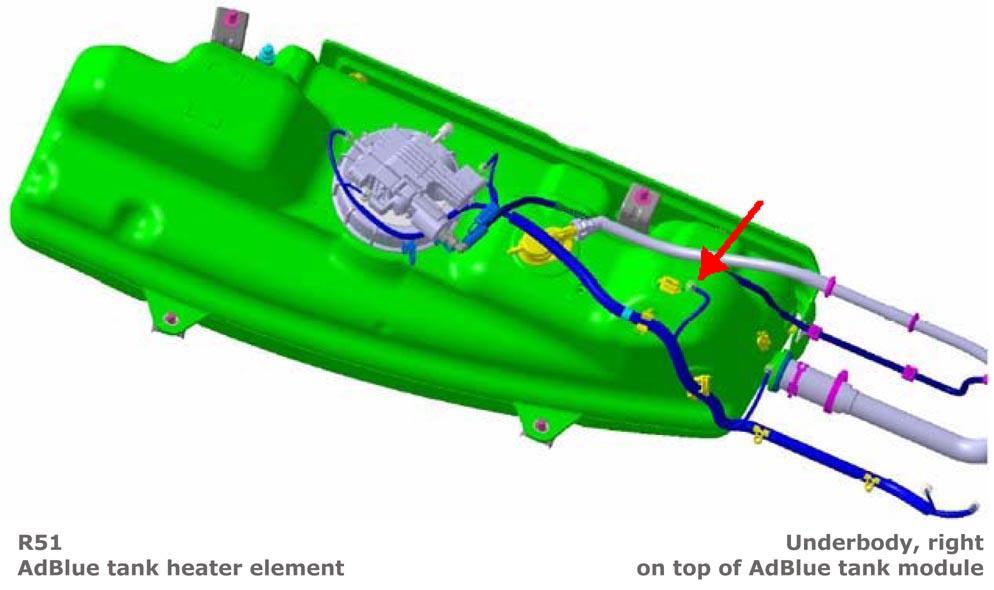

Fig 103: Under Right Side Of Vehicle

G00517697

Courtesy of MERCEDES-BENZ USA

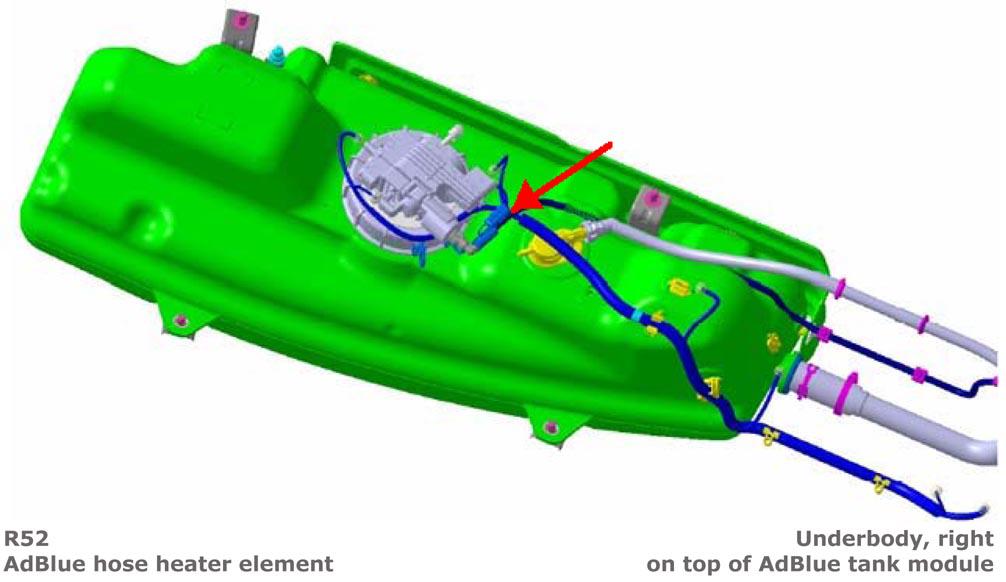

Fig 104: Under Right Side Of Vehicle

G00517698

Courtesy of MERCEDES-BENZ USA

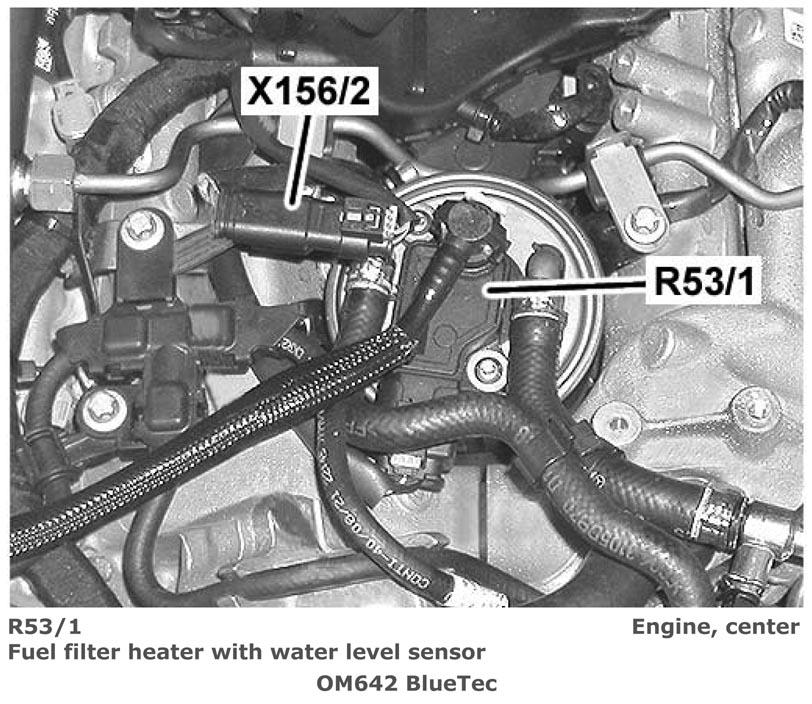

Fig 105: Top Of Engine

G00517699

Courtesy of MERCEDES-BENZ USA

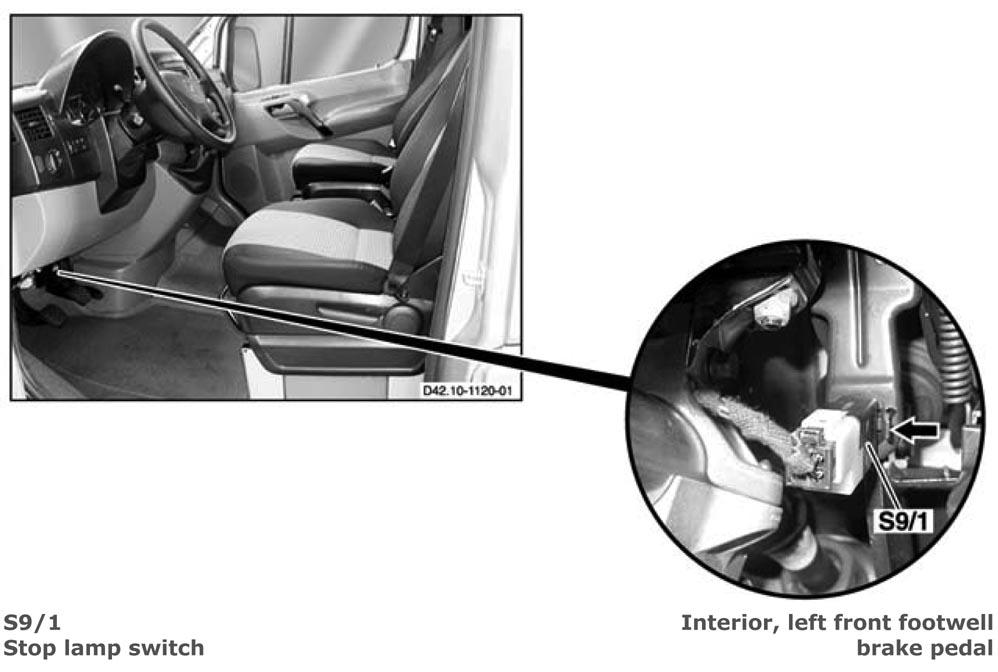

Fig 106: Left Front Footwell

G00517700

Courtesy of MERCEDES-BENZ USA

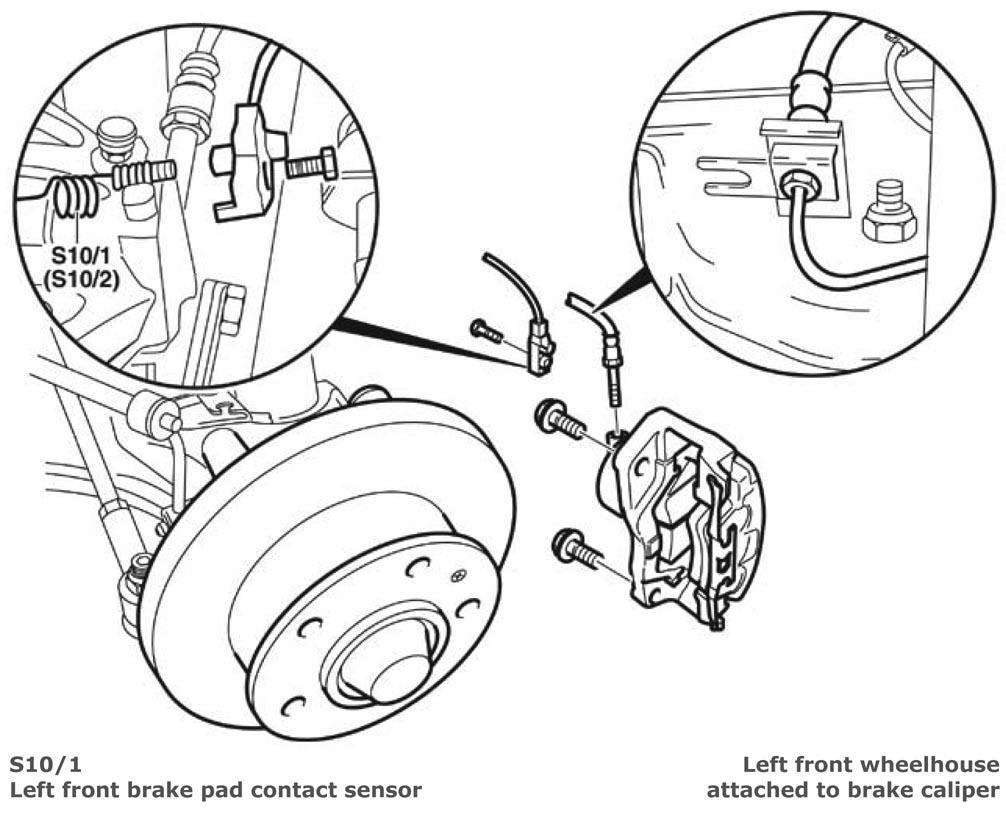

Fig 107: Brake Caliper Assemblies (Front Shown, Rear Similar)

G00517701

Courtesy of MERCEDES-BENZ USA

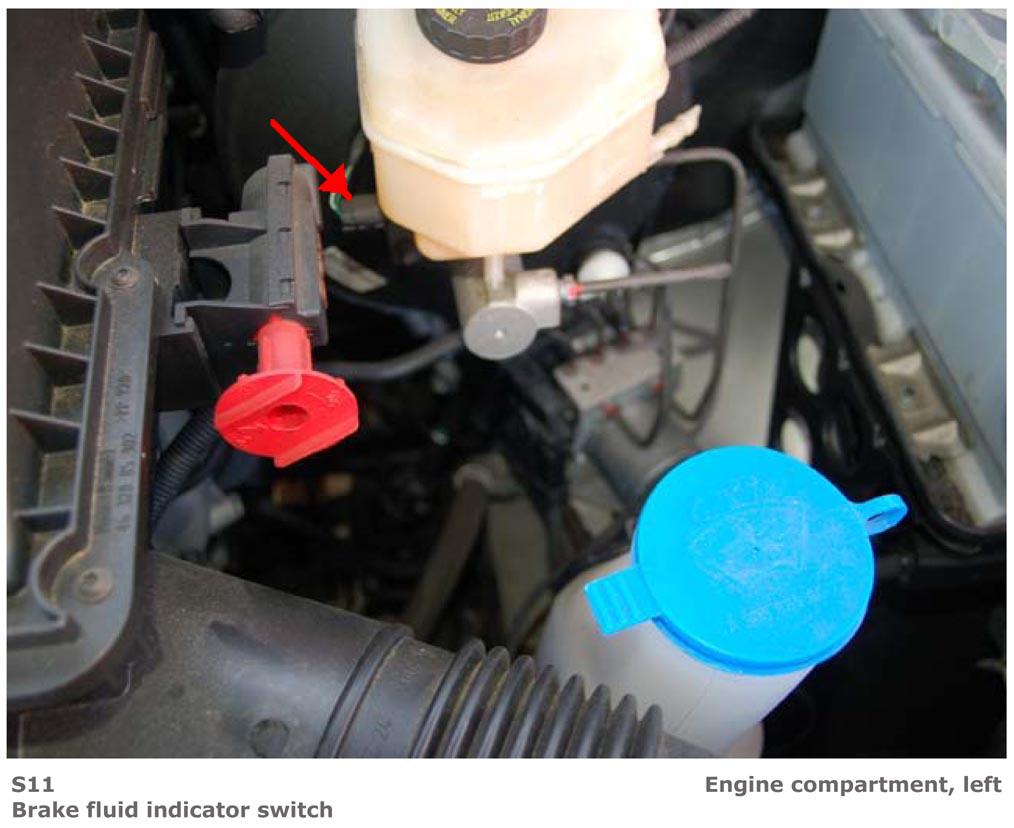

Fig 108: Left Rear Of Engine Compartment

G00517702

Courtesy of MERCEDES-BENZ USA

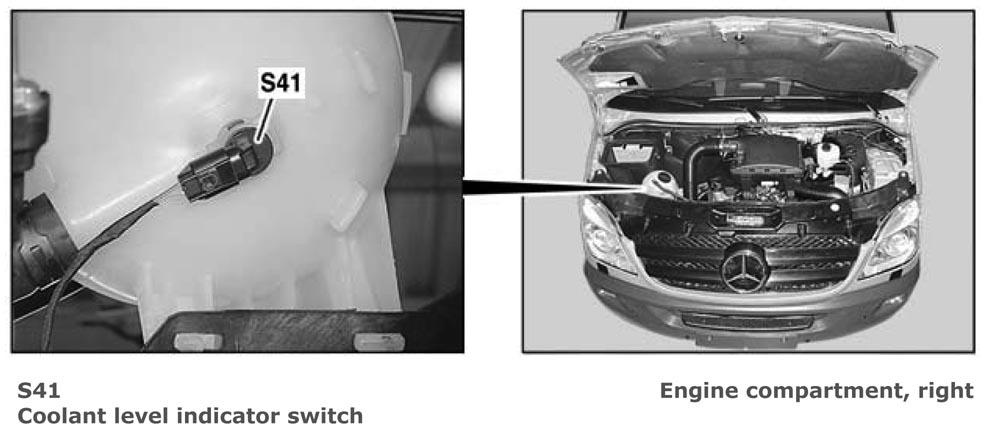

Fig 109: Engine Compartment

G00517703

Courtesy of MERCEDES-BENZ USA

Fig 110: Engine Compartment

G00517704

Courtesy of MERCEDES-BENZ USA

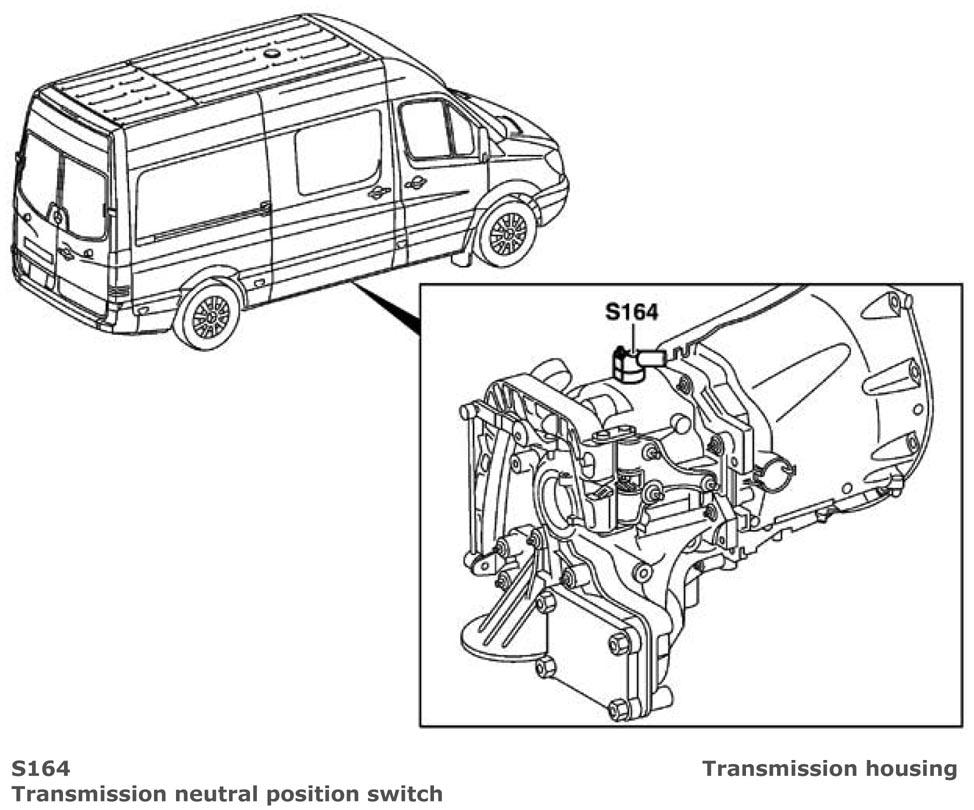

Fig 111: Under Center Front Of Vehicle

G00517705

Courtesy of MERCEDES-BENZ USA

Fig 112: Right Kick Panel

G00517706

Courtesy of MERCEDES-BENZ USA

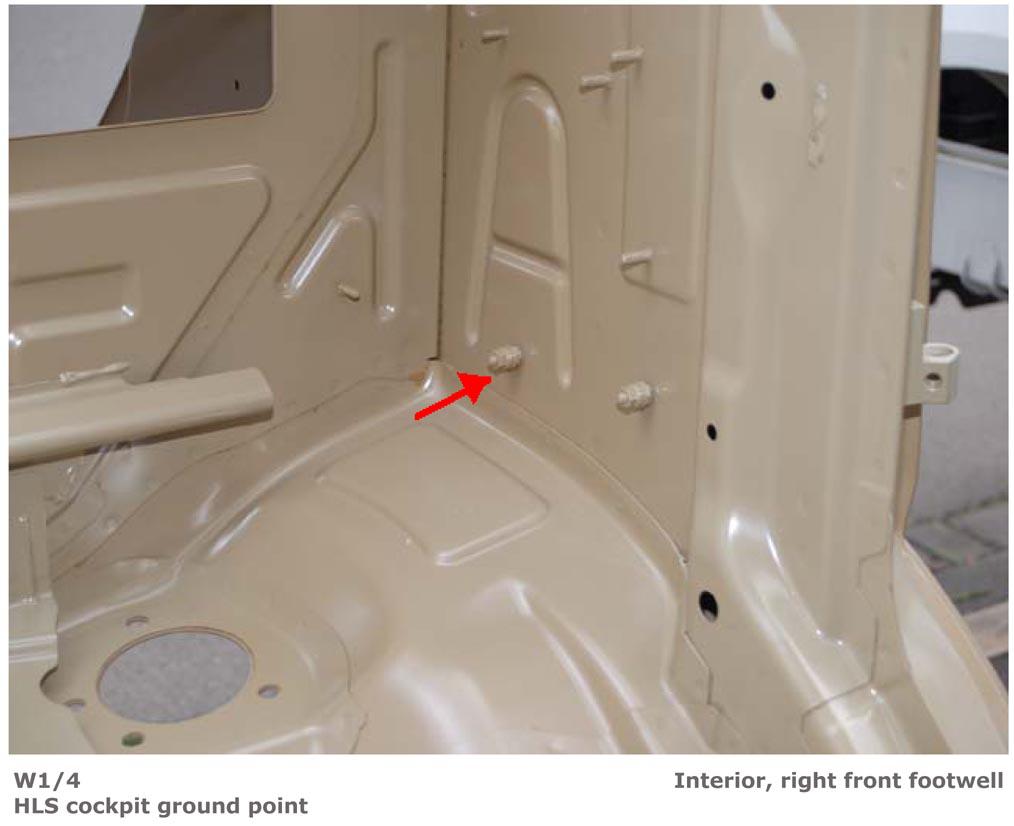

Fig 113: Right Kick Panel.

G00517707

Courtesy of MERCEDES-BENZ USA

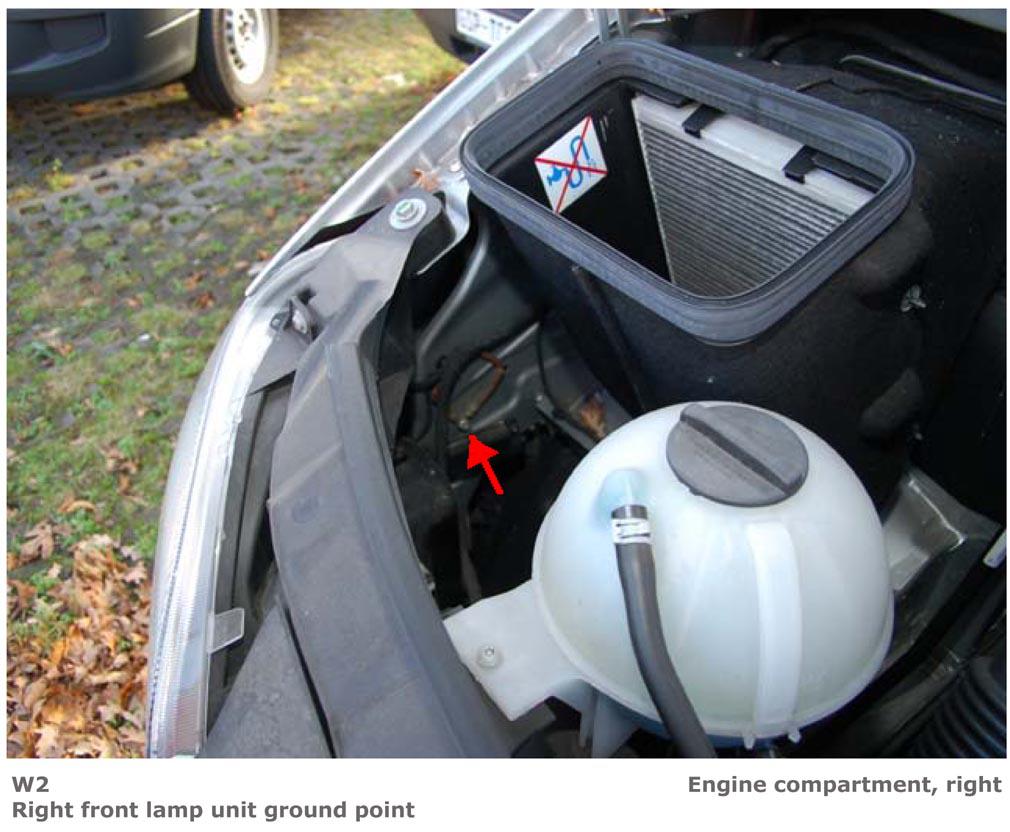

Fig 114: Right Front Of Engine Compartment

G00517708

Courtesy of MERCEDES-BENZ USA

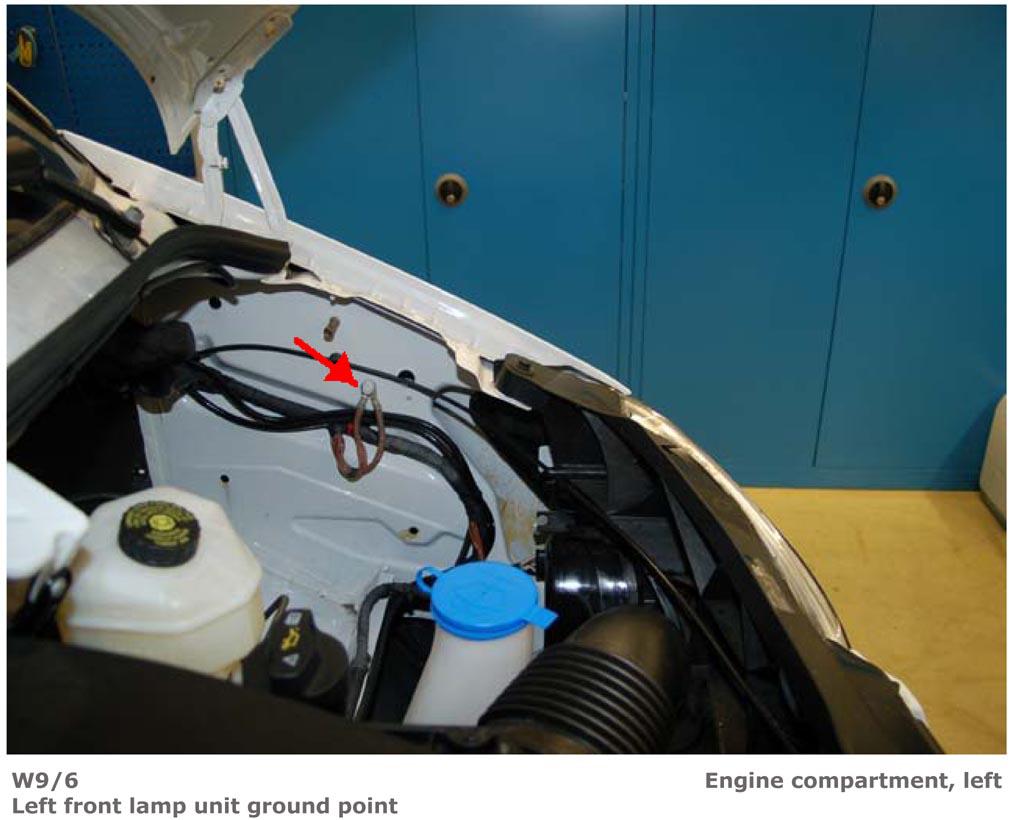

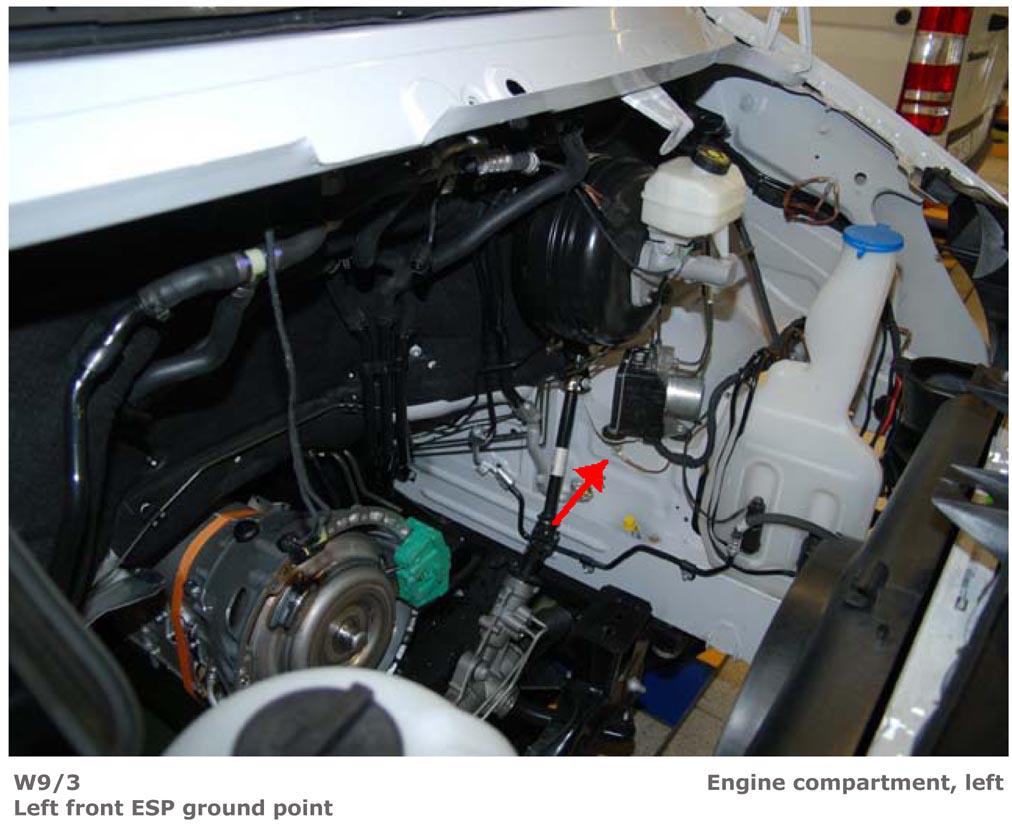

Fig 115: Left Side Of Engine Compartment.

G00517709

Courtesy of MERCEDES-BENZ USA

Fig 116: Left Side Of Engine Compartment.

G00517710

Courtesy of MERCEDES-BENZ USA

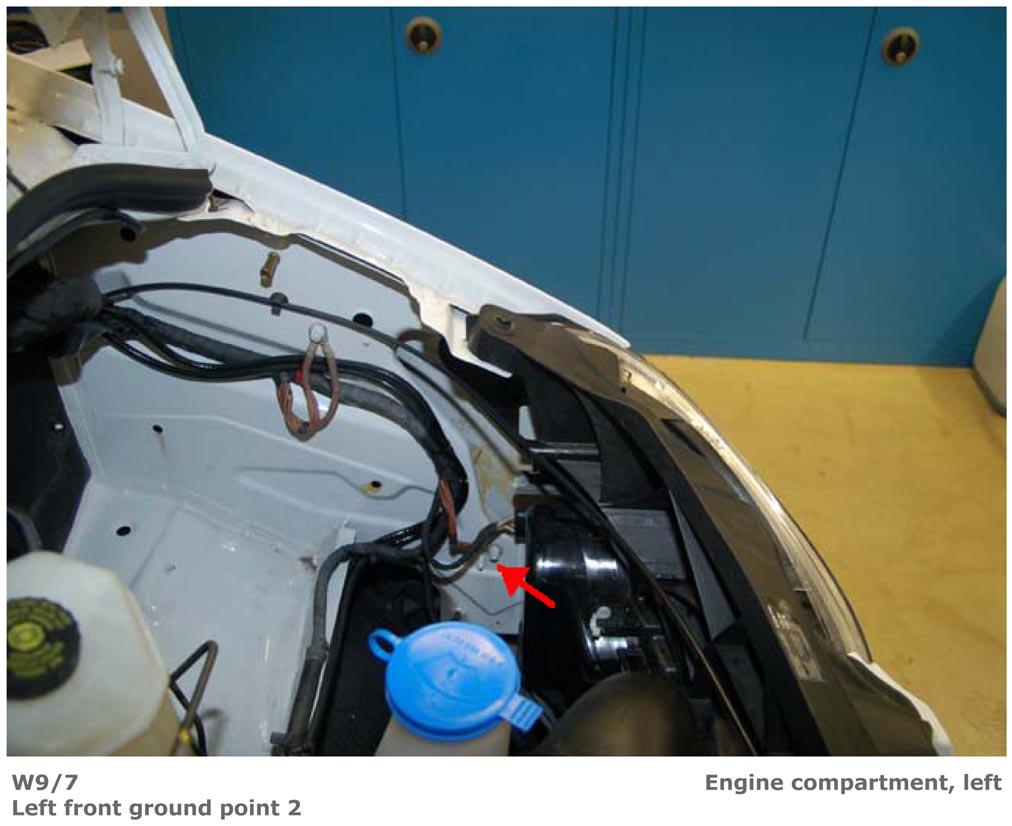

Fig 117: Left Front Of Engine Compartment.

G00517711

Courtesy of MERCEDES-BENZ USA

Fig 118: Left Front Footwell

G00517712

Courtesy of MERCEDES-BENZ USA

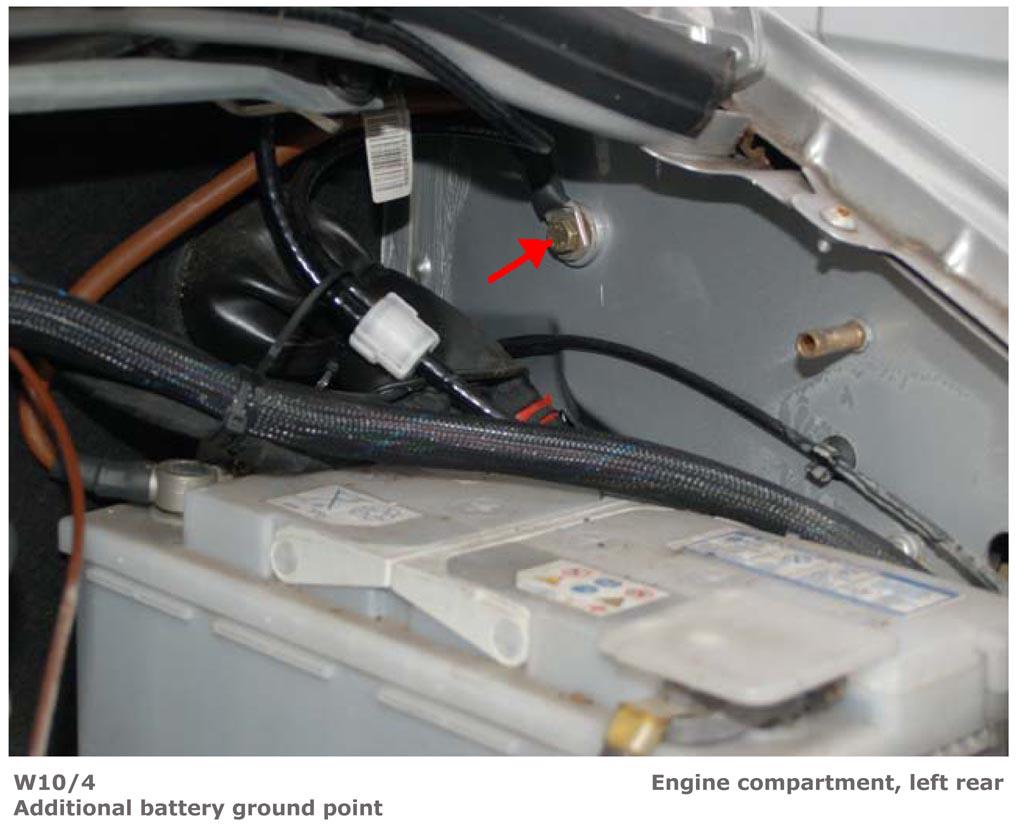

Fig 119: Left Rear Of Engine Compartment

G00517713

Courtesy of MERCEDES-BENZ USA

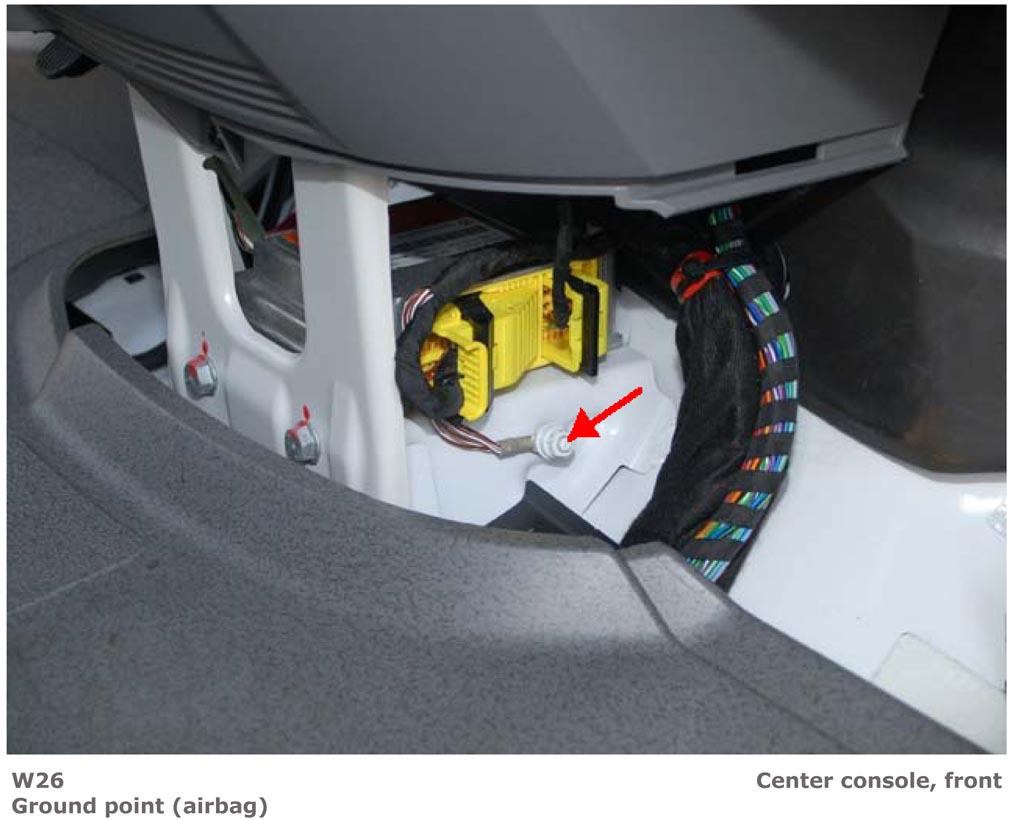

Fig 120: Center Console.

G00517714

Courtesy of MERCEDES-BENZ USA

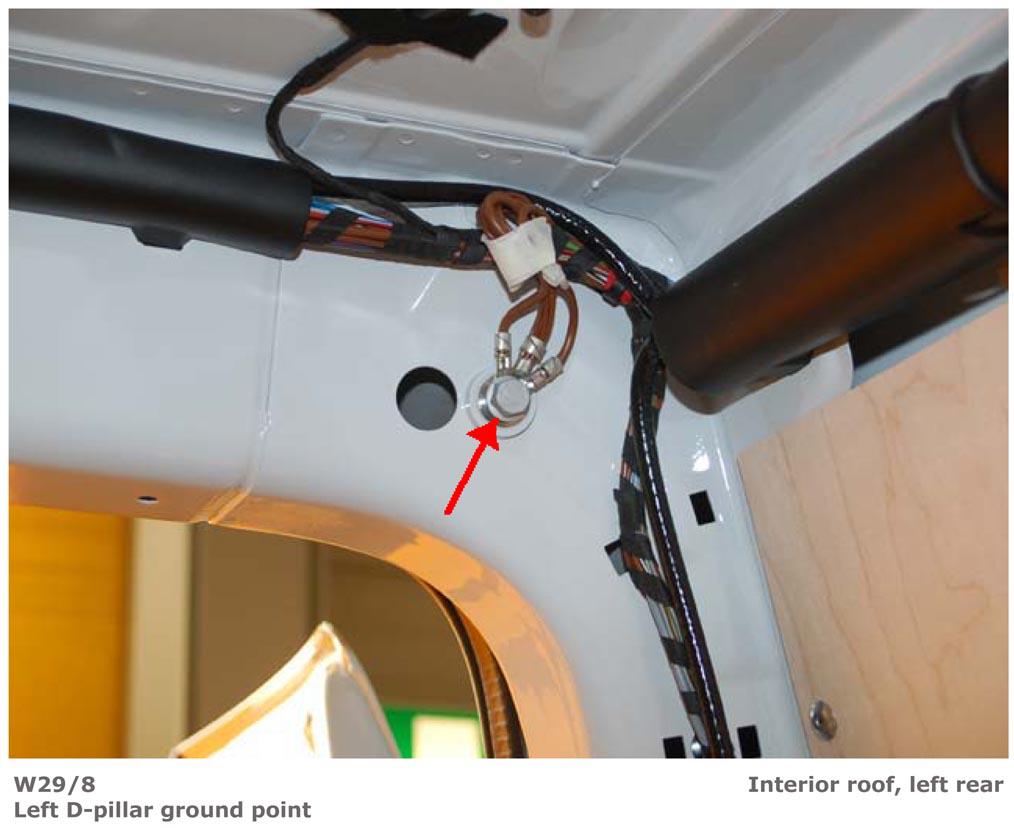

Fig 121: Left "D" Pillar

G00517715

Courtesy of MERCEDES-BENZ USA

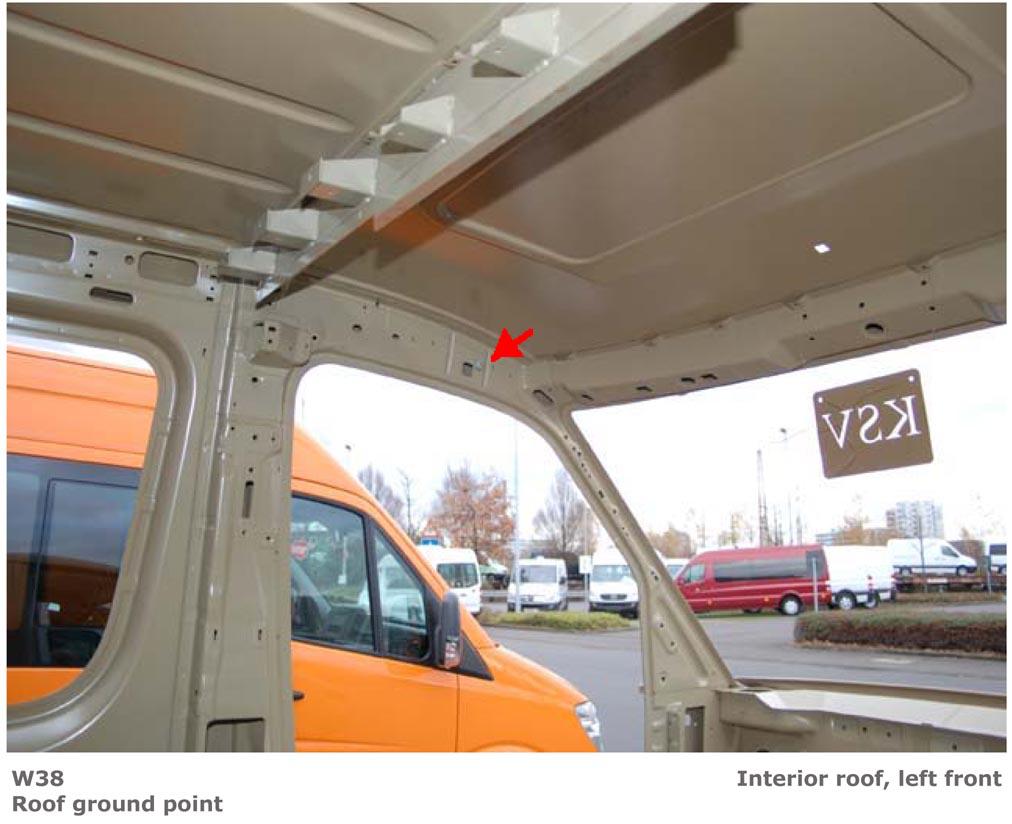

Fig 122: Left Front Of Roof

G00517716

Courtesy of MERCEDES-BENZ USA

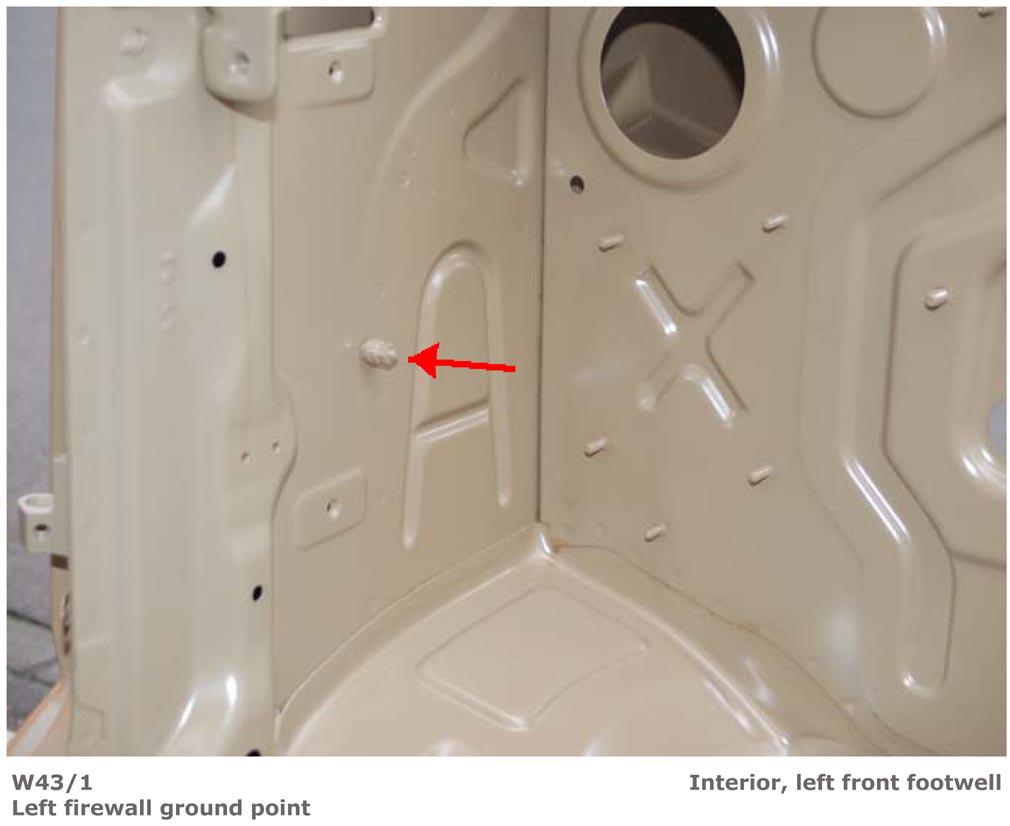

Fig 123: Left Kick Panel.

G00517717

Courtesy of MERCEDES-BENZ USA

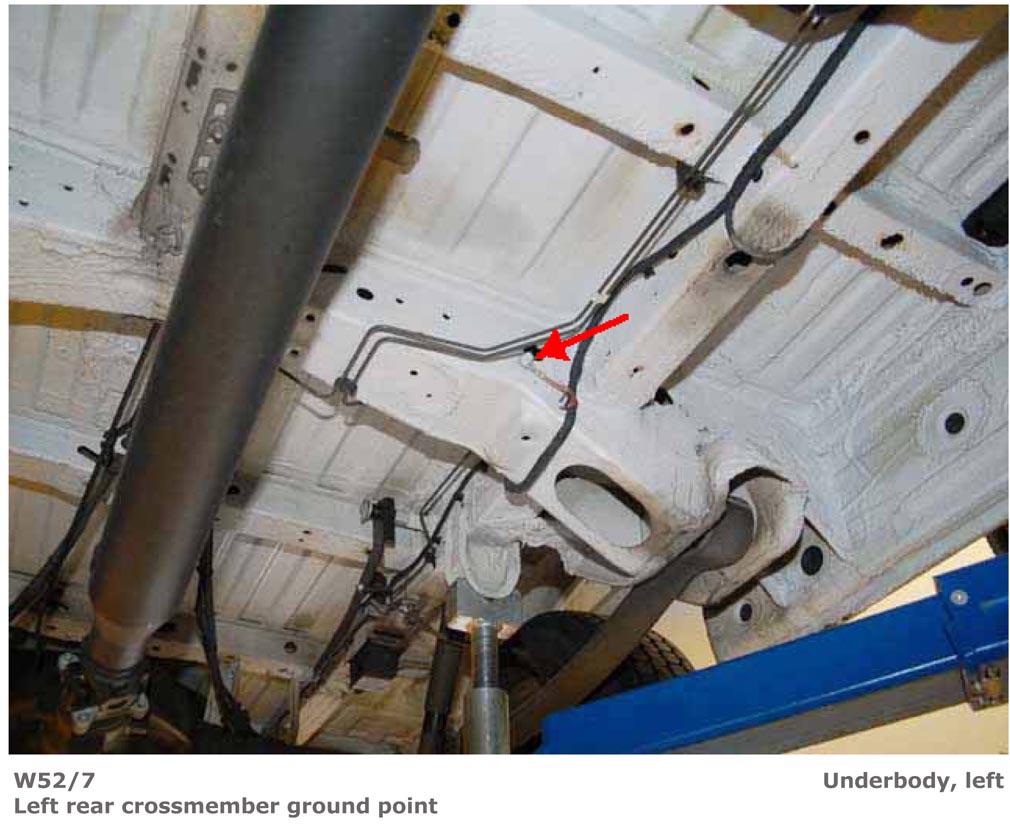

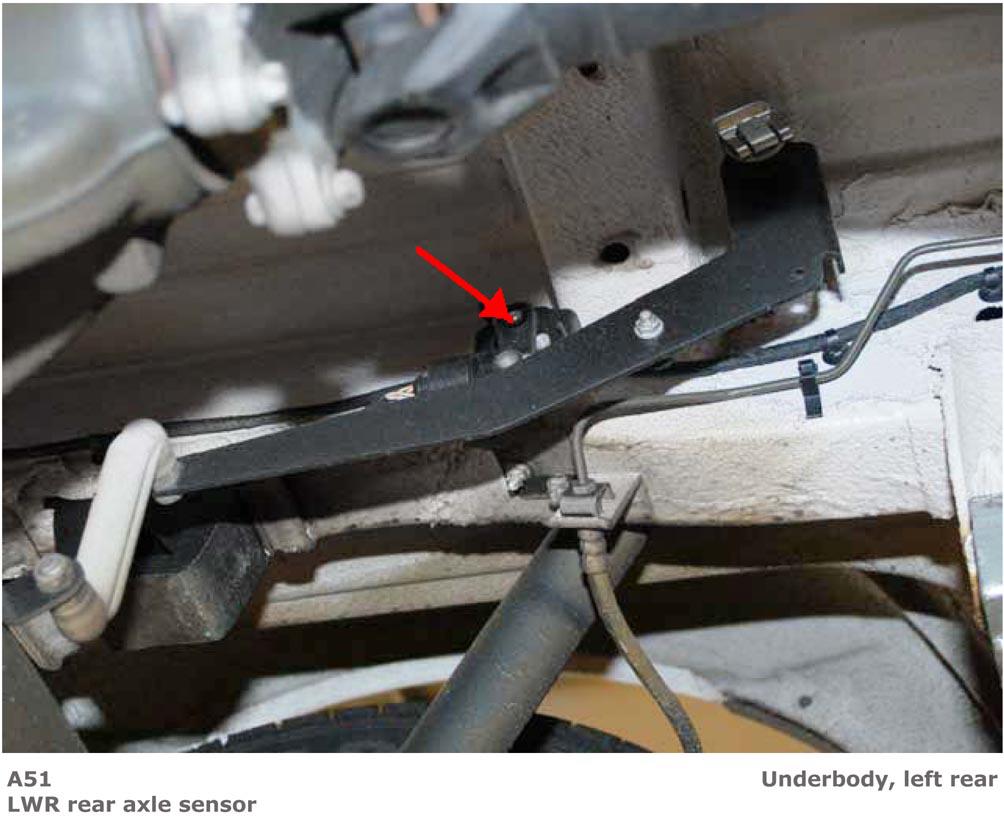

Fig 124: Under Left Rear Of Vehicle

G00517718

Courtesy of MERCEDES-BENZ USA

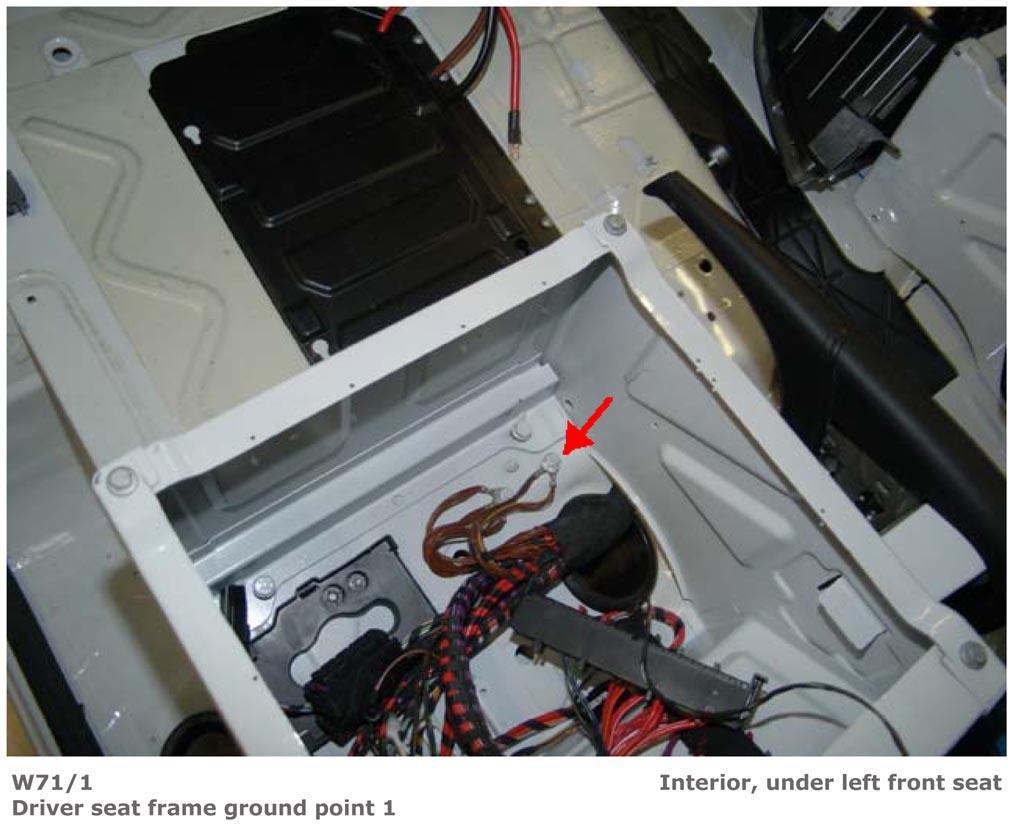

Fig 125: Under Driver's Seat.

G00517719

Courtesy of MERCEDES-BENZ USA

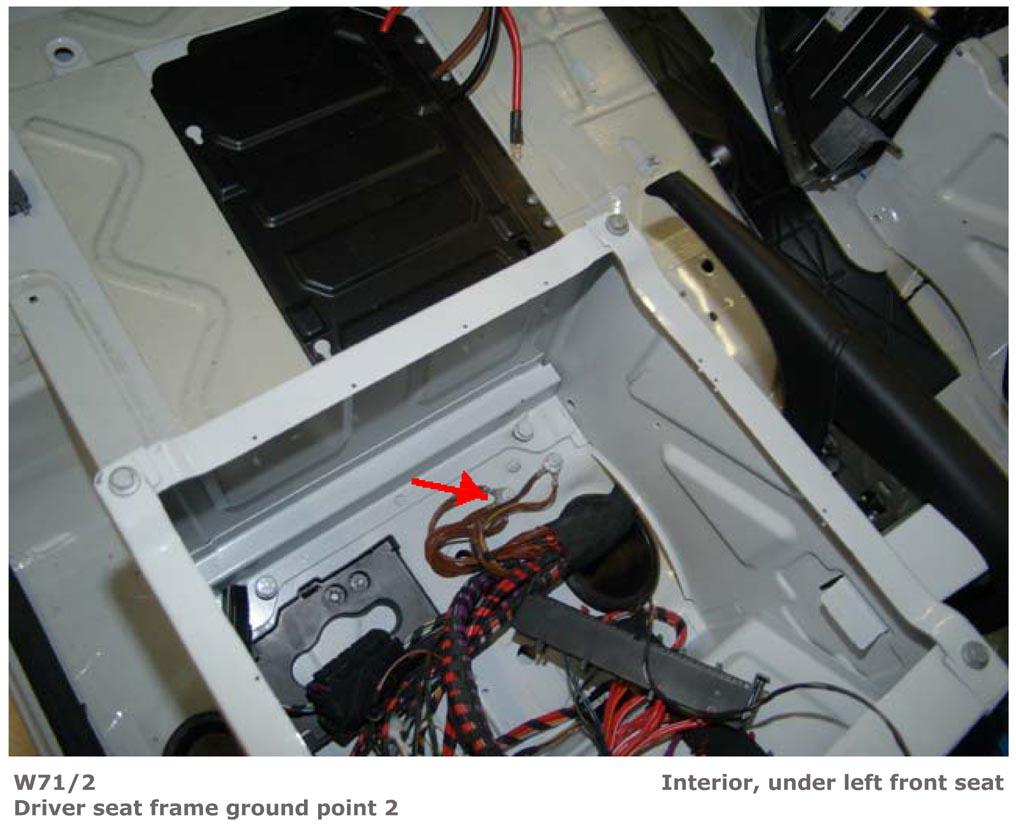

Fig 126: Under Driver's Seat.

G00517720

Courtesy of MERCEDES-BENZ USA

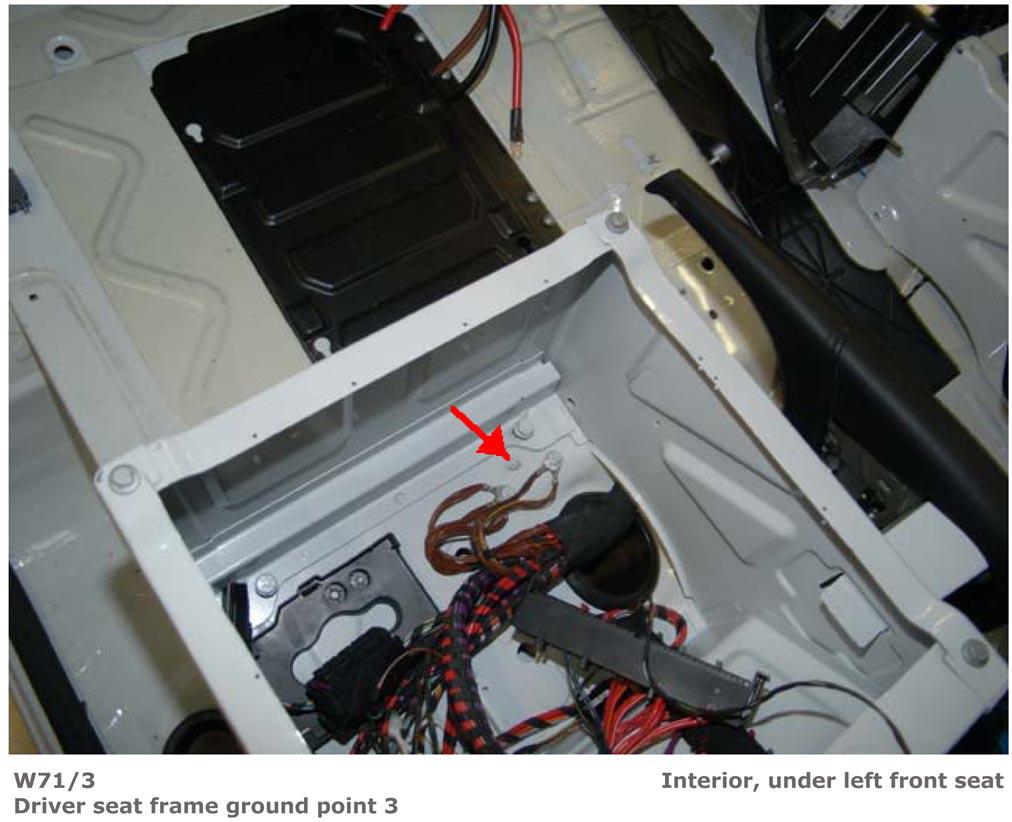

Fig 127: Under Driver's Seat

G00517721

Courtesy of MERCEDES-BENZ USA

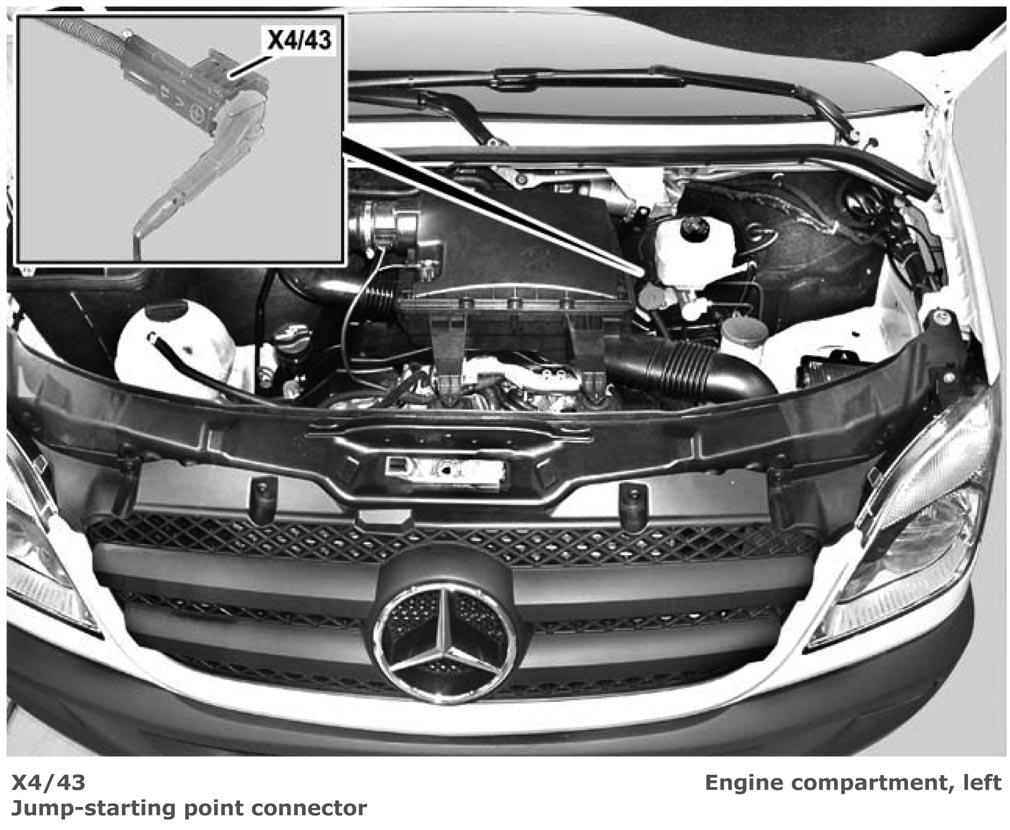

Fig 128: Left Side Of Engine Compartment

G00517722

Courtesy of MERCEDES-BENZ USA

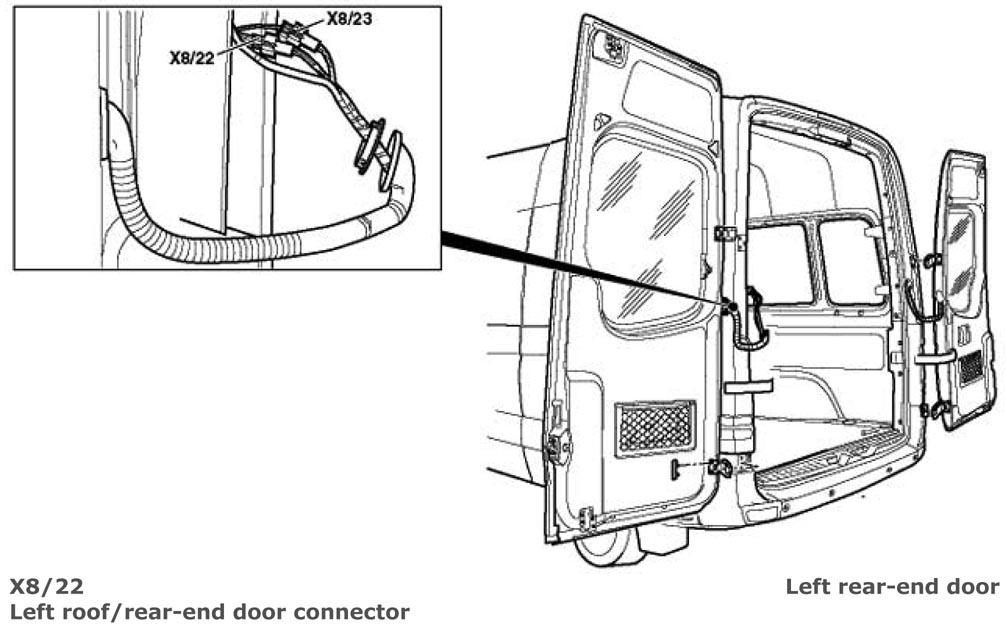

Fig 129: Left Rear Door

G00517723

Courtesy of MERCEDES-BENZ USA

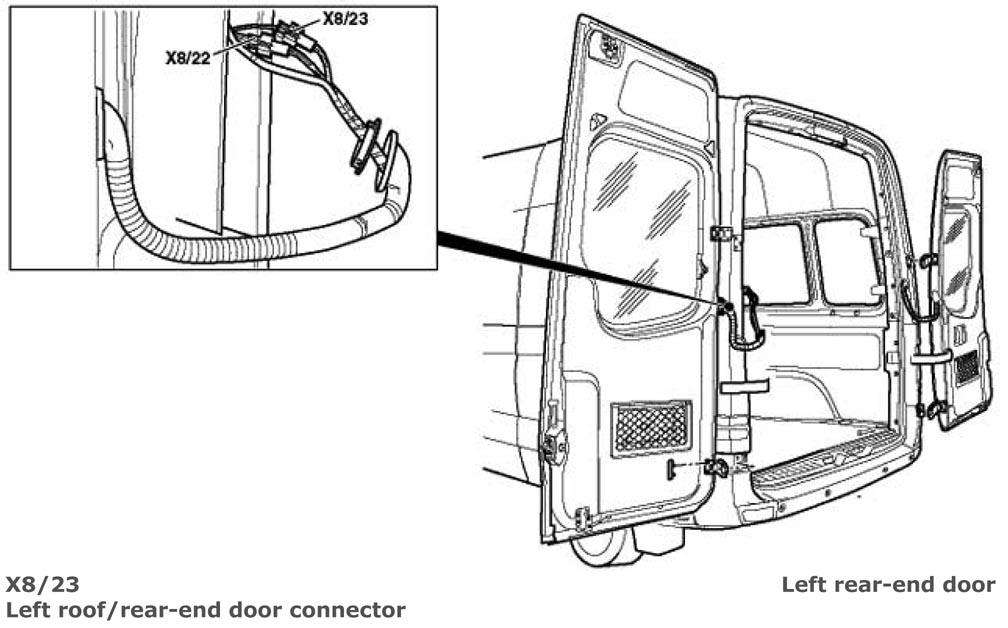

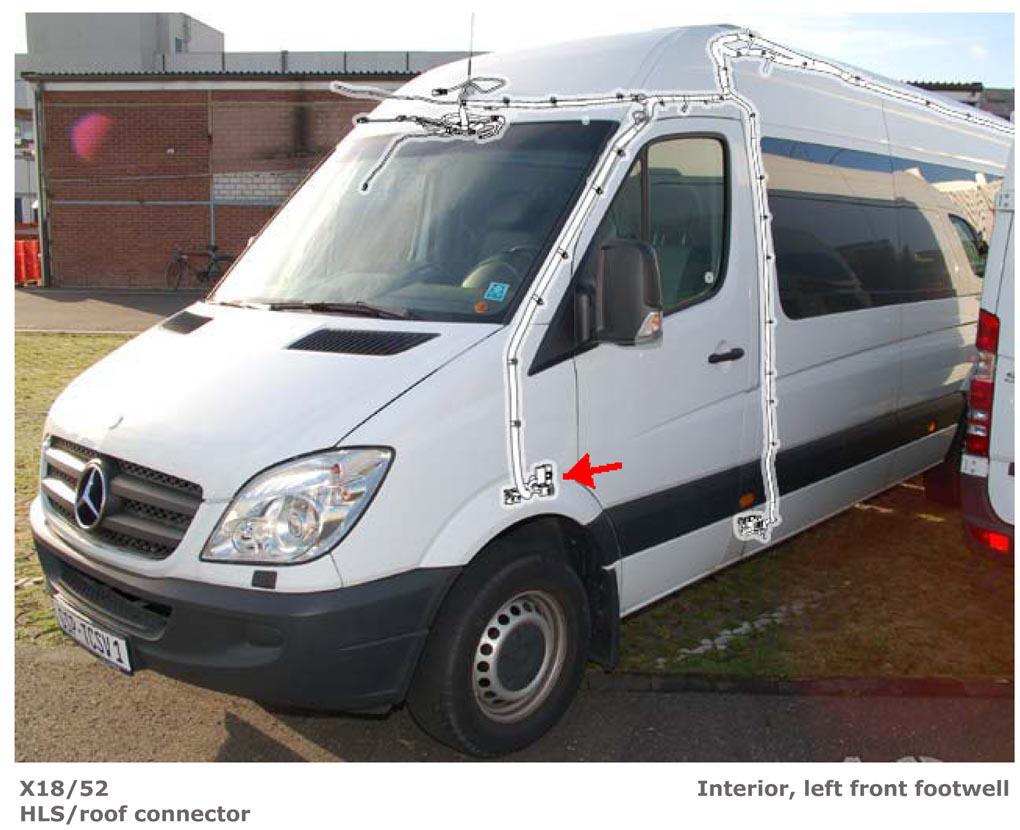

Fig 130: Left Rear Door.

G00517724

Courtesy of MERCEDES-BENZ USA

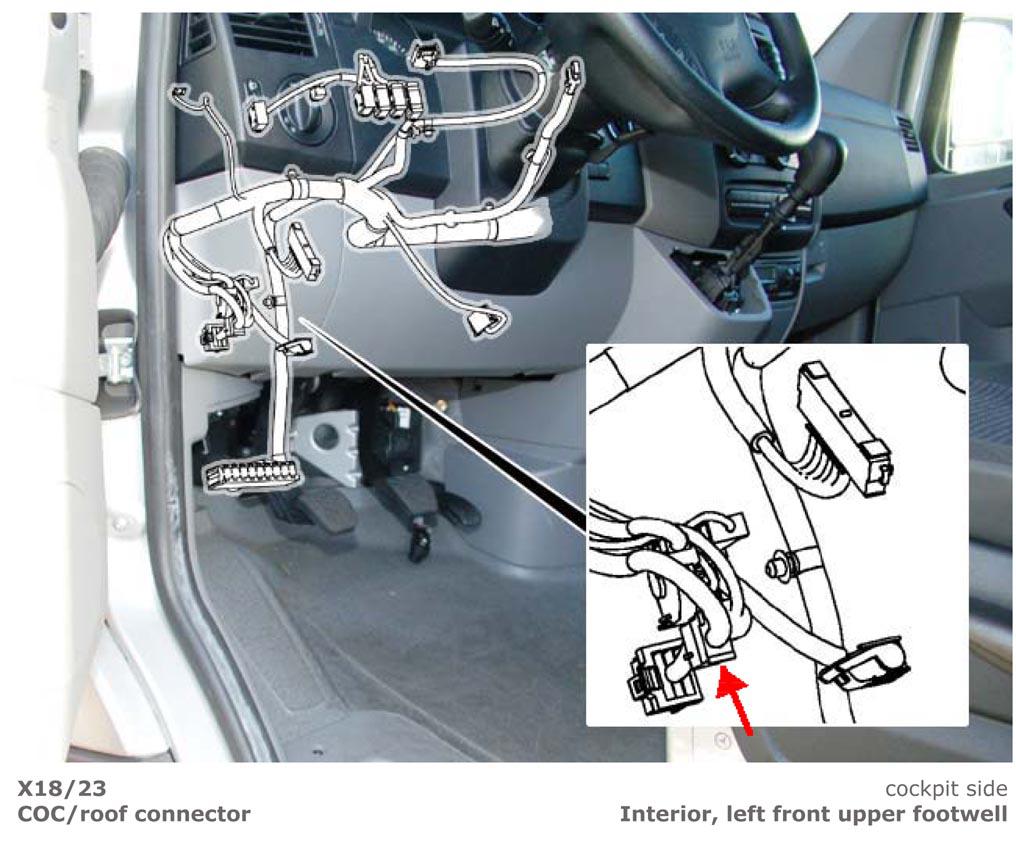

Fig 131: Left Kick Panel

G00517725

Courtesy of MERCEDES-BENZ USA

Fig 132: Left Kick Panel.

G00517726

Courtesy of MERCEDES-BENZ USA

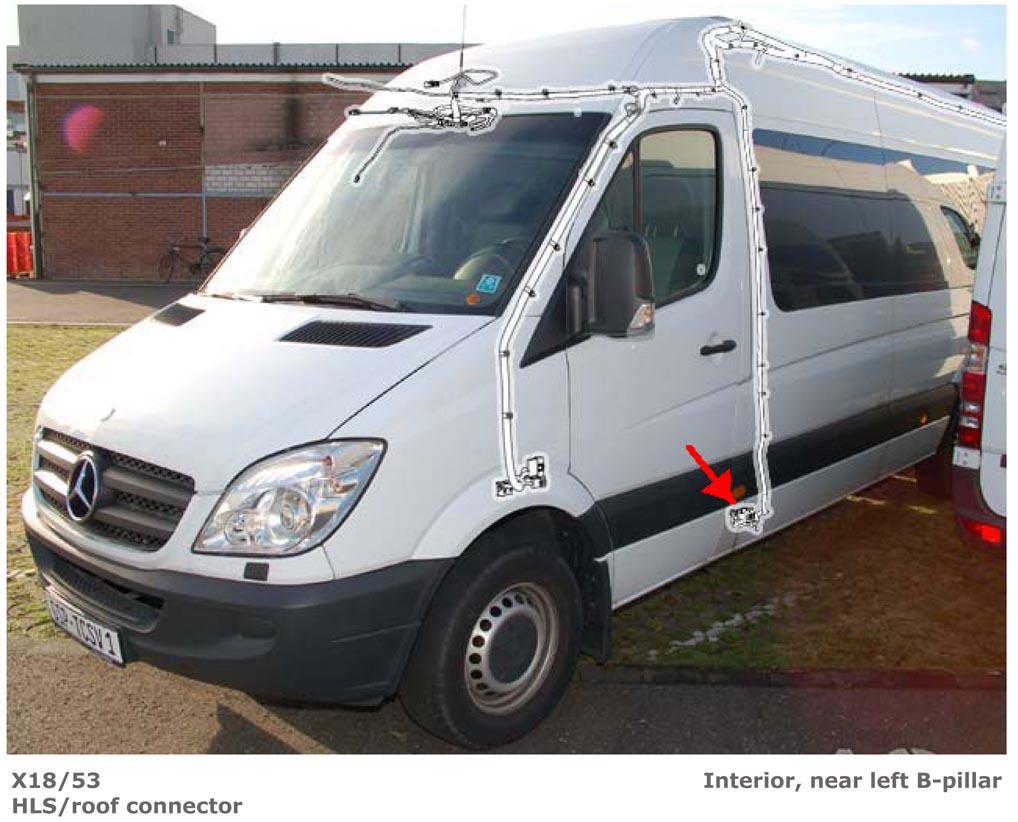

Fig 133: Base Of Left "B" Pillar

G00517727

Courtesy of MERCEDES-BENZ USA

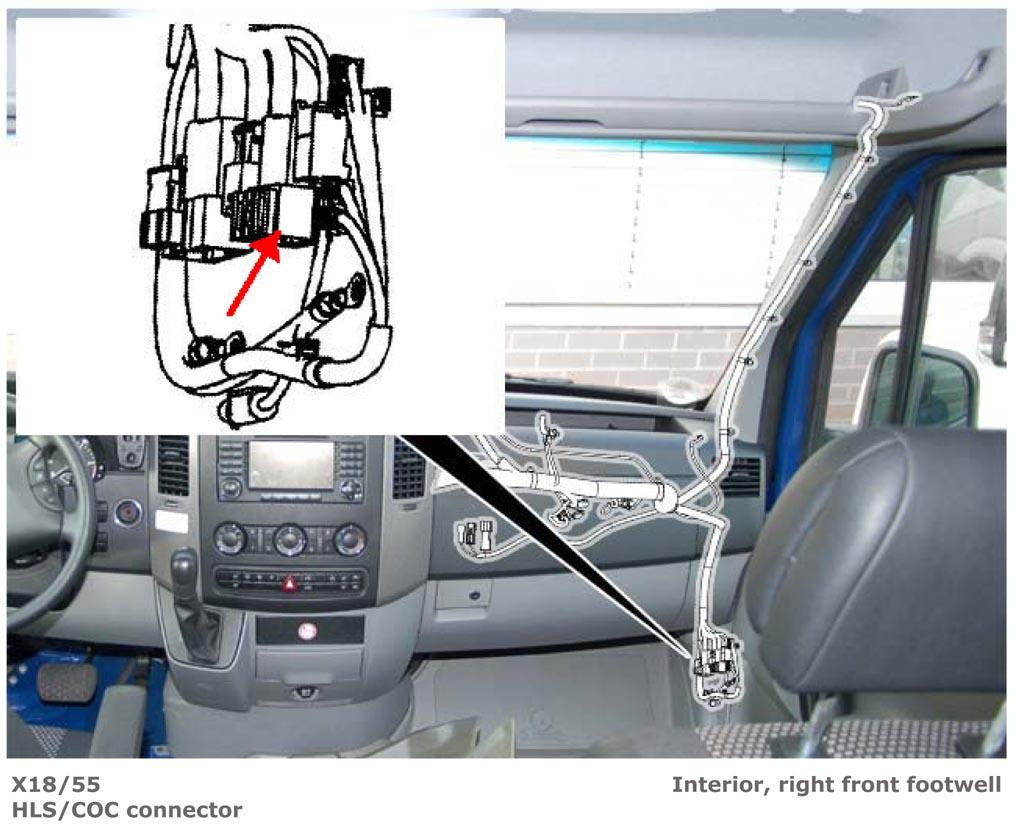

Fig 134: Right Kick Panel.

G00517728

Courtesy of MERCEDES-BENZ USA

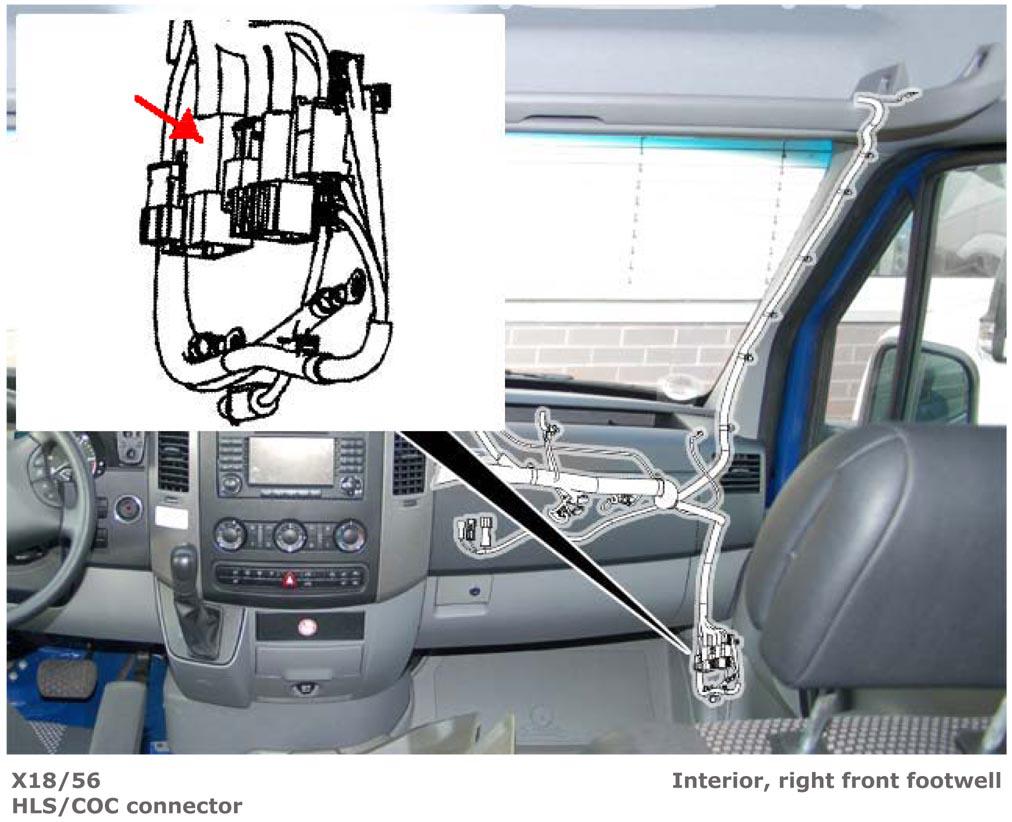

Fig 135: Right Kick Panel.

G00517729

Courtesy of MERCEDES-BENZ USA

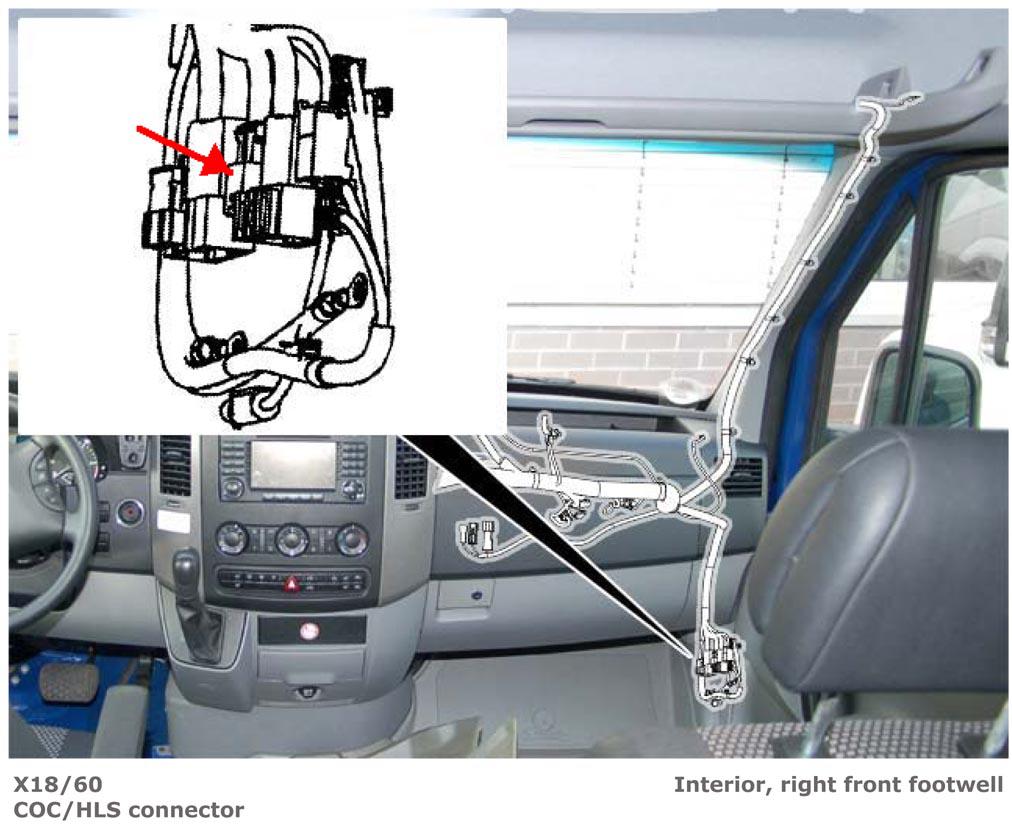

Fig 136: Right Kick Panel.

G00517730

Courtesy of MERCEDES-BENZ USA

Fig 137: Right Kick Panel.

G00517731

Courtesy of MERCEDES-BENZ USA

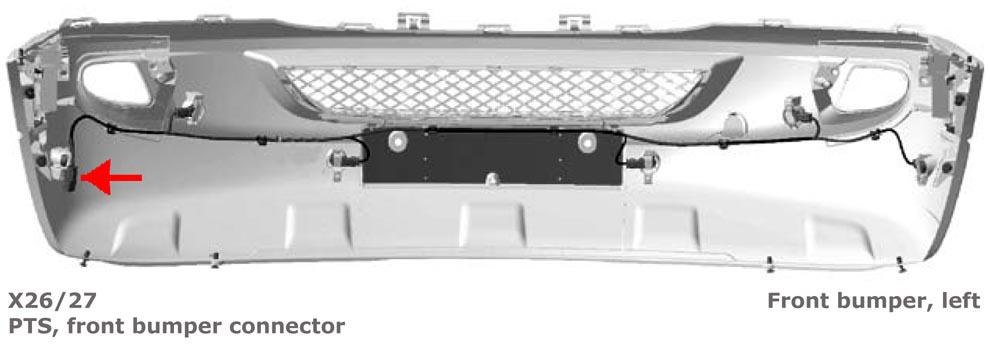

Fig 138: Front Bumper

G00517732

Courtesy of MERCEDES-BENZ USA

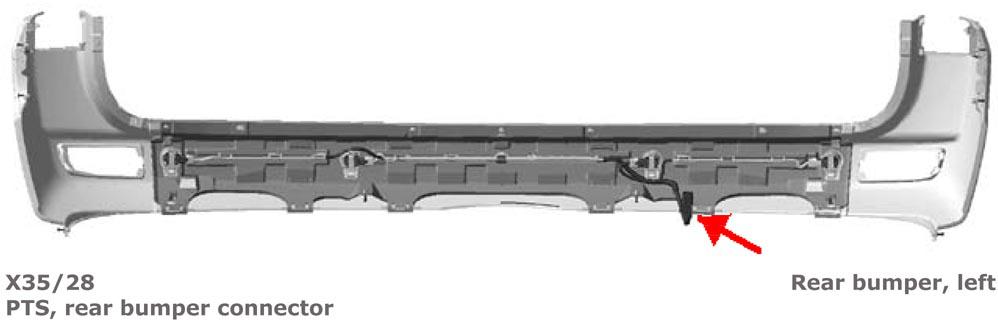

Fig 139: Rear Bumper

G00517733

Courtesy of MERCEDES-BENZ USA

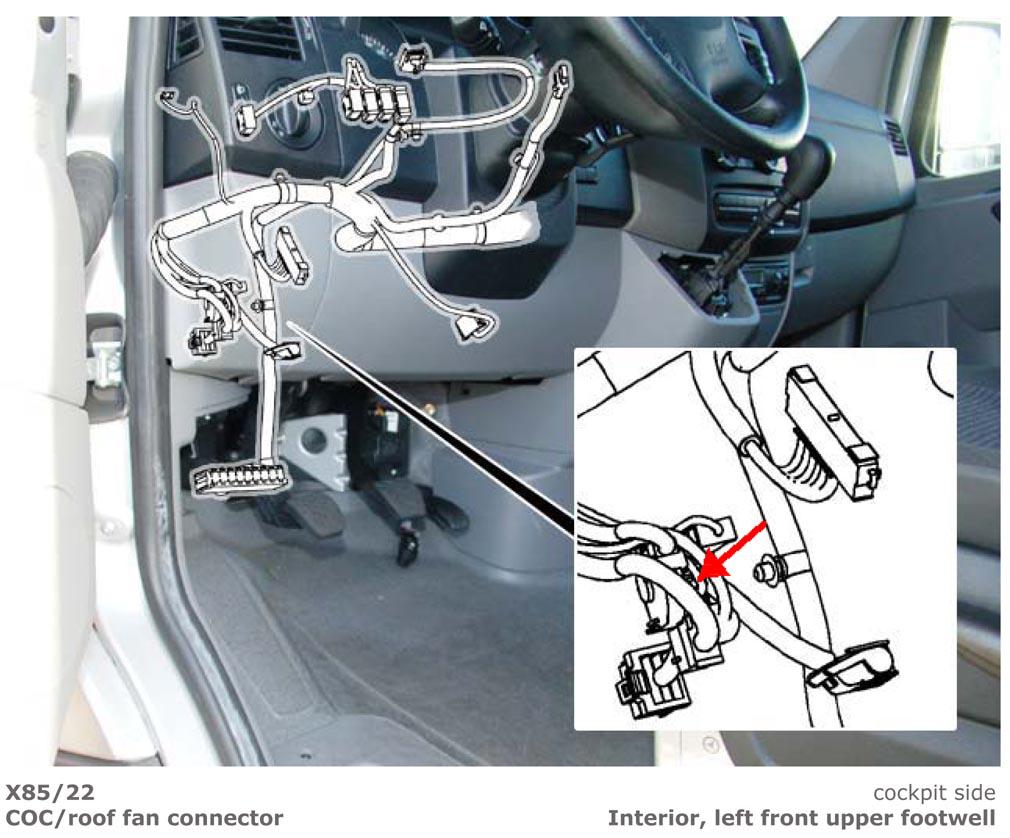

Fig 140: Left Kick Panel.

G00517734

Courtesy of MERCEDES-BENZ USA

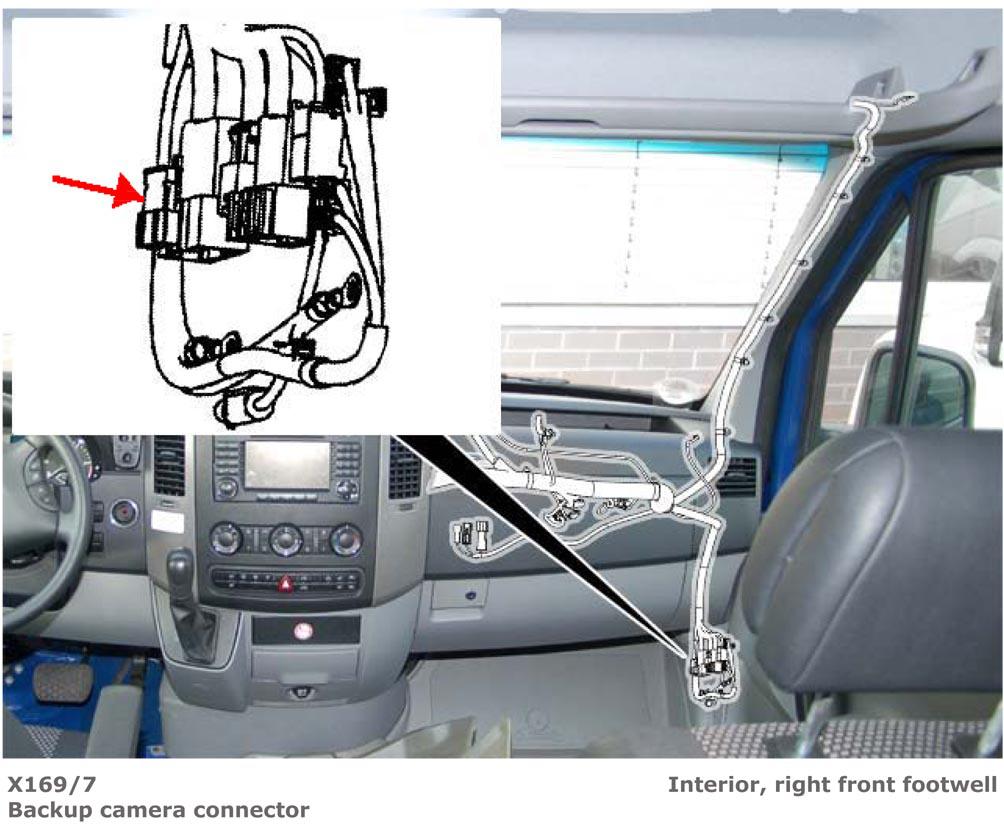

Fig 141: Right Kick Panel

G00517735

Courtesy of MERCEDES-BENZ USA

Fig 142: Bottom Of Transmission

G00517736

Courtesy of MERCEDES-BENZ USA

Fig 143: Top Of Engine

G00517737

Courtesy of MERCEDES-BENZ USA

Fig 144: Top Of Engine

G00517738

Courtesy of MERCEDES-BENZ USA

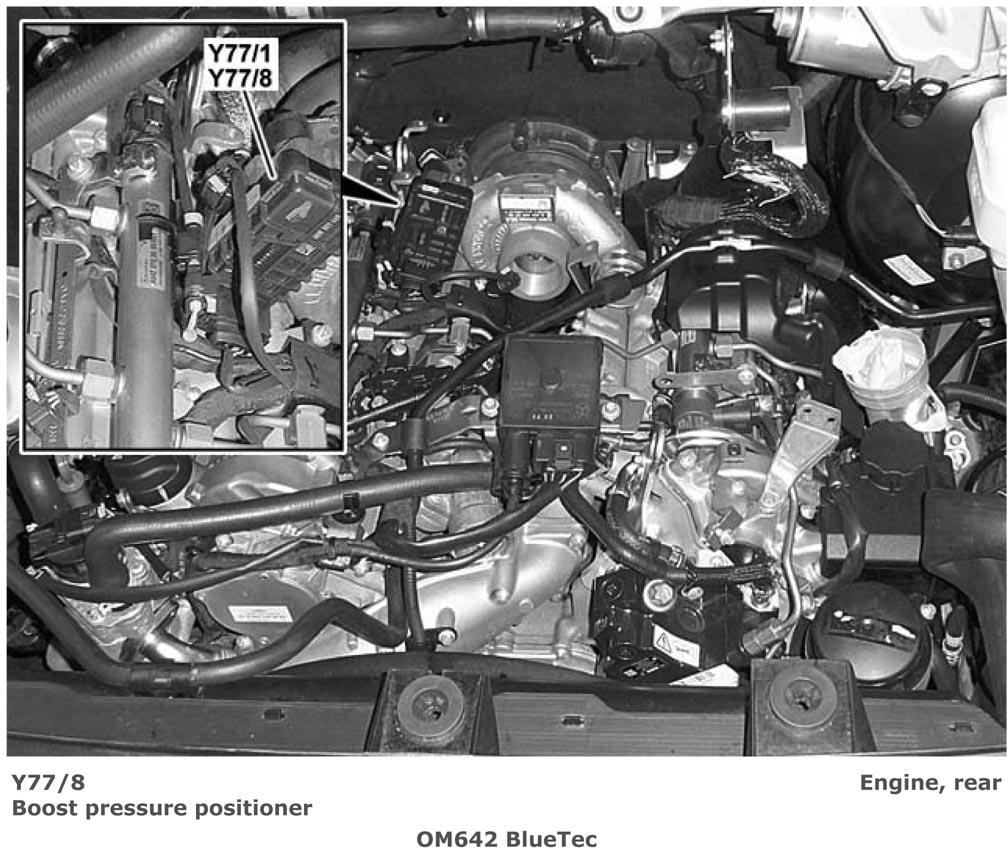

Fig 145: Top Rear Of Engine

G00517739

Courtesy of MERCEDES-BENZ USA

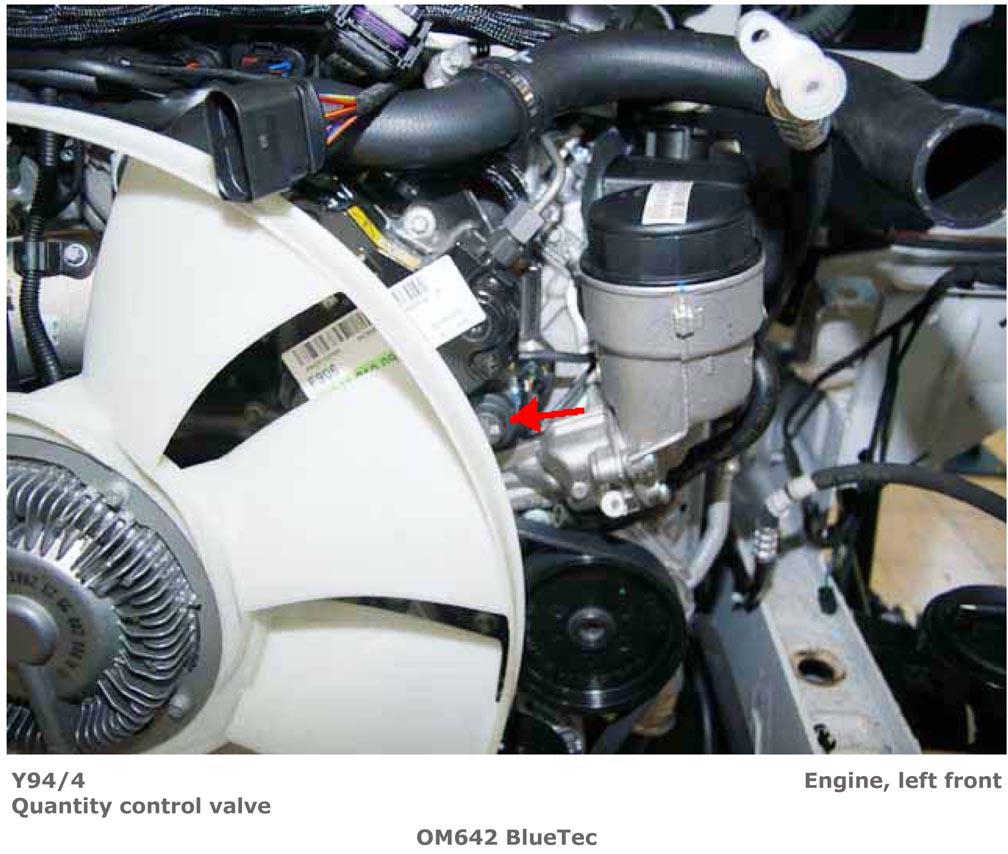

Fig 146: Front Of Engine

G00517740

Courtesy of MERCEDES-BENZ USA

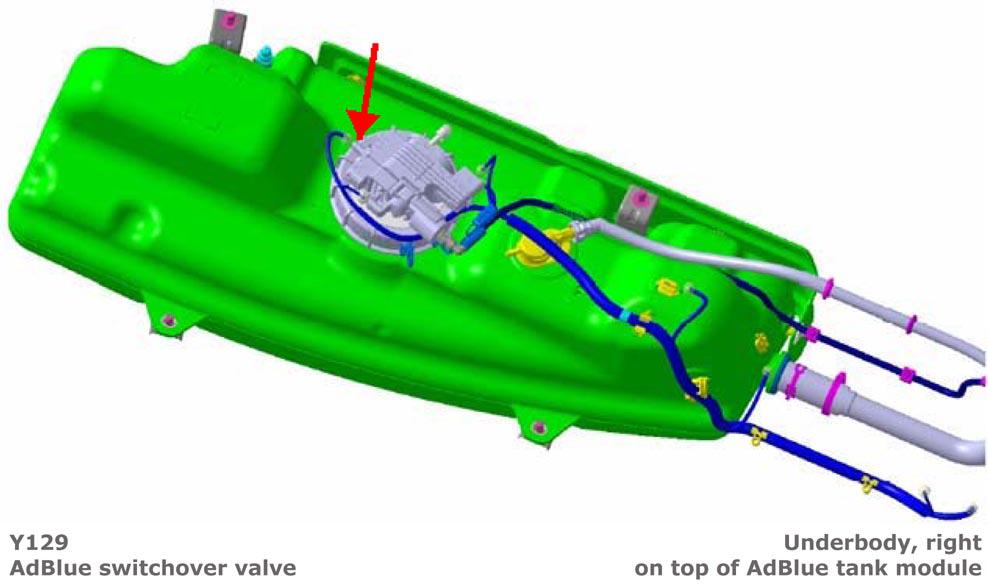

Fig 147: Under Right Side Of Vehicle

G00517741

Courtesy of MERCEDES-BENZ USA

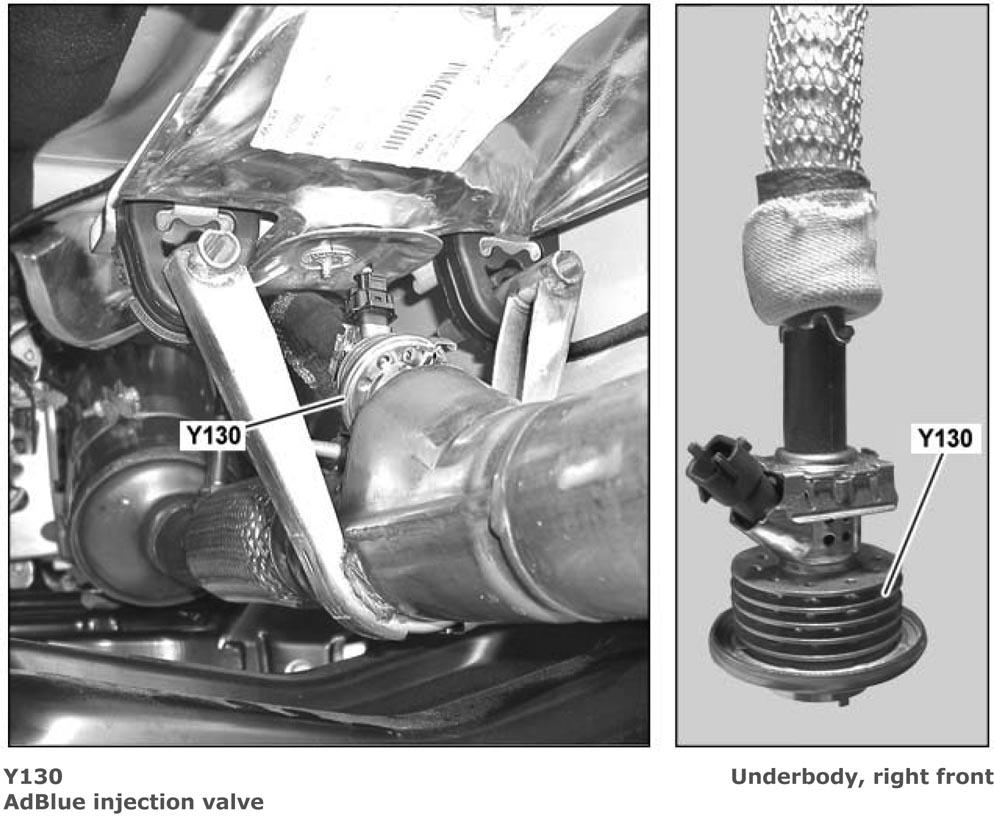

Fig 148: Exhaust System

G00517742

Courtesy of MERCEDES-BENZ USA

Fig 149: Locating Adblue® Relay (K110)

G10287676

Courtesy of MERCEDES-BENZ USA

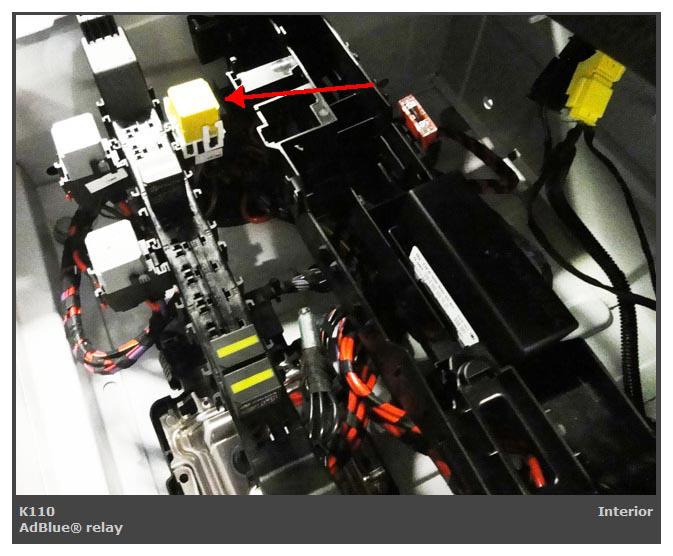

Fig 150: Locating Adblue® Relay (K110)

G10287677

Courtesy of MERCEDES-BENZ USA
