UPFITTER Bulletin - PSM - Program Loading (09/26/2013)
Publication date: 2013-09-26Reference number: 09/26/2013

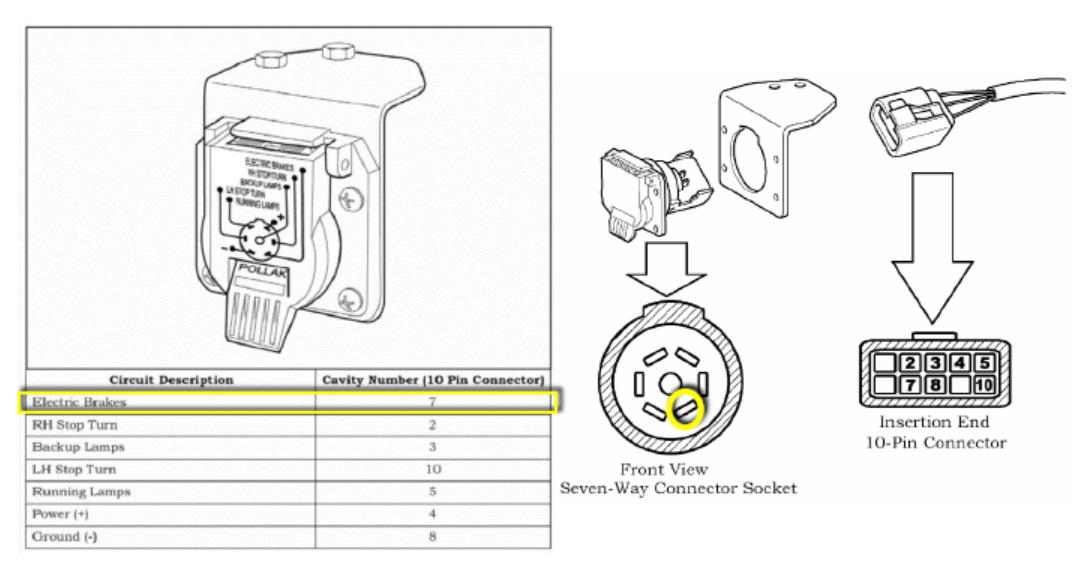

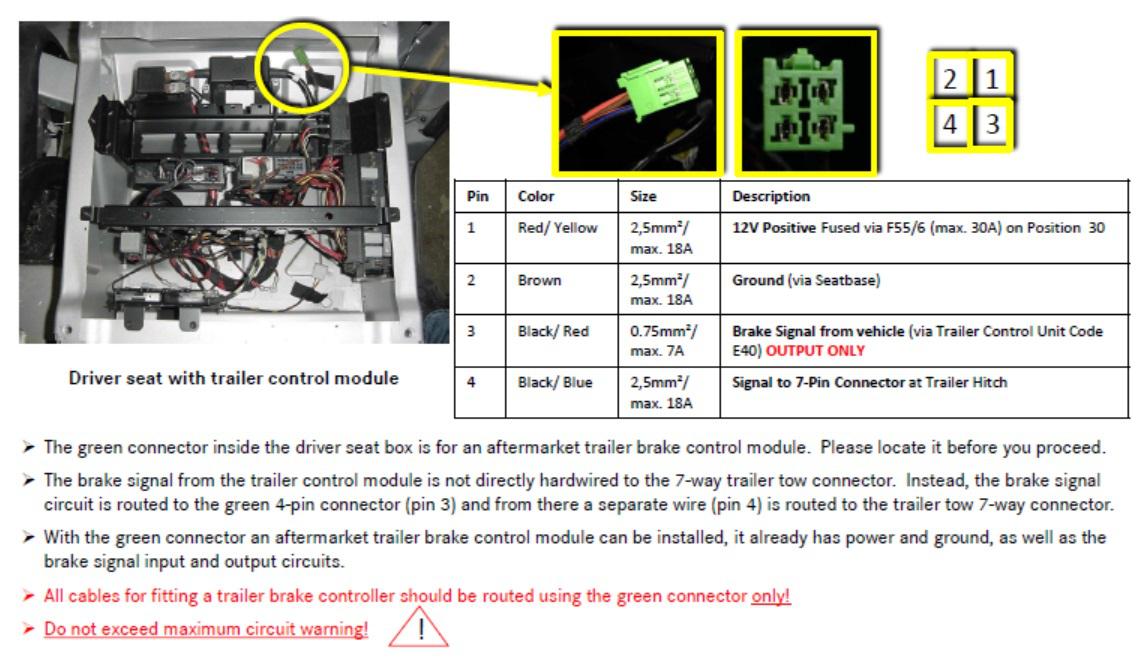

UPFITTER BULLETIN - TRAILER BRAKE CONTROL PREP (GREEN 4-PIN CONNECTOR)
TECH-INFO/BULLETIN
Reference Number(s): 09/26/2013, Date of Issue:
September 26, 2013
| SPRINTER: | Model Year 2007 And Newer |
REGIONAL UPFITTER CENTER NAFTA
DISCLAIMER
The specifications, descriptions, information, and recommendations contained in this bulletin are believed to be accurate as of October 3, 2013.
Sprinter Sales Engineering reserves the right to modify or append this document without prior notification.
This bulletin is not intended as a work instruction, but as an aid for upfitters to provide technical information necessary to retrofit or modify Mercedes-Benz Sprinters & Freightliner Sprinters (906).
Prior to making any modification to or installing any equipment in or on a Mercedes-Benz Sprinter & Freightliner Sprinter, please check with Sprinter Sales Engineering for additional and updated information, and read the Sprinter Body Builder Information Book Model Series 906.
SPRINTER SALES ENGINEERING CONTACTS:
- Walther F Bloch
- Department Manager
- 843-695-5053
- walther.bloch@daimler.com
- Hotline Engineering Support
- Sales Engineering Support
- 877-367-0024
- van.engineering@daimler.com
- www.daimlervansupfitterportal.com
