Selection Range Sensor, Component Description - GF27.19-D-5146HAG

TRANSMISSION 722.9 in MODEL 906

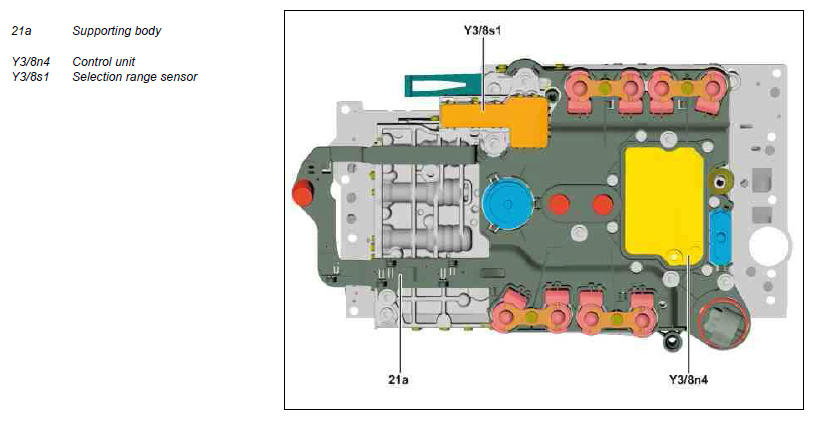

Top view of electric controller unit (Y3/8)

Courtesy of MERCEDES-BENZ USA

Location

The selection range sensor is integrated into the electric controller unit.

Task

The task of the selection range sensor is to detect the selection ranges

"P, R, N, D" and the intermediate positions.
