Ignition Lock Locking, Function - GF27.10-D-3003H
Transmission 722.6 in MODEL 906.111/113/131/133/135/153/155/211/213/231/233/235/253/255/611/613/631/633/635/637/653/655/657/711/713/731/733/735

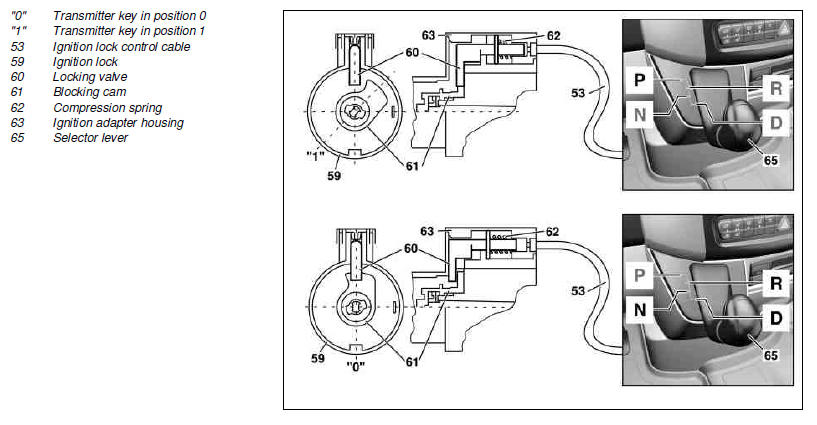

The mechanical system of the ignition lock interlock connects the selector lever with the EIS [EZS] control unit (N73). It prevents the transmitter key from being removed when selector lever position "P" is not engaged.
When the parking lock is not engaged (selector lever position "D", "R", "N") the blocking slide blocks the blocking cam. The compression spring only pulls the blocking slide away from the blocking cam in selector lever position "P". The transmitter key can now be turned into position "0" and removed.
| Park pawl component description | GF27.60-D-2010H |
